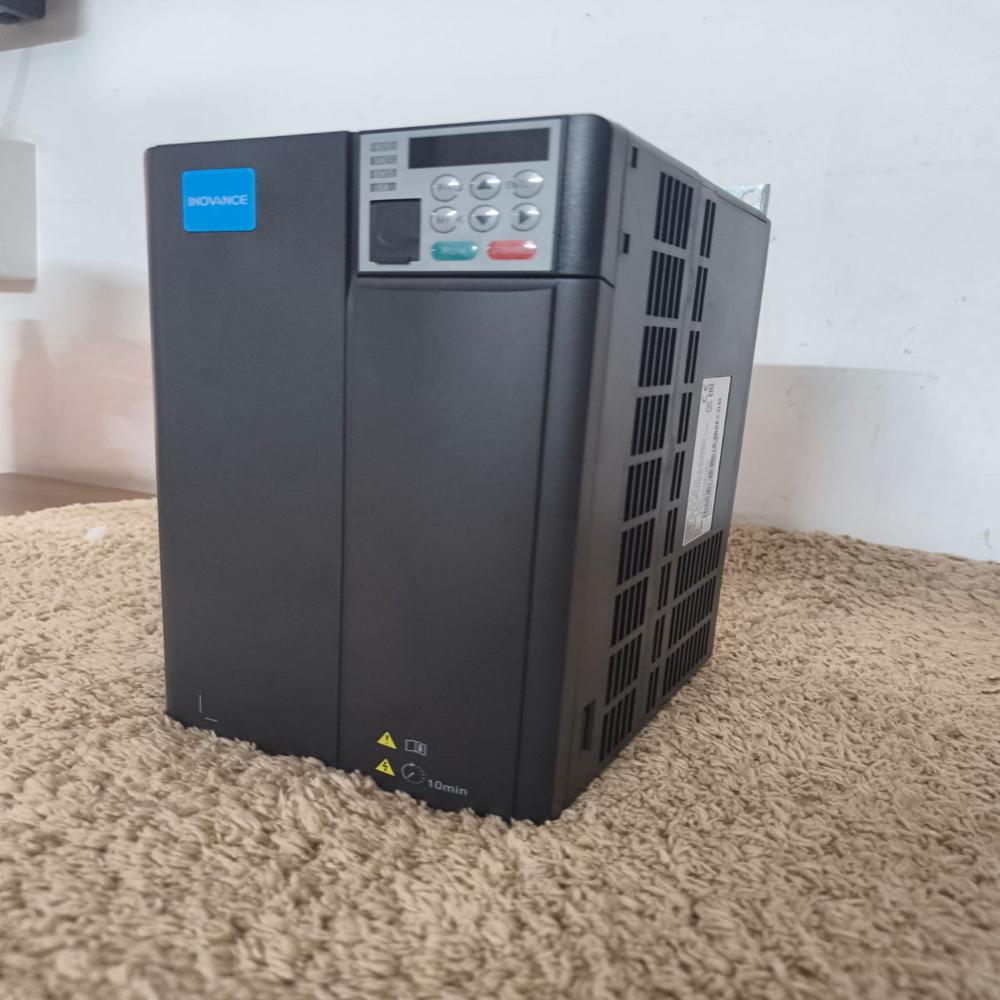

MD5202T11S-INT AC Drive, Three Phase, 200V to 240V,11kw - Inovance Ac Drive

Name: MD5202T11S-INT AC Drive, Three Phase, 200V to 240V,11kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 30100.0 INR
Availability: InStock

Price 30100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5202T11S-INT AC Drive, Three Phase, 200V to 240V,11kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
9.1 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5202T11S-INT AC Drive, Three Phase, 200V to 240V,11kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5202T11S-INT AC Drive, Three Phase, 200V to 240V,11kw - Inovance Ac Drive

The Inovance MD520 11 kW Low-Voltage Drive (Model: MD5202T11S-INT, also written as MD5202T11SINT) is a high-performance vector variable frequency drive (VFD). The 2T designation identifies its standard suitability for three-phase 200 V to 240 V AC input power grids, differentiating it from common 400V setups. The S suffix certifies that it comes with dual-channel functional safety hardware onboard. [1, 2]

This specific 11 kW (15 HP) capacity model is constructed within the medium-sized T5 frame size cabinet footprint. [1]

Device Measurements (T5 Frame Size)

The absolute physical layout dimensions and total mass converted to imperial units from official engineering datasheets are:

Height (Total Length): 13.78 inches (\(350\text{ mm}\))
Width: 8.27 inches (\(210\text{ mm}\))
Depth (Thickness): 7.56 inches (\(192\text{ mm}\))
Net Weight: 20.06 lbs (\(9.1\text{ kg}\)) [1, 2]

Enclosure Panel Backplate Mounting Layout

If you are mapping out internal subpanels or machining cabinet backplates: [1]

Horizontal Pitch Spacing (Hole Width): 7.68 inches (\(195\text{ mm}\))
Vertical Pitch Spacing (Hole Height): 13.19 inches (\(335\text{ mm}\))
Mounting Fixing Bolt Hole Diameter: 0.24 inches (Designed for standard M5 hardware bolts)

Electrical & System Performance Specifications

Specification Metric [1, 2, 3, 5]	Engineering Data Value
Manufacturer	Inovance Technology
Line Input Supply	Three Phase, 200 V AC to 240 V AC (-15% to +10%)
Heavy Duty Power (HD)	11 kW (15 HP)
Rated Output Current	44.0 A (Heavy Duty rating)
Overload Capacity Profile	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency Spectrum	0 Hz to 599 Hz
Integrated Suppression	Built-in internal DC reactor for lower grid harmonics
Enclosure Protection	IP20

System Integration & Environment

Unified Control Software: Smoothly transitions algorithms to run standard AC induction motors or permanent magnet synchronous motors (PMSM). [1]
Atmospheric Coating Protections: Features 3C3 and 3S2 level conformal circuit board coating to isolate components from damp environments or conductive workshop dust. [1, 2, 3]
Functional Safety Integration: Includes Safe Torque Off (STO) hardware circuits certified to SIL3 PL e requirements. [1]
