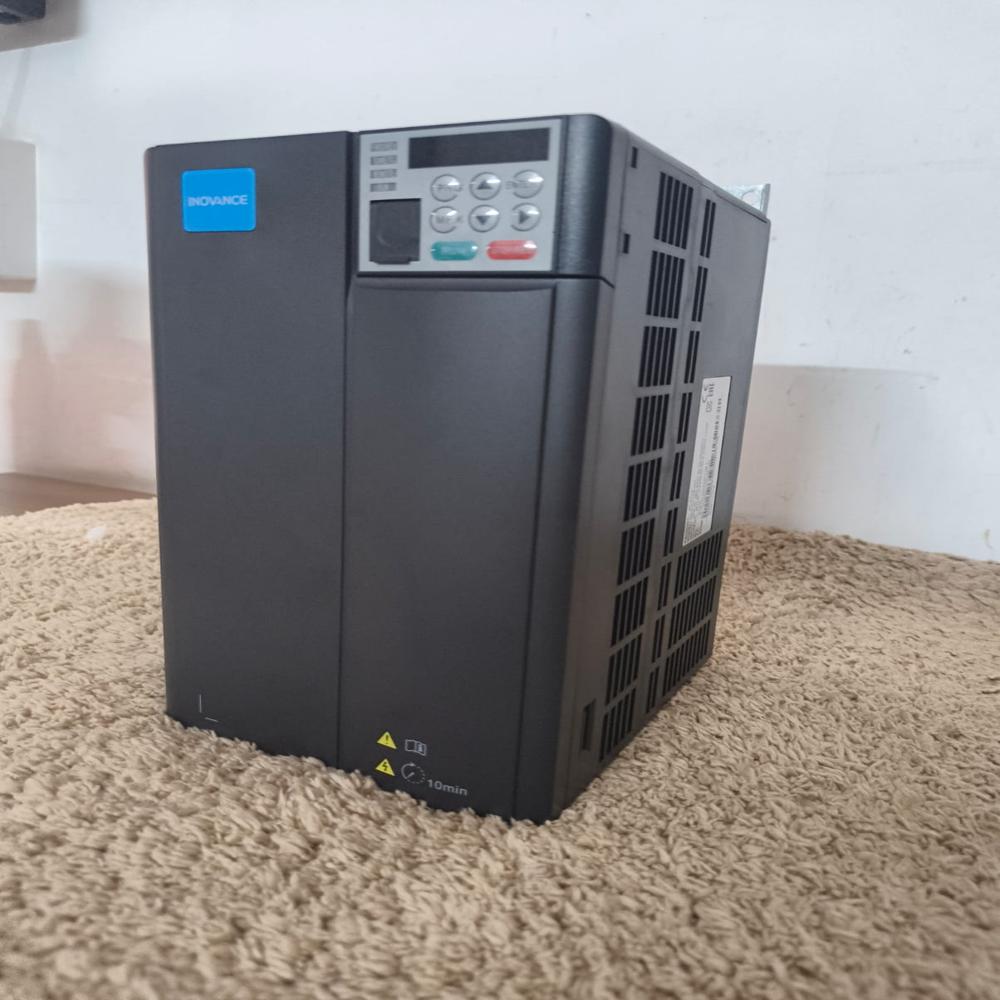

MD5204T110S-INT AC Drive, Three Phase, 380V to 480V,110kw - Inovance Ac Drive

Name: MD5204T110S-INT AC Drive, Three Phase, 380V to 480V,110kw - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 179200.0 INR
Availability: InStock

Price 179200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD5204T110S-INT AC Drive, Three Phase, 380V to 480V,110kw - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Grey And Black

Usage & Applications
Industrial Machinerry

Weight
51.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD5204T110S-INT AC Drive, Three Phase, 380V to 480V,110kw - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD5204T110S-INT AC Drive, Three Phase, 380V to 480V,110kw - Inovance Ac Drive

The Inovance MD520 110 kW AC Drive (Model: MD5204T110S-INT) is a high-capacity, heavy-duty industrial variable frequency drive (VFD). This model belongs to the same T8 frame size group as the 75 kW and 90 kW variants, meaning it retains the identical physical layout while outputting a higher continuous current rating. [1]

Physical Dimensions & Weight (T8 Frame Size)

The physical specifications converted from the official Inovance Technical Datasheet are:

Height (Total Length): 22.83 inches (\(580\text{ mm}\))
Width: 13.31 inches (\(338\text{ mm}\))
Depth (Thickness): 12.40 inches (\(315\text{ mm}\))
Net Weight: 113.54 lbs (\(51.5\text{ kg}\)) [1]

Backplate Mounting Hole Layout

For enclosure panel installation, use these centerline spacing intervals:

Horizontal Hole Pitch (Width): 10.63 inches (\(270\text{ mm}\))
Vertical Hole Pitch (Height): 22.05 inches (\(560\text{ mm}\))
Fixing Bolt Diameter: 0.39 inches (Accepts standard M10 screws)

Electrical & Capacity Specifications

Specification Metric [1, 2, 3, 4, 5]	Engineering Value
Manufacturer	Inovance Technology
Line Input Voltage	Three Phase, 380 V AC to 480 V AC (-15% to +10%)
Heavy Duty Power (HD)	110 kW (150 HP)
Normal Duty Power (ND)	132 kW (175 HP)
Rated Output Current	210 A (Heavy Duty) / 253 A (Normal Duty)
Overload Capacity	Heavy Duty: 150% for 60s / Normal Duty: 110% for 60s
Output Frequency	0 Hz to 599 Hz
Ingress Rating	IP20

Built-in System Protections [1]

Braking Control: Requires an external braking unit (Model: MDBUN-200-5T-INT) for high-inertia deceleration or dynamic braking.
Harmonic Filtering: Features a built-in internal DC reactor to limit line distortion.
Environmental Protection: Standard 3C3 and 3S2 conformal-coated PCBs protect against conductive dust and gases.
Safety Integration: Built-in Safe Torque Off (STO) certified to SIL3 PL e functional safety.
