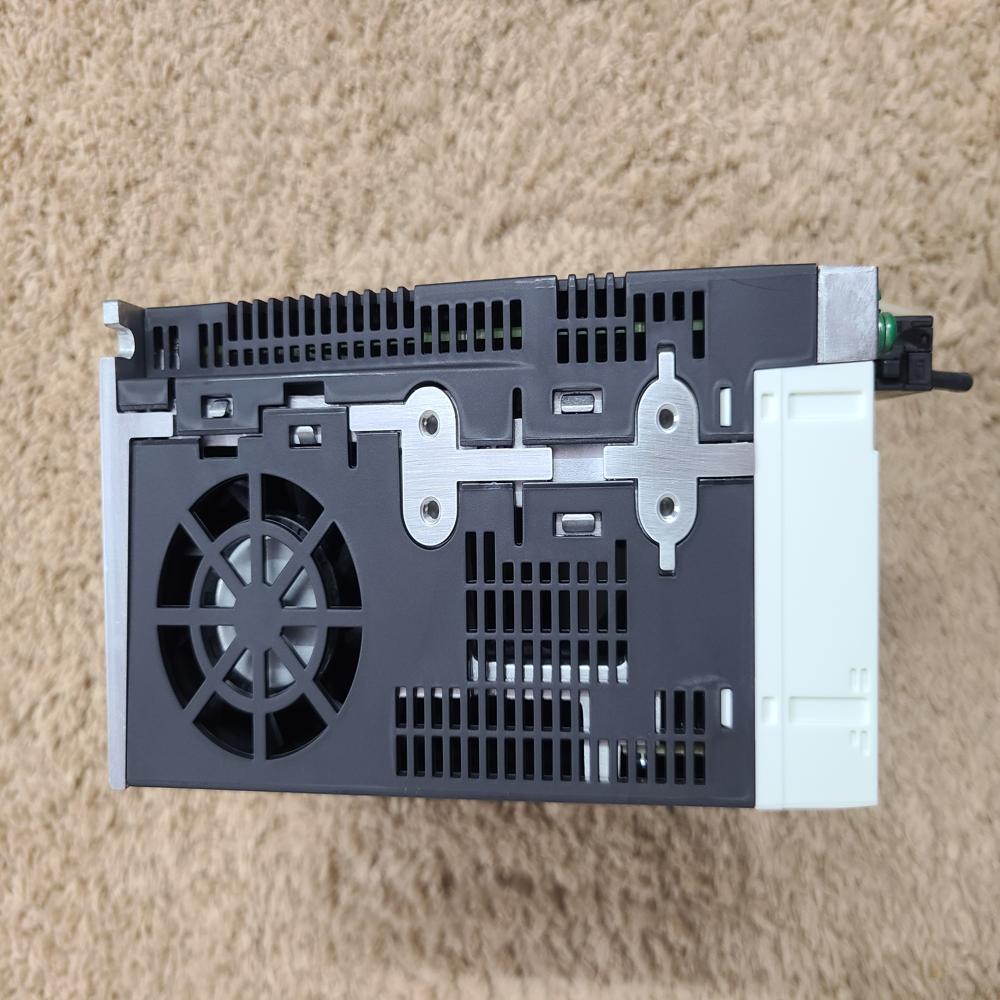

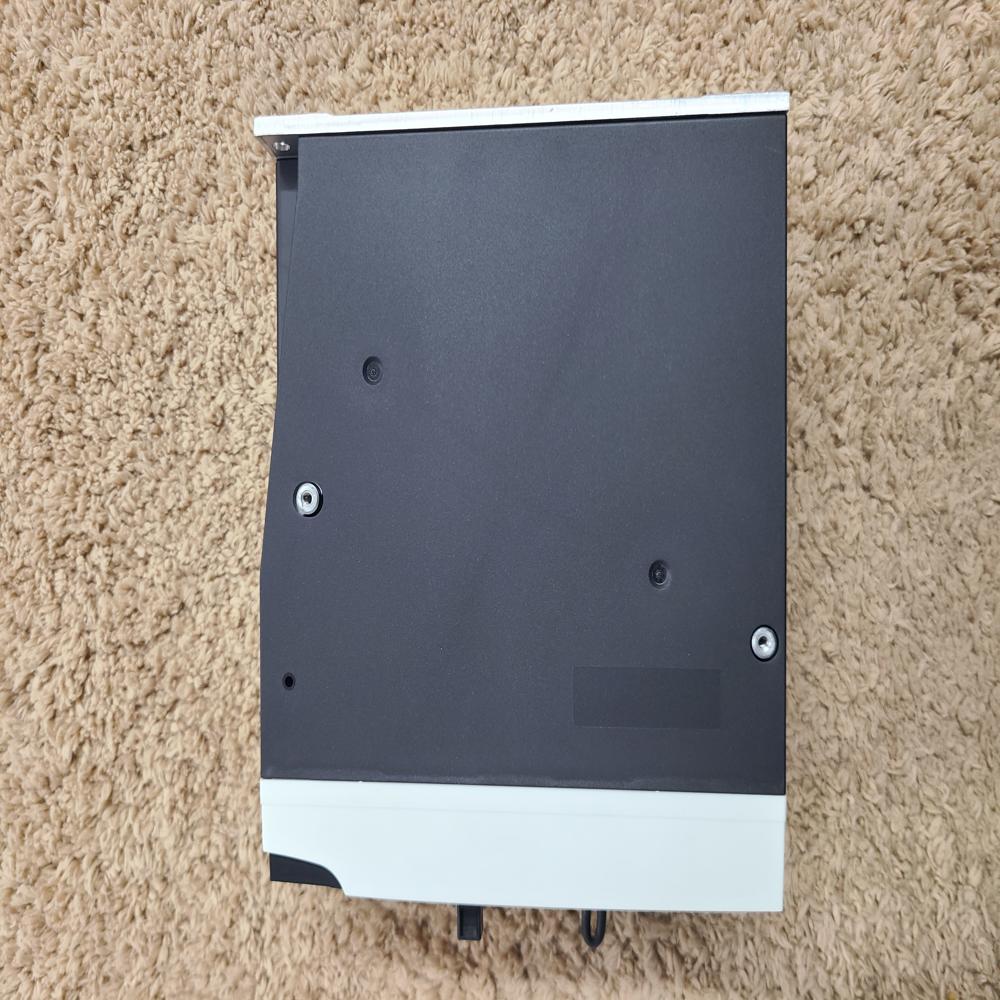

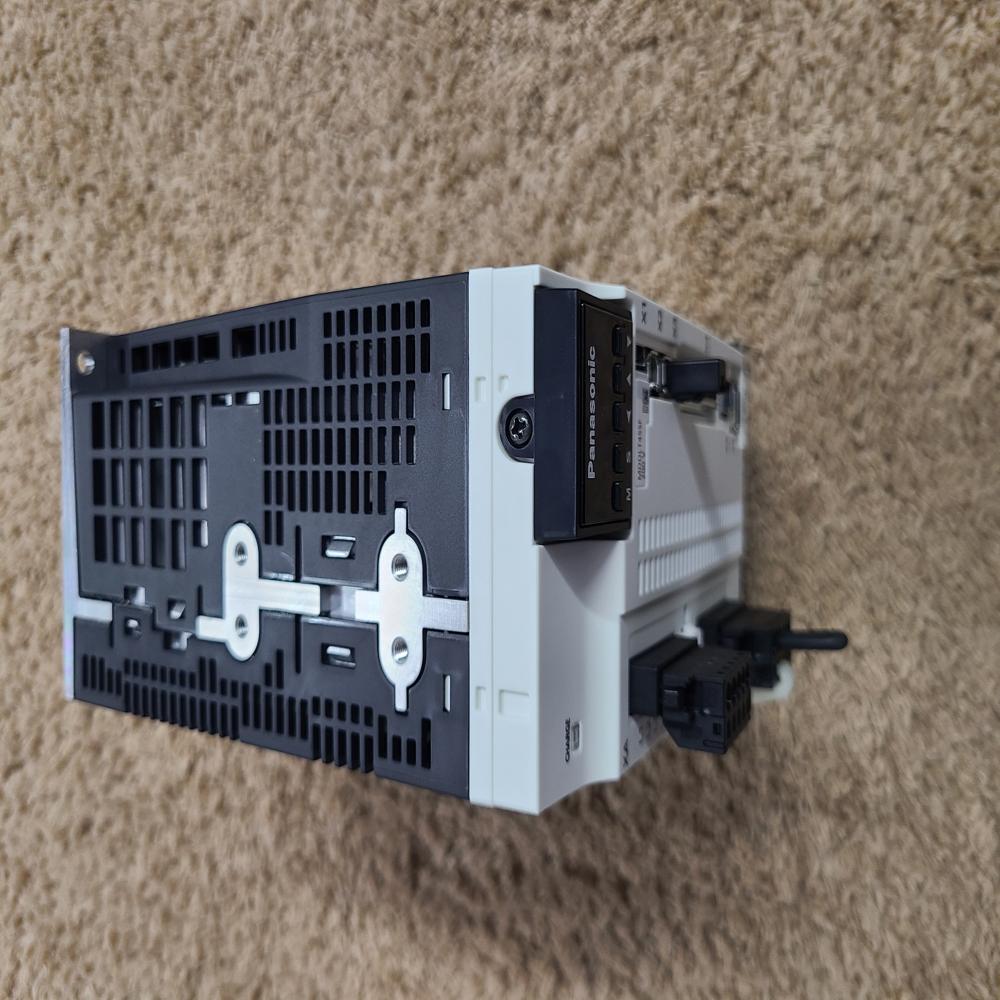

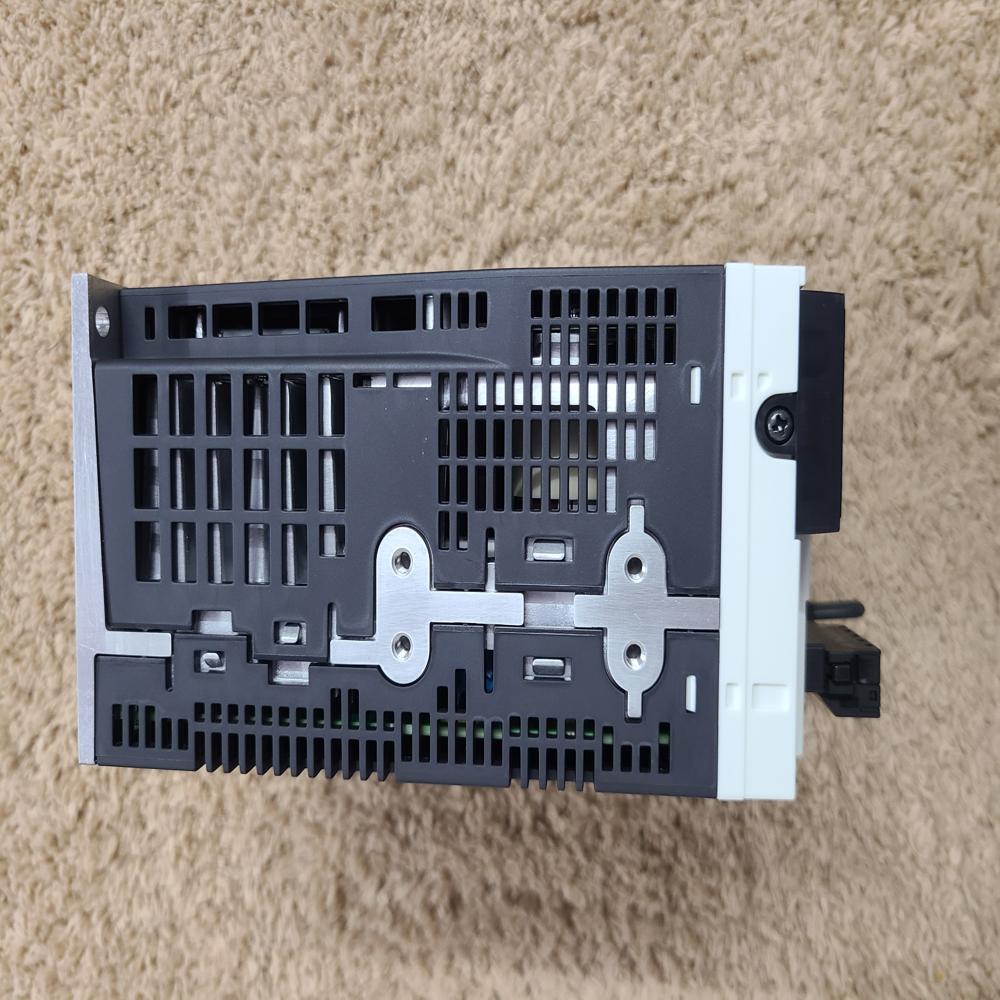

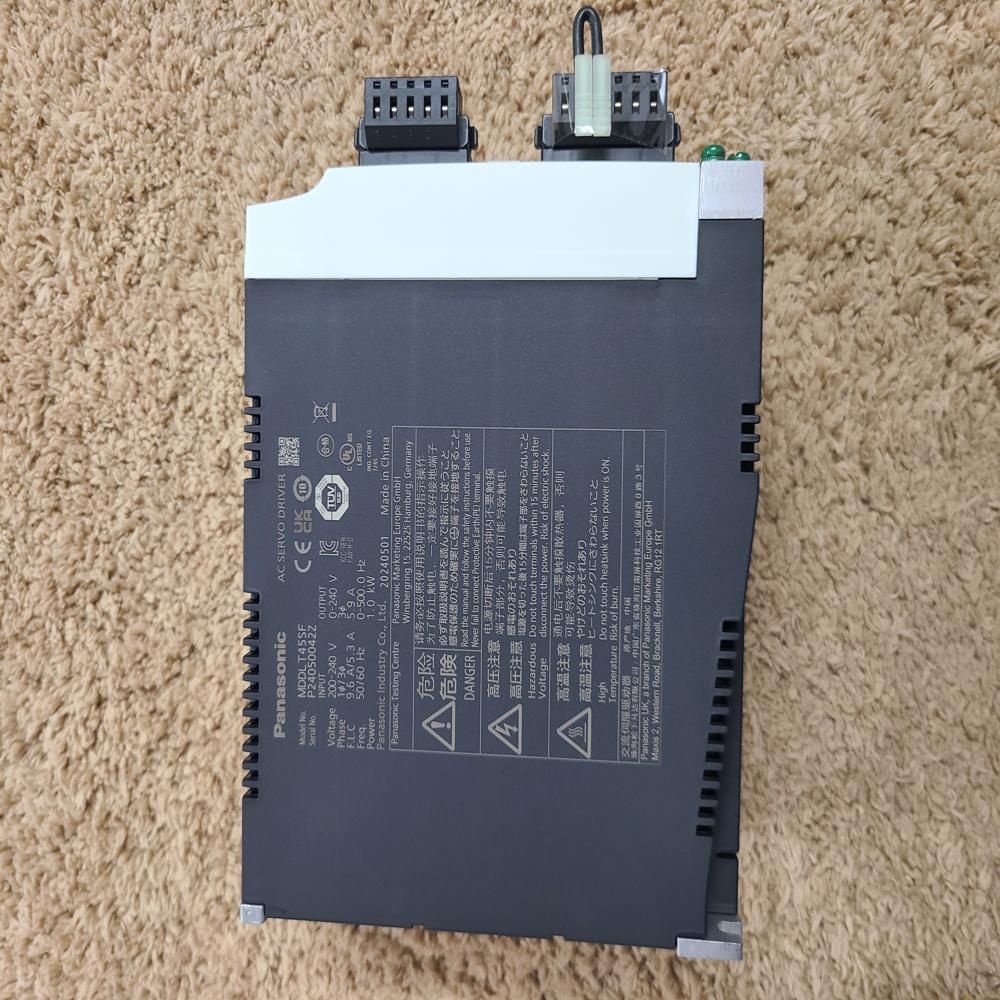

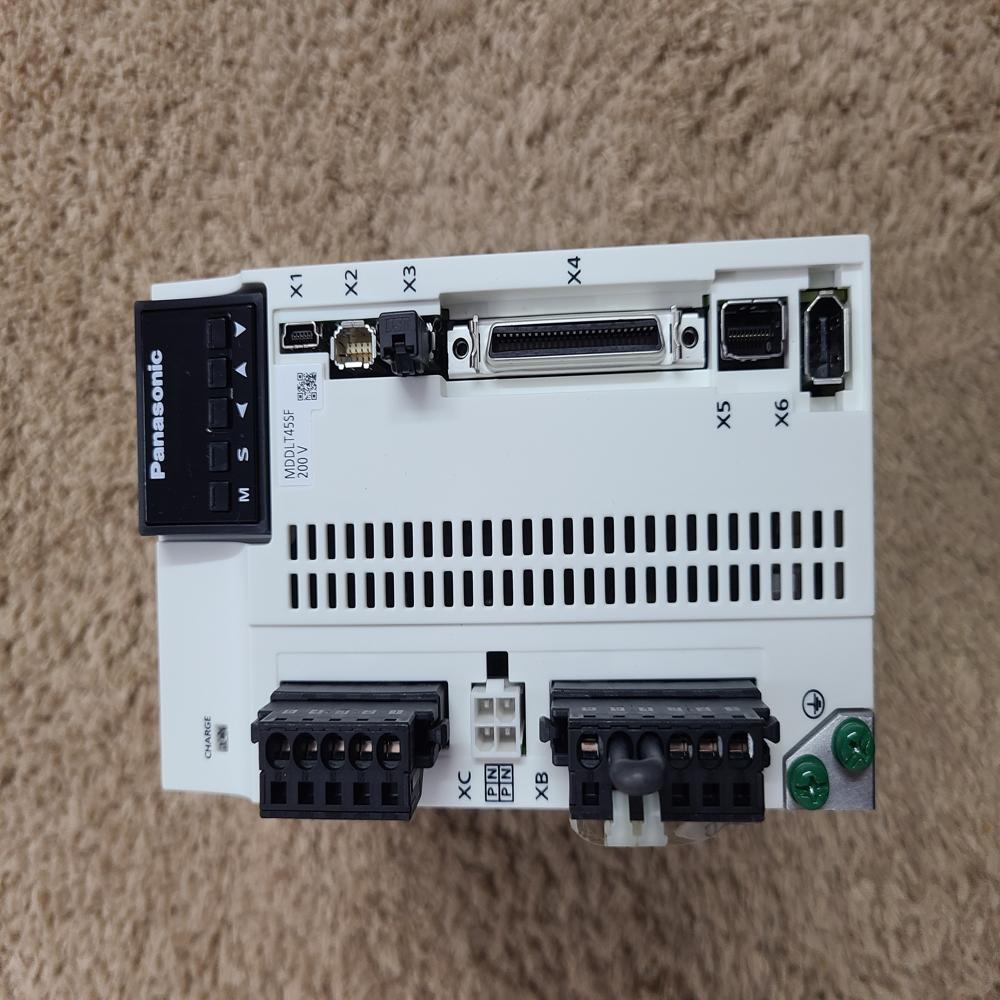

About MDDLN45SE - A6SE Panasonic A6 1000W Driver

Function (What it does)

The MDDLN45SE (A6SE) is a basic position-control servo drive:

Core Functions

• Controls motor position using pulse signals (pulse + direction)
• Works only on incremental system (not absolute communication)
• Converts AC input into precise motor motion output
• Uses encoder feedback (23-bit resolution) for accuracy
• Supports:
  • Position control
  • Internal speed mode
  • Combined position/speed mode

Important

• Pulse control only (no network like EtherCAT/RTEX)
• No safety (STO not available)

Simple meaning:
PLC gives pulse drive processes motor moves exactly

Key Specifications

• Power: 1000W (1 kW)
• Voltage: 200240V AC (1 / 3)
• Frequency Response: 3.2 kHz (fast response)
• Control Type: Position (pulse train input only)
• Communication: USB (for setup only)
• I/O:
  • 10 inputs / 6 outputs
  • Pulse input + monitor outputs

Dimensions (in inches)

(Official size converted from mm)

• Height: 150 mm 5.9 inches
• Width: 85 mm 3.35 inches
• Length / Depth: 170 mm 6.7 inches

Weight

• 2.1 kg approx. 4.63 lbs

Quick Summary Table

A6SE vs Others (Quick Understanding)

• A6SE Basic, pulse-only (cheapest & simple)
• A6SG Pulse + Modbus communication
• A6SF Full function (analog + torque + safety)

So A6SE = simplest version in A6 series

Practical Notes

• Same physical size as A6SG / A6SF (easy replacement in panel)
• Requires external safety circuit
• Best for PLC pulse-output machines (textile, CNC, packaging)
