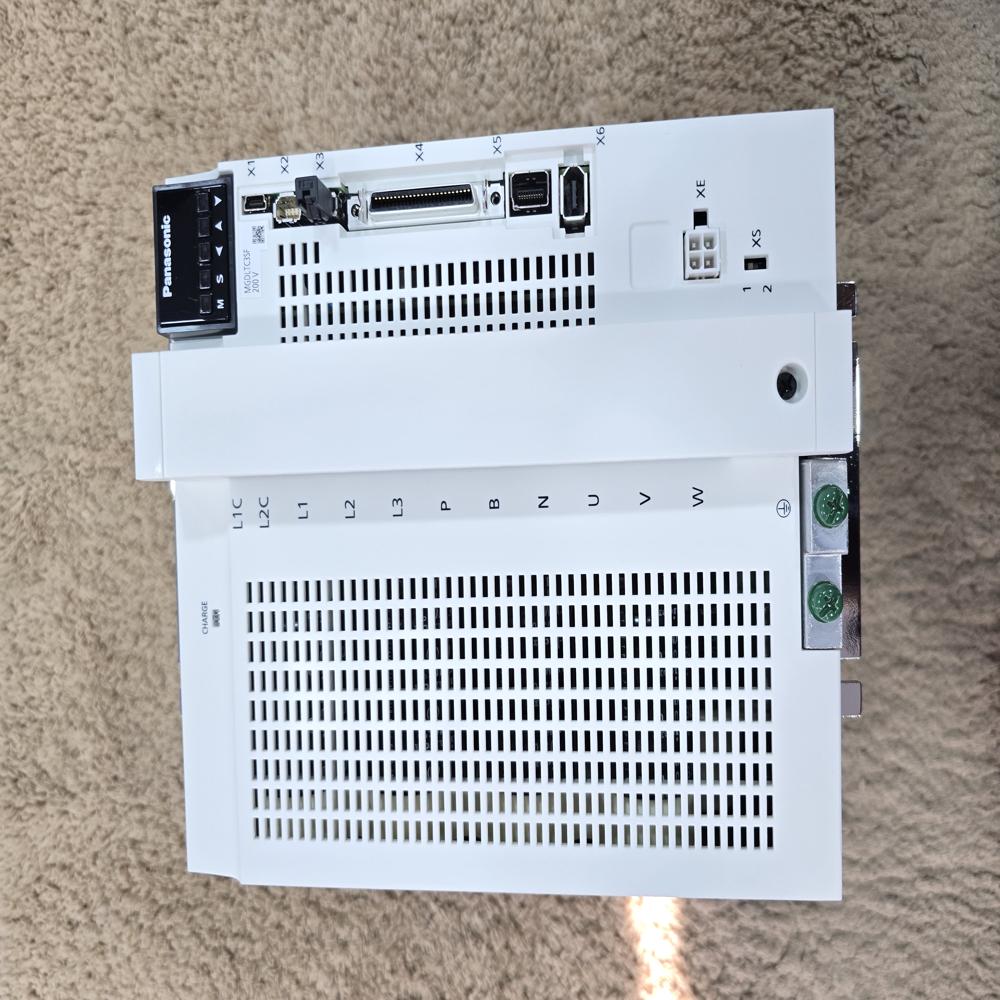

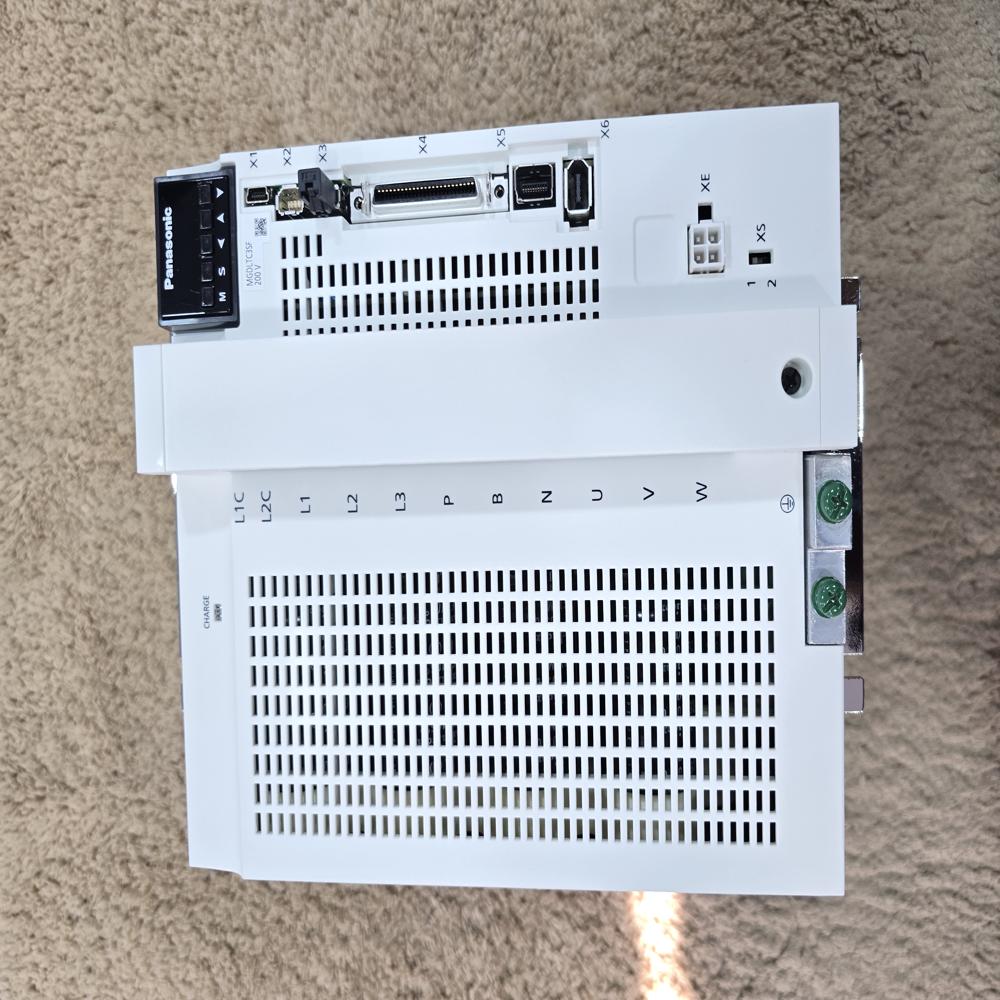

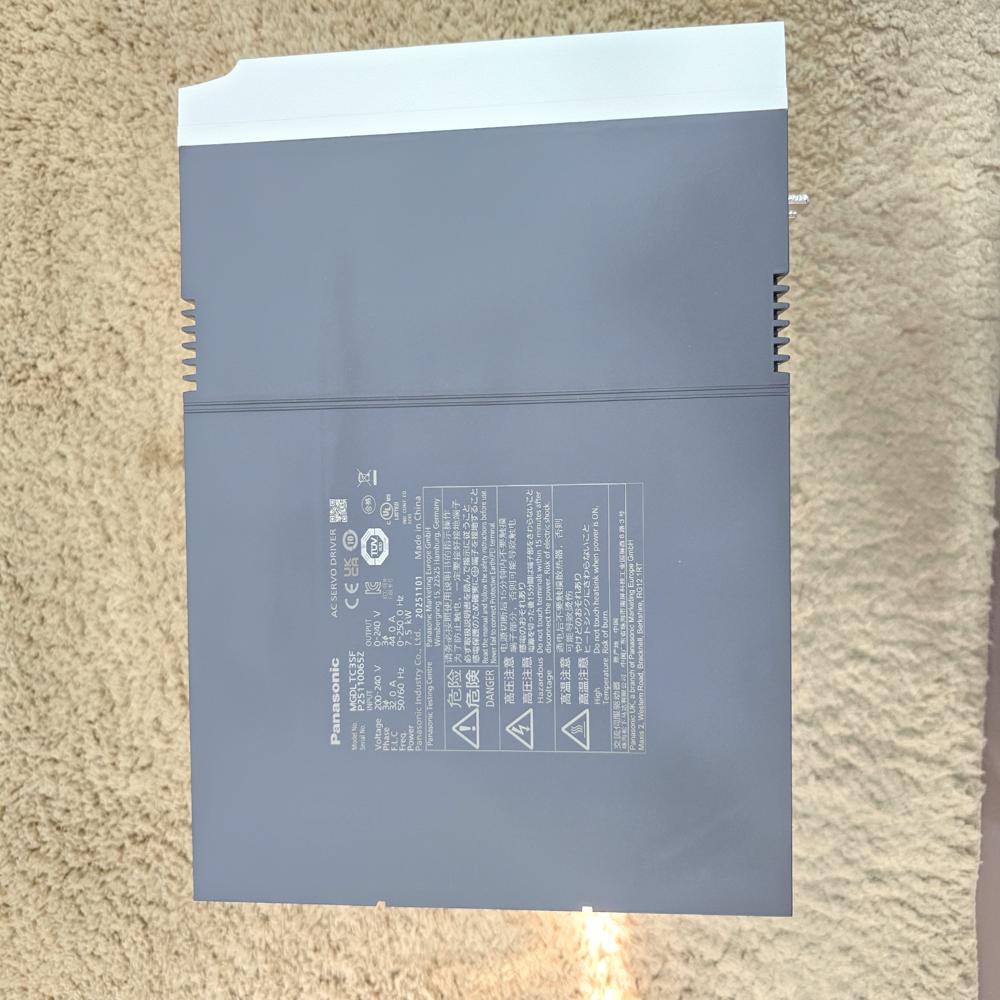

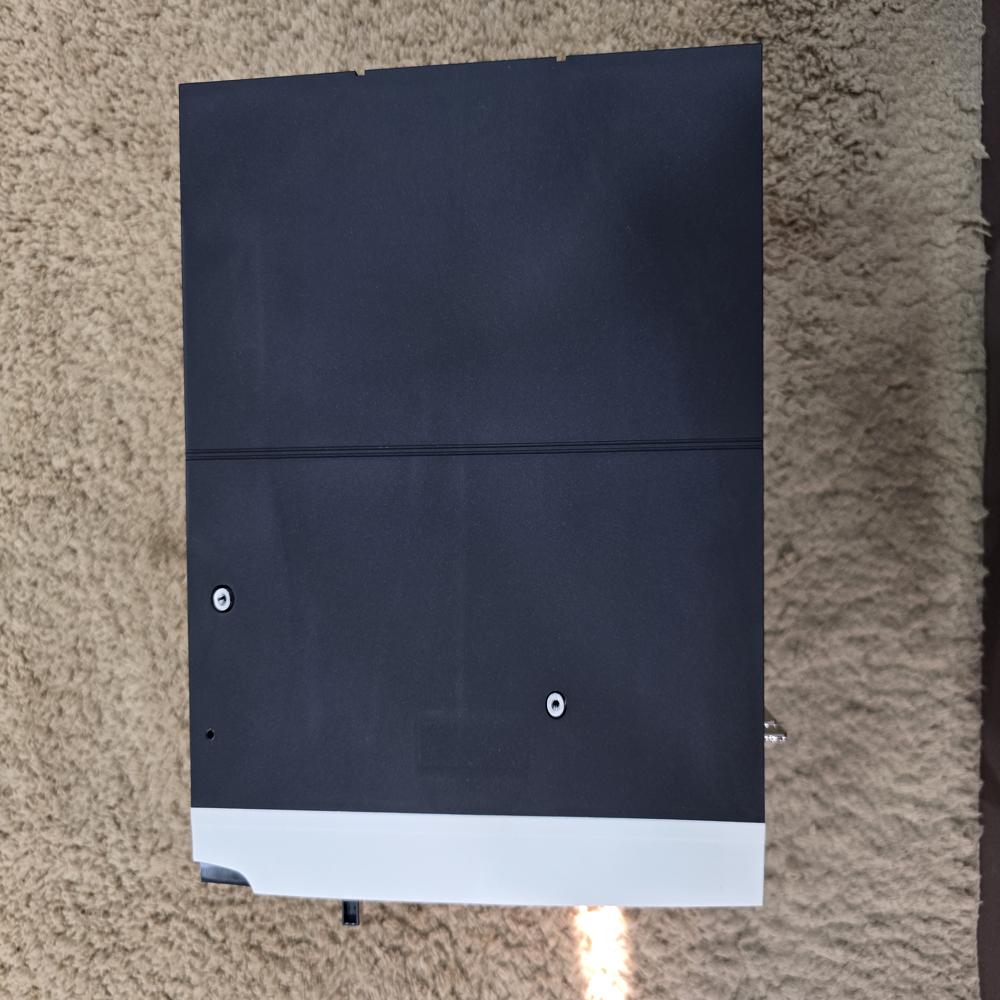

MHDLTF3SF - A6SF Panasonic A6 22000W Driver

Name: MHDLTF3SF - A6SF Panasonic A6 22000W Driver
Brand: Corbital Enterprise
Price: 415000.0 INR
Availability: InStock

Price 415000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MHDLTF3SF - A6SF Panasonic A6 22000W Driver Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
14.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MHDLTF3SF - A6SF Panasonic A6 22000W Driver Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MHDLTF3SF - A6SF Panasonic A6 22000W Driver

The Panasonic MHDLTF3SF is the A6SF Series "Multifunction Type" servo driver specifically engineered to handle the massive electrical requirements of 22 kW (22,000 W) motors like the MDMFD22 model. It utilizes the H-Frame chassisthe largest and most robust in the Panasonic lineup.

Core Technical Specifications

Rated Power: 22 kW.
Rated Current Output: 96.0 A (rms).
Input Voltage: 3-phase 200 V AC to 240 V AC.
Frame Size: H-Frame.
Control Modes: Position (Pulse), Velocity (Analog), Torque, and Full-closed control.

Physical Specifications (H-Frame)

This driver is a heavy-duty unit designed for cabinet mounting.

Attribute	Measurement (Metric)	Measurement (Imperial)
Weight	14.2 kg	31.3 lbs
Width	210 mm	8.27"
Height	300 mm	11.81"
Depth	260 mm	10.24"

Key Functions

Extreme Current Management: It is designed to safely switch and regulate the 96 Amps required to move a 22 kW motor. It includes heavy-duty cooling fans and massive heatsinks to manage the thermal load.
Flexible Interface (SF Type): Because it is an SF series, it functions with traditional Pulse/Direction signals or 10V Analog inputs. This makes it ideal for upgrading older machines with modern 22 kW servos.
3.2 kHz Response & Suppression: It features the same ultra-fast reaction time as the rest of the A6 family, with advanced filters to stop large-scale mechanical resonances in heavy machinery.
Safe Torque Off (STO): Built-in safety hardware allows you to cut the 22 kW of power to the motor instantly during an emergency, meeting SIL3 safety standards.

The Panasonic MHDLTF3SF (A6SF Series) functions as the Master Power Controller for a 22 kW system. Because it manages a massive 96.0 A of current, its primary function is to safely translate low-voltage control signals into the immense electrical force required to move multi-ton machinery.

1. High-Current "Muscle" Management

The drivers most critical function is handling the extreme power of a 22,000-watt system.

96A Power Conversion: It takes 3-phase 200V-240V AC and converts it into high-frequency pulses. It functions to ensure the motor receives exactly the current needed to hit 140 Nm of torque without overheating the system.

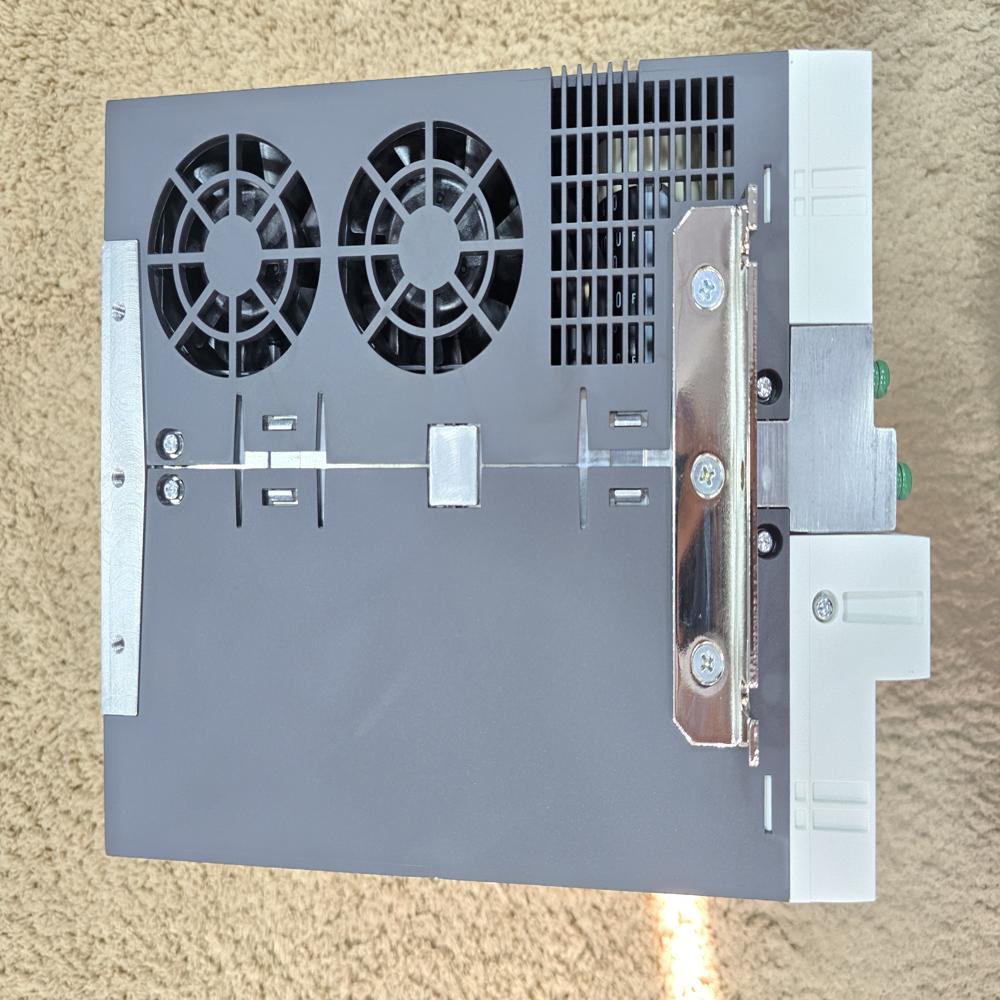

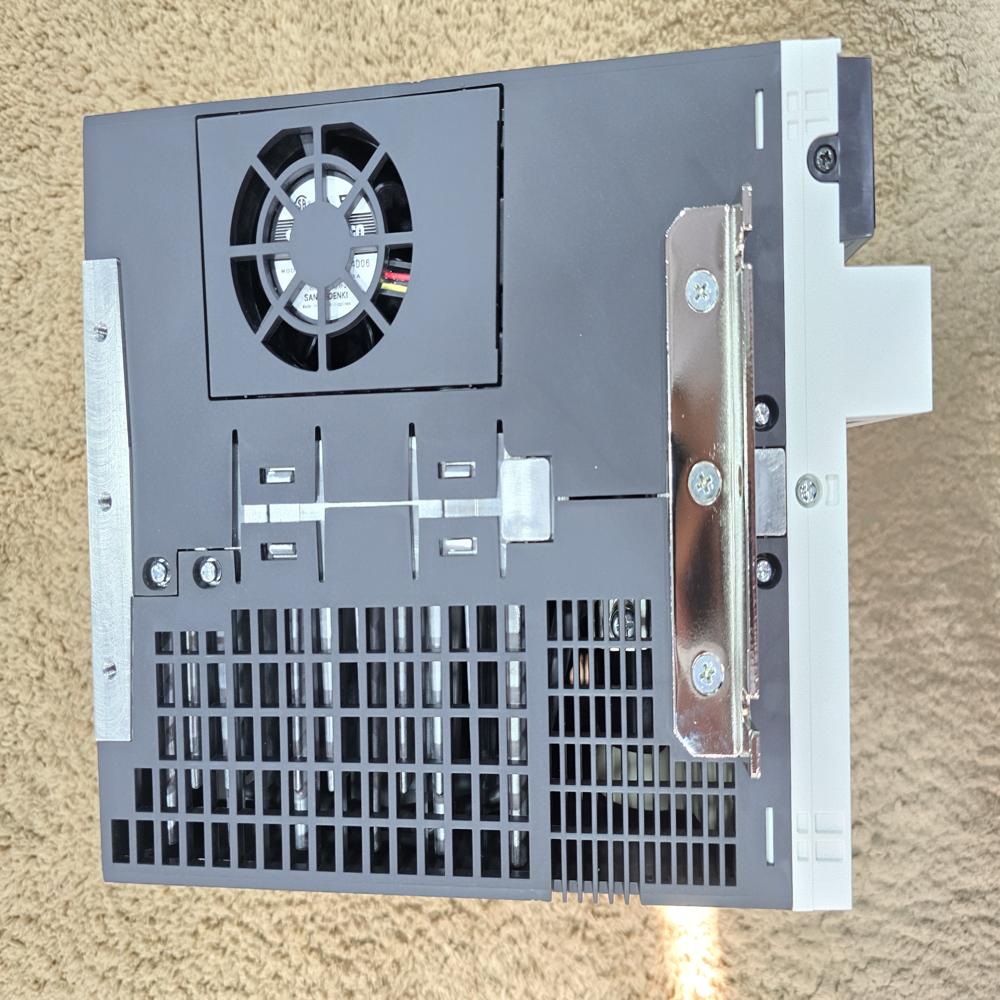

Massive Heat Dissipation: Because of the high amperage, it functions as a thermal manager, using high-efficiency cooling fans and a large H-Frame heatsink to prevent the driver from tripping during heavy-duty cycles.

2. Universal "Bridge" Interface (Multifunction)

As an SF model, it functions as a "Universal Translator" for older or non-networked controllers:

Pulse Train Reception: It can receive up to 8 million pulses per second to define position.
Analog Control: It accepts 10V signals for high-speed velocity or torque applications (like large industrial rollers or extruders).
Internal Positioning: It can store "block data" (pre-set moves), allowing it to function independently for simple repeat tasks without a complex PLC.

3. Vibration & Resonance Suppression

At the 22 kW scale, mechanical "shaking" can be destructive. The driver functions to protect the machine:

Adaptive Notch Filters: It automatically detects "screeching" or "vibration" in the machine frame and creates a digital filter to cancel those frequencies in real-time.
3.2 kHz Response: It monitors the motor's position every 0.3 milliseconds, ensuring that even a 22 kW load stops exactly where it should without "bouncing."

4. Advanced Safety (STO)

Safe Torque Off: It functions as a hardware-level safety gate. It can cut the 96A power to the motors magnets instantly while keeping the drivers electronics alive. This allows an operator to safely clear a jam without the 22 kW motor being able to accidentally restart.

5. Regenerative Energy Control

Dynamic Braking: When a 22 kW motor stops quickly, it acts as a generator. This driver functions to capture that massive energy surge and bleed it off through external resistors, preventing the high voltage from blowing out your electrical cabinet.

Summary: This driver is the "Command Center" for the heaviest 22 kW applications. It is the best choice if you are using traditional wiring (not a network cable) to control a motor that moves massive loads.
