MGMF092L1H6M Torque Nm - 5.41, Fram Size- 130mm , RPM -3000 + BRK

Price 65000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Piece

MGMF092L1H6M Torque Nm - 5.41, Fram Size- 130mm , RPM -3000 + BRK Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
6.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MGMF092L1H6M Torque Nm - 5.41, Fram Size- 130mm , RPM -3000 + BRK Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MGMF092L1H6M Torque Nm - 5.41, Fram Size- 130mm , RPM -3000 + BRK

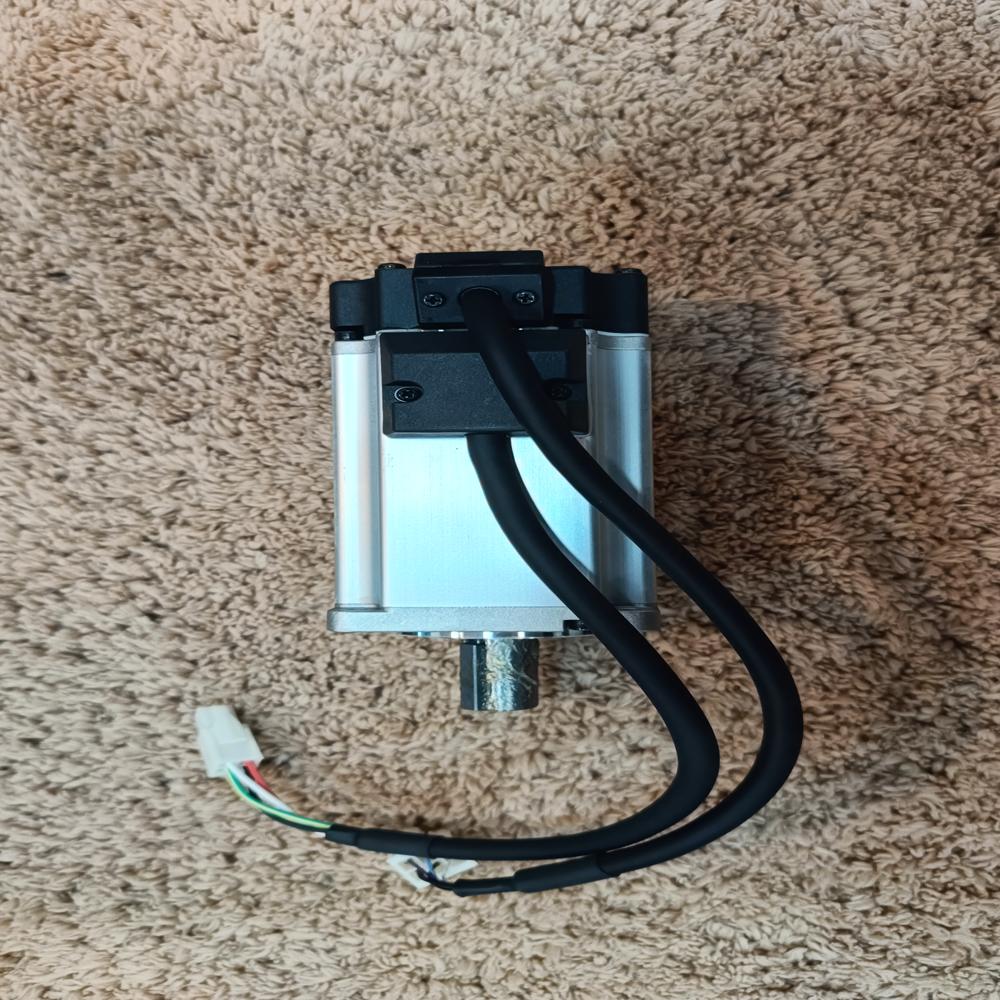

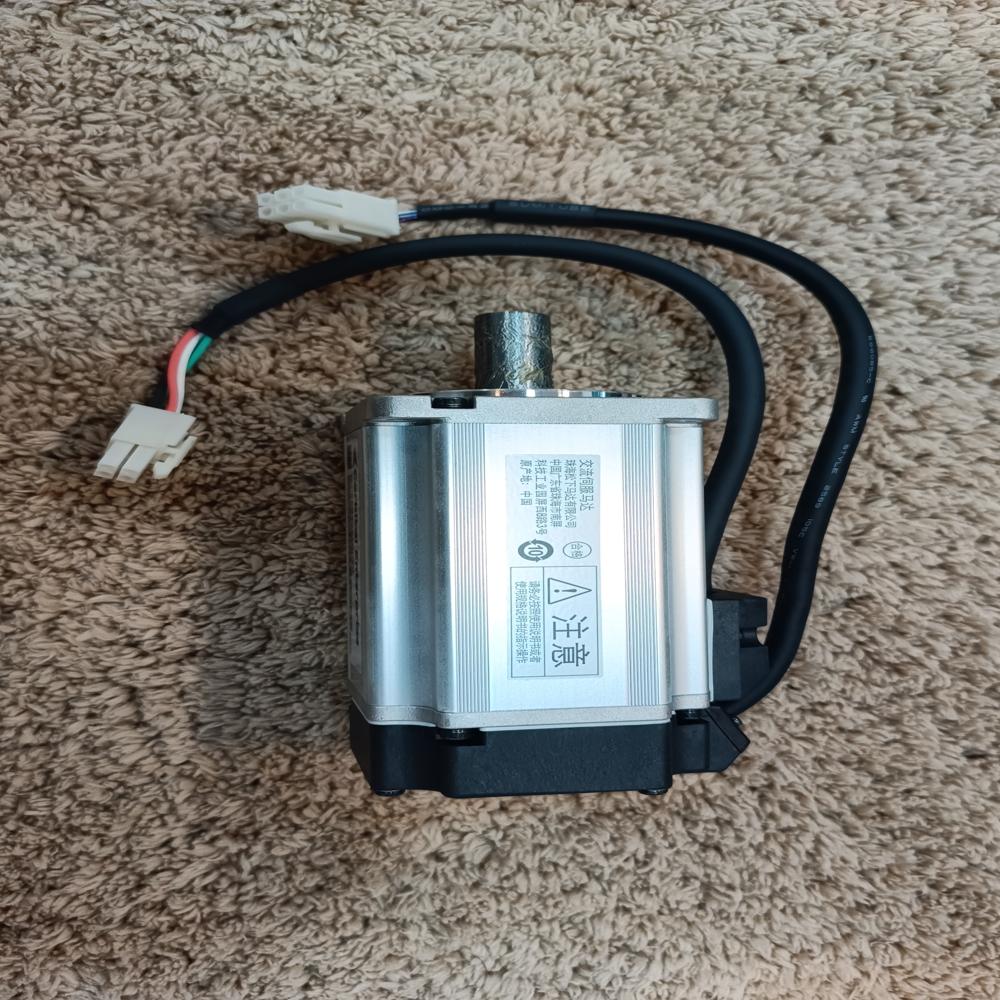

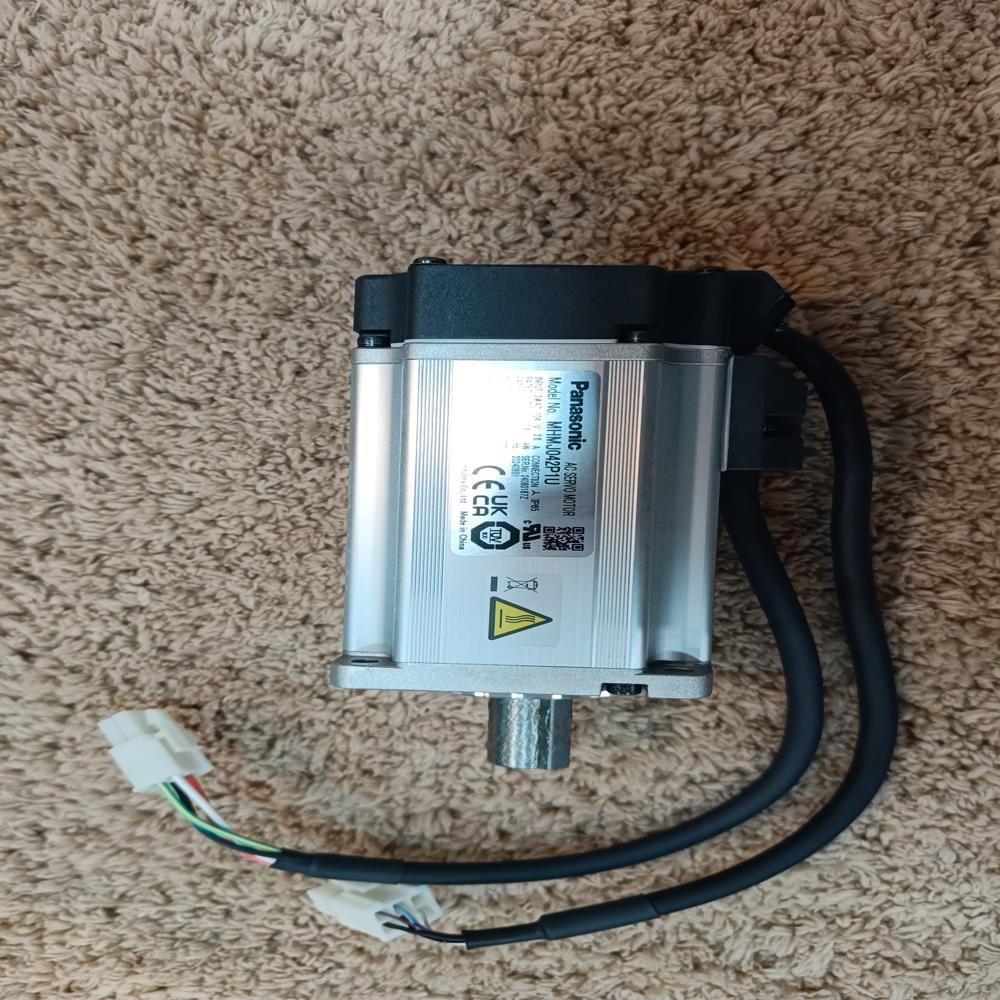

the Panasonic MINAS A6 MGMF092L1H6M is the 850 W middle inertia motor equipped with a mechanical holding brake. It is built on the 130mm frame and is designed for precision vertical motion or safety-critical applications.

Physical Specifications (Imperial Units)

Weight: Approximately 13.7 lbs (6.2 kg).
- The brake adds about 3.1 lbs compared to the non-brake version.
Width & Height (Flange): 5.12 inches (130 mm).
Total Length:
- Body Length (with Brake): 6.65 inches (169 mm).
- Total Length (Body + Shaft): 8.82 inches (224 mm).

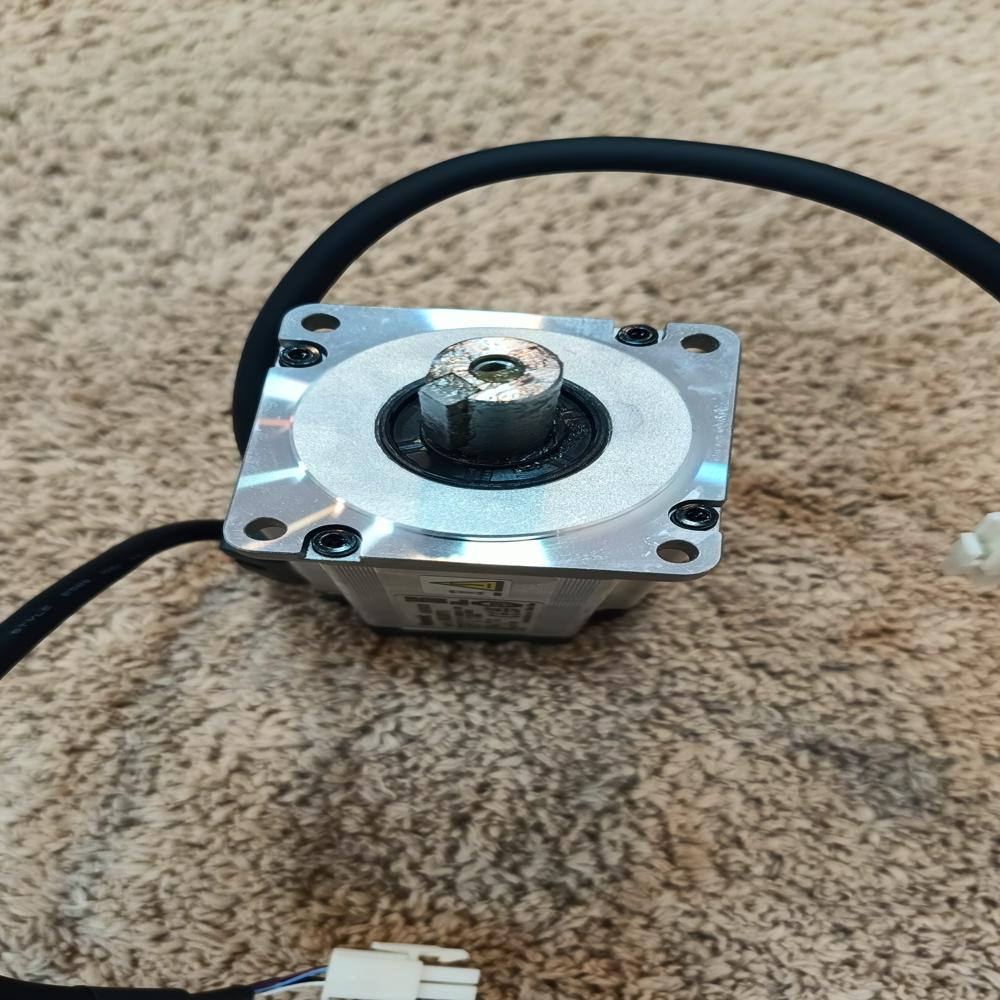

Shaft Dimensions:
- Diameter: 0.87 inches (22 mm).
- Length: 2.17 inches (55 mm).

Core Technical Specs

Rated Output: 850 W (0.85 kW).
Rated Torque: 5.41 Nm.
Peak Torque: 16.2 Nm.
Rated Speed: 3000 r/min (Max: 4500 r/min).
Holding Brake: Included (24V DC).
Brake Static Friction Torque: 7.8 Nm or higher (sufficient to hold the motor's rated load).
Protection: IP67 (dust-tight and water-resistant).

Feature Comparison (850W)

Feature	MGMF092L1G6M (No Brake)	MGMF092L1H6M (With Brake)
Weight	~10.6 lbs	~13.7 lbs
Body Length	5.47"	6.65"
Total Length	7.64"	8.82"

The Panasonic MGMF092L1H6M functions as a Medium-Duty Safety Actuator. It is designed to provide precise, high-speed movement while offering a mechanical "fail-safe" to hold loads in place.

1. Vertical Safety & Load Holding (The Brake)

The primary function of the "H" model is to provide a mechanical lock.

Gravity Protection: On a vertical axis (Z-axis), if the power fails, the 7.8 Nm brake instantly locks the shaft. This prevents the machine head or tool from falling and causing damage.
Static Holding: It functions to keep the motor in a fixed position without using electricity, which reduces heat and prevents "motor creep" during long stationary periods.

2. Balanced Motion (Middle Inertia)

This motor is a Middle Inertia type, which serves a specific stabilization function:

Load Matching: It functions best on machines with slightly higher friction or changing weights (like a conveyor or a small gantry). The extra weight in the motor's rotor acts as a "buffer," making it easier to control heavy parts without the system becoming "jittery."

3. High-Resolution Precision

23-bit Feedback: It functions as a surgical instrument, providing 8,388,608 pulses per revolution. It can position a load with a precision of a few micrometers.
Absolute Memory: It functions to "remember" its location. You don't need to "home" the machine at the start of every shift; it knows exactly where it is the moment you turn it on.

4. High-Speed Response

3000 RPM Capability: It functions to move parts quickly (up to 4500 RPM maximum), making it ideal for packaging, pick-and-place, and light CNC machining where speed is just as important as power.

5. Protection in Harsh Zones

IP67 Sealing: It is fully sealed against dust and high-pressure water/oil spray. It functions reliably inside machines where cutting fluid or metallic dust is present.

Typical Use Cases:

Z-Axis for small CNCs: Moving the cutting head up and down safely.
Packaging Machinery: High-speed sorting where the brake holds the position during stop cycles.
Medical Equipment: Precise positioning where a power loss must not result in unguided movement.
