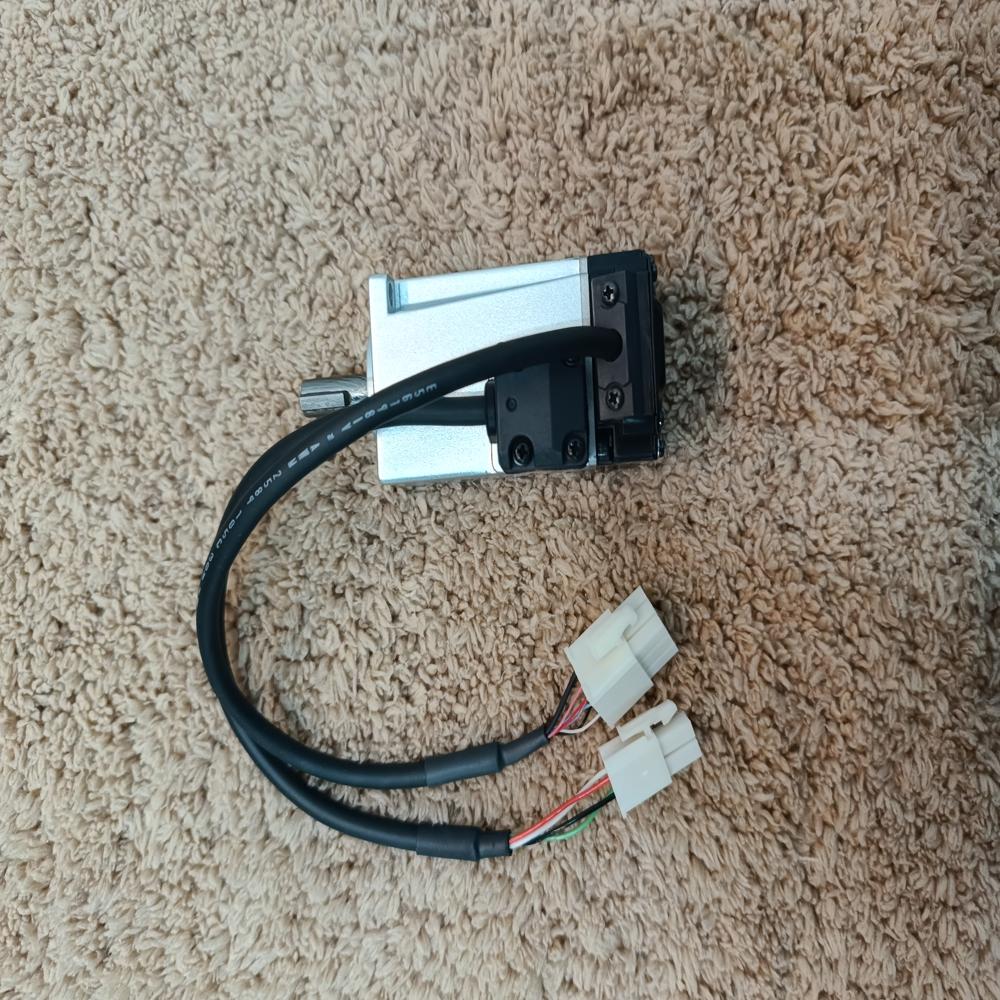

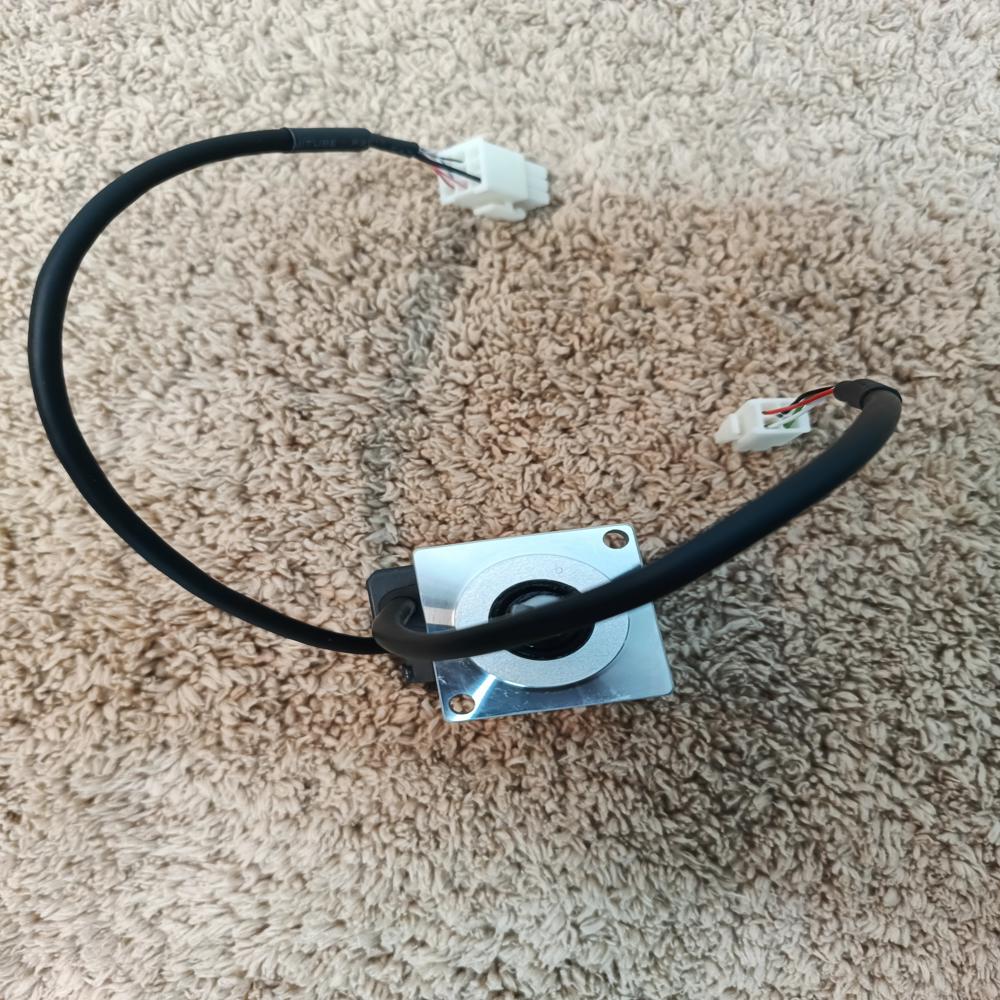

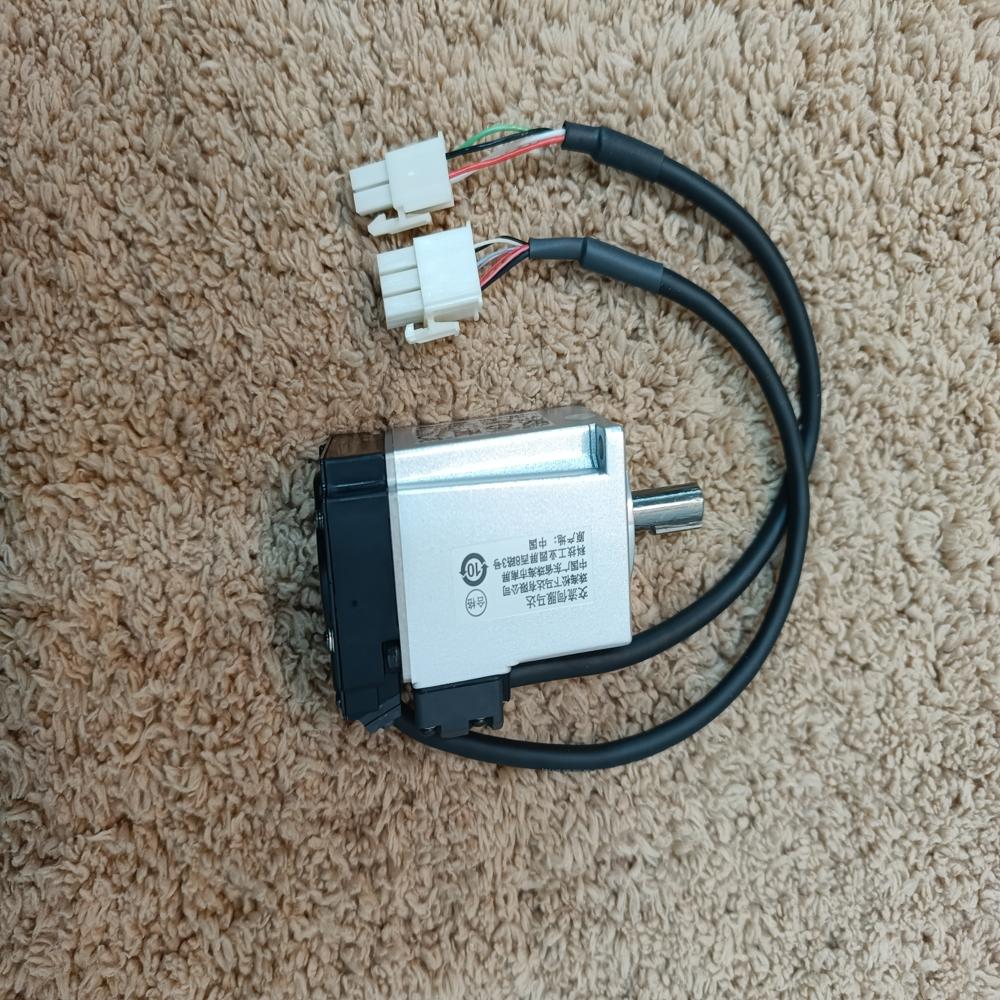

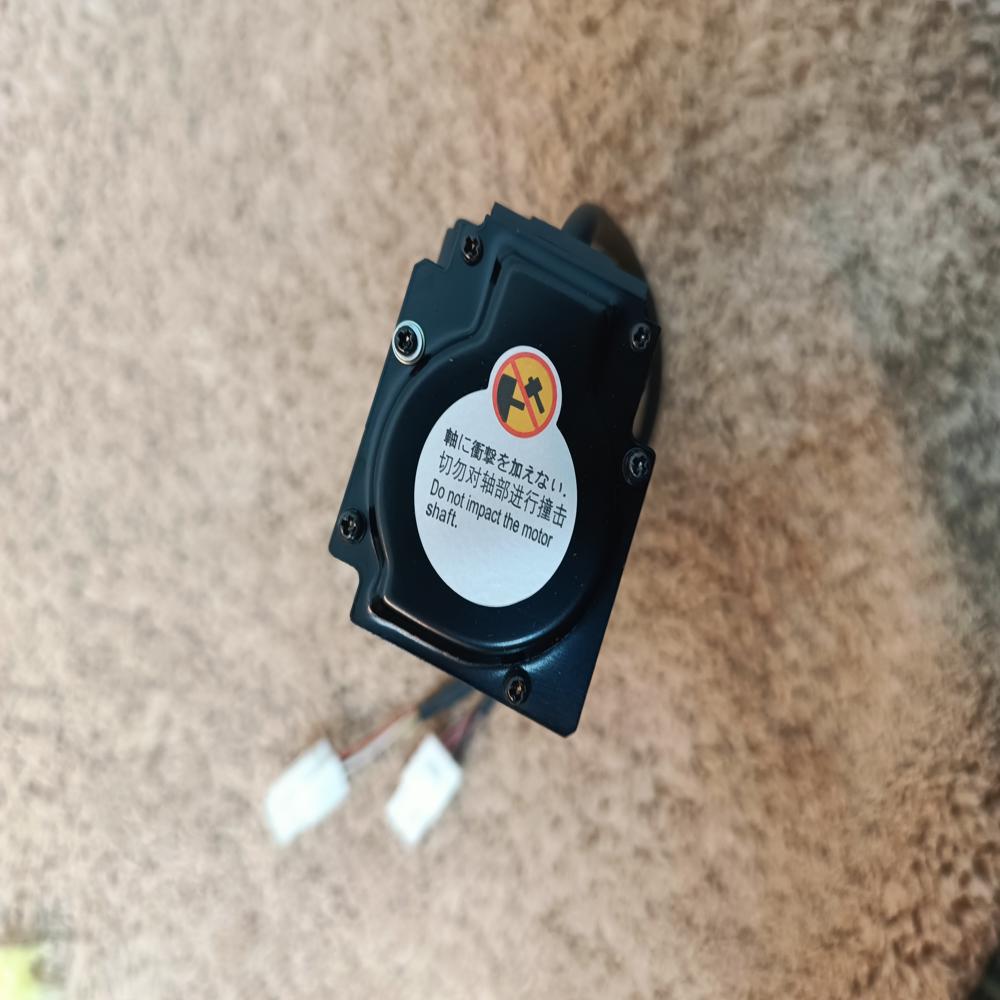

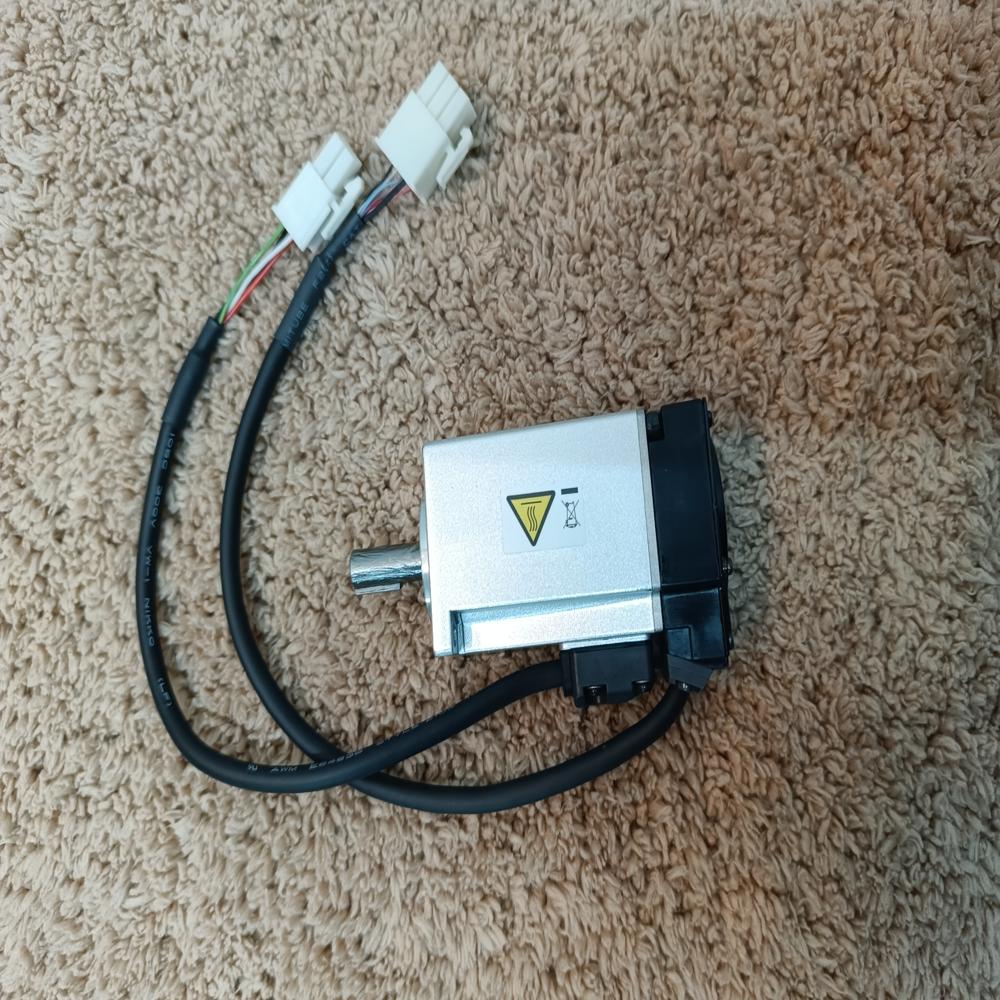

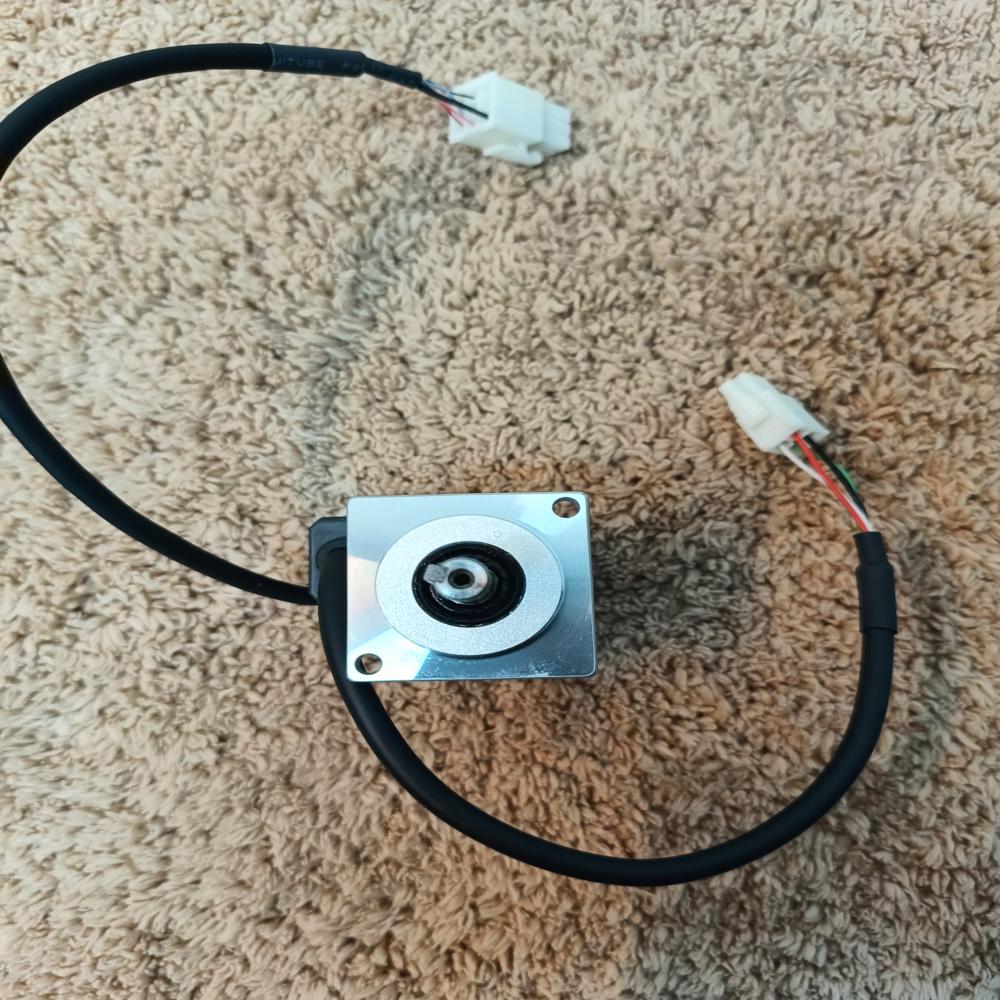

About MHMF012L1V2M Panasonic A6 100W Motor + BRK , Torque Nm -0.32, RPM - 3000

Model Details

MHMF012L1V2M Panasonic MINAS A6 Servo Motor (100W with Brake)

Key Specifications

• Series: Panasonic MINAS A6
• Model: MHMF012L1V2M
• Rated Power: 100 W
• Rated Torque: 0.32 Nm
• Rated Speed: 3000 RPM
• Brake: Yes (holding brake included)
•


Function (What this motor does)

This is a high-precision servo motor used for:

Position Control

• Moves to exact positions with encoder feedback

Speed Control

• Maintains constant speed even under load

Torque Control

• Applies controlled force when required

Works as part of a closed-loop system with A6 servo driver

Important: Brake Function

Since this model has BRK (brake):

• Brake is electromagnetic holding brake (24V DC)
• Power OFF Brake ON (shaft locked)
• Power ON Brake released

Used for:

• Vertical axis (Z-axis in CNC)
• Safety holding
• Prevent falling load

Dimensions (in inches)

Size (Flange)

• 60 60 mm
  2.36 2.36 inches

Length (with brake)

• ~118 mm
  4.65 inches

Shaft

• Diameter: 14 mm (0.55 in)
• Length: ~30 mm (1.18 in)

Weight

• Approx: 1.2 kg
  2.65 lbs
