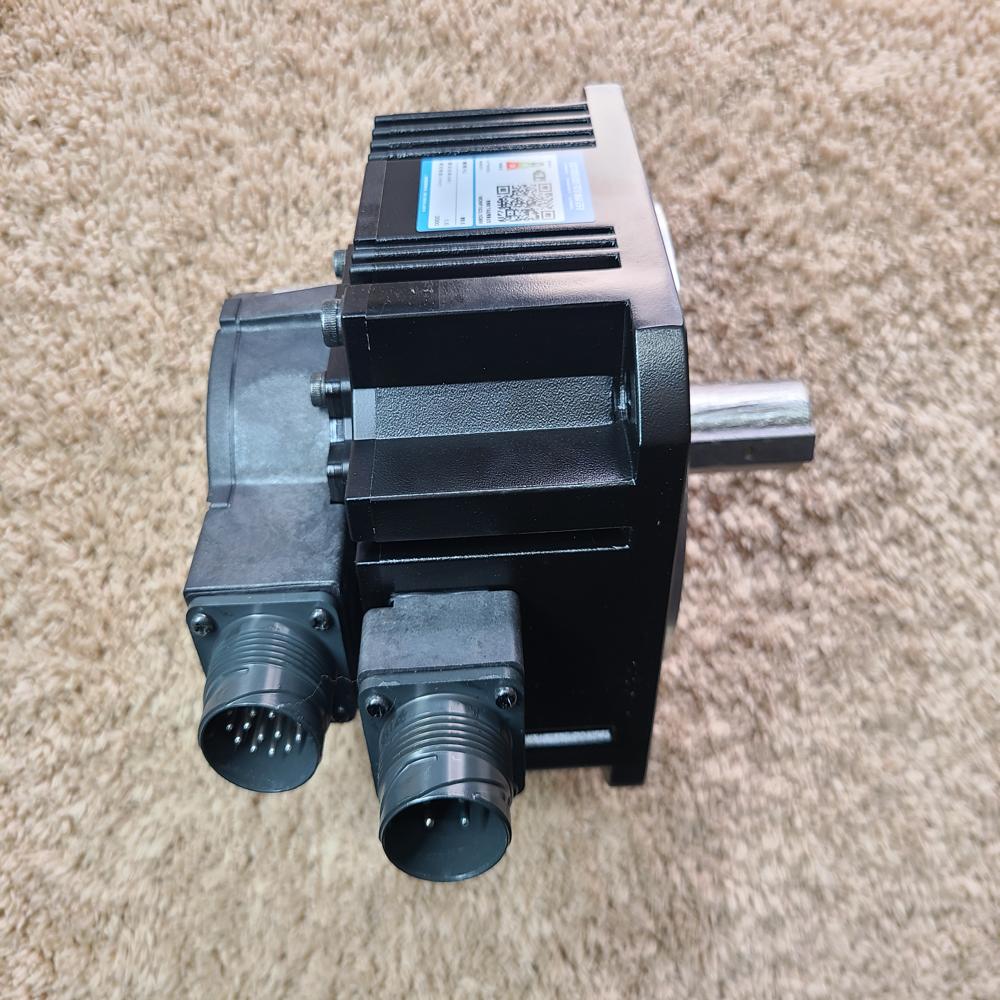

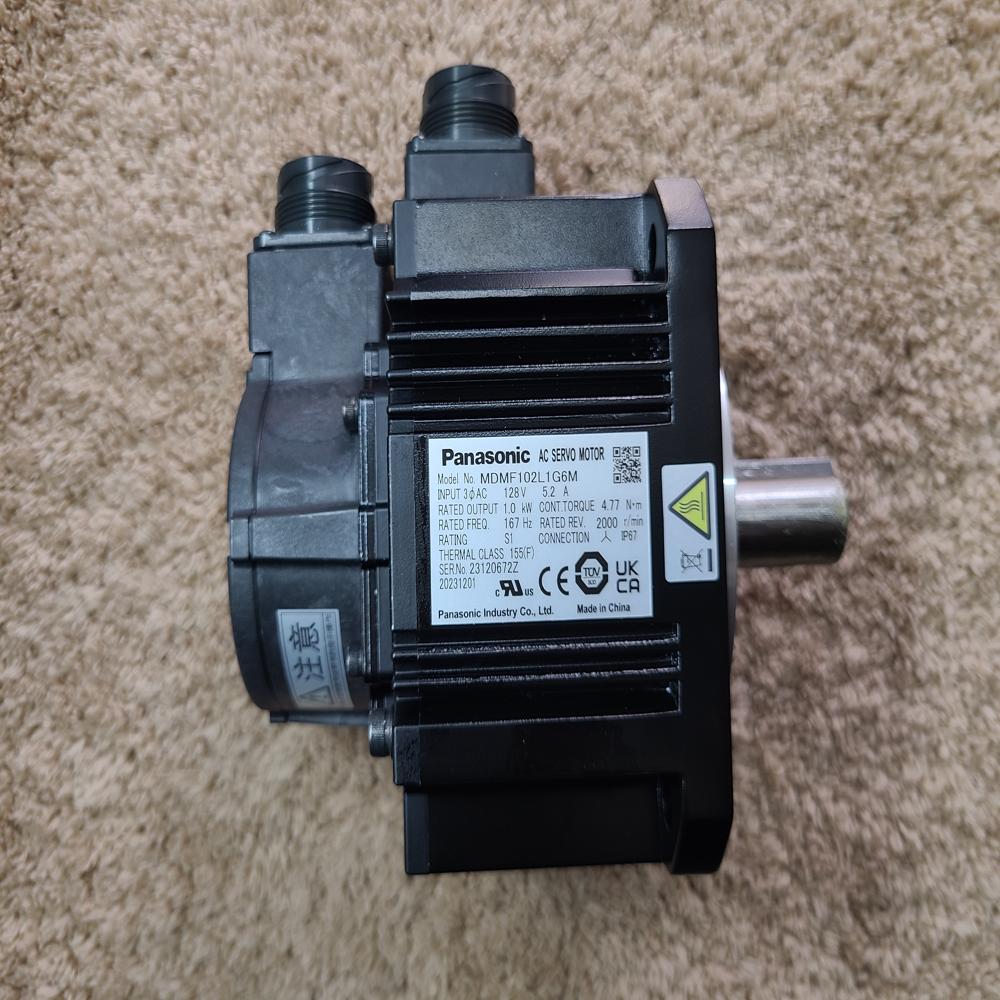

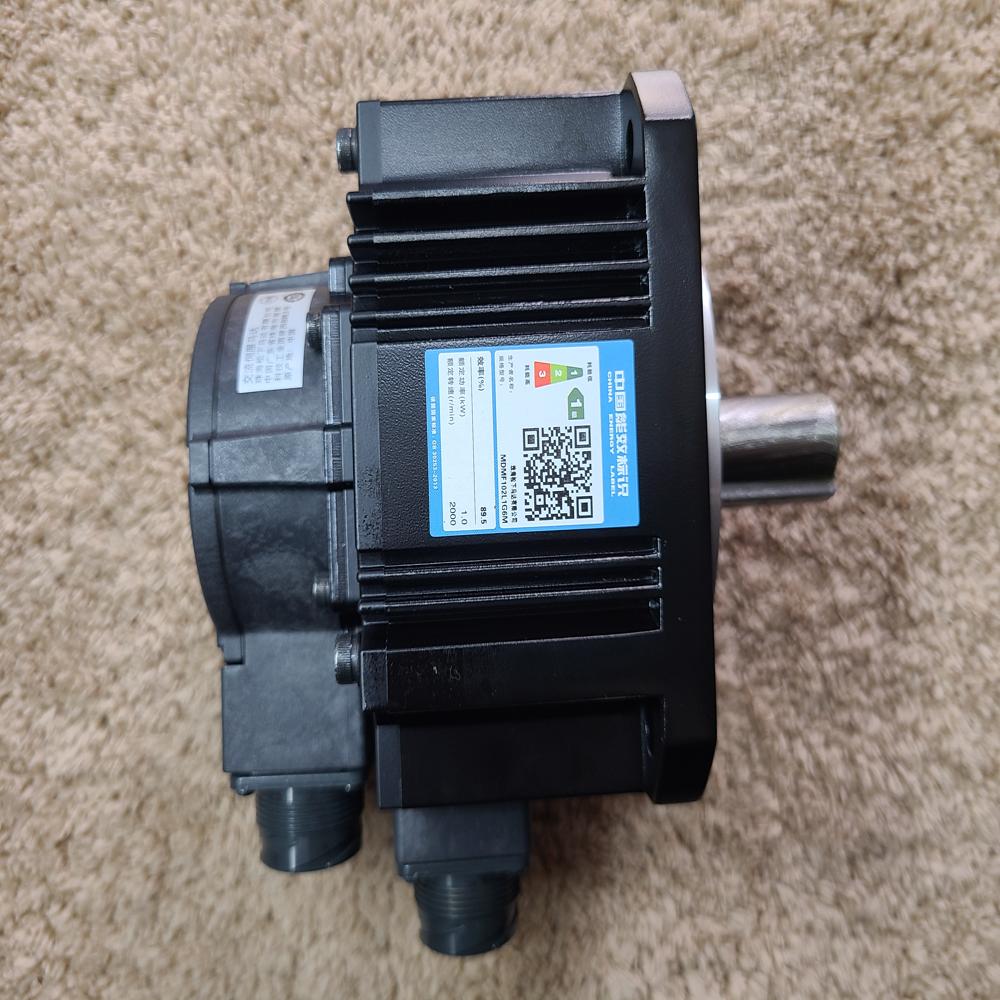

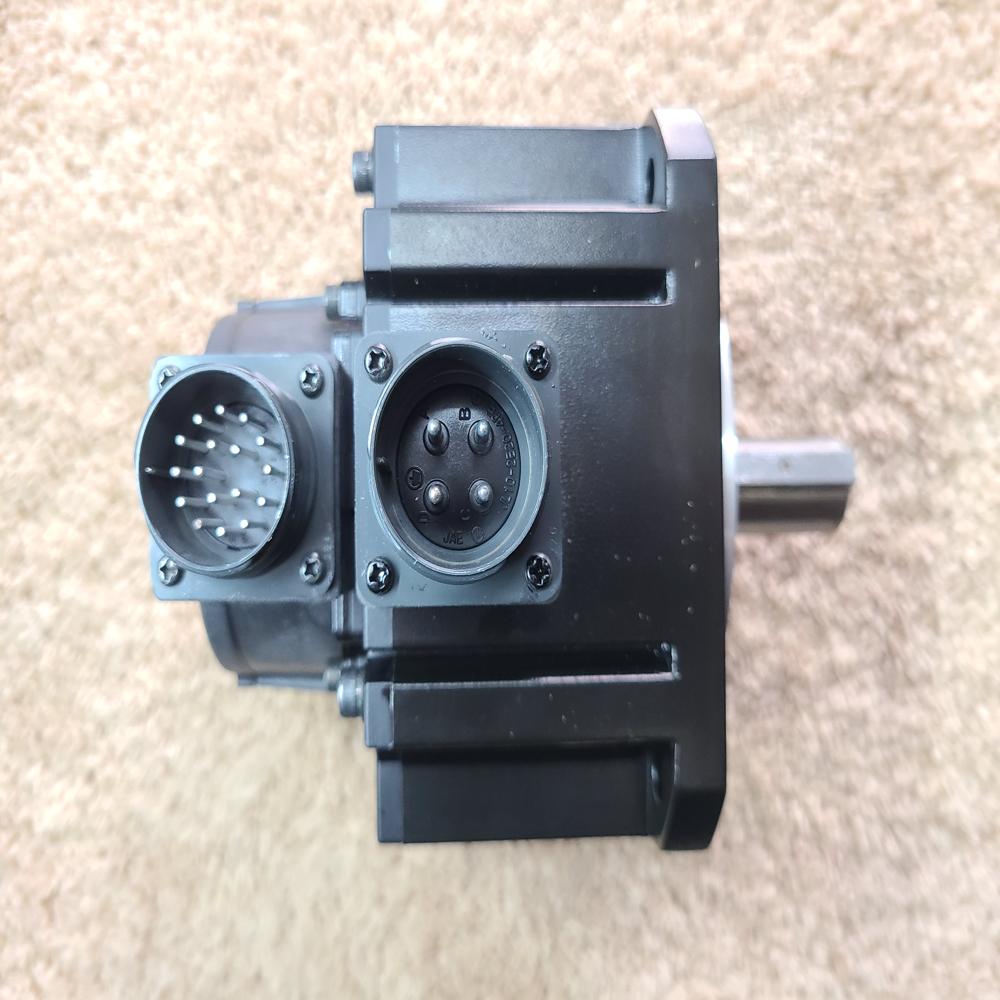

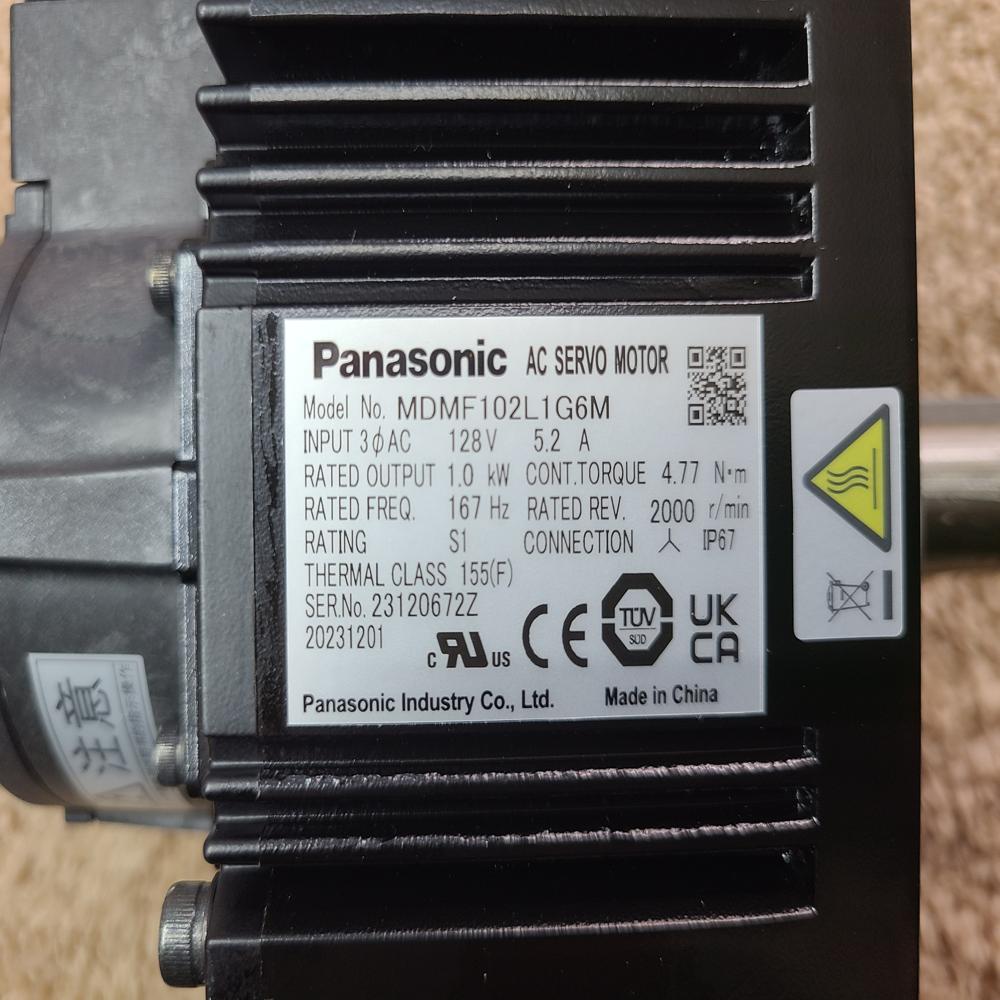

MHMF102L1G6M Panasonic A6 1000W Motor Torque Nm - 4.77, RPM - 2000

About MHMF102L1G6M Panasonic A6 1000W Motor Torque Nm - 4.77, RPM - 2000

Key Specifications

• Rated Power: 1000 W (1 kW)
• Rated Torque: 4.77 Nm
• Peak Torque: ~14.3 Nm
• Rated Speed: 2000 rpm
• Max Speed: 3000 rpm
• Encoder: 23-bit absolute (high precision)
• Brake: Not included
• Type: High inertia servo motor

Physical Size (Important)

• Frame Size: 130 mm 130 mm 5.12 in 5.12 in
• Length: ~8.5 to 9.5 in (approx., depends on connector)
• Weight: ~6.1 kg ~13.4 lb

Function (What it does)

This motor is a high-inertia industrial servo motor, and its function is:

1. Precise Motion Generation

• Converts electrical energy into controlled rotary motion
• Used for accurate positioning in machines

2. Speed & Torque Control

• Delivers 4.77 Nm continuous torque
• Runs at 2000 rpm rated speed
• Provides strong acceleration for heavy loads

3. Closed-Loop Accuracy

• Uses 23-bit encoder feedback
• Sends real-time position data to servo driver
• Ensures very high precision and repeatability

4. High Load Stability (Key Feature)

• High inertia design = stable for heavy mechanical systems
• Reduces vibration under load changes
• Best for large or rigid machine setups

Typical Applications

• CNC machines (main spindle/axes)
• Industrial robots
• Heavy automation systems
• Packaging machinery
• Conveyor and indexing systems

Simple One-Line Meaning

MHMF102L1G6M is a 1 kW high-inertia servo motor that produces precise, stable, and powerful rotary motion for industrial automation using closed-loop feedback control.

Quick Insight

• MSMF: fast response (light loads)
• MHMF (this): heavy-load stability
• MDMF: balanced/general use
