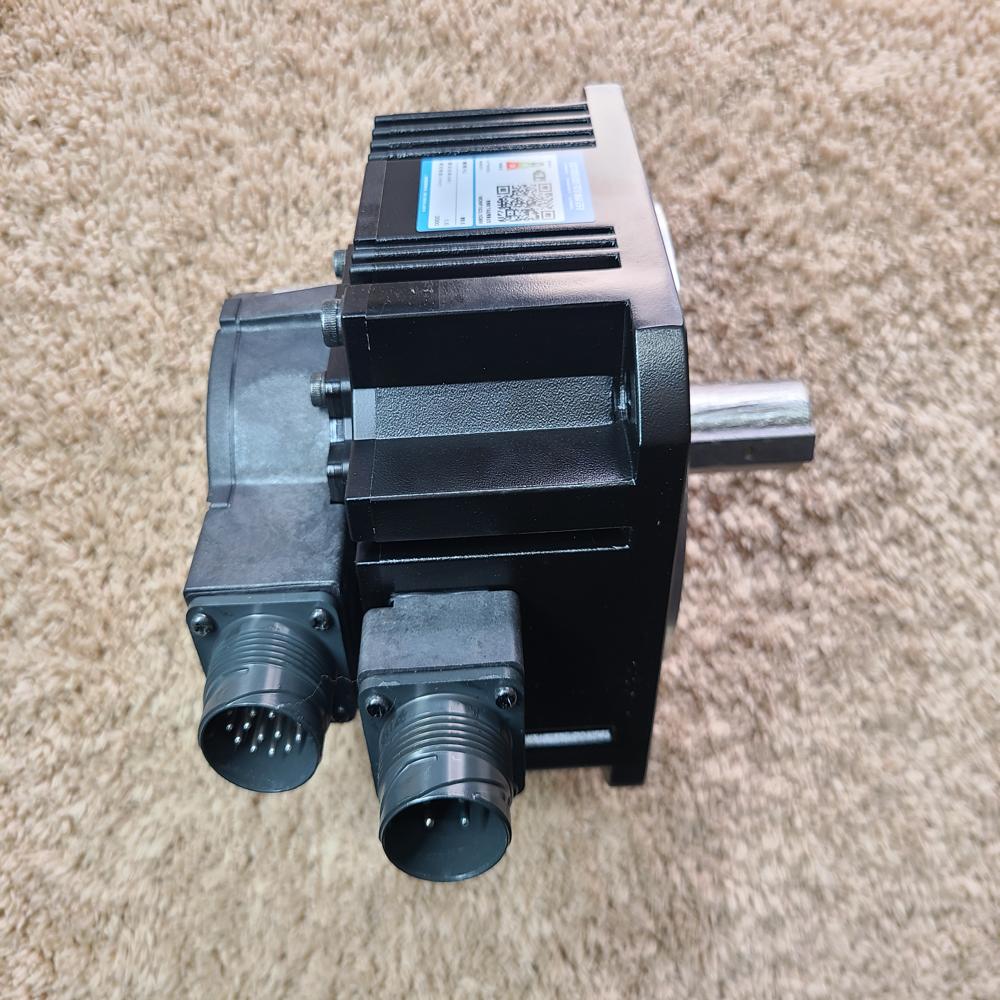

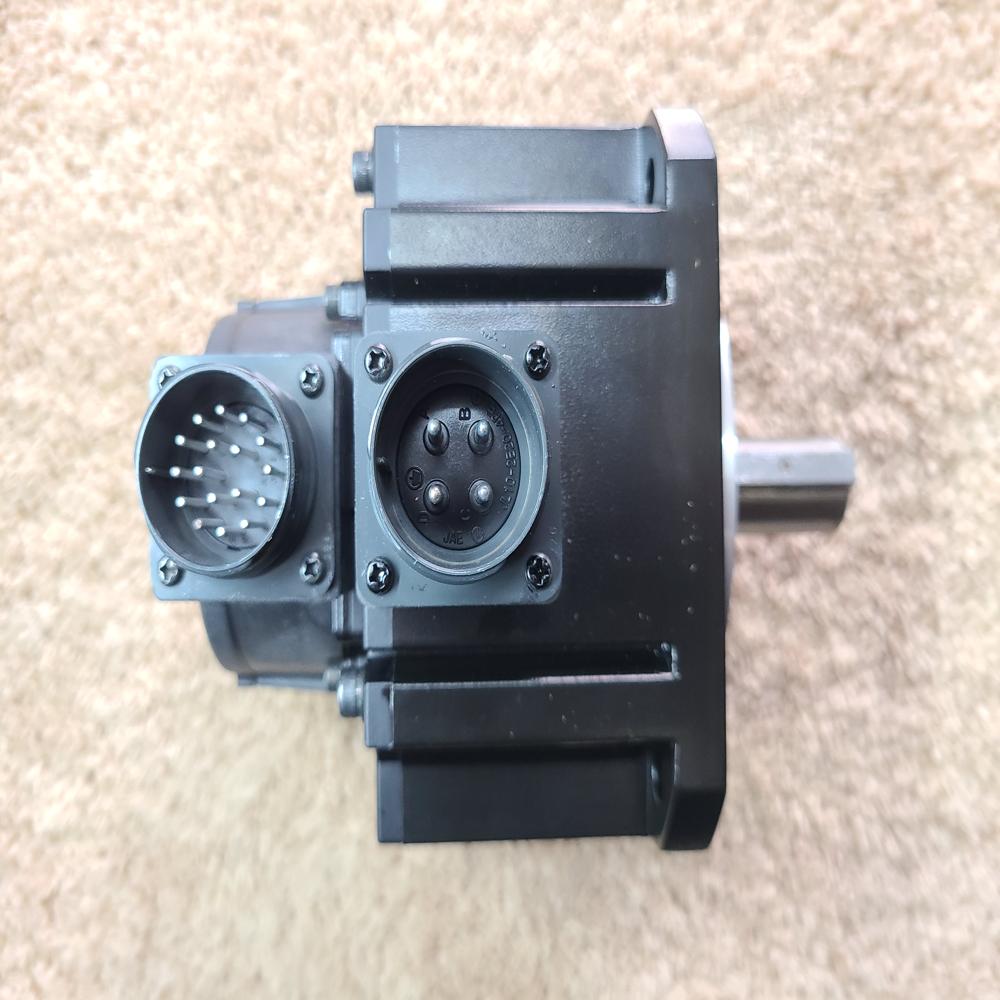

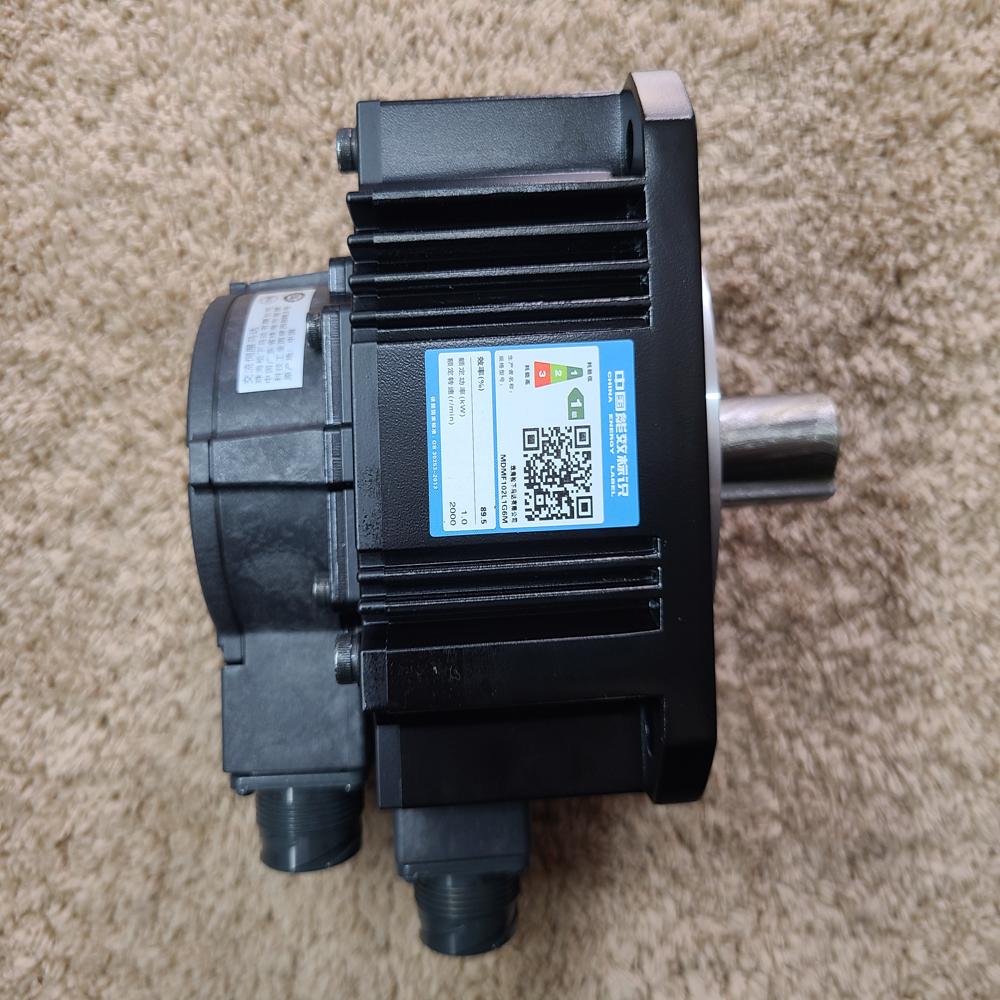

About MHMF092L1V2M Panasonic A6 1000W Motor + BRK, Torque Nm - 3.18, RPM - 3000

Function (What it does)

The MHMF092L1V2M is a servo motor with electromagnetic brake (BRK) used in precision automation:

Core Functions

• Converts electrical energy controlled rotational motion
• Provides:
  • Accurate position control
  • Stable speed control (3000 RPM)
  • Controlled torque output (3.18 Nm)
• Works with A6 servo drives (SE / SG / SF / NE / EtherCAT)

Brake Function (Important)

• Built-in holding brake (24V DC)
• Purpose:
  • Holds shaft position when power OFF
  • Prevents load from falling (vertical axis, Z-axis CNC, hoists)
• Brake torque: 3.8 Nm

Note:
Brake is for holding only, not for stopping during motion.

Key Specifications

• Power: 1000 W (1 kW)
• Rated Torque: 3.18 Nm
• Rated Speed: 3000 RPM
• Max Speed: 6000 RPM
• Peak Torque: 11.1 Nm
• Brake: Yes (holding brake)
• Encoder: 23-bit absolute/incremental
• Voltage: 200V class
• Protection: IP65
• Motor Type: High inertia

Dimensions (in inches)

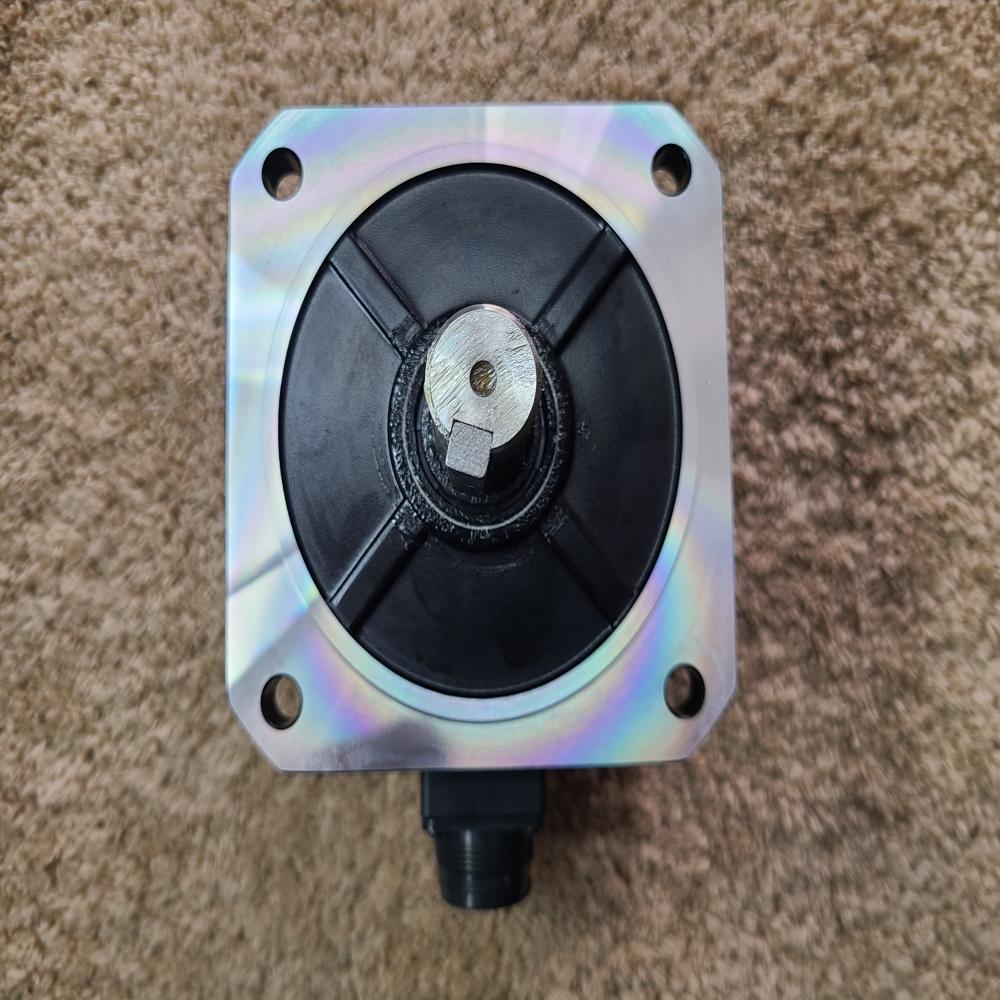

• Flange (Width Height):
  80 mm 80 mm 3.15 3.15 inches
• Length (Motor body):
  150170 mm 5.9 6.7 inches (with brake slightly longer)

Weight

• 3.5 kg approx. 7.7 lbs

Heavier than non-brake model (because of brake assembly)

Quick Summary Table

Practical Understanding

When to use this model:

• Vertical axis machines (Z-axis)
• Lifting / hoisting systems
• CNC / VMC machines
• Textile machinery with load holding

Important Difference

• MHMF092L1U2M without brake (lighter)
• MHMF092L1V2M with brake (heavier, safer for vertical loads)

Simple System View

• Servo Drive (A6) controls motion
• MHMF092L1V2M Motor creates movement
• Brake holds position when OFF

Complete system = precision + safety
