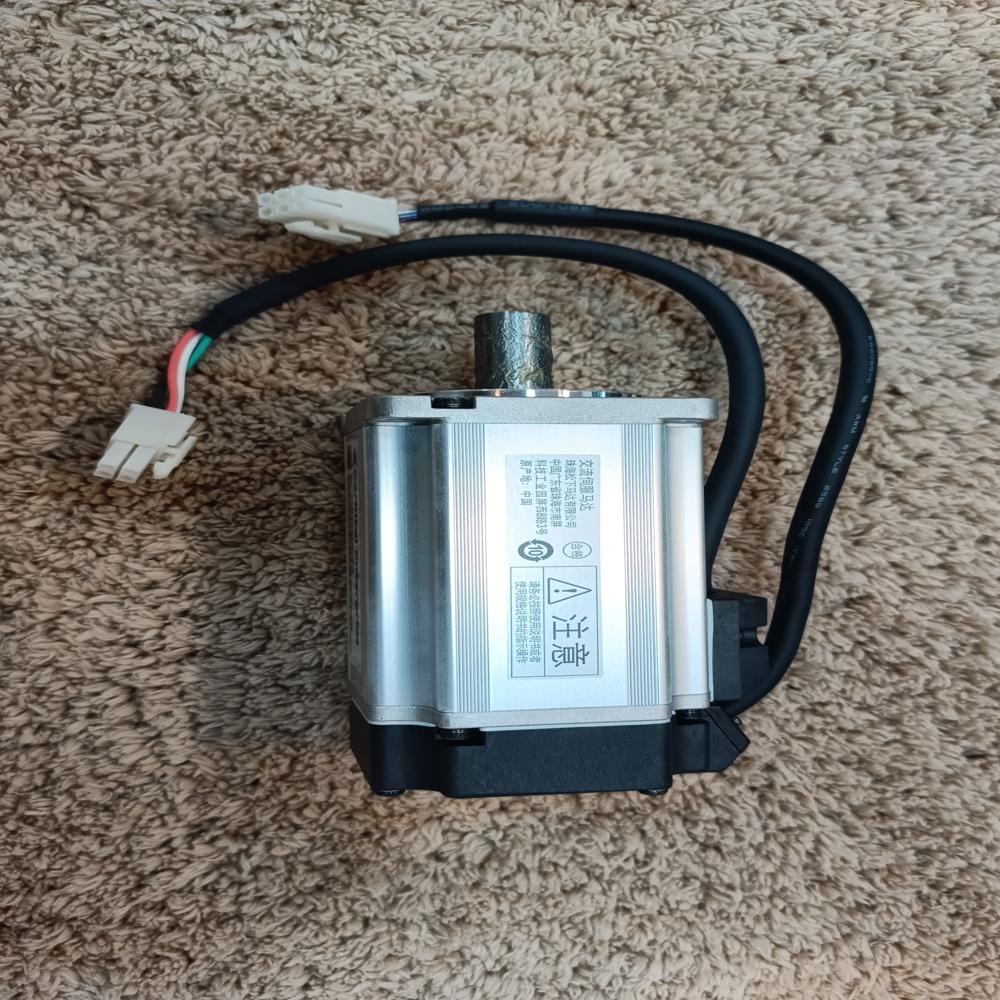

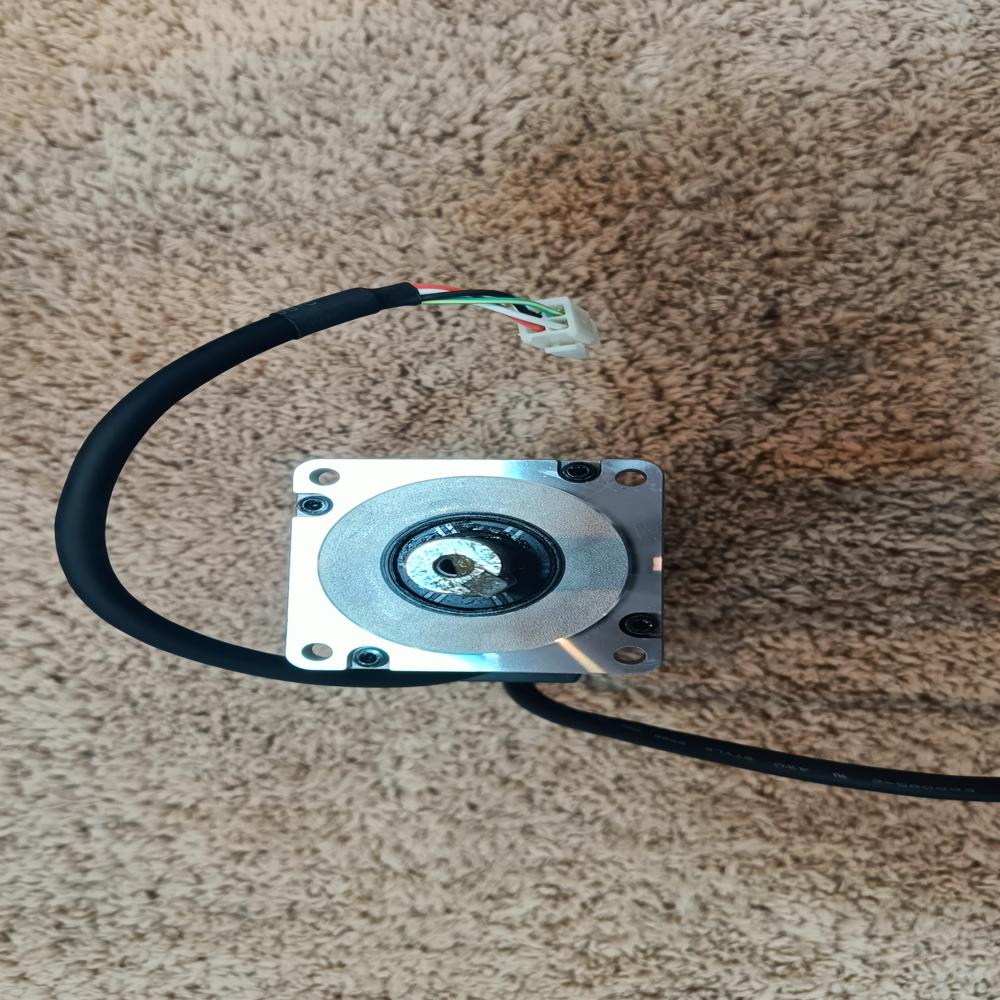

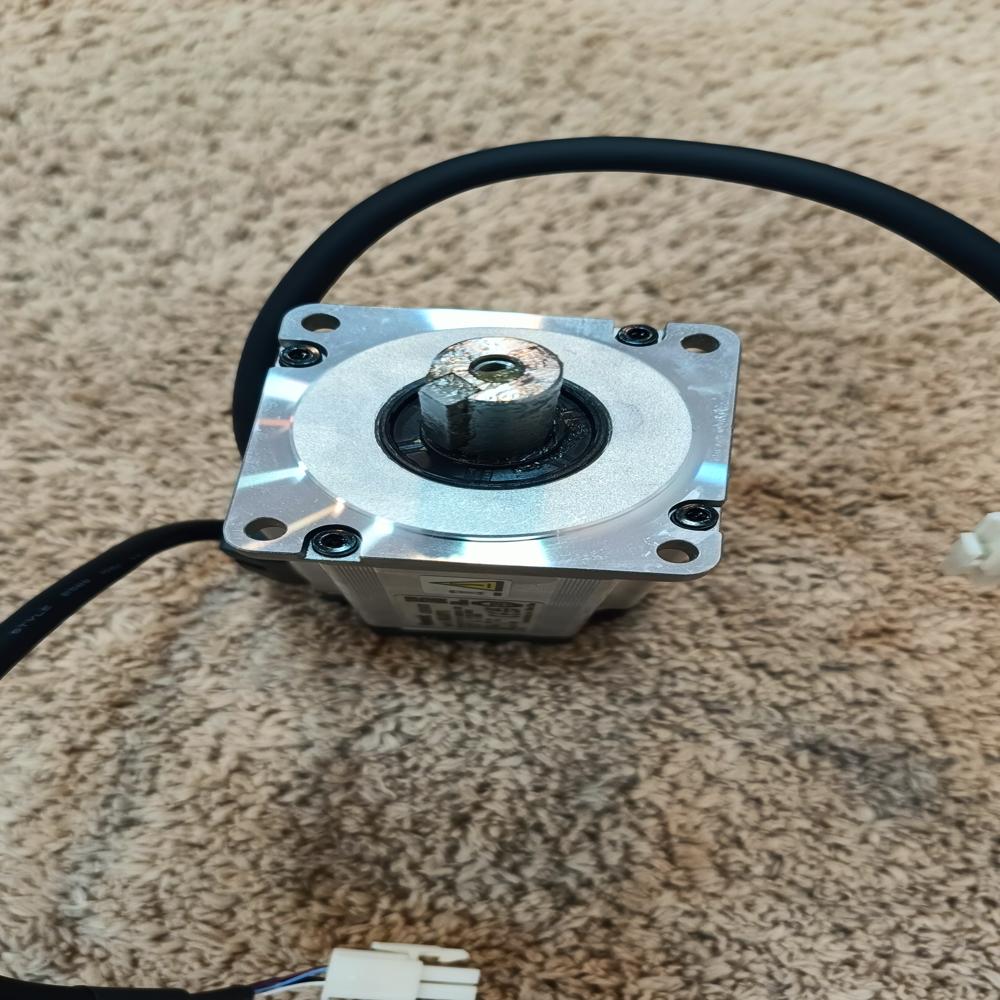

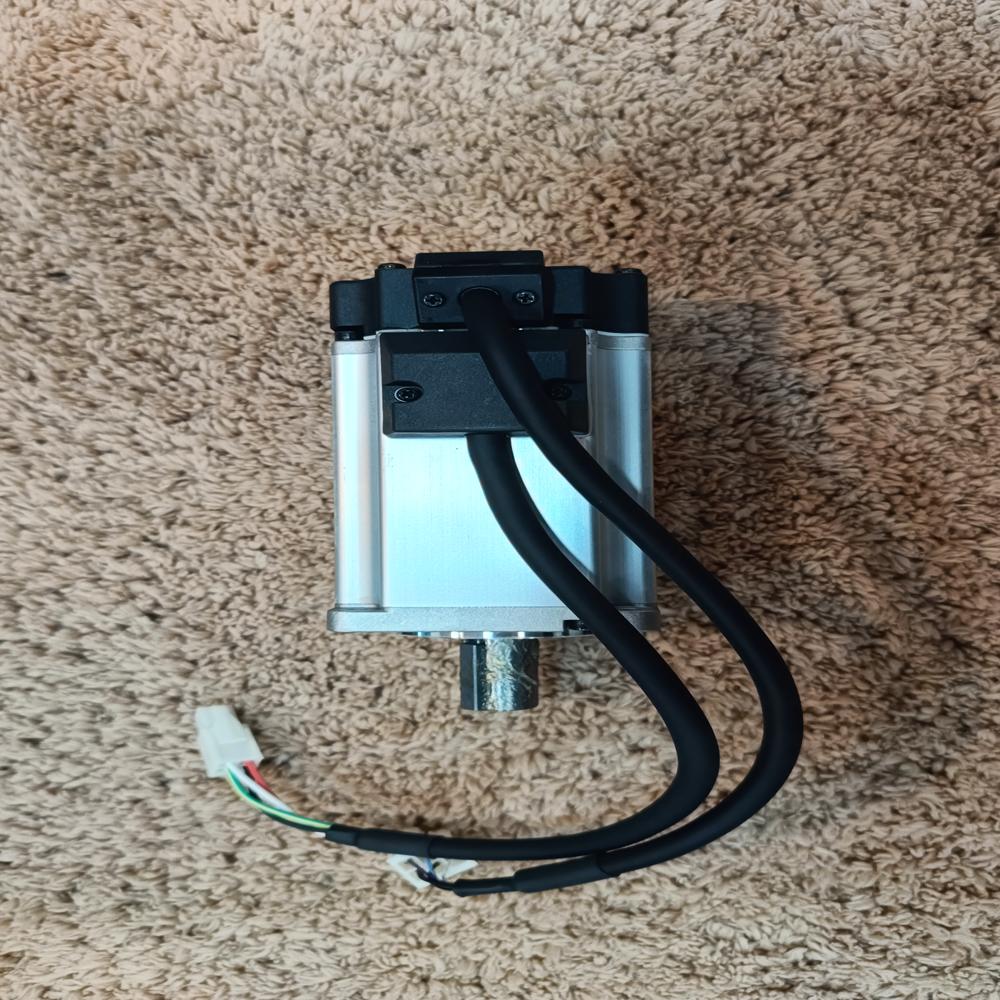

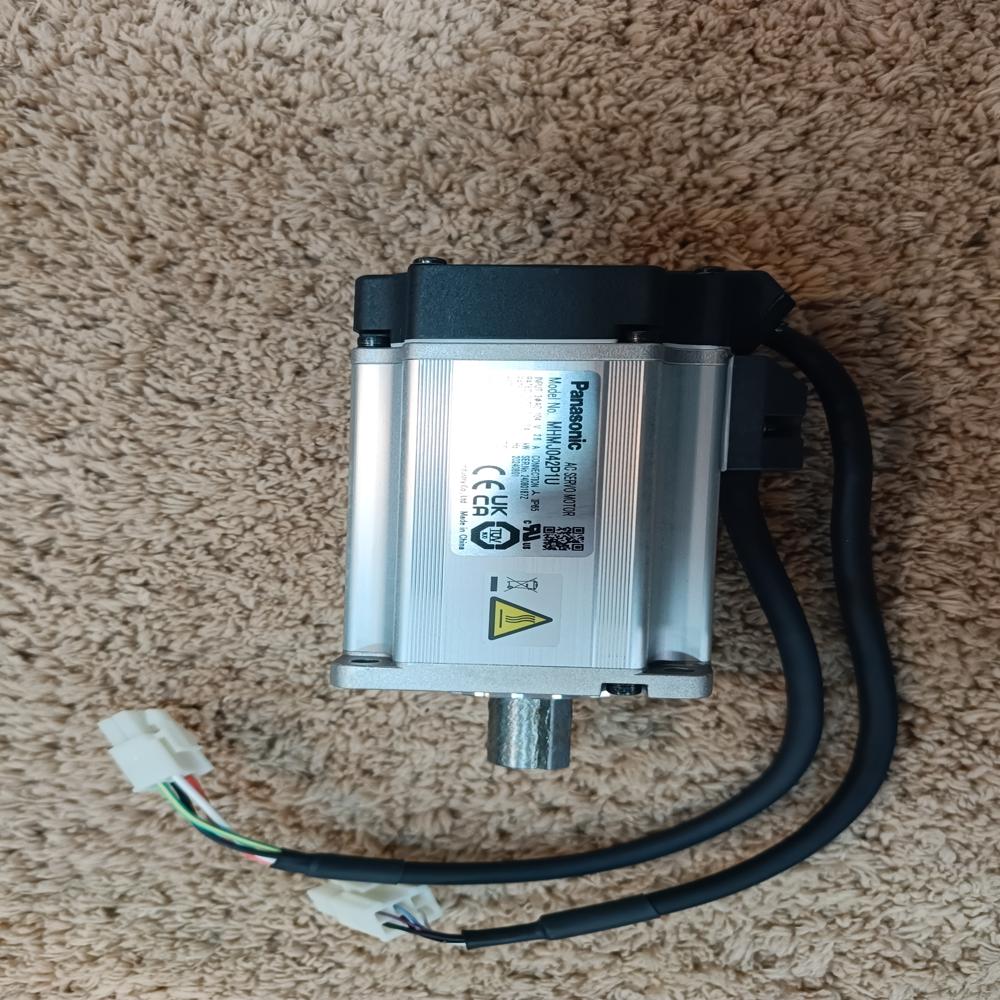

MUMA042P1T Panasonic MUMA 400W Motor

Price 51000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MUMA042P1T Panasonic MUMA 400W Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
1.90 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MUMA042P1T Panasonic MUMA 400W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MUMA042P1T Panasonic MUMA 400W Motor

The Panasonic MUMA042P1T is a 400W AC servomotor from the MINAS E-series. The primary difference from the MUMA042P1S is that this model includes a built-in holding brake. [1, 2, 3]

Physical Dimensions (Inches)

Due to the addition of the brake, the body of this motor is longer than the standard 400W version. [1, 2]

Width & Height (Flange): 2.36" x 2.36" (60 mm x 60 mm)
Body Length: 4.86" (123.5 mm)
Total Length (Including Shaft): 6.16" (156.5 mm)
Shaft Diameter: 0.43" (11 mm)
Mounting Hole Spacing: 2.76" (70 mm) [1, 2, 4]

Weight

Net Weight: 4.19 lbs (1.90 kg)
- Note: This is significantly heavier than the 3.31 lbs (1.50 kg) of the non-brake P1S model. [1, 2, 3]

Functions

Holding Brake: The key function is the electromagnetic holding brake, which secures the shaft in place when power is cut. This is vital for vertical Z-axis applications to prevent loads from dropping due to gravity.
Ultra-Low Inertia: Designed for extremely rapid acceleration and deceleration, allowing for fast cycle times in automated machinery.
Vibration Management: Includes notch filters and adaptive filters that automatically detect and suppress mechanical resonance, ensuring smooth motion even at high speeds.
High-Resolution Feedback: Uses a 2500 P/r incremental encoder
