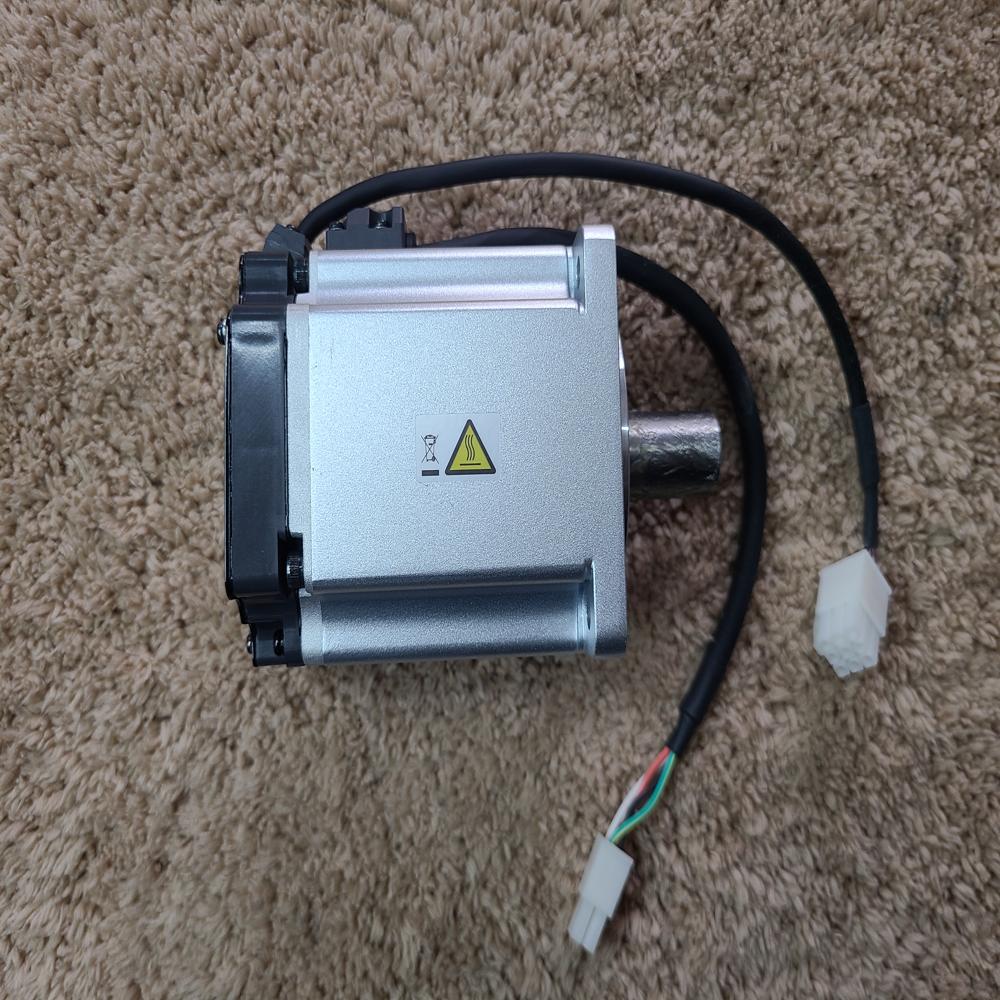

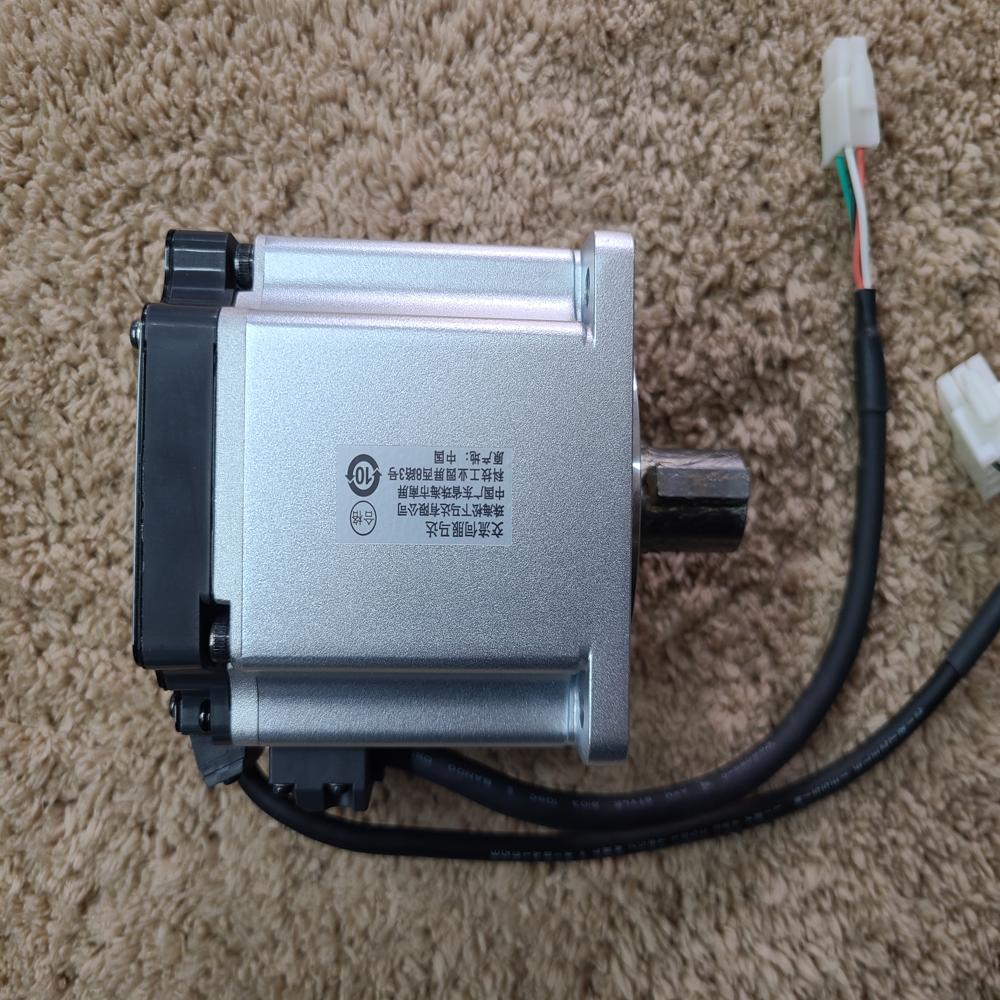

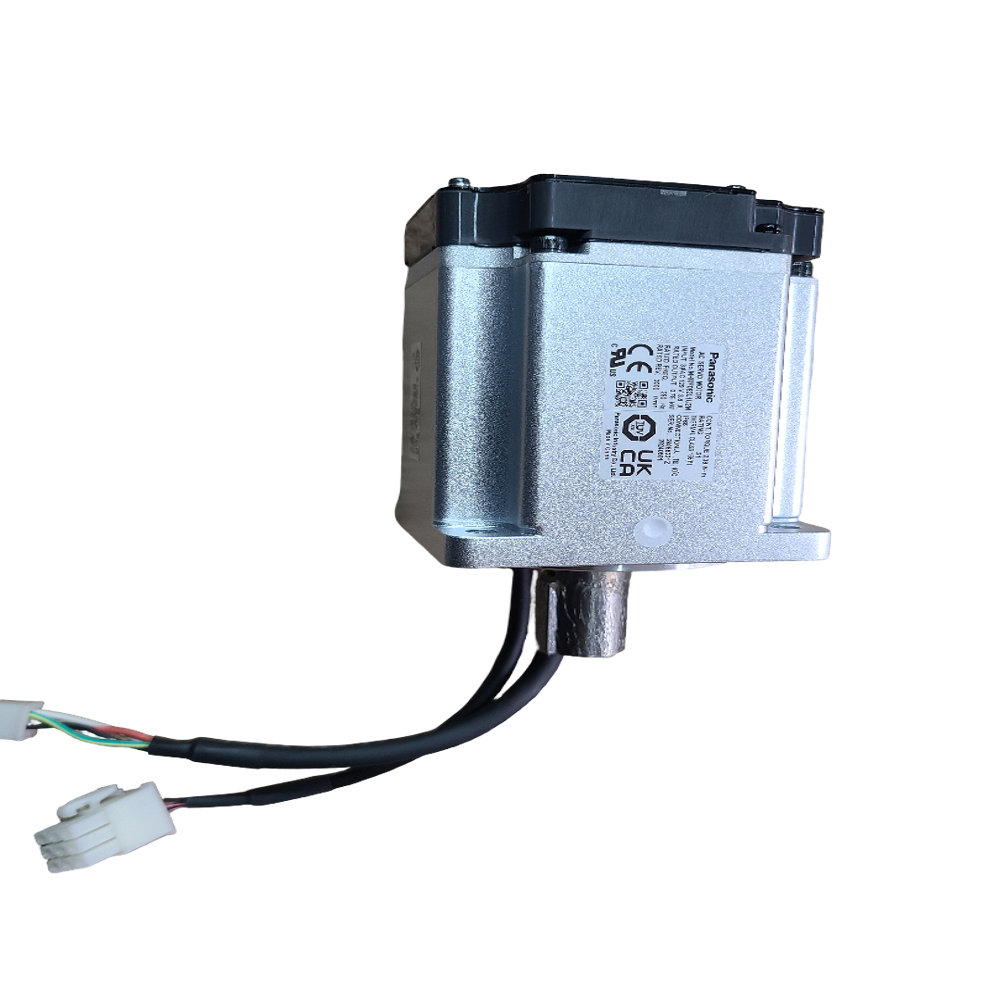

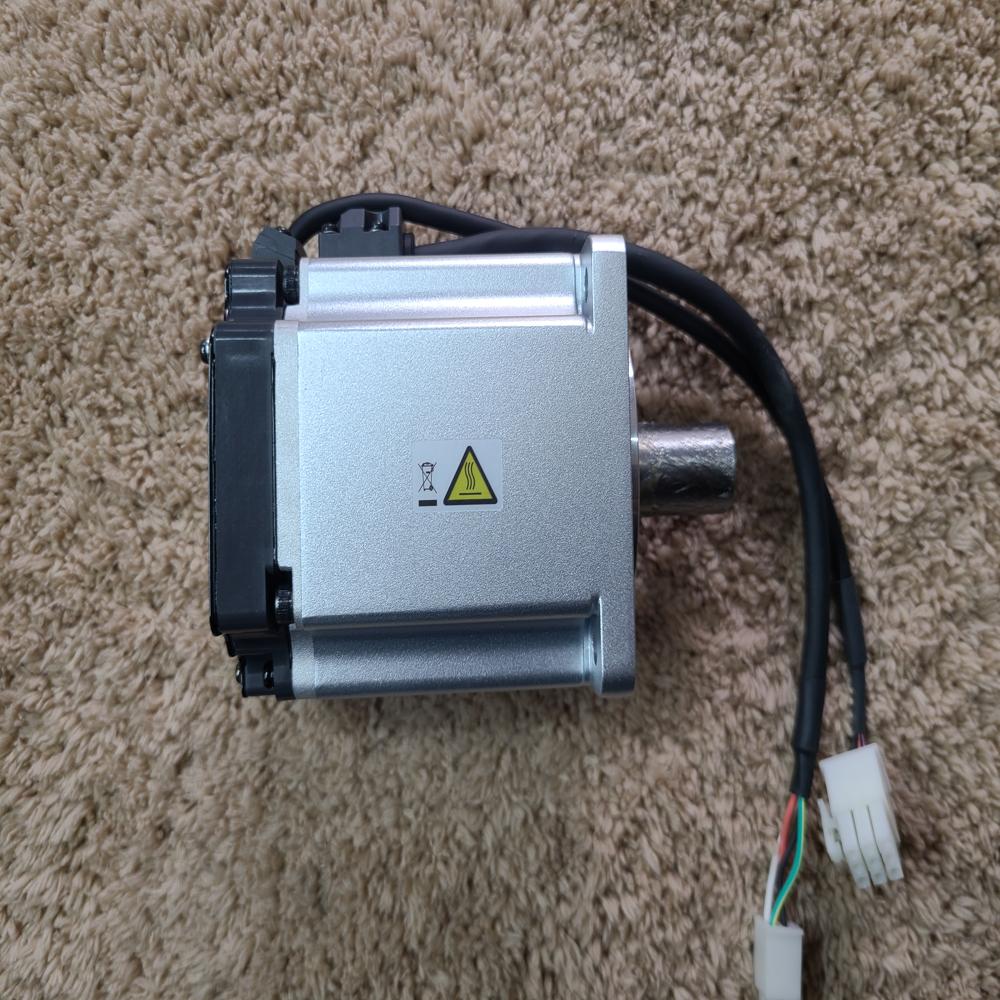

MQMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

About MQMF022L1V2M Panasonic A6 200W Motor + BRK , Torque Nm -0.64, RPM - 3000

Electrical Specifications

• Rated Output Power: 200 W
• Rated Torque: 0.64 Nm
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Rated Current: ~1.5 A (rms)
• Supply Voltage: 200 V AC
• Peak Torque: ~1.91 Nm

Mechanical Specifications

• Frame Size: 60 mm (square flange)
• Motor Type: Low inertia servo motor
• Shaft Type: Keyway, center tap
• Protection Class: IP65 (dust & oil resistant)
• Oil Seal: Included
• Holding Brake: Built-in electromagnetic brake
• Weight: 1.3 kg ( 2.87 lbs)

Encoder System

• Type: 23-bit absolute / incremental encoder
• Resolution: 8,388,608 counts per revolution
• Feedback: High-precision closed-loop control

Brake Specifications

• Type: Electromagnetic holding brake
• Voltage: 24 V DC
• Function: Holds shaft position when power OFF
• Important: Not used for stopping a moving motor

Performance Features

• High-speed response up to 3.2 kHz control loop
• Smooth acceleration & deceleration
• High positioning accuracy for CNC & robotics
• Supports heavy duty start/stop operation

Typical Applications

• CNC machines
• Vertical axis systems (Z-axis with brake)
• Pick-and-place robots
• Packaging machines
• Industrial automation systems

Simple Summary

• 200W industrial servo motor
• 0.64 Nm torque
• 3000 RPM rated speed
• 60 mm compact frame
• Built-in brake for load holding
• High precision encoder feedback

Key Point

This motor is mainly used where:

• Precise motion control is needed
• AND load must stay fixed when power is OFF (because of brake)

Dimensions (in inches)

From Panasonic datasheet:

• Frame size (Width): 2.36 in (60 mm)
• Body length (Height): 5.51 in (140 mm)
• Depth (Shaft side): 2.36 in (60 mm)

This is a 60 mm square compact servo motor

Weight

• 1.3 kg
• 2.87 lbs

Key Physical Notes

• Includes holding brake (BRK type)
• Slightly heavier than non-brake version
• Same frame size as all MSMF 200W A6 motors
• Designed for vertical load holding applications

Simple Summary

• Small industrial servo motor
• 60 mm frame
• ~5.5 inch length
• ~2.9 lb weight
• With brake = holds position when power OFF
