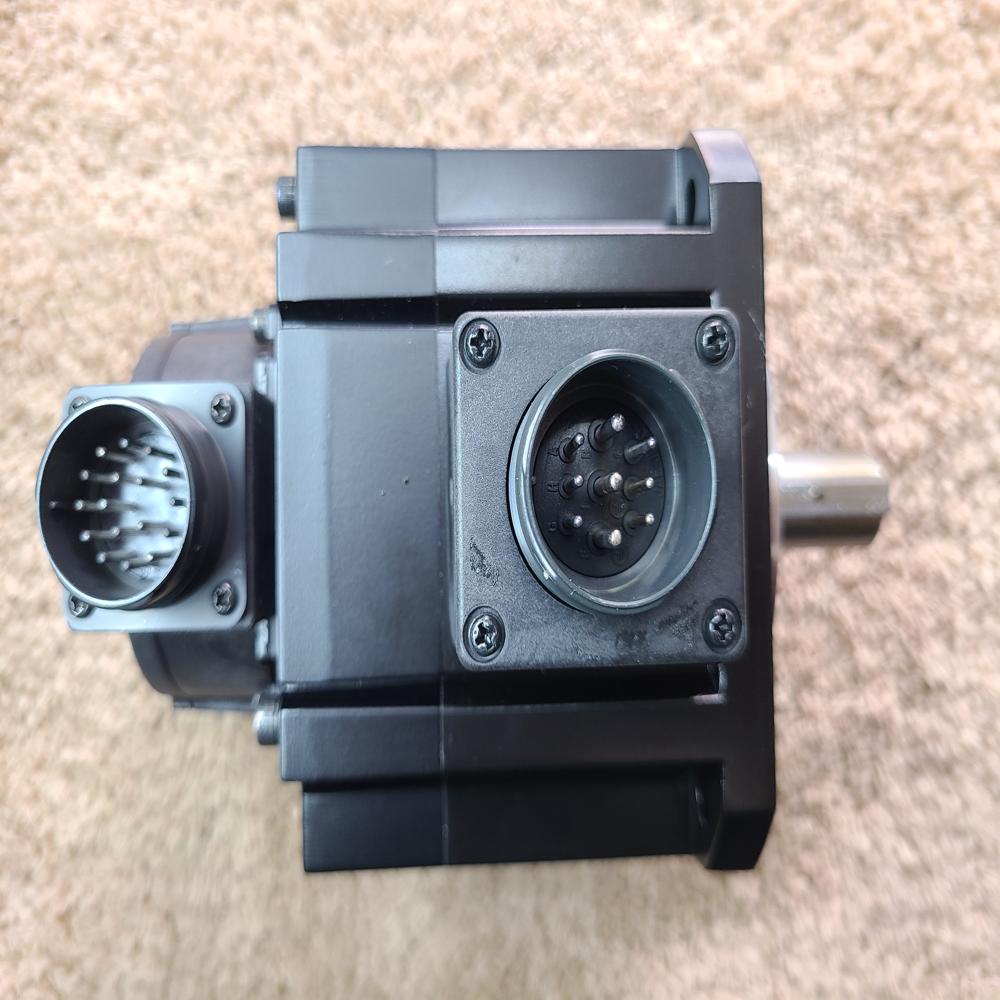

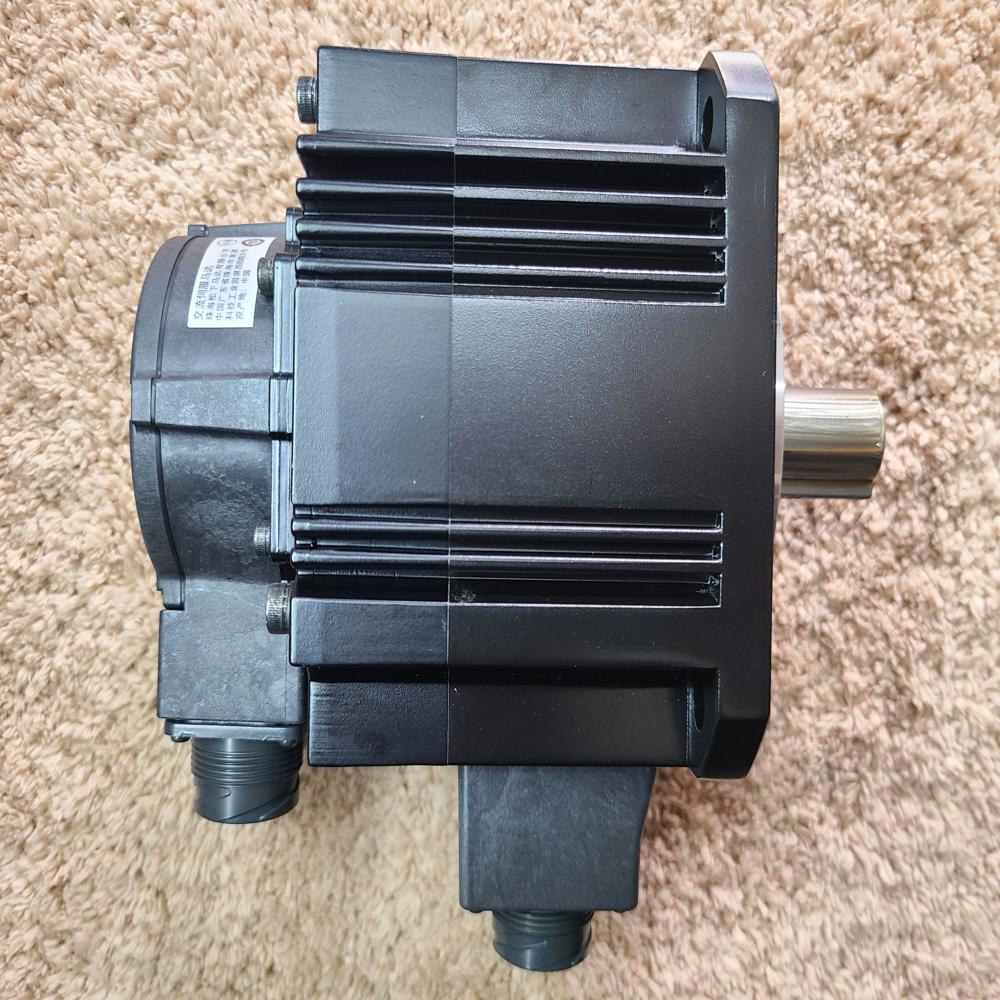

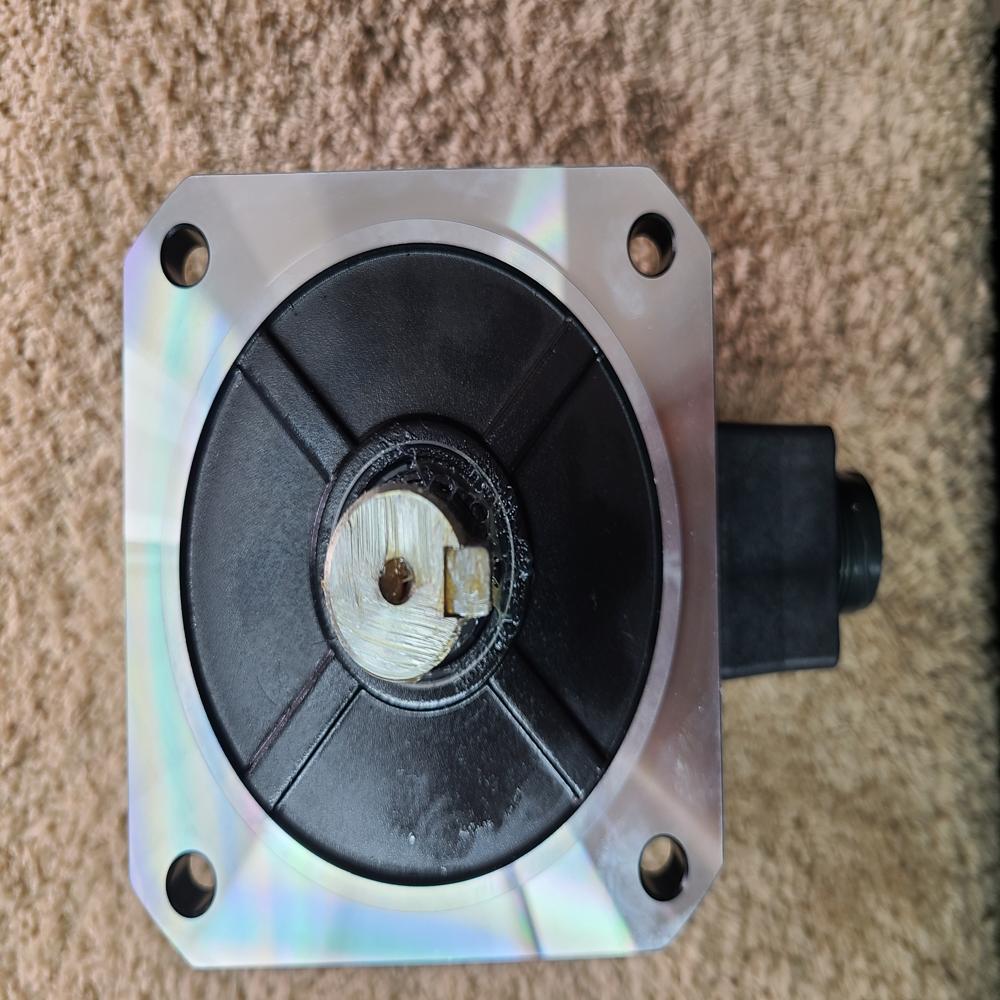

MDMF152L1G6M Panasonic A6 1500W Motor , Torque Nm - 7.16, RPM - 2000

Price 48600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDMF152L1G6M Panasonic A6 1500W Motor , Torque Nm - 7.16, RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
5.7 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MDMF152L1G6M Panasonic A6 1500W Motor , Torque Nm - 7.16, RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDMF152L1G6M Panasonic A6 1500W Motor , Torque Nm - 7.16, RPM - 2000

The Panasonic MDMF152L1G6M is a 1500W (1.5 kW) Middle-Inertia AC servo motor from the MINAS A6 family. Unlike the MSMF models previously discussed, the MDMF series is designed for higher torque applications with medium inertia requirements. [1, 3]

Function

Precision and Power: Provides high-torque performance (7.16 Nm rated) for heavy-duty industrial tasks like large-scale CNC machining, metal processing, and high-load material handling.
Middle Inertia Advantage: Offers better stability for applications with variable or high-mass loads compared to low-inertia models.
High-Resolution Feedback: Features a 23-bit encoder (8.38 million pulses per revolution) for micro-degree positioning and high-speed response (3.2 kHz frequency response).
Industrial Durability: Rated IP67, making it dust-tight and resistant to water immersion, ideal for harsh factory environments. [1, 2, 3]

Technical Specifications

Based on official data from Panasonic Industry and retailers like Industrybuying, the core specs are:

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	1500 W (1.5 kW)
Rated Torque	7.16 Nm
Peak Torque	21.5 Nm
Rated Speed	2000 RPM
Max Speed	3000 RPM
Voltage	200 V AC
Current (Rated/Peak)	8.0 A / 34 A
Holding Brake	Without brake

Physical Dimensions & Weight

The converted imperial measurements for this medium-inertia model are: [1, 2, 3]

Weight: Approximately 12.57 lbs (5.7 kg).
Width & Height (Flange): 5.12 inches (130 mm square).
Length: Approximately 5.98 to 6.20 inches (~152158 mm) depending on the connector housing.
Shaft Diameter: 0.866 inches (22 mm). [1, 2, 3, 4]
