About MSMF082L1V2M Panasonic A6 750W Motor + BRK, Torque Nm - 2.39, RPM - 3000

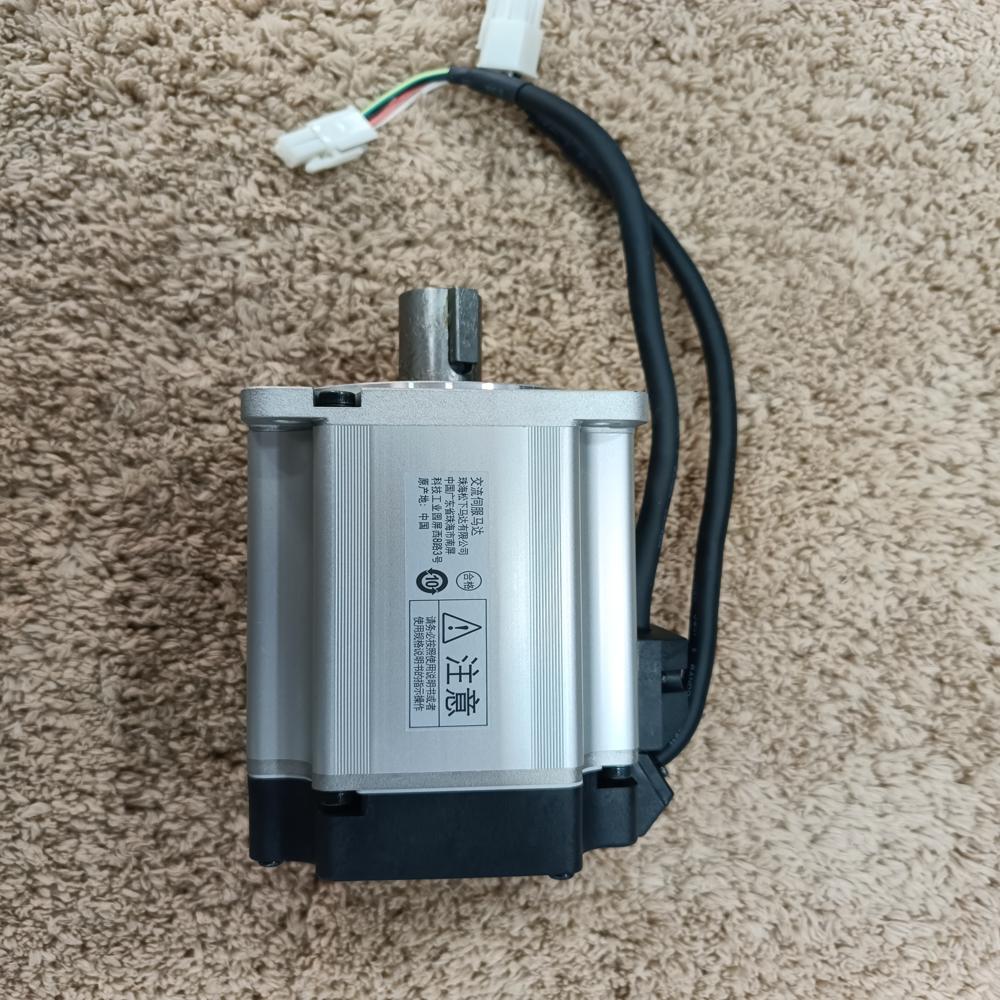

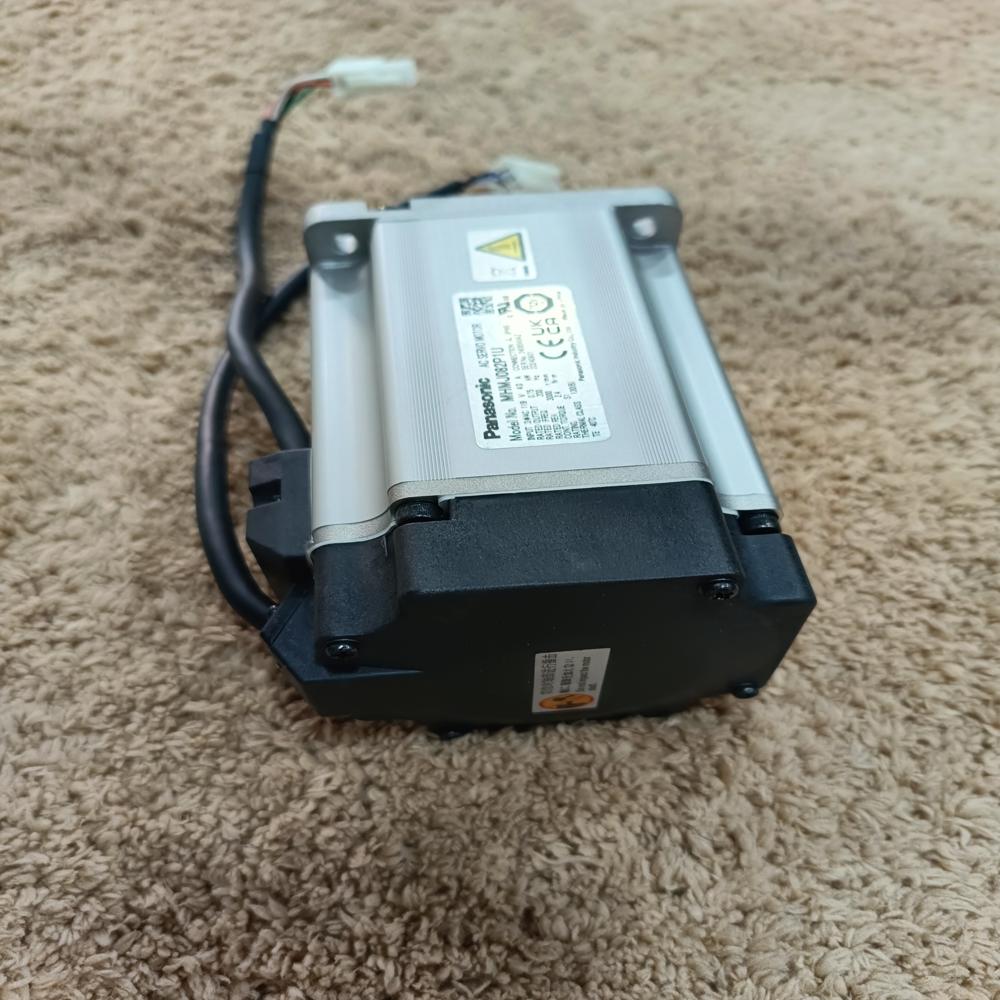

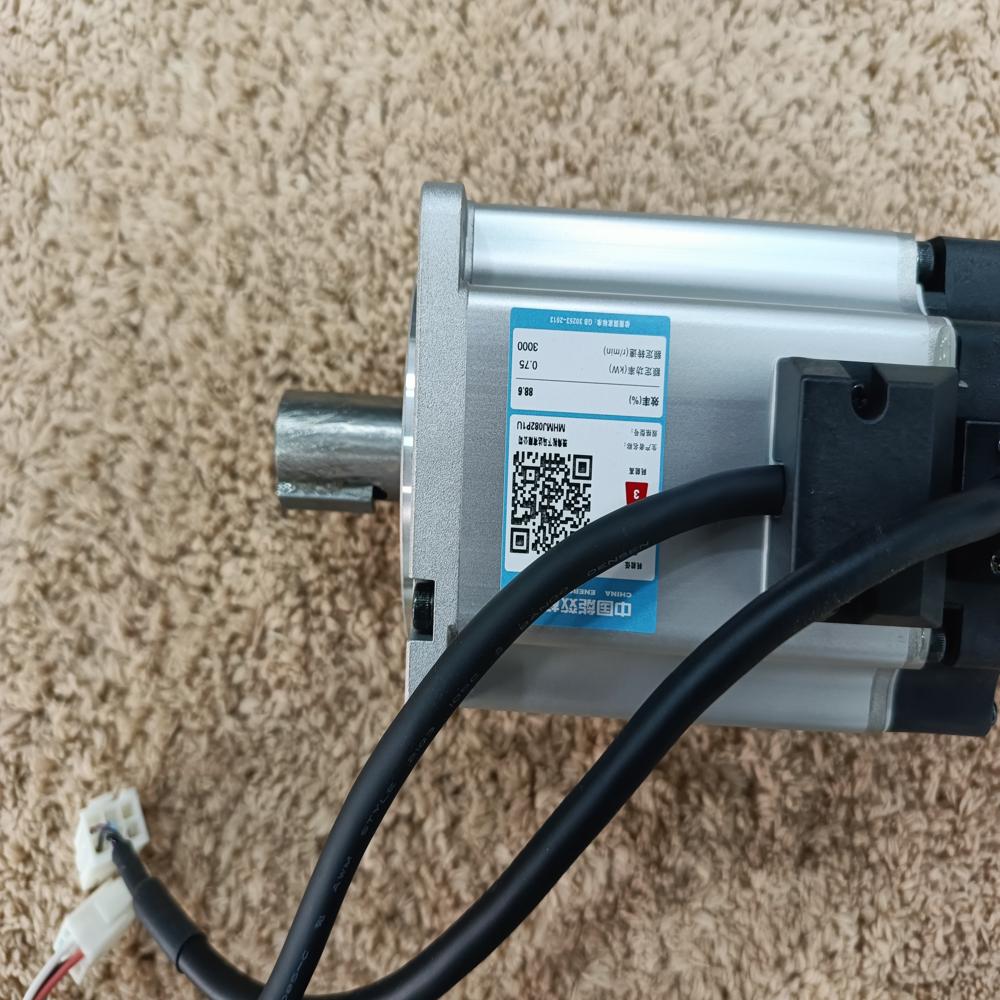

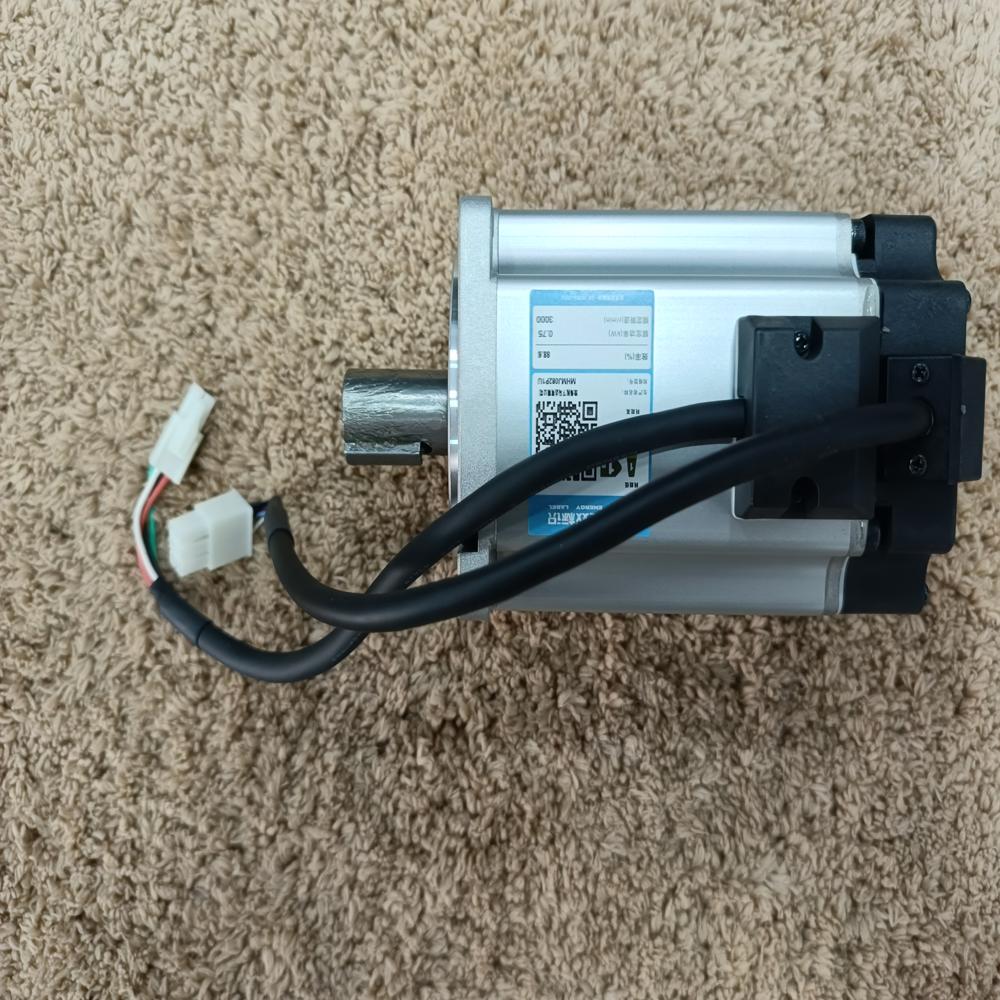

MSMF082L1V2M (750W with Brake)

This is your 750W low-inertia servo motor with holding brake, same torque/speed as U2M but heavier and slightly longer due to brake.

Key Verified Specs

• Rated Power: 750 W
• Rated Torque: 2.39 Nm
• Peak Torque: 7.16 Nm
• Rated Speed: 3000 rpm
• Max Speed: 6000 rpm
• Brake: Included (holding brake)
• Encoder: 23-bit absolute
• Voltage: 200 V AC

Physical Dimensions (In Inches)

• Width (Flange):
  80 mm 3.15 in
• Height (Flange):
  80 mm 3.15 in
• Length (Motor Body):
  ~180200 mm ~7.1 to 7.9 in (approx.)

Brake version is longer than non-brake (U2M)

Weight

• Mass: ~3.0 3.1 kg
  ~6.6 6.8 lb

Final Size Summary

• Width Height: 3.15 in 3.15 in
• Length: ~7.1 7.9 in
• Weight: ~6.7 lb

Important Notes

• Length varies depending on:
  • Brake (your model = longer)
  • Connector type (plug vs cable)
• Frame size (80 mm) stays fixed

  Simple Understanding

  This motor is:

  • 80 mm frame industrial servo
  • High torque (2.39 Nm)
  • Brake-enabled for vertical holding
  • Heavier & longer than 400W motors

    Function of Panasonic MSMF082L1V2M (750W Servo Motor with Brake)

    This motor is a high-precision motion control device. Its main function is to convert electrical commands into accurate rotary movement, while continuously correcting itself using feedback.

    ---

    Core Function

    It provides controlled rotation (position, speed, and torque) for industrial machines.

    ---

    What it actually does

    1. Position Control

    • Moves shaft to an exact angle or distance
    • Used in CNC axes, robotics, indexing tables

    ---

    2. Speed Control

    • Maintains constant 3000 rpm (or any commanded speed)
    • Automatically adjusts if load changes

    ---

    3. Torque Control

    • Delivers 2.39 Nm continuously
    • Provides higher torque (7.16 Nm) for short acceleration

    ---

    4. Closed-Loop Feedback

    • Built-in 23-bit encoder monitors position
    • Driver constantly corrects errors in real time
    • Ensures very high accuracy and smooth motion

    ---

    Brake Function (Important for your model)

    Your model includes holding brake (V2M):

    • Holds shaft position when power is OFF
    • Prevents load from falling (vertical axis)
    • Not used for stopping during motion (only holding)

    Common use:

    • CNC Z-axis
    • Lifting systems
    • Robotic arms

    ---

    How it works in system

    1. Servo driver sends command
    2. Motor rotates
    3. Encoder sends feedback
    4. Driver corrects instantly
    5. Motion stays precise
