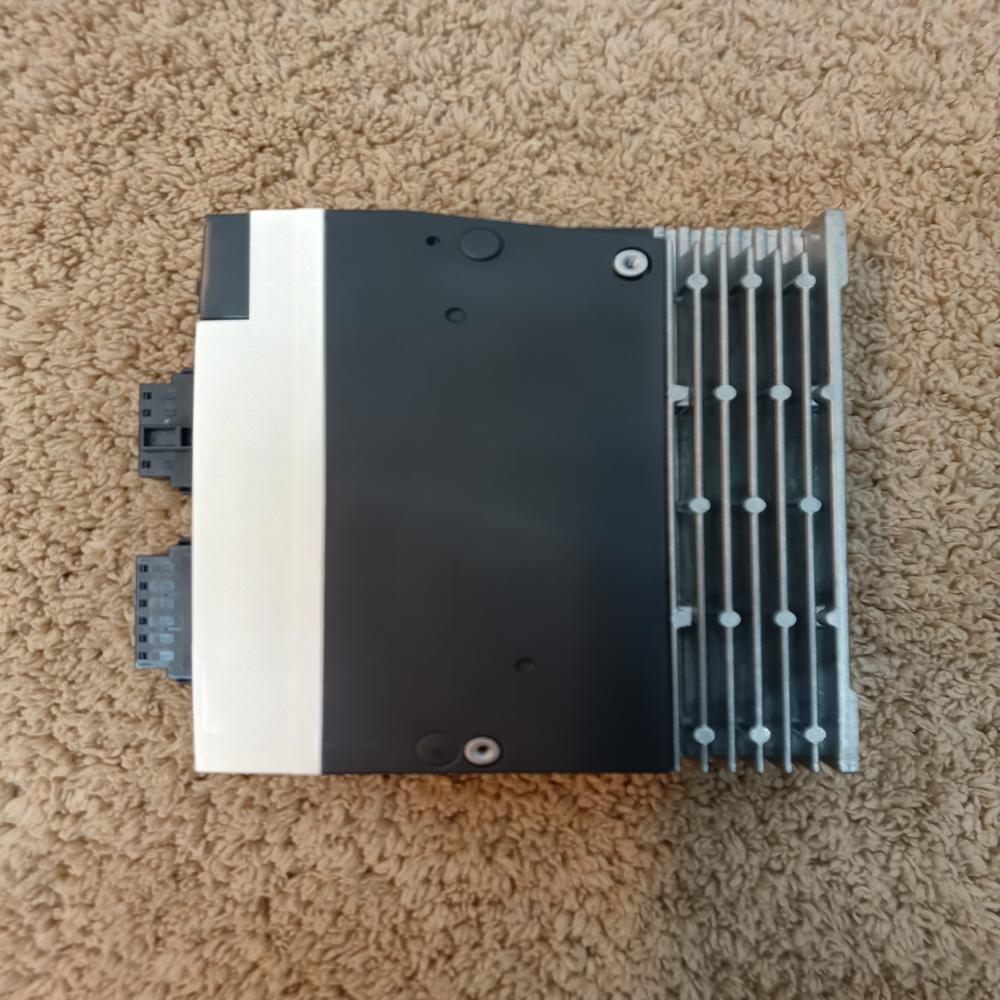

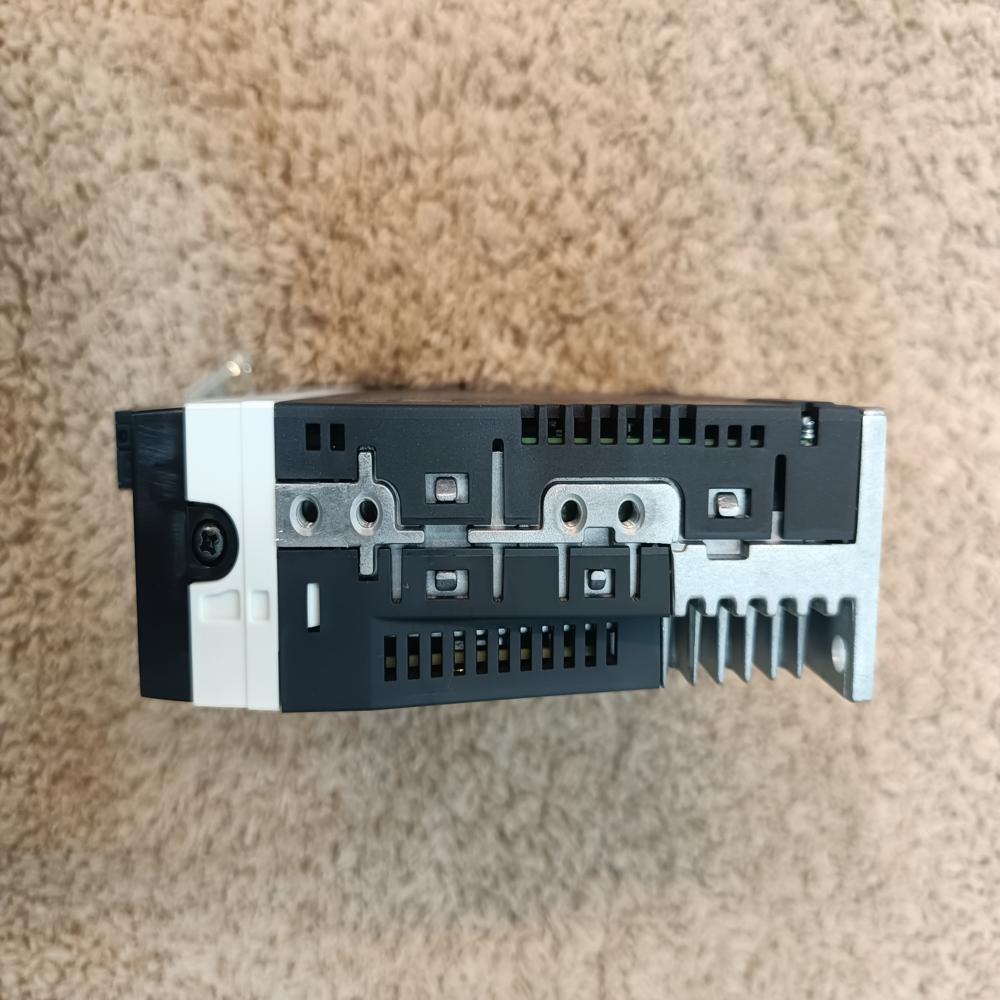

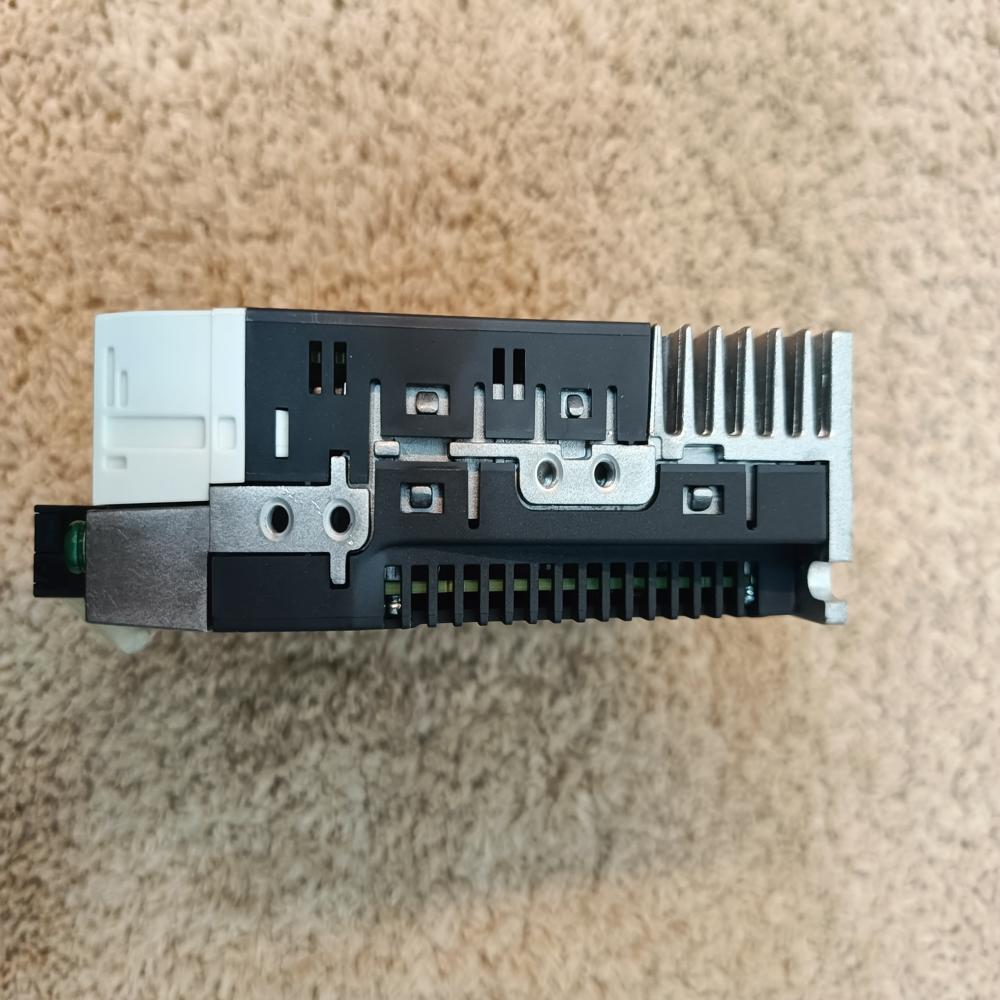

MADLN05NE - A6N Panasonic A6 100W Driver

About MADLN05NE - A6N Panasonic A6 100W Driver

Key Specifications

• Series: MINAS A6 (A6N / A6NE type)
• Rated Power: 100 W
• Supply Voltage: 200240V AC (single/three-phase)
• Frame Size: A-frame (compact)
• Communication: RTEX (Realtime Express network)
• Response Frequency: 3.2 kHz
• Weight: 0.8 kg

Main Function (Important)

This is a network-based servo driver designed for:

1. Real-Time Network Control (RTEX)

• Uses RTEX high-speed communication
• Communication speed up to 100 Mbps full-duplex
• Very fast update cycle (~0.0625 ms)

Ideal for multi-axis synchronized systems

2. Multi-Control Modes

Unlike SE/SG models, this supports:

• Position control (PP, CP)
• Speed control (CV)
• Torque control (CT)

All modes controlled via network commands

3. High-Precision Motion

• 23-bit encoder support
• Smooth and accurate motion
• Suitable for synchronized movement

4. High-Speed Performance

• 3.2 kHz response
• Ultra-fast command execution
• Smooth trajectory control

5. PLC / Motion Controller Integration

• Works with:
  • Panasonic controllers
  • Motion controllers with RTEX
• Not typical pulse-input like SE/SG

Dimensions (Same as A6 series)

• Width: 1.57 inch
• Height: 5.91 inch
• Depth: 5.12 inch

  Core Functions

  1. Real-Time Network Motion Control

  • Controlled via RTEX (Realtime Express) network
  • Receives commands from a motion controller / PLC
  • No pulse wiring needed (unlike SE/SG)

  Enables very fast and synchronized control

  ---

  2. Position Control

  • Moves motor to exact positions based on network commands
  • Used for:
    • CNC axis movement
    • Pick-and-place positioning
    • Indexing systems

  ---

  3. Speed Control

  • Maintains constant or variable motor speed
  • Useful for:
    • Conveyors
    • Rollers
    • Continuous motion systems

  ---

  4. Torque Control

  • Controls motor torque (force) instead of position
  • Used in:
    • Tension control
    • Pressing / winding applications

  ---

  5. Multi-Axis Synchronization

  • Can synchronize multiple servo motors together
  • All axes move in perfect timing

  Critical for:

  • Robotics
  • Packaging machines
  • Printing machines

  ---

  6. High-Speed Response

  • 3.2 kHz response frequency
  • Very fast reaction to commands

  Smooth and precise motion even at high speed

  ---

  7. Feedback Control (Closed Loop)

  • Uses encoder feedback to:
    • Compare commanded vs actual position
    • Correct errors instantly
  Ensures high accuracy
