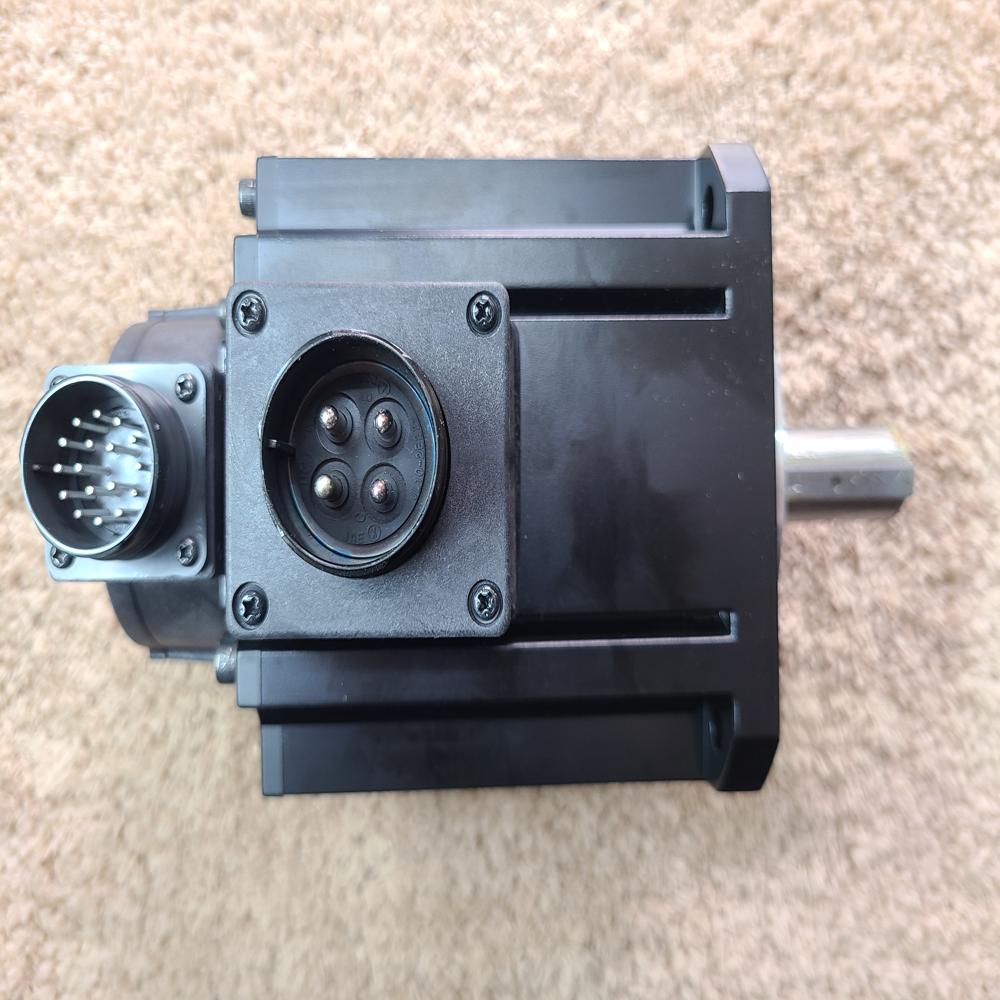

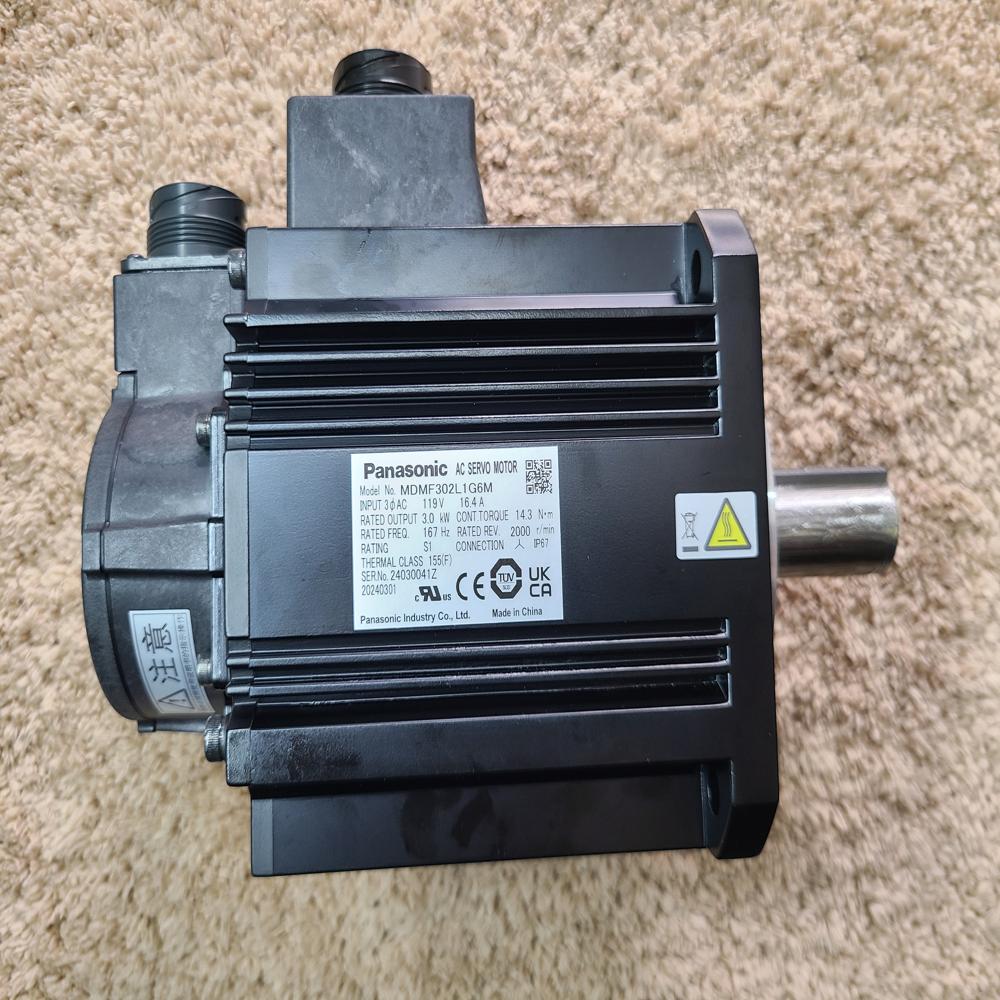

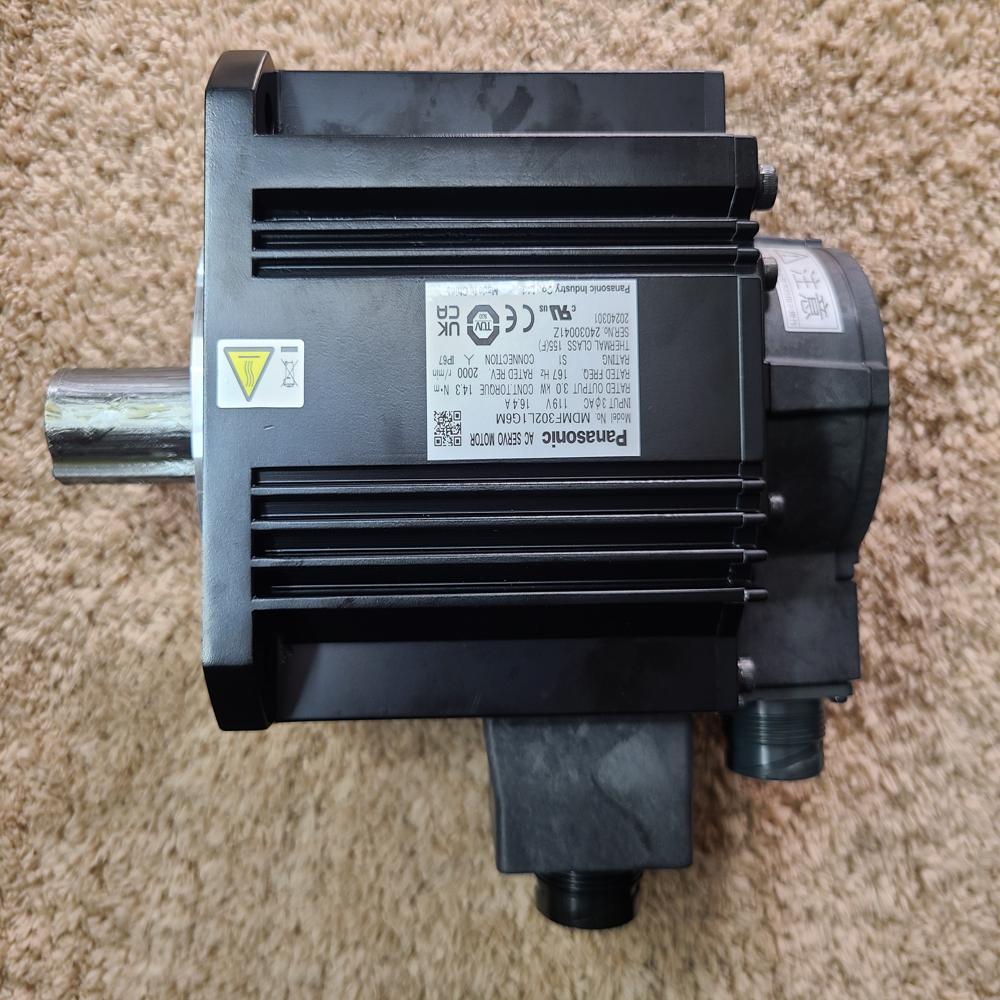

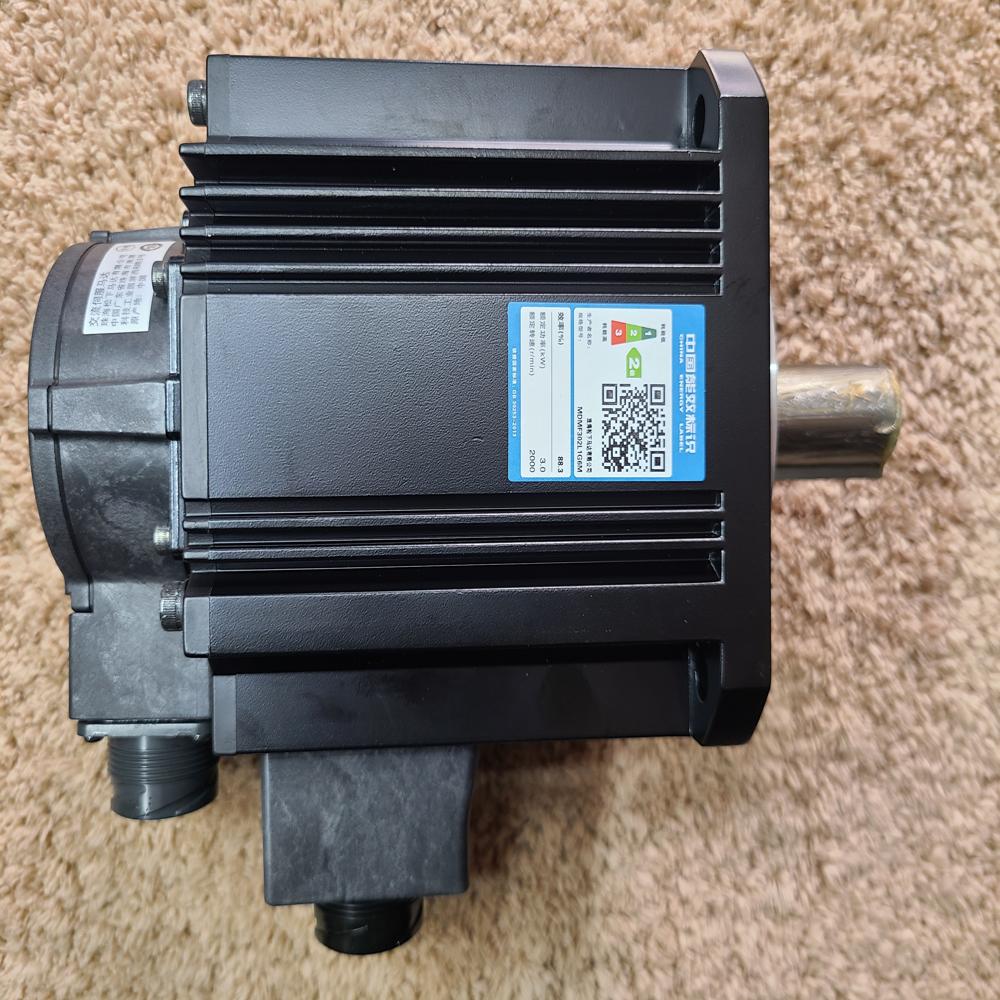

MSMF302L1G6M Panasonic A6 3000W Motor , Torque Nm - 9.55, RPM - 3000

Name: MSMF302L1G6M Panasonic A6 3000W Motor , Torque Nm - 9.55, RPM - 3000
Brand: Corbital Enterprise
Price: 58200.0 INR
Availability: InStock

Price 58200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF302L1G6M Panasonic A6 3000W Motor , Torque Nm - 9.55, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
6.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MSMF302L1G6M Panasonic A6 3000W Motor , Torque Nm - 9.55, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF302L1G6M Panasonic A6 3000W Motor , Torque Nm - 9.55, RPM - 3000

The Panasonic MSMF302L1G6M is a high-power 3000W (3.0 kW) AC servo motor from the MINAS A6 series, designed for high-speed, low-inertia applications requiring rapid acceleration and deceleration [1, 2]. [1, 2]

Function

High-Speed Response (Low Inertia): The low-inertia design allows for extremely rapid starts, stops, and directional changes, making it ideal for packaging machinery, pick-and-place robots, and high-speed indexing tables [1].
Precision Positioning: Features a 23-bit encoder, providing 8,388,608 pulses per revolution for surgical positioning accuracy [3].
Industrial Durability: Rated IP67, ensuring the motor is fully protected against dust ingress and resistant to water immersion [4].
Power Delivery: Capable of producing a rated torque of 9.55 Nm at a rated speed of 3000 RPM [2]. [1, 2, 3, 4, 5]

Technical Specifications

Feature [1, 2, 3, 4, 5]	Specification
Rated Output	3000 W (3.0 kW)
Rated Torque	9.55 Nm [2]
Peak Torque	28.6 Nm
Rated Speed	3000 RPM [2]
Max Speed	5000 RPM
Voltage	200 V AC
Holding Brake	Without Brake ("G" model) [2]
Encoder	23-bit Incremental/Absolute [3]

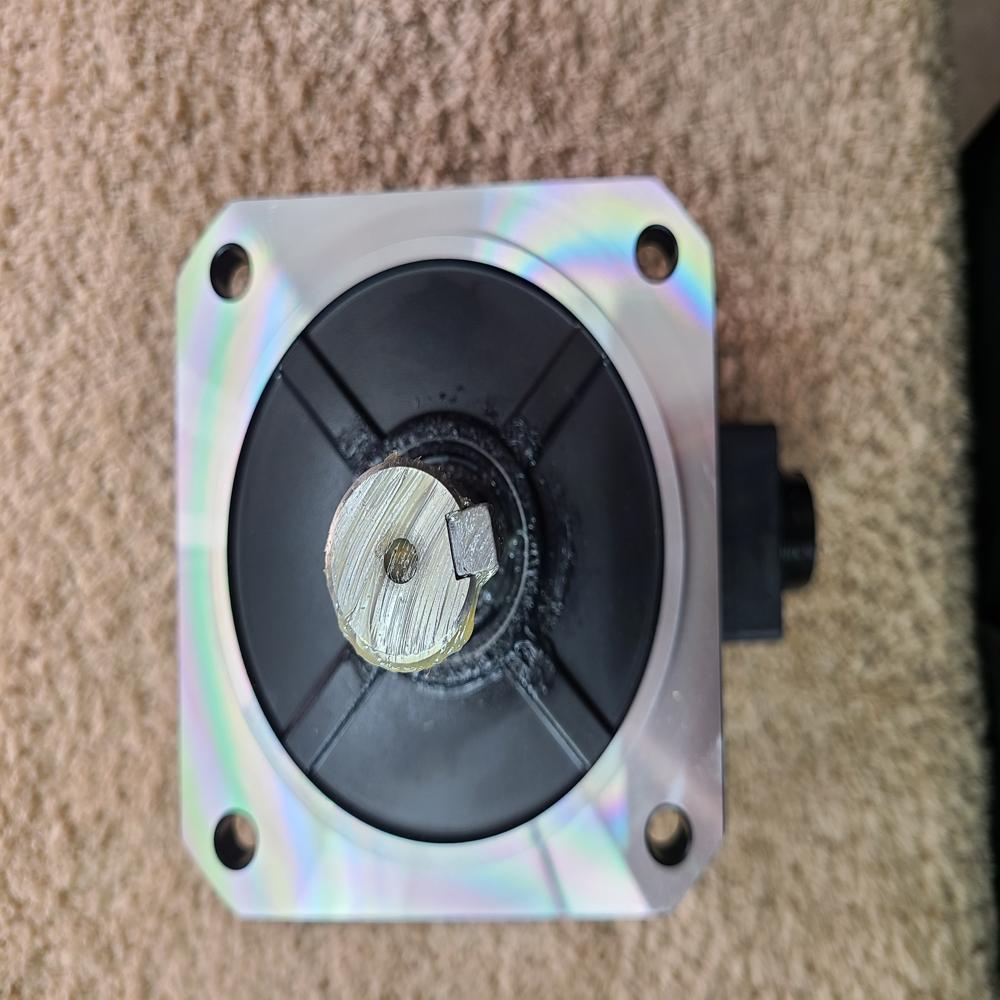

Flange Size	130 mm

Physical Dimensions & Weight

Converted to imperial units for standard reference:

Weight: Approximately 15.00 lbs (6.8 kg).
Flange Width & Height: 5.12 inches (130 mm).
Total Body Length: Approximately 7.56 inches (192 mm) [Standard A6 3kW low-inertia frame].
Shaft Diameter: 0.87 inches (22 mm).

Compatible Drivers

To operate this motor, Panasonic Industry recommends the following A6 series drivers:

Multifunction Type: MFDLTA3SF
Basic Type: MFDLNA3SE
RS485 Communication Type: MFDLNA3SG [1, 2]

The primary function of the Panasonic MSMF302L1G6M is to act as a high-speed, high-power actuator for machines that require "snappy" movements and extreme precision. It is the fastest 3kW motor in the A6 lineup, built for agility.

1. High-Speed Agility (Low-Inertia)

The "MSMF" series is designed for acceleration.

The Sprint: Because it has a lightweight internal rotor, it can reach its 3000 RPM rated speed almost instantly.
Rapid Cycling: It is ideal for machines that perform hundreds of operations per minute, such as high-speed food packaging, component insertion, and pick-and-place robotics.

2. Precise Heavy-Duty Positioning

Despite its high speed, it maintains surgical accuracy:

23-bit Encoder: It divides a single rotation into over 8 million steps. This allows a machine to move a load at high speed and stop it exactly within microns of the target.
Stability: This high resolution prevents the motor from "hunting" or vibrating when it reaches its destination, which is critical for semiconductor and electronic assembly.

3. Powerful Rotary Output

While it is agile, it is still a 3.0 kW motor with significant force:

Steady Force: It provides a constant 9.55 Nm of torque. This ensures that even at high speeds, the motor has enough "muscle" to overcome mechanical friction and air resistance.
Peak Power: It can surge to 28.6 Nm for a fraction of a second to break the "static friction" of a heavy machine part.

4. Continuous High-Frequency Operation

Heat Dissipation: It is designed to run continuously at 3000 RPM without overheating, making it a "workhorse" for 24/7 production lines.
IP67 Rating: It functions reliably in environments where it might be exposed to dust, oil mist, or water spray (common in high-speed bottling or metal cutting).

5. Seamless Driver Feedback

Digital Communication: It sends real-time position, speed, and torque data back to the driver 3,200 times per second. This allows the driver to adjust the power instantly if the load changes, ensuring perfectly smooth motion.

Do you need the allowable radial and thrust load limits for the 22mm shaft, or are you looking for the electrical connector part numbers?
