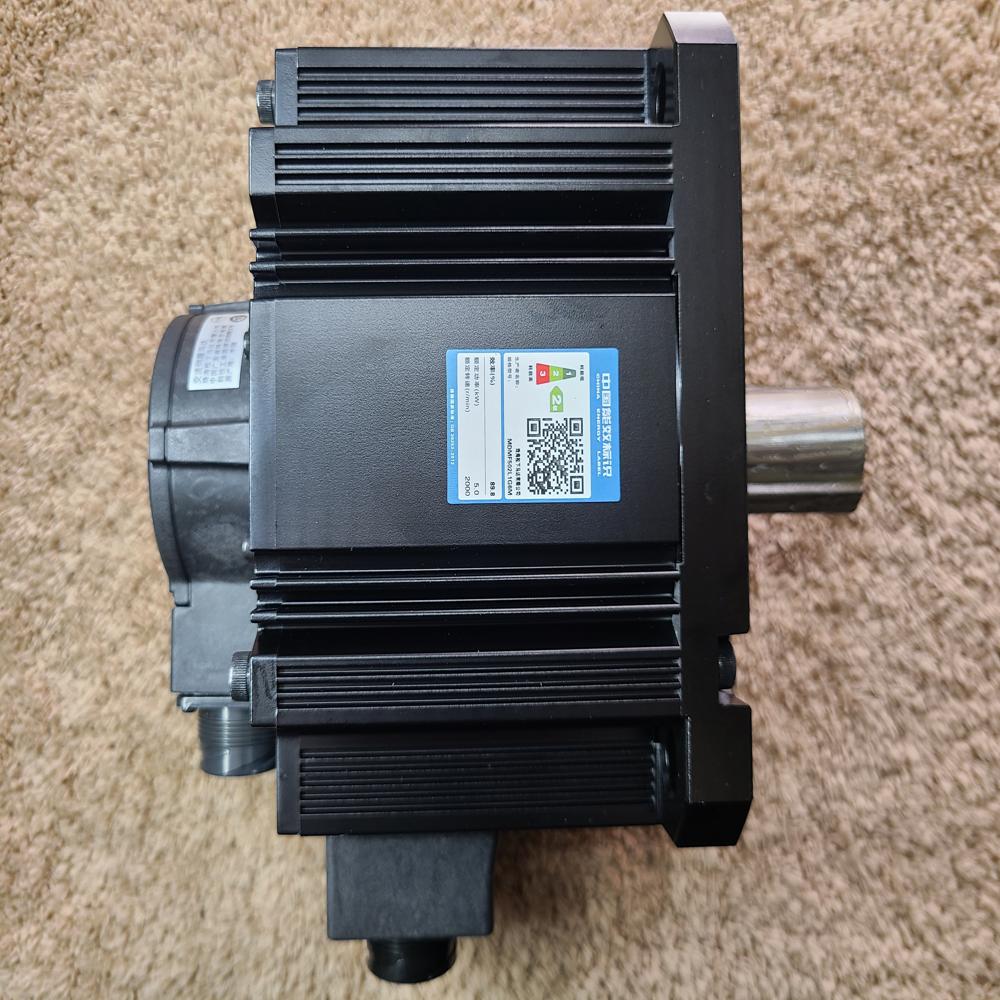

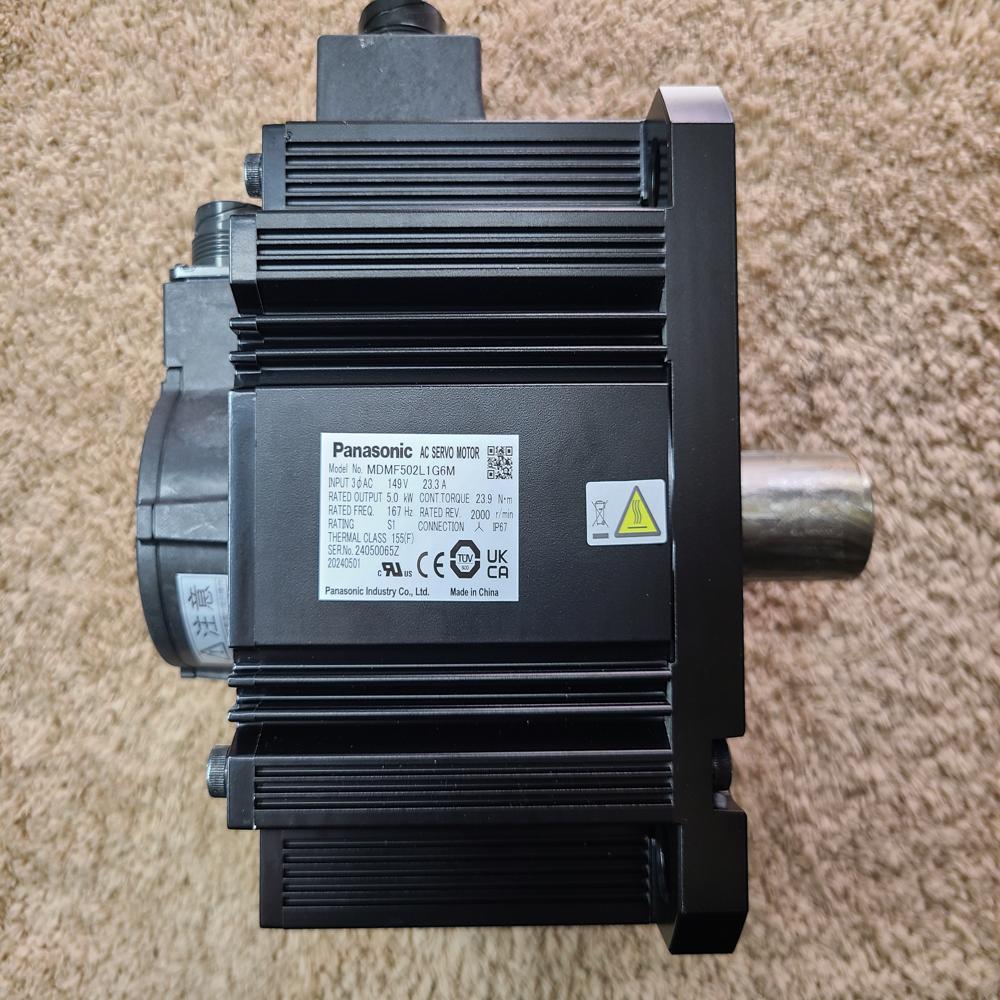

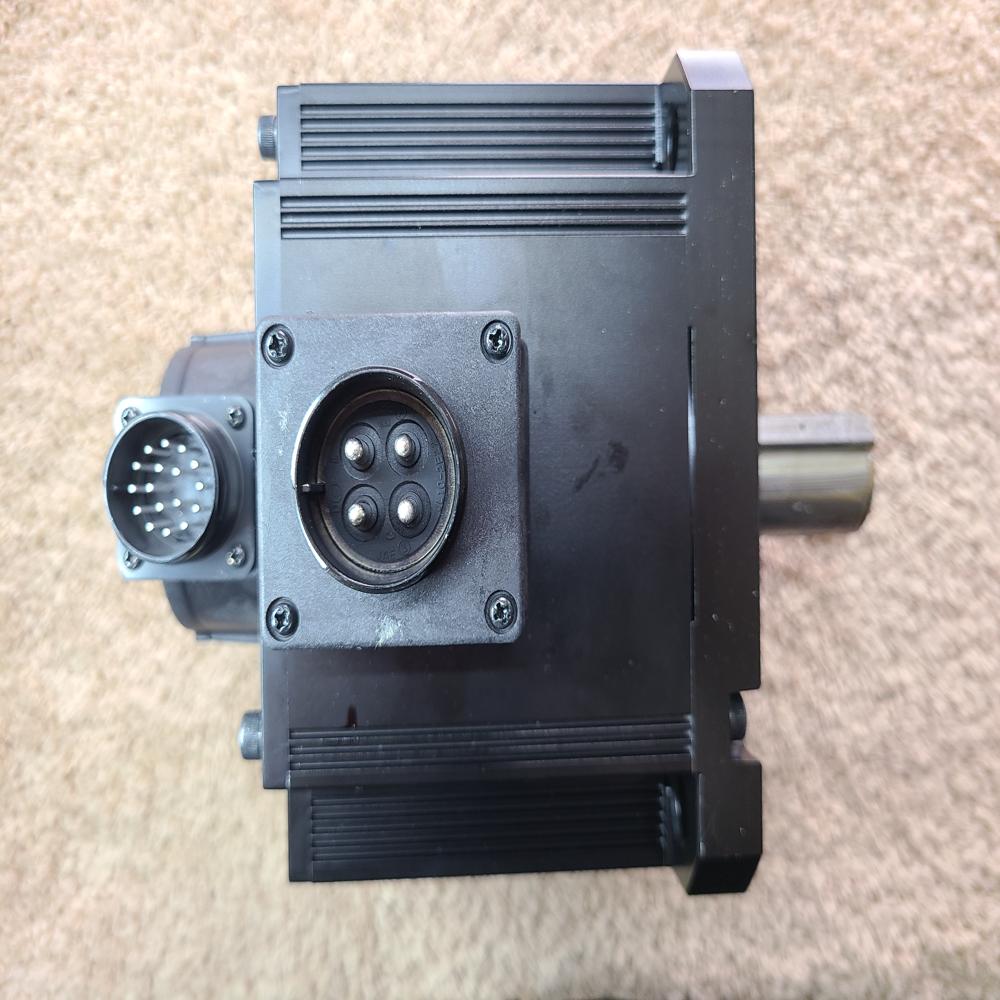

MDMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 23.9, RPM - 2000

Price 88000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MDMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 23.9, RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
18.8 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MDMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 23.9, RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MDMF502L1G6M Panasonic A6 5000W Motor , Torque Nm - 23.9, RPM - 2000

The Panasonic MDMF502L1G6M is a 5000 W (5.0 kW) Middle-Inertia AC servo motor from the MINAS A6 series. It is designed for high-torque industrial applications where mechanical stability and precision are critical under heavy loads.

Core Performance Specifications

Rated Power Output: 5000 W (5.0 kW)
Rated Torque: 23.9 Nm
Peak Stall Torque: 71.6 Nm
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Rated Current: 28.0 A (rms)
Maximum Current: 119 A (o-p)
Voltage: 200 V AC

Mechanical & Environmental Specs

Inertia Type: Middle Inertia (Balanced for high-mass loads)
Rotor Inertia: \(54.2 \times 10^{-4}\text{ kg}\cdot\text{m}^2\)
Encoder: 23-bit (8,388,608 pulses/rev) Absolute/Incremental
IP Rating: IP67 (Fully dust-tight and resistant to water immersion)
Shaft Type: Key-way with Oil Seal

Physical Dimensions (Inches & Lbs)

Weight: Approximately 41.45 lbs (18.8 kg)

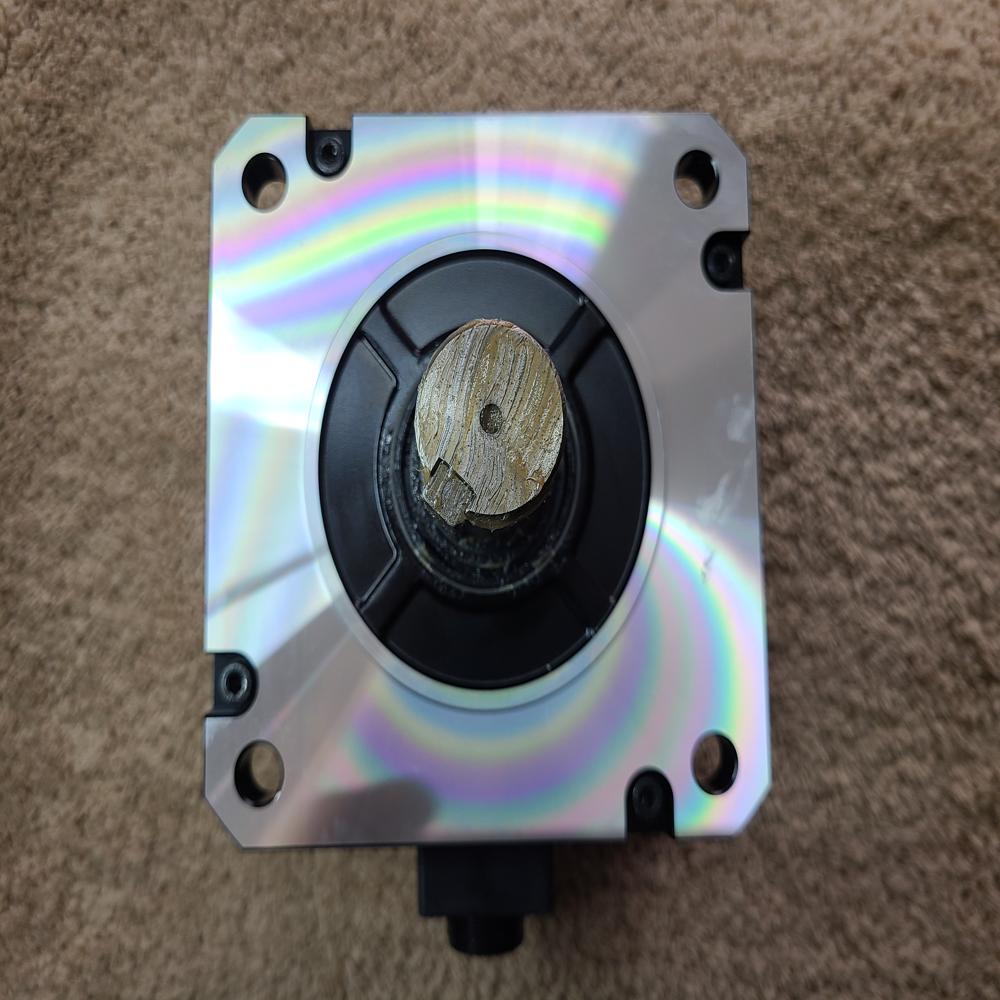

Flange Size: 6.93" x 6.93" (176 mm square)
Total Body Length: ~8.11 inches (206 mm)
Shaft Diameter: 1.378 inches (35 mm)
Shaft Length: 2.76 inches (70 mm)

Recommended Drivers

To handle the high current demands of this 5.0 kW motor, Panasonic utilizes the H-Frame driver series:

Multifunction (A6SF): MHDLTB3SF
Basic (A6SE): MHDLNB3SE
Network (A6NE/A6BE): MHDLNB3NE or MHDLNB3BE

The Panasonic MDMF502L1G6M is a 5000W (5.0 kW) Middle-Inertia AC servo motor from the MINAS A6 series. It is a high-torque industrial motor designed for heavy-duty applications where stability and precision under significant loads are required [2, 4].

Technical Specifications

Feature	Specification
Rated Output	5000 W (5.0 kW) [2]
Rated Torque	23.9 Nm [3]
Peak Torque	71.6 Nm [3, 4]
Rated Speed	2000 RPM [2]
Max Speed	3000 RPM [2]
Voltage	200 V AC [2]
Current (Rated/Max)	28.0 A / 119 A [3]
Inertia Type	Middle Inertia [3]
Encoder	23-bit (8,388,608 pulses/rev) [4]
IP Rating	IP67 [2]
Holding Brake	Without Brake ("G" model) [3]

Physical Dimensions & Weight

Weight: Approximately 41.45 lbs (18.8 kg) [3].
Width & Height (Flange): 6.93 inches (176 mm square) [2].
Length (Motor Body): Approximately 8.11 inches (206 mm) [3].
Shaft Diameter: 1.378 inches (35 mm) [3].

Functional Characteristics

Inertia Matching: The "Middle-Inertia" design provides a heavier rotor, which acts as a stabilizer for moving high-mass mechanical loads, reducing vibration and settling time [3].
High Precision: The 23-bit encoder allows for micron-level positioning accuracy even when driving heavy machinery [4].
Rugged Construction: The IP67 rating ensures the motor is dust-tight and resistant to water/oil spray, making it suitable for harsh factory environments like metal machine shops [2].

Compatible Drivers

This motor requires H-Frame A6 drivers to handle the high current demands, such as:
