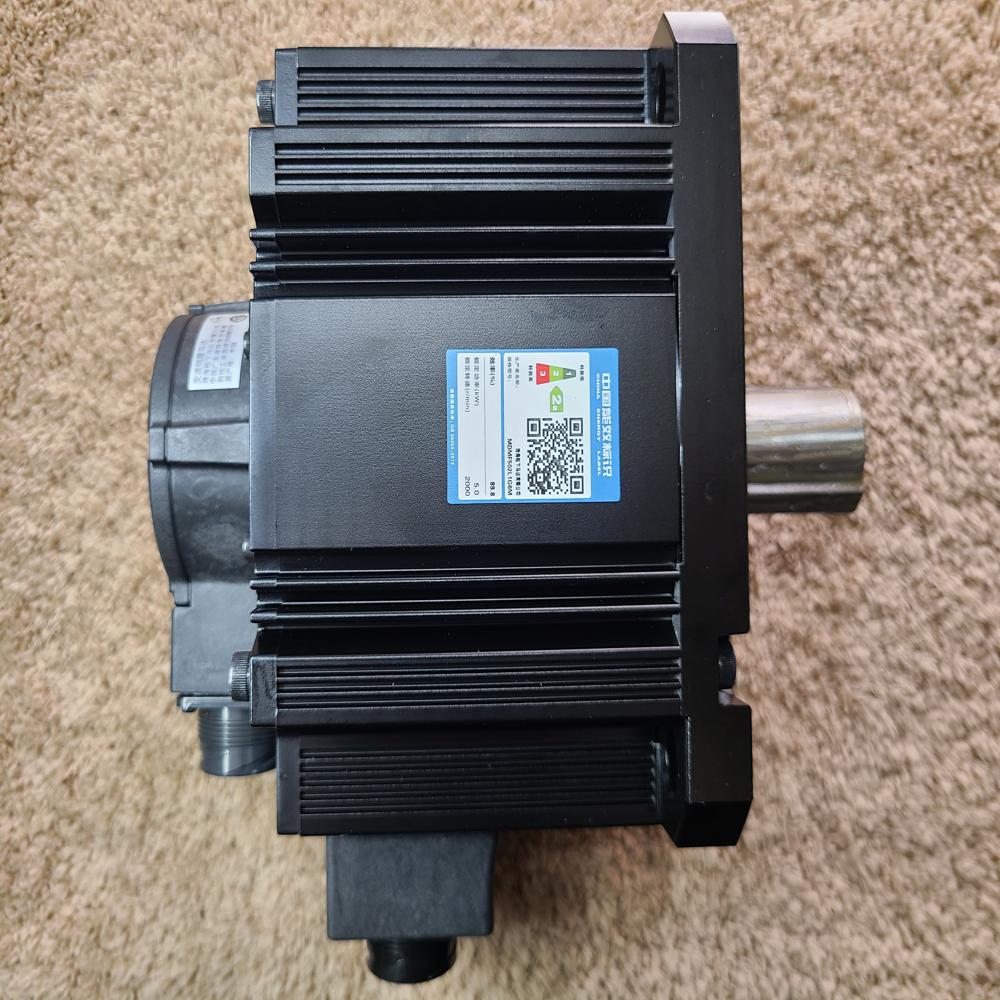

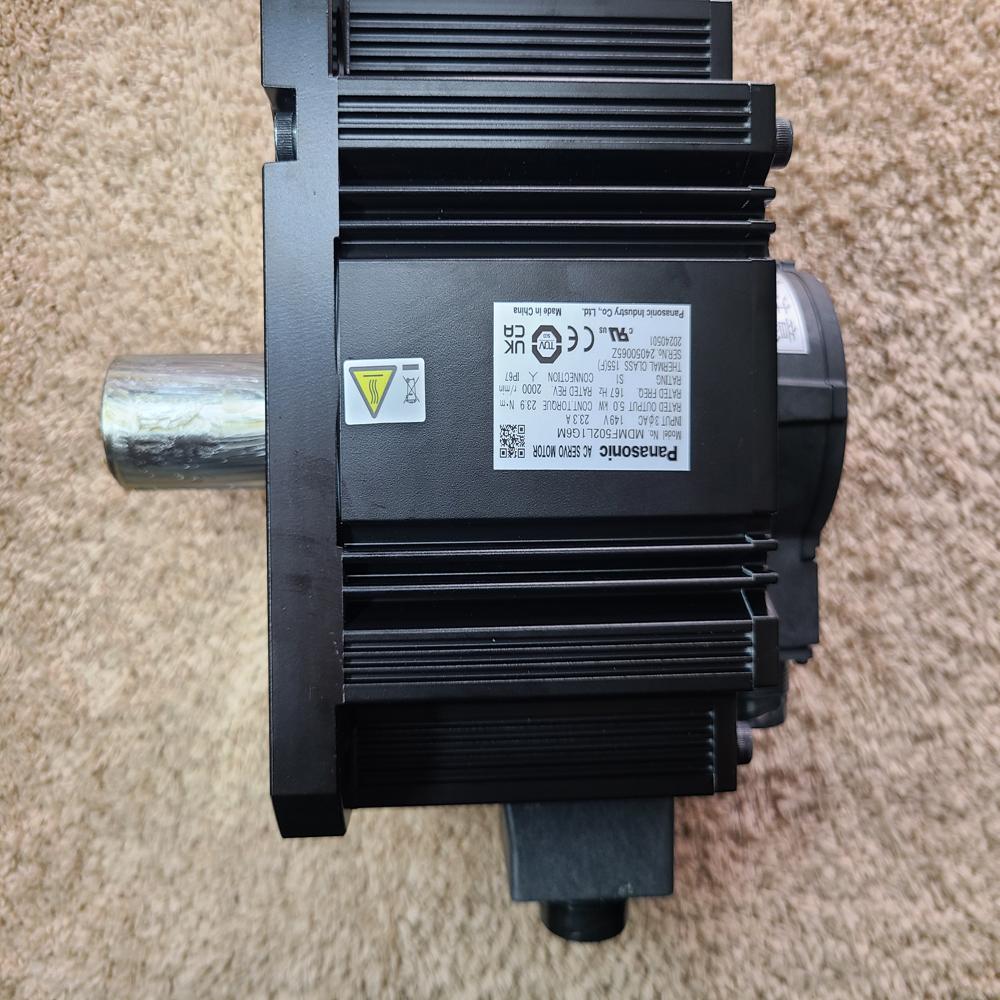

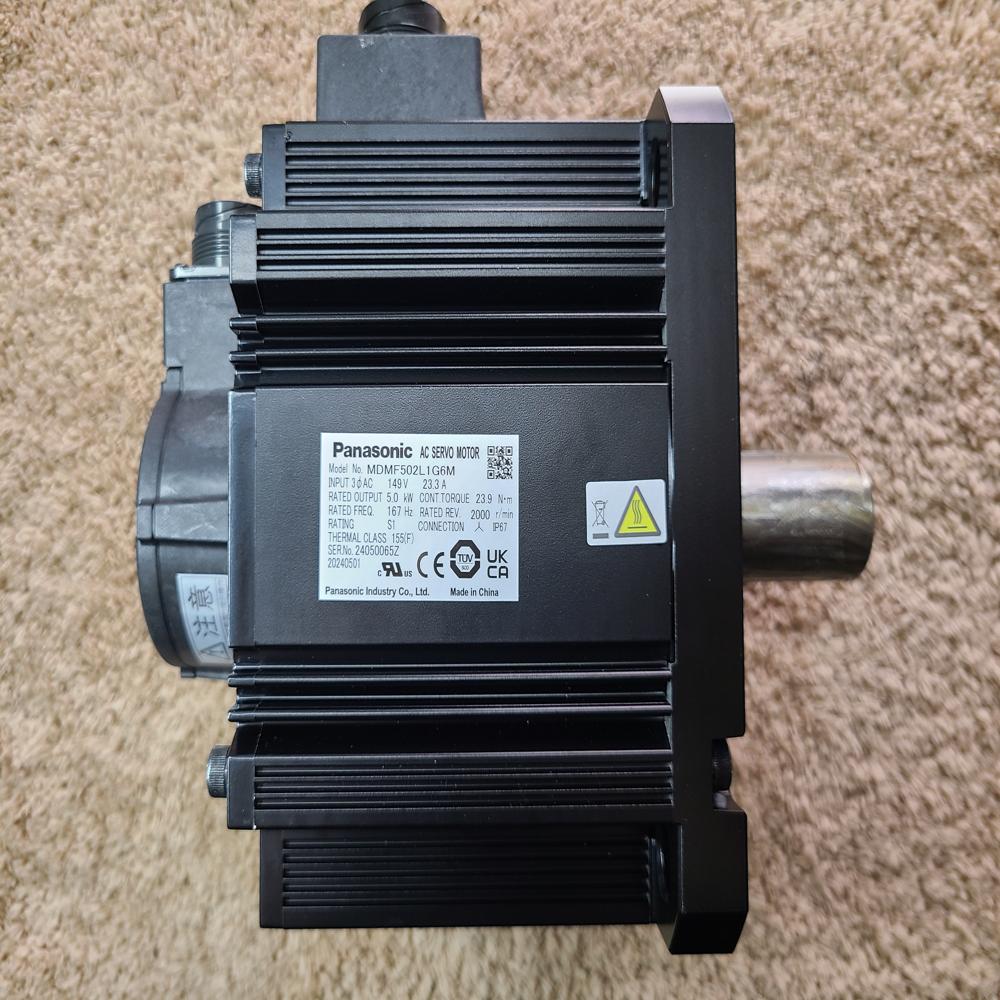

MSMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 15.9, RPM - 3000

Price 116000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MSMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 15.9, RPM - 3000 Specification

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
18.2 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

MSMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 15.9, RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MSMF502L1H6M Panasonic A6 5000W Motor + BRK , Torque Nm - 15.9, RPM - 3000

The Panasonic MSMF502L1H6M is a 5000W (5.0 kW) Low-Inertia AC servo motor from the MINAS A6 series, featuring an integrated electromagnetic holding brake. It is the highest-output "fast-response" motor in the 3000 RPM range. [1, 2]

Function

Safety Holding (Brake): The primary role of the built-in brake is to lock the shaft when power is lost. This is essential for safety, preventing heavy vertical axes or robotic arms from falling due to gravity during an emergency stop or power failure.
High-Speed Agility: As a "Low-Inertia" motor, it is designed for extreme acceleration. Its lightweight rotor allows it to reach 3000 RPM almost instantly, making it ideal for high-cycle tasks like large-scale packaging or high-speed material handling.
Surgical Precision: It uses a 23-bit encoder (8.38 million pulses/rev) to ensure that even at 5.0 kW of power, the motor maintains micron-level positioning accuracy. [1, 2, 3, 4]

Physical Specifications (Inches & Lbs)

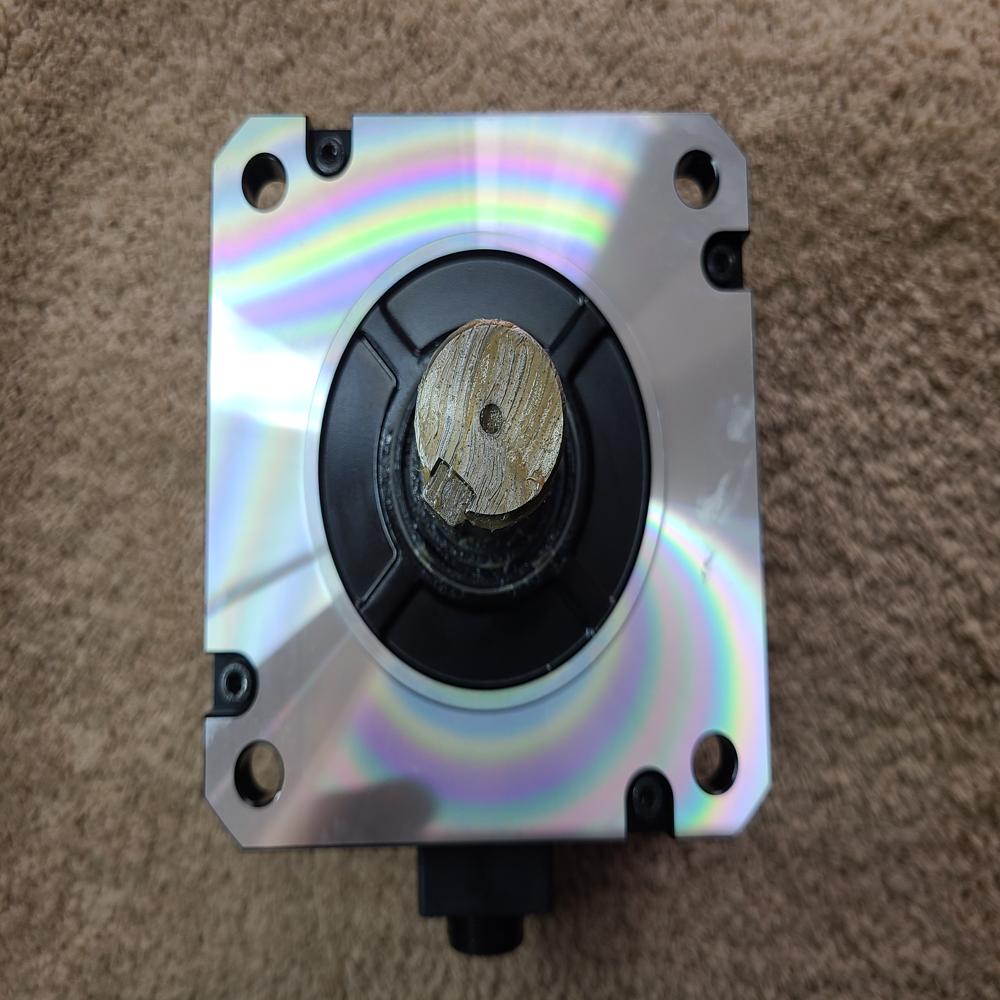

Due to the massive 5.0 kW stator and the added brake assembly, this is a large and heavy unit using a 176mm flange. [1]

Weight: Approximately 40.12 lbs (18.2 kg).
Width & Height (Flange): 6.93 inches (176 mm square).
Total Body Length: Approximately 10.55 inches (268 mm).
Shaft Diameter: 0.94 inches (24 mm).

Technical Specifications

Feature [1, 2, 3, 4]	Specification
Rated Output	5000 W (5.0 kW)
Rated Torque	15.9 Nm (Peak: 47.7 Nm)
Rated / Max Speed	3000 RPM / 4500 RPM
Brake Torque	24.5 Nm or more (Static friction)
Brake Voltage	24 V DC
IP Rating	IP67 (Dust-tight and waterproof)

Compatible Drivers

This motor requires the heavy-duty H-Frame A6 drivers:

Multifunction: MHDLTB3SF
Basic: MHDLNB3SE
EtherCAT: MHDLNB3NE

The primary function of the Panasonic MSMF502L1H6M is to provide high-speed, high-power motion control with an integrated safety lock for heavy-duty industrial automation. It is the most powerful "low-inertia" motor in the 3000 RPM class, balancing extreme agility with fail-safe security.

1. Fail-Safe Vertical Security (Holding Brake)

The "H" designation identifies the built-in electromagnetic holding brake.

Safety Lock: It automatically locks the motor shaft using internal springs whenever power is lost or an Emergency Stop is triggered.
Gravity Protection: Its most critical job is to prevent heavy machine components (like a large robotic head or a vertical Z-axis) from crashing down due to gravity.
Strong Holding Force: It provides 24.5 Nm of static holding torquesignificantly higher than the motor's running torque (15.9 Nm)ensuring the load stays "frozen" without needing active motor power.

2. High-Speed "Low-Inertia" Agility

The "MSMF" design is specifically engineered for acceleration.

Rapid Cycling: Despite its massive 5.0 kW power, it has a lightweight internal rotor. This allows it to reach 3000 RPM almost instantly.
Applications: It is the standard choice for high-output machines performing hundreds of operations per minute, such as high-speed bottling, large-scale plastic injection molding, and fast-cycle material handling.

3. Surgical Positioning Precision

Even when outputting massive force, it maintains micro-precision:

23-bit Encoder: It tracks its position within 8,388,608 steps per turn. This allows for micron-level accuracy when positioning heavy parts.
Quick Settling: It works with the driver to stop instantly at a coordinate without "bouncing" or vibrating, which is vital for maintaining production quality at high speeds.

4. Continuous Heavy-Duty Output

Sustained Force: It delivers a constant 15.9 Nm of torque, providing the necessary "muscle" to overcome mechanical friction and air resistance in large-scale automated systems.
Environmental Protection: Its IP67 rating means it is functionally sealed against dust and liquid splashes, making it reliable for harsh factory floors (e.g., food processing or metal machine shops).

5. Real-Time Feedback Hub

It communicates its status to the driver 3,200 times per second (3.2 kHz). This allows the system to make instantaneous power adjustments if the load changes, ensuring perfectly smooth motion even under stress.
