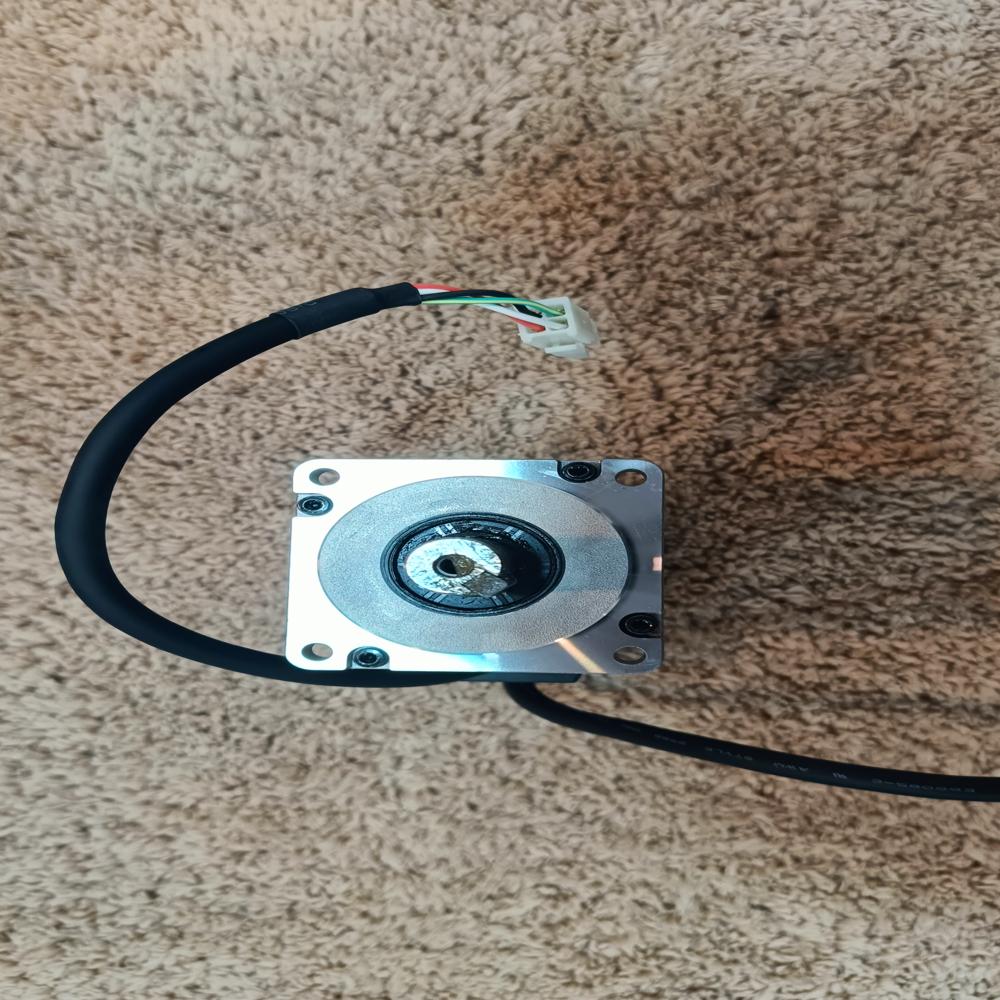

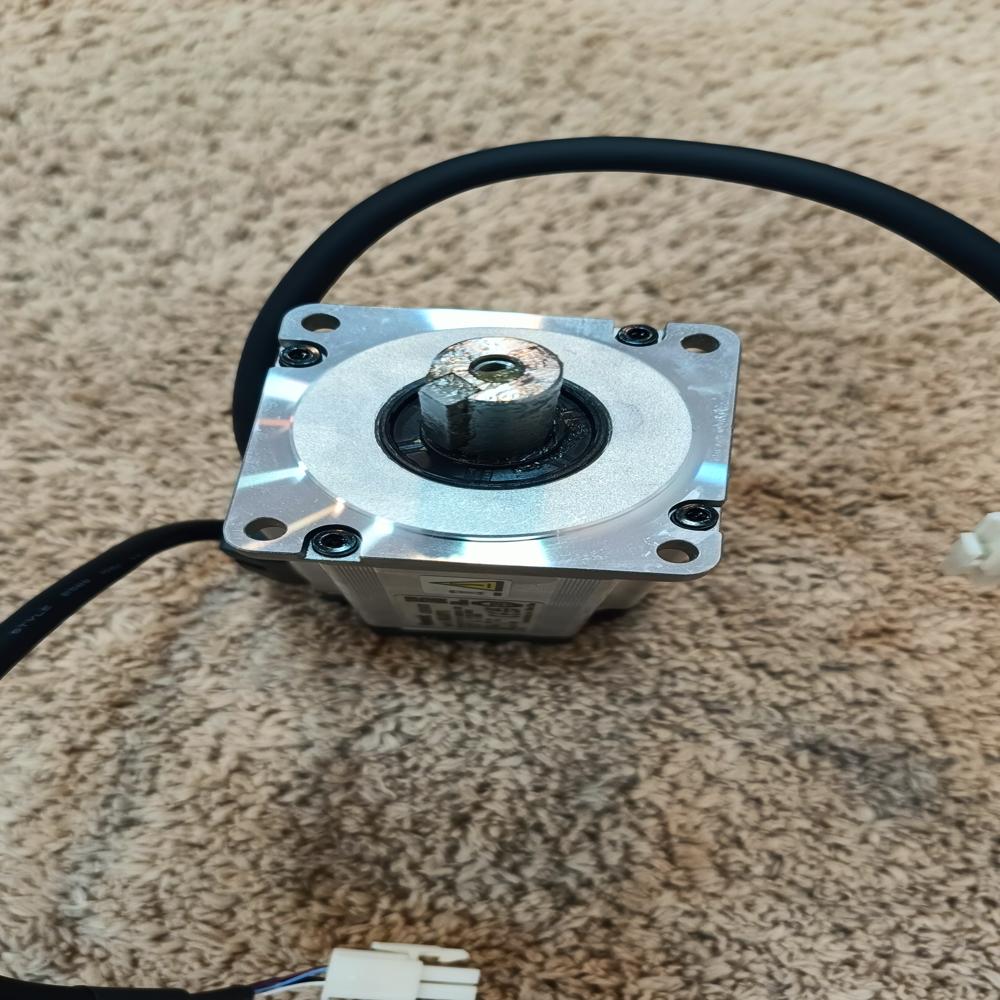

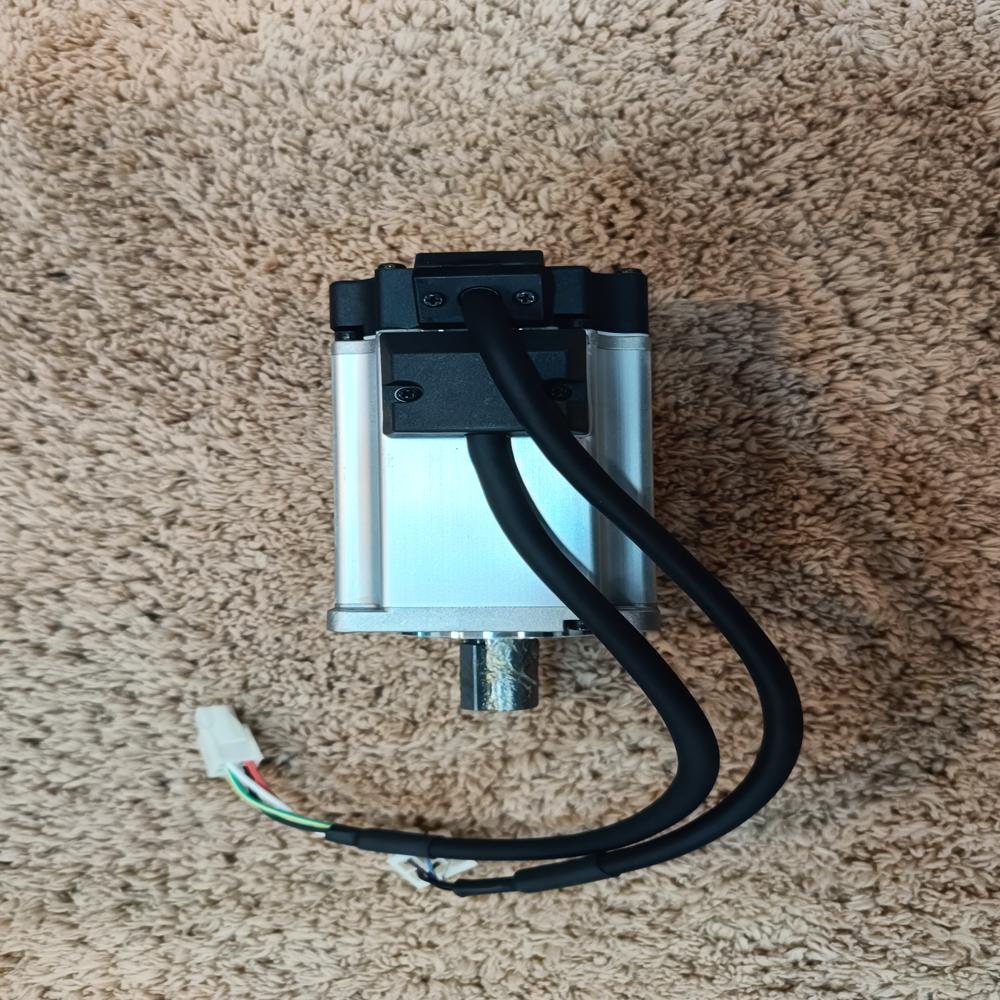

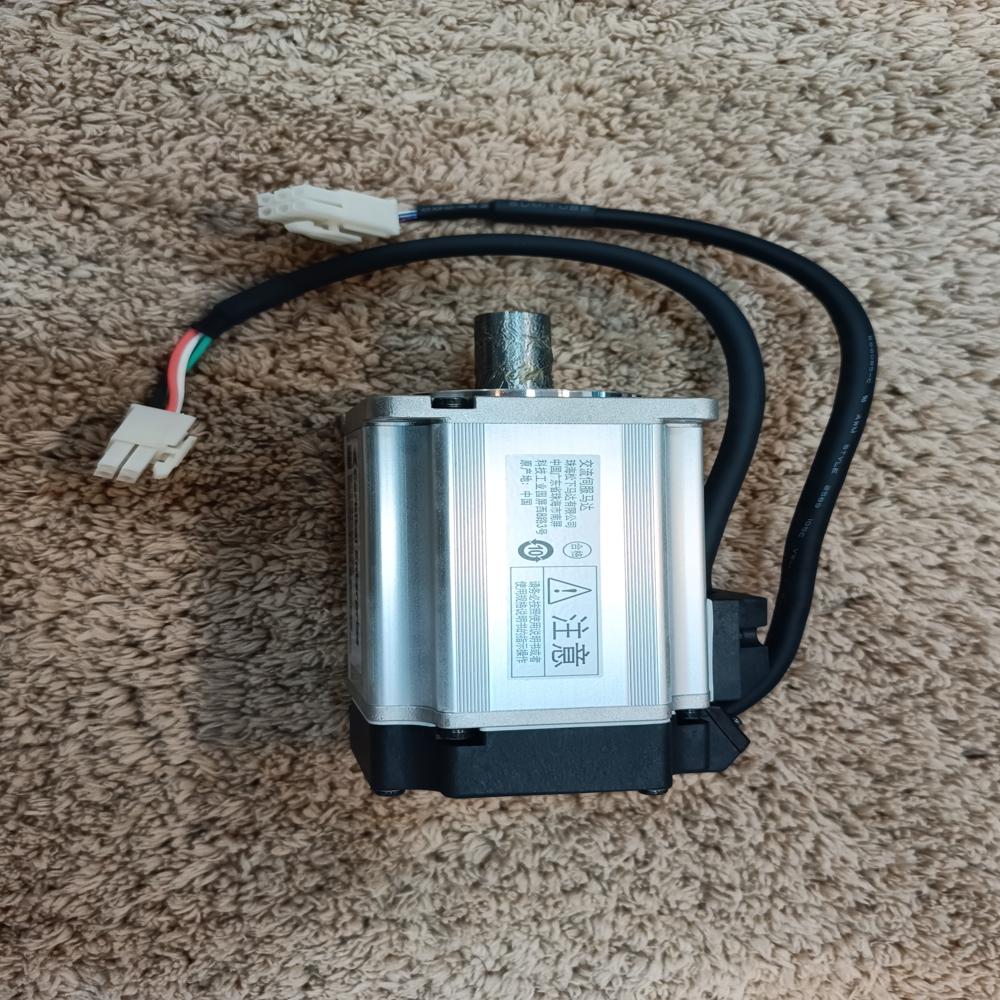

MSMF5AZL1U2M Panasonic A6 50W Motor , Torque Nm -0.16, RPM - 3000

Name: MSMF5AZL1U2M Panasonic A6 50W Motor , Torque Nm -0.16, RPM - 3000
Brand: Corbital Enterprise
Price: 21000.0 INR
Availability: InStock

Price 21000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

MSMF5AZL1U2M Panasonic A6 50W Motor , Torque Nm -0.16, RPM - 3000 Specification

Product Type
Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
0.32 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MSMF5AZL1U2M Panasonic A6 50W Motor , Torque Nm -0.16, RPM - 3000 Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
24 Hours

About MSMF5AZL1U2M Panasonic A6 50W Motor , Torque Nm -0.16, RPM - 3000

The

Panasonic MSMF5AZL1U2M

is a 50 W AC servo motor from the MINAS A6 series. Unlike the higher-power motors discussed previously, this is a low-inertia motor designed for extremely fast acceleration and high-speed precision in compact machinery.

Core Functions

High-Speed Response: Designed for applications that require rapid start/stop cycles, such as high-speed pick-and-place robots or electronic component assembly.
Precision Control: Equipped with a 23-bit absolute encoder (8,388,608 pulses per revolution), providing significantly higher resolution than the LIQI series for pinpoint positioning.
Durability: Features an IP65 rating with an oil seal, protecting the internal components from dust and liquid splashes common in industrial environments.

Technical Specifications

Feature	Specification
Rated Output	50 W
Rated Torque	0.16 Nm
Max Torque	0.48 Nm
Rated Speed	3000 RPM
Max Speed	6000 RPM
Input Voltage	100 V / 200 V common
Inertia Type	Low Inertia
Shaft Type	Key-way, Threaded
Brake Status	Without Holding Brake
Encoder Type	23-bit Absolute

Physical Dimensions (Imperial)

This motor uses a very small 38 mm flange size (approx. 1.5 inches):

Weight: 0.71 lbs (0.32 kg) (Note: Shipping weight is often listed higher at 6.6 lbs / 3 kg due to packaging).
Width/Height: 1.50 inches (38 mm).
Length (Excluding Shaft): 2.34 inches (59.5 mm).
Shaft Diameter: 0.31 inches (8 mm).

Key Features

IP65 Environmental Protection: It is equipped with a highly dust-proof and oil-tight oil seal, allowing it to operate reliably in environments with liquid splashes or heavy dust.
Compact 38mm Frame: Its tiny footprint (about 1.5 inches square) allows it to fit into extremely tight mechanical assemblies where standard motors are too bulky.
Reduced Cogging: The A6 series features a re-designed magnetic field that significantly reduces "cogging" (vibration during rotation), resulting in much smoother motion at very low speeds.
Advanced Driver Compatibility: It works with MINAS A6 drivers like the MADLT01SF (multi-function type) or RS485 communication models.
