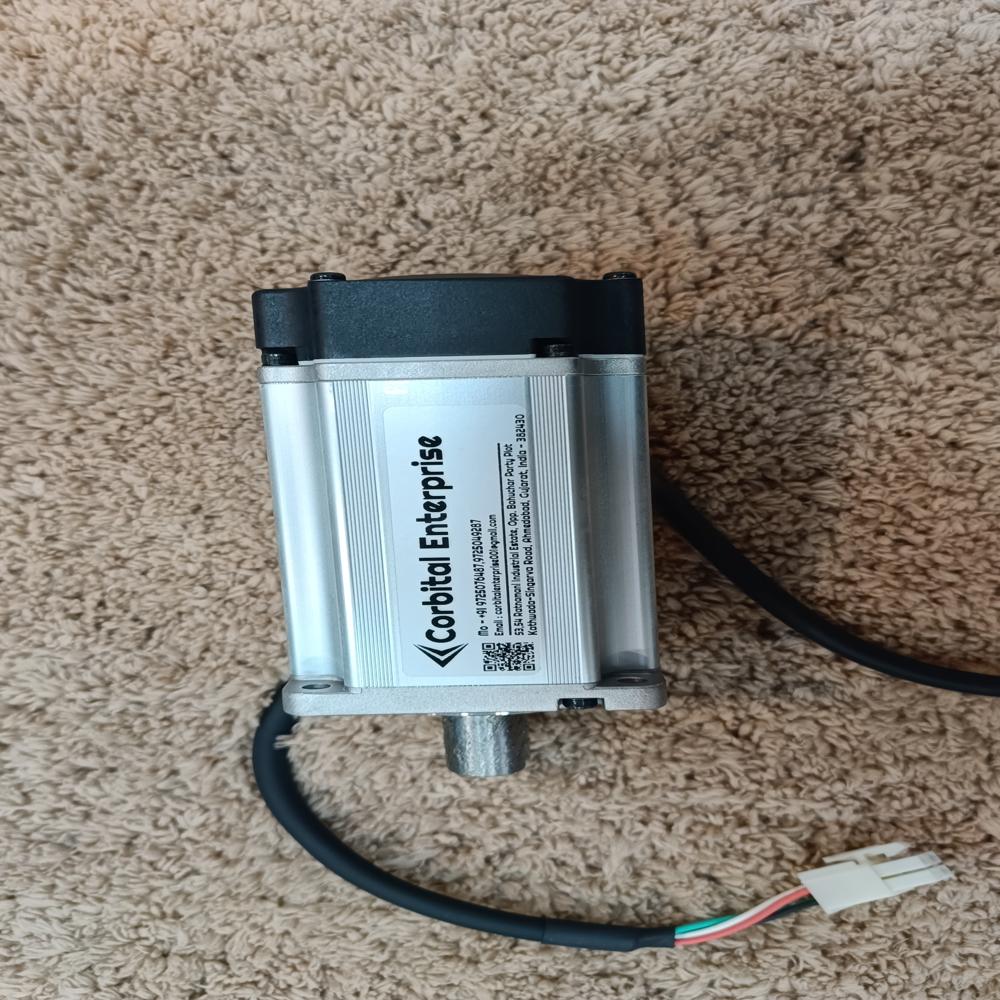

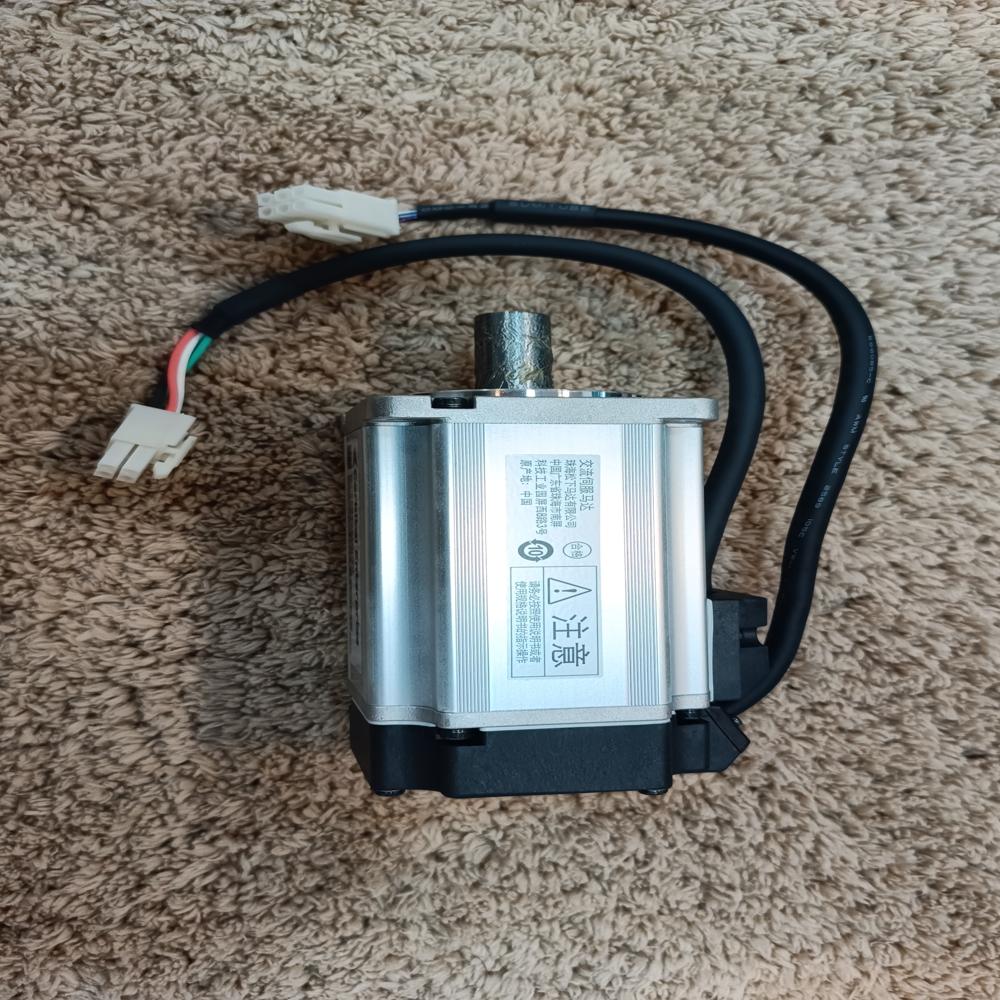

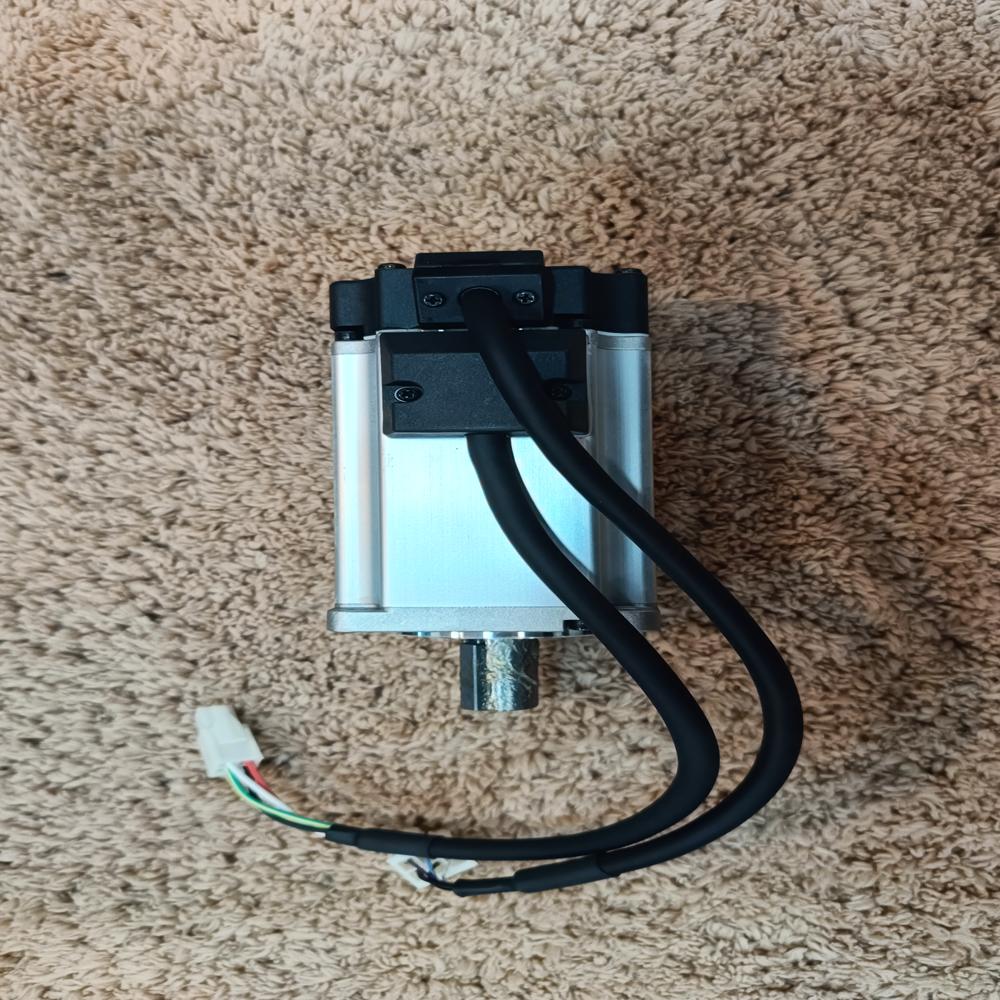

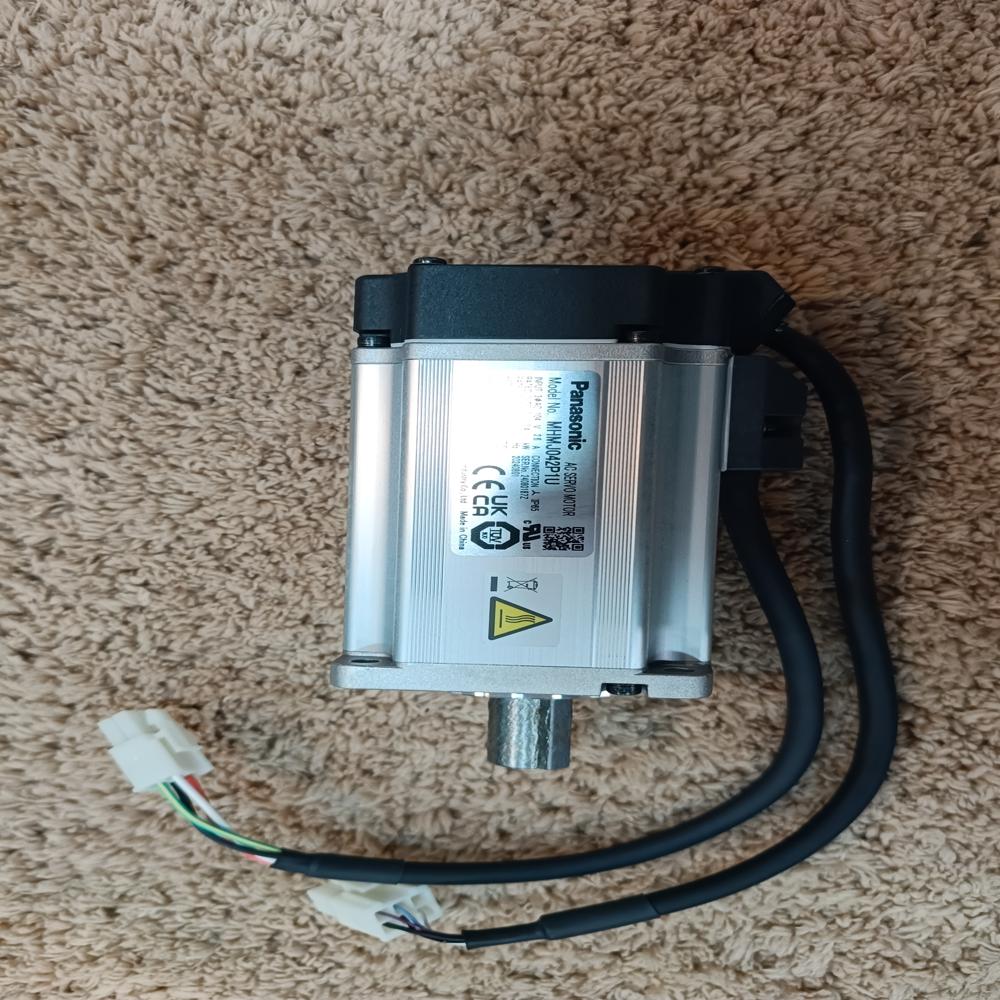

MUMA012P1S Panasonic MUMA 100W Motor

Name: MUMA012P1S Panasonic MUMA 100W Motor
Brand: Corbital Enterprise
Price: 21000.0 INR
Availability: InStock

Price 21000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MUMA012P1S Panasonic MUMA 100W Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
0.50 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MUMA012P1S Panasonic MUMA 100W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MUMA012P1S Panasonic MUMA 100W Motor

The Panasonic MUMA012P1S is a 100W AC servomotor from the MINAS E series, which is now officially discontinued by Panasonic Industry. It is an ultra-low inertia motor designed for high-speed, precision positioning in industrial automation. [1, 2]

Dimensions in Inches

According to technical drawings for the MUMA series "Frame Size A" motors, the dimensions are as follows: [1, 2]

Width & Height (Flange Size): 1.50" x 1.50" (38 mm x 38 mm).
Body Length: Approximately 3.31" (84 mm).
Total Length (with Shaft): Approximately 4.29" (109 mm).
Shaft Diameter: 0.31" (8 mm). [1, 2]

Technical Specifications

Rated Output: 100 W.
Rated Torque: 0.32 Nm (approx. 3.26 kgcm).
Rated Speed: 3000 RPM (Max speed of 5000 RPM).
Mass: 0.50 kg (approx. 1.1 lbs).
Encoder: 2500 P/r Incremental encoder.
Protection Class: IP65 (dust-tight and water jet protected, except for the shaft). [1, 2, 3]

Key Functions

Ultra-Low Inertia: Optimized for applications requiring rapid starts, stops, and frequent direction changes, such as SMT machines and inserters.
Vibration Suppression: Features built-in notch and adaptive filters to eliminate mechanical resonance and "judder" noise during operation.
Auto-Gain Tuning: Utilizes real-time auto-gain tuning to maintain high-speed positioning accuracy even in machines with low structural stiffness.

The Panasonic MUMA012P1S is an ultra-low inertia AC servomotor primarily used for Position Control in high-speed, repetitive industrial automation. Although now officially discontinued by Panasonic, it remains a common component in specialized manufacturing equipment.

Core Functional Features

Ultra-Low Inertia Design: Its rotor is specifically designed for high-frequency start-and-stop cycles. This allows the motor to reach high speeds and stop precisely without significant "over-shooting," which is essential for rapid assembly lines.
High-Resolution Feedback: It utilizes a 2500 P/r (pulses per revolution) incremental encoder. This provides a resolution of 10,000 pulses, allowing the servo driver to monitor and adjust the shaft's position with extreme precision.
Vibration and Resonance Suppression:
- Built-in Notch Filter: Automatically identifies and suppresses mechanical resonance in the machine, preventing the "judder" or vibration noise that can occur in high-speed systems.
- Damping Control: Smoothes out operation for machines with lower structural stiffness, reducing oscillations during rapid acceleration.
Real-Time Auto-Gain Tuning: The system can estimate load inertia in real-time during actual operation and automatically adjust the gain settings to match the machine's stiffness, enabling "adjustment-free" operation for engineers. [1, 2, 3, 4, 5, 6]

Primary Applications

Due to its 100W power rating and quick response time, this motor is a "best fit" for small-scale precision drives: [1, 2, 3]

SMT (Surface Mount Technology) Machines: Used for the rapid and precise placement of electronic components on PCBs.
Electronic Feeders & Inserters: Driving components into high-speed production lines with high repeatability.
Robotic Joints: Ideal for small robotic arms or pick-and-place systems requiring accurate angular positioning.
Medical & Semiconductor Equipment: Used in diagnostic devices and semiconductor handling where smooth, vibration-free motion is critical.
