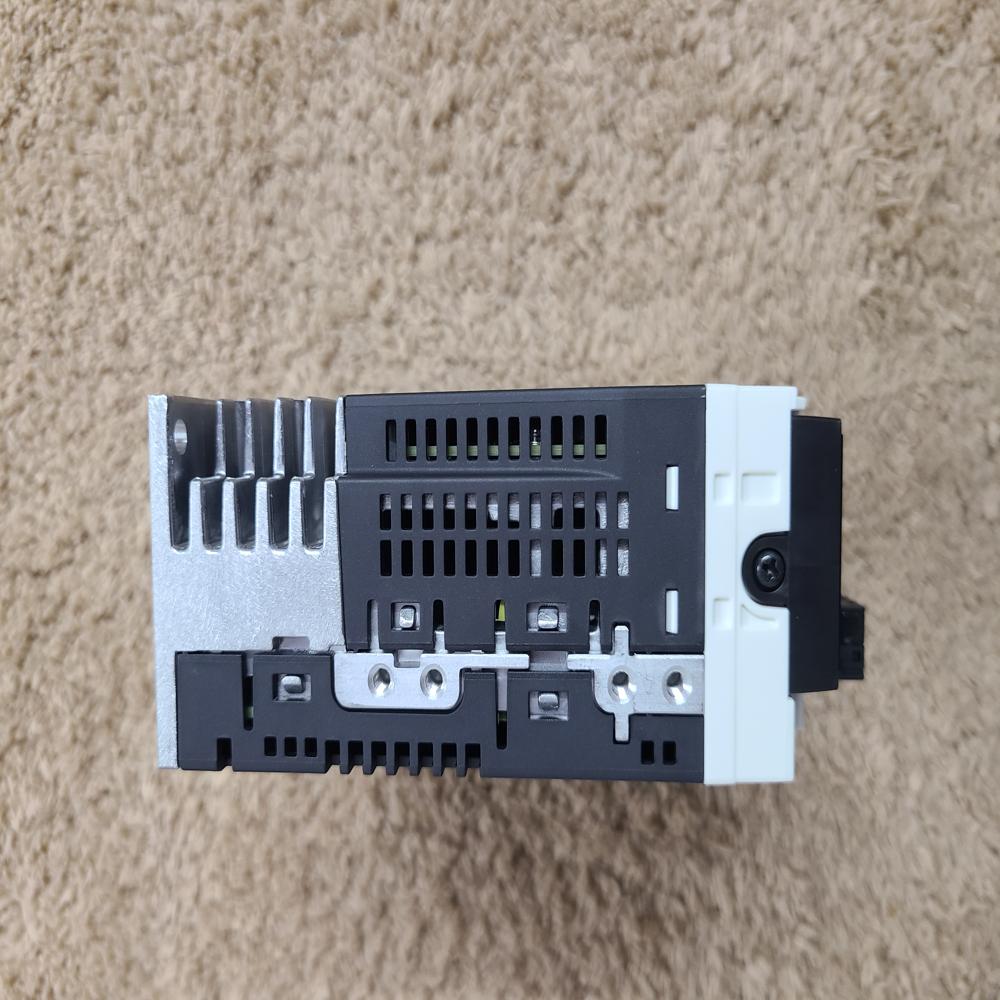

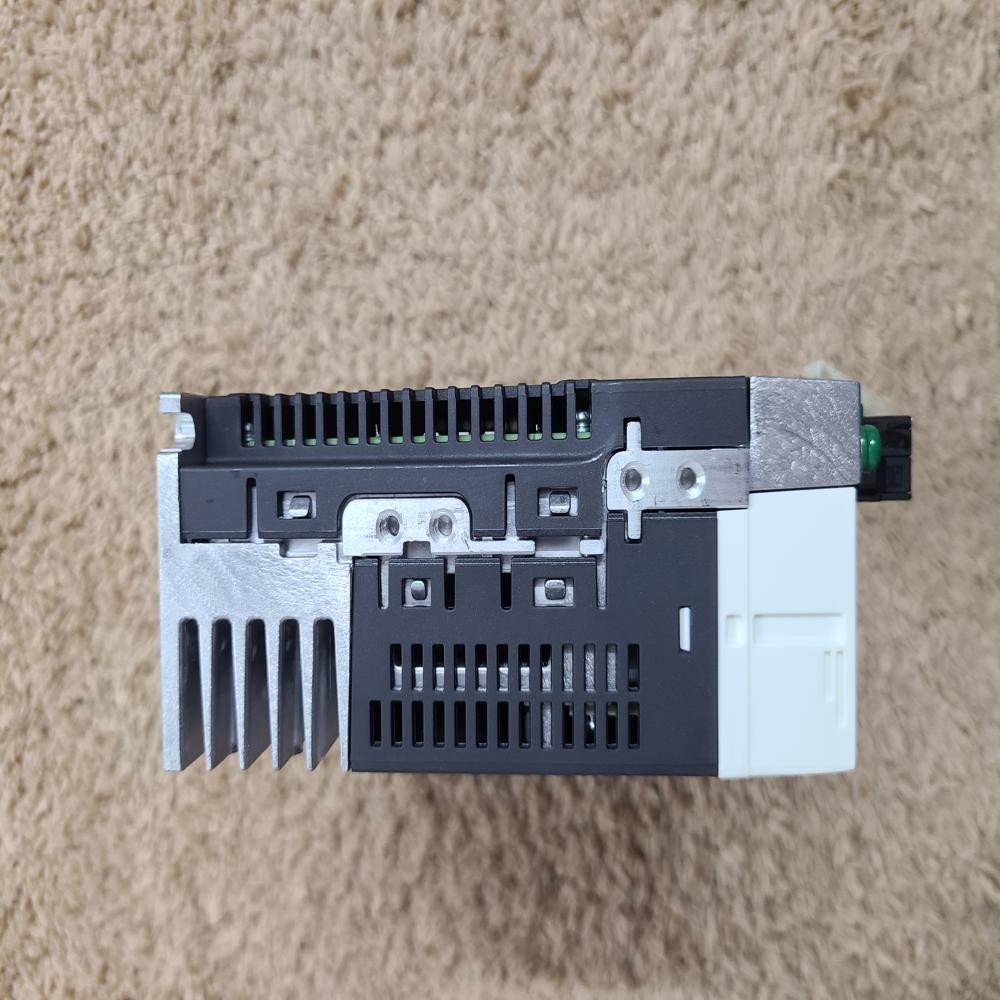

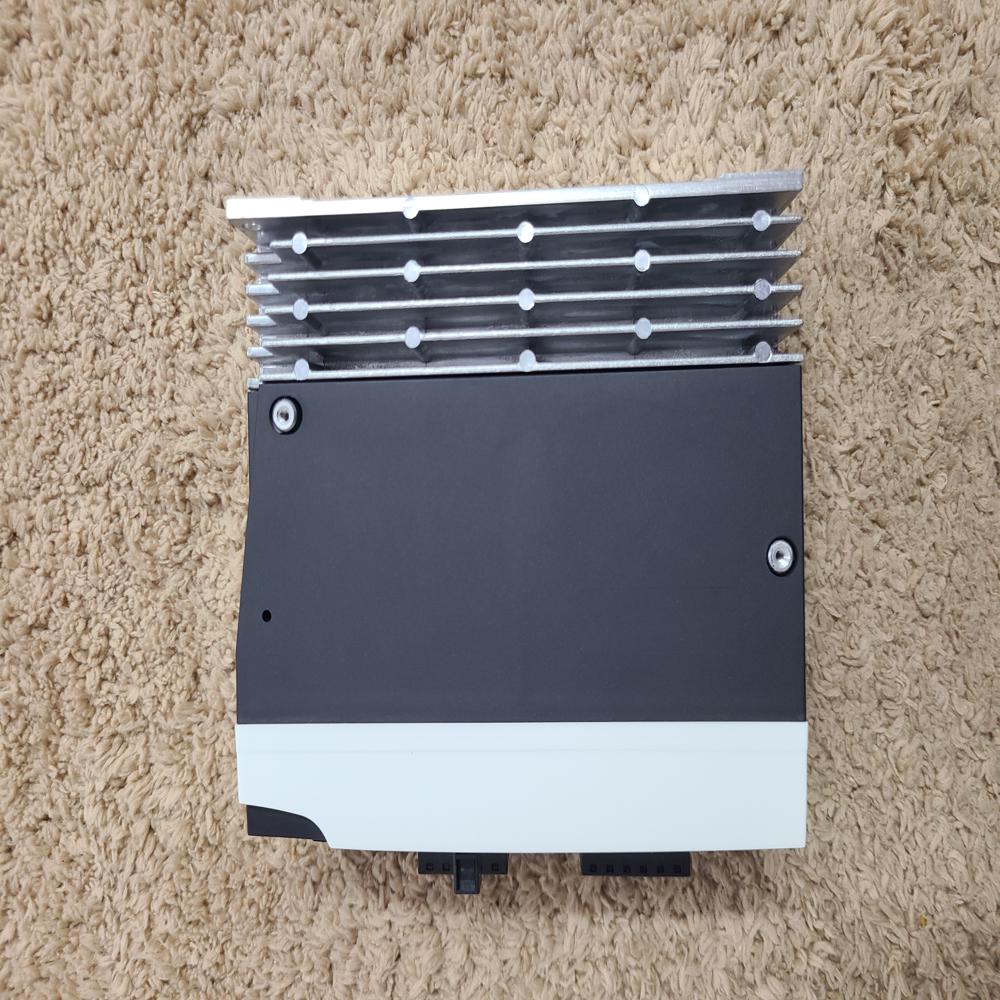

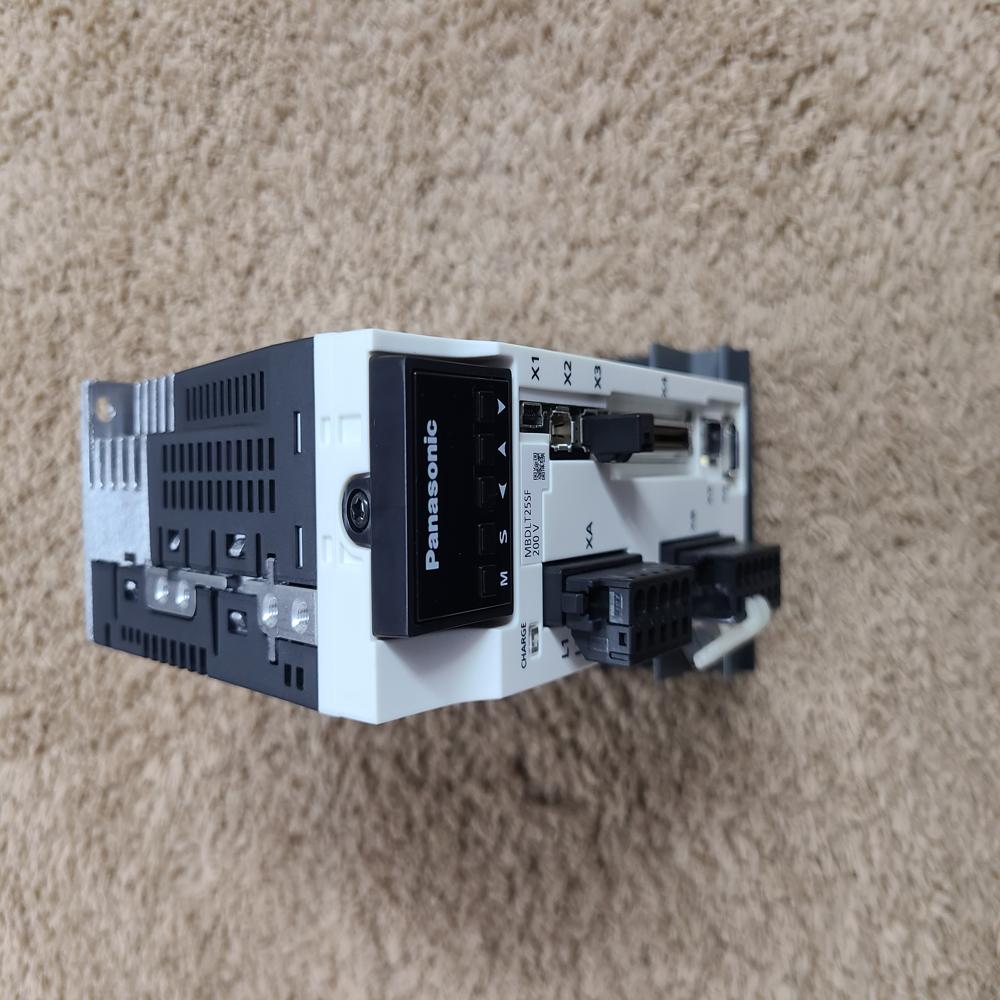

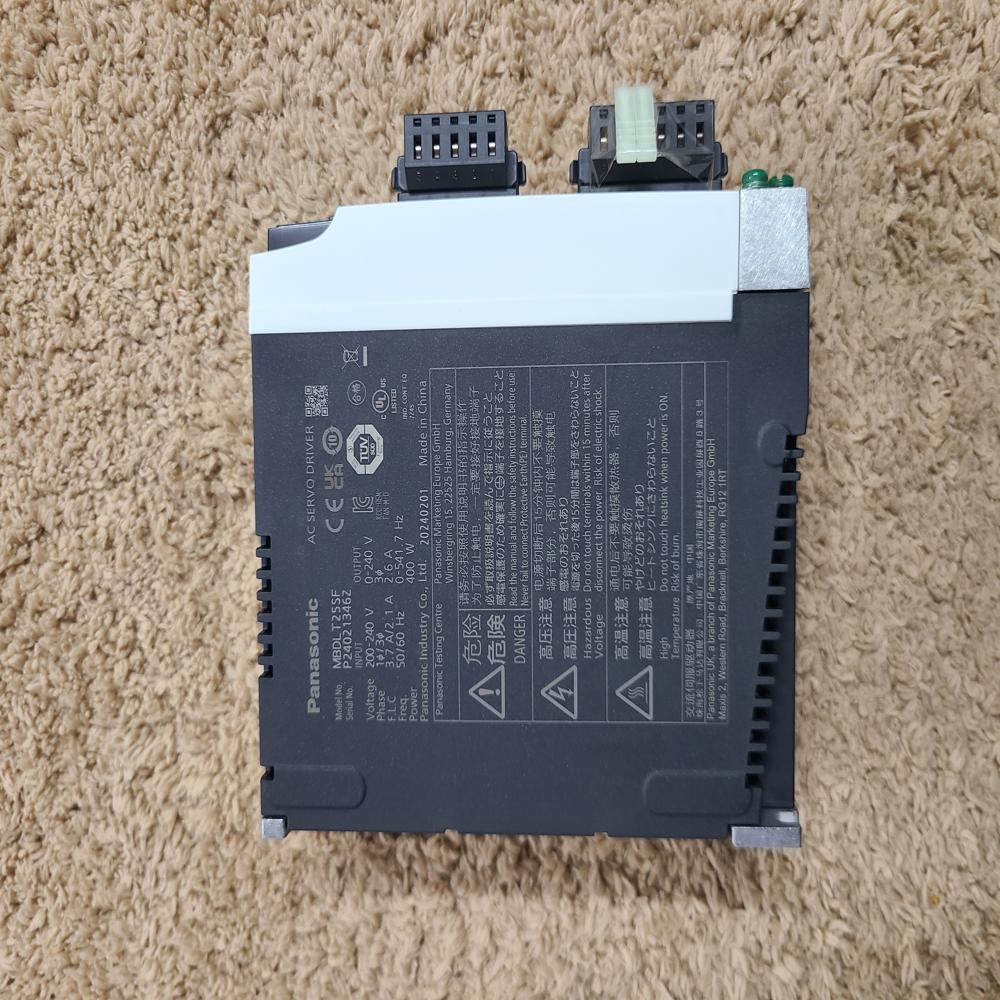

Panasonic MADLN15BE (A6BE EtherCAT 200W Servo Driver)

Panasonic MADLN15BE

Function (Main Purpose)

This drivers function is:

To control a servo motor using EtherCAT high-speed industrial network communication for precise, synchronized motion control (position, speed, and torque).

Core Functions

1. EtherCAT Real-Time Control (Main Feature)

• Uses EtherCAT industrial network
• Very fast real-time communication (100 Mbps class)
• Synchronizes multiple servo axes together

Ideal for multi-axis CNC, robotics, automation lines

2. Full Servo Control Modes

Supports all major motion modes:

• Position control
• Speed control
• Torque control
• Full closed-loop control

Can run complex motion profiles (interpolated movement)

3. High-Precision Encoder Feedback

• Works with 23-bit high-resolution encoder motors
• Constant feedback correction
• Very accurate positioning

4. High-Speed Response

• 3.2 kHz control loop response
• Fast acceleration & deceleration
• Smooth motion even under load

5. Multi-Axis Synchronization

• Multiple drives can move in perfect sync via EtherCAT
• Used in:
  • Robot arms
  • CNC multi-axis systems
  • Packaging machines

6. PLC / Motion Controller Integration

• Requires EtherCAT master controller (PLC or motion CPU)
• Not pulse-based like SE/SG models
• Fully digital network motion system

What It Does NOT Do

• No pulse input control (not standalone PLC step/dir type)
• Requires EtherCAT master system
• Not for simple low-cost machines

Simple Real-World Meaning

Think of it like:

• Driver = motion brain
• Motor = actuator
• EtherCAT = high-speed communication highway

It coordinates multiple motors like a synchronized robotic system

Typical Applications

• CNC machining centers
• Industrial robots
• High-speed packaging machines
• Semiconductor automation
• Printing & assembly lines

  Panasonic MADLN15BE (A6BE EtherCAT 200W Servo Driver)

  Panasonic MADLN15BE

  ---

  Dimensions (in inches)

  • Width: 1.57 in (40 mm)
  • Height: 5.91 in (150 mm)
  • Depth (Length): 5.12 in (130 mm)

  (Standard Panasonic A6 A-frame housing)

  ---

  Weight

  • 0.8 kg
  • 1.76 lbs
