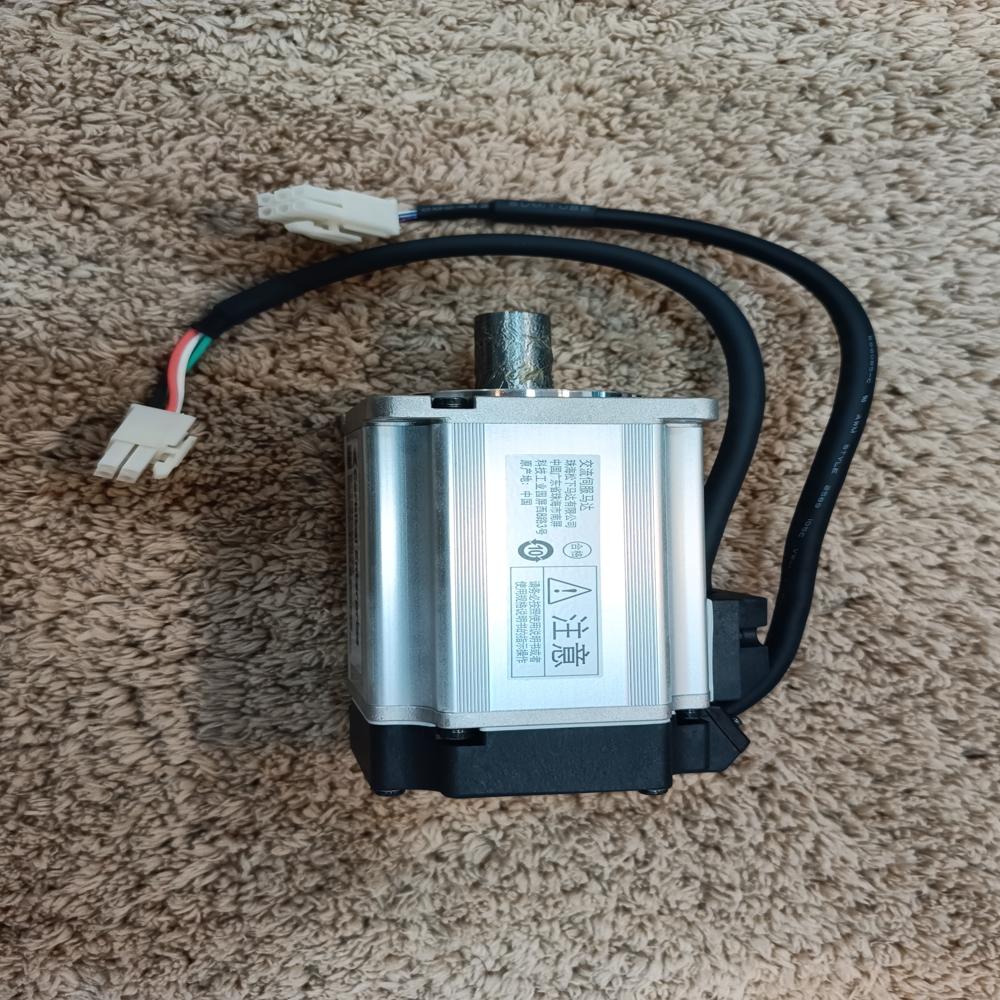

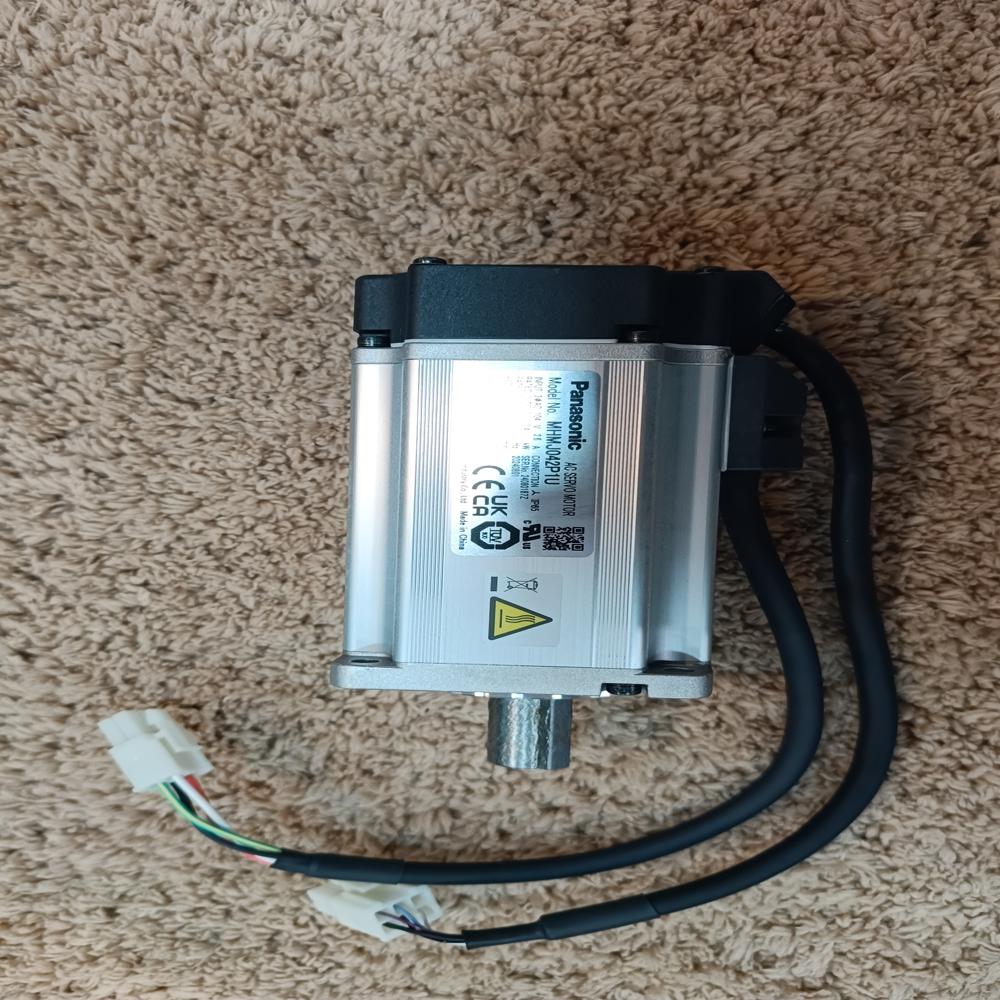

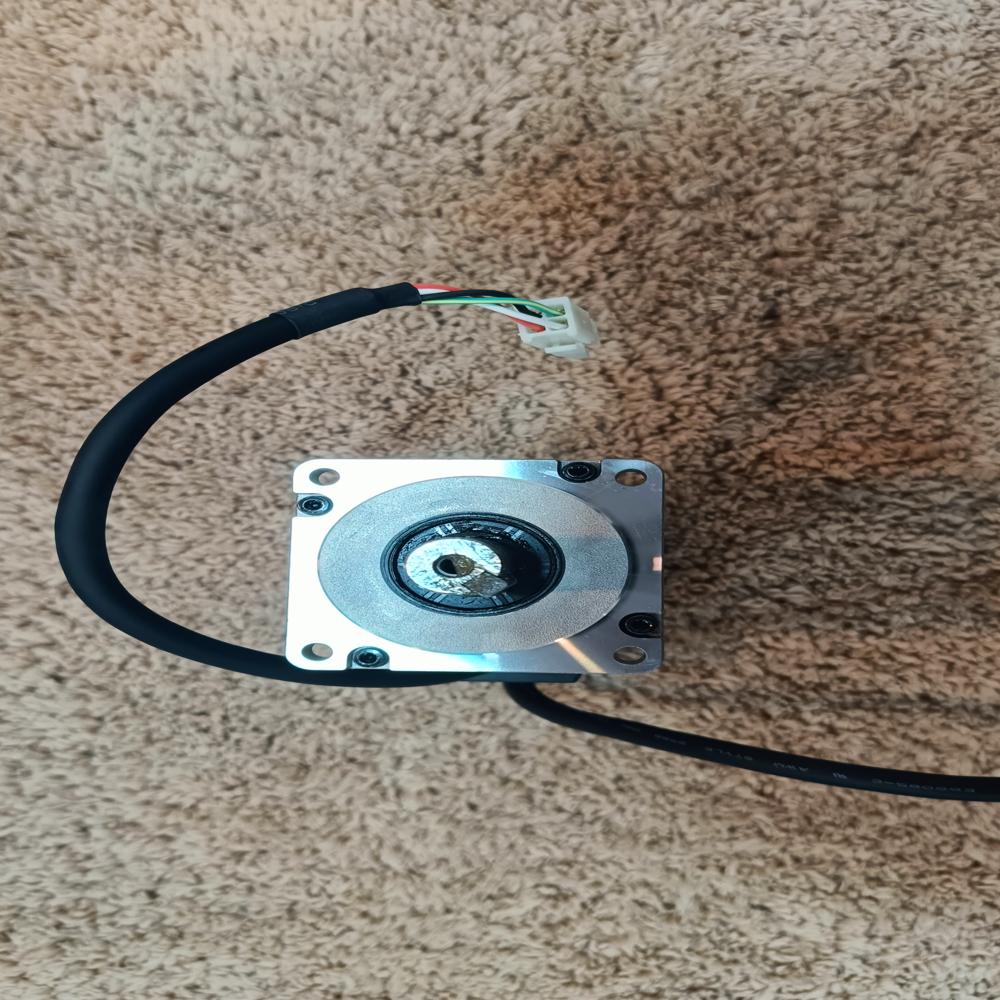

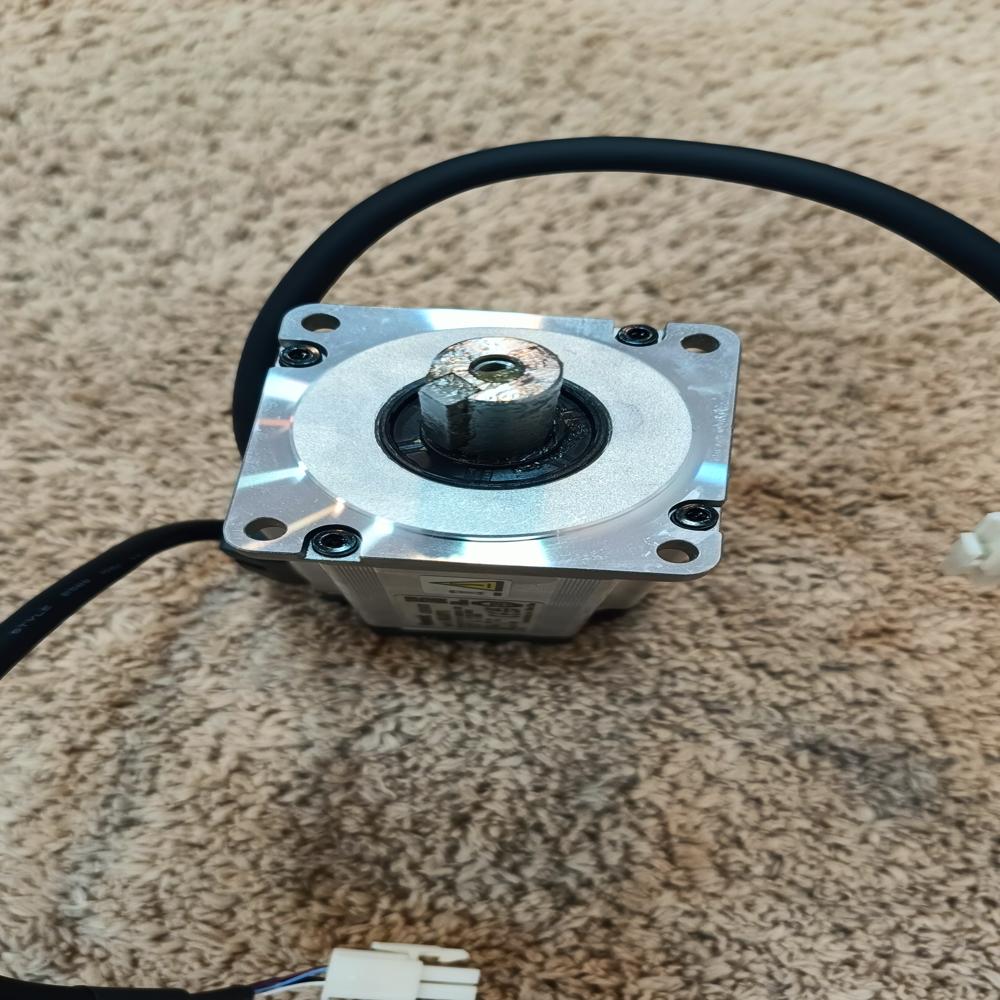

MUMA012P1S Panasonic MUMA 100W Motor

Name: MUMA012P1S Panasonic MUMA 100W Motor
Brand: Corbital Enterprise
Price: 46000.0 INR
Availability: InStock

Price 46000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MUMA012P1S Panasonic MUMA 100W Motor Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinery

Weight
0.50 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

MUMA012P1S Panasonic MUMA 100W Motor Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MUMA012P1S Panasonic MUMA 100W Motor

The Panasonic MUMA012P1S is a 100W AC servomotor from the MINAS E-series, specifically designed for high-speed, high-precision industrial positioning. It features an ultra-low inertia rotor, making it ideal for rapid start-stop cycles in assembly machinery. [1, 2]

Technical Specifications

Power Output: 100W.
Rated Speed: 3000 RPM (Max 5000 RPM).
Rated Torque: 0.32 Nm (Max 0.95 Nm).
Voltage: 200VAC.
Encoder: Incremental.

The Panasonic MUMA012P1S functions as a high-speed AC servomotor designed for ultra-low inertia applications. This means it is built to start and stop faster than a standard motor, making it ideal for high-speed manufacturing.

Key Functions

Precision Positioning: Its primary job is to move a machine part to an exact location and hold it there using a 2500 pulse/revolution encoder.
Rapid Cycle Performance: Because it has "ultra-low inertia," the motor can change direction or speed almost instantly, which is perfect for pick-and-place robots or high-speed labeling.
Vibration Control: It has built-in notch filters that detect and cancel out mechanical vibrations, ensuring the machine doesn't shake or "chatter" during high-speed moves.
Auto-Tuning: It features Real-Time Auto-Gain Tuning, which automatically adjusts the motor's power output to match the weight of the load it is carrying.

Where it's used

SMT Pick-and-Place: Placing tiny electronic chips on circuit boards.
Packaging Machines: High-speed filling, sealing, or labeling.
Medical Lab Automation: Moving vials and samples with high precision and smoothness.
