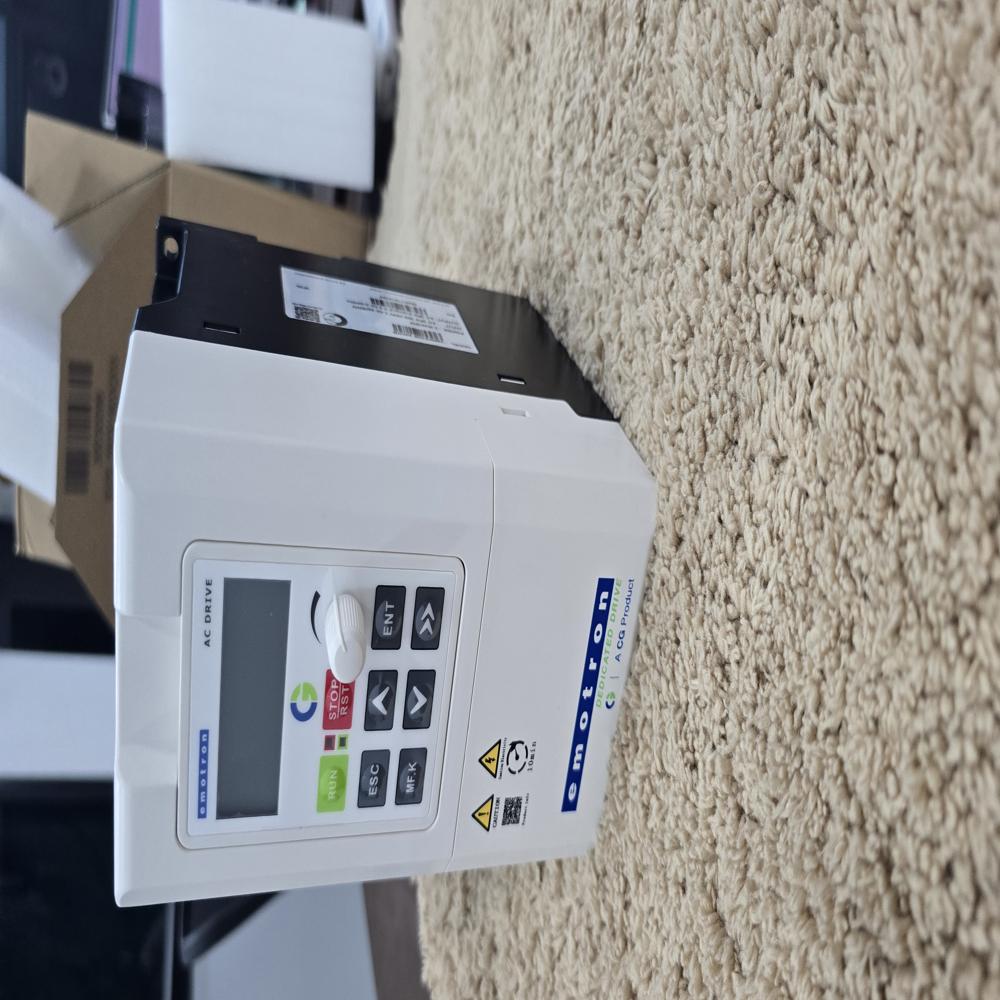

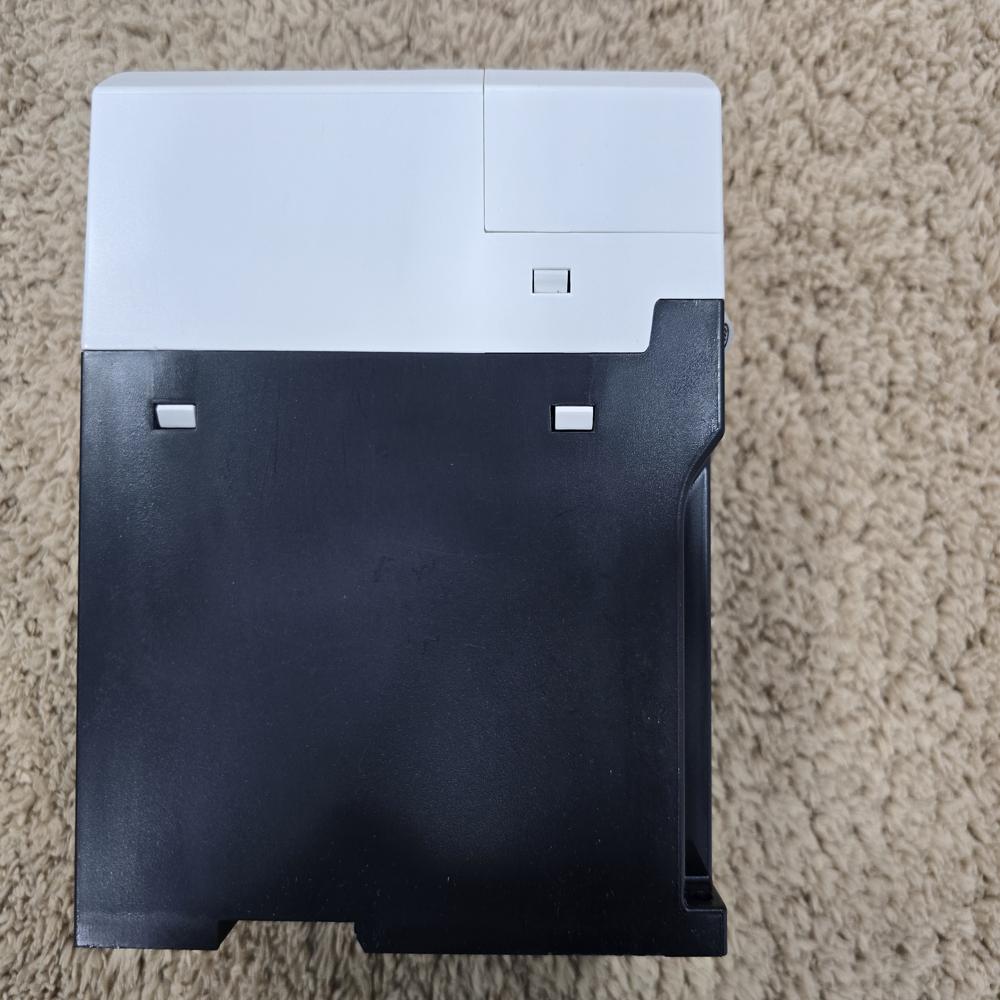

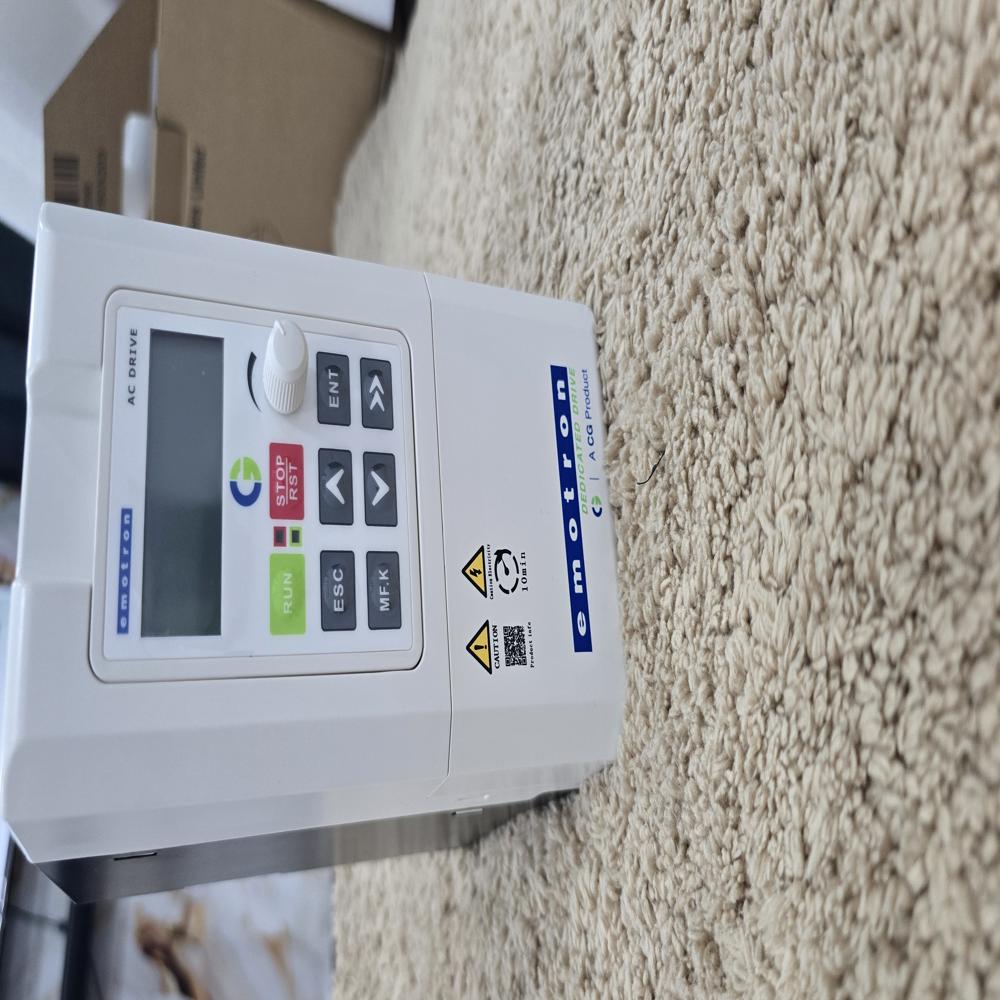

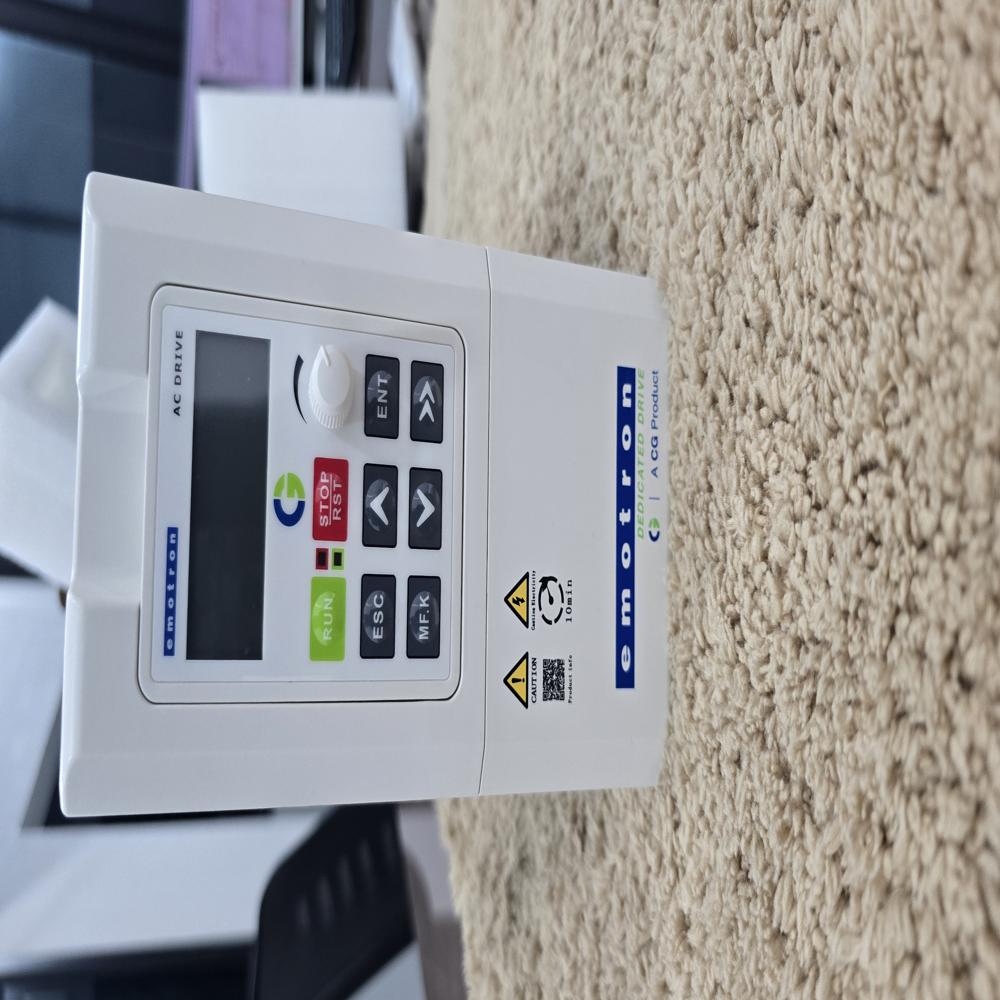

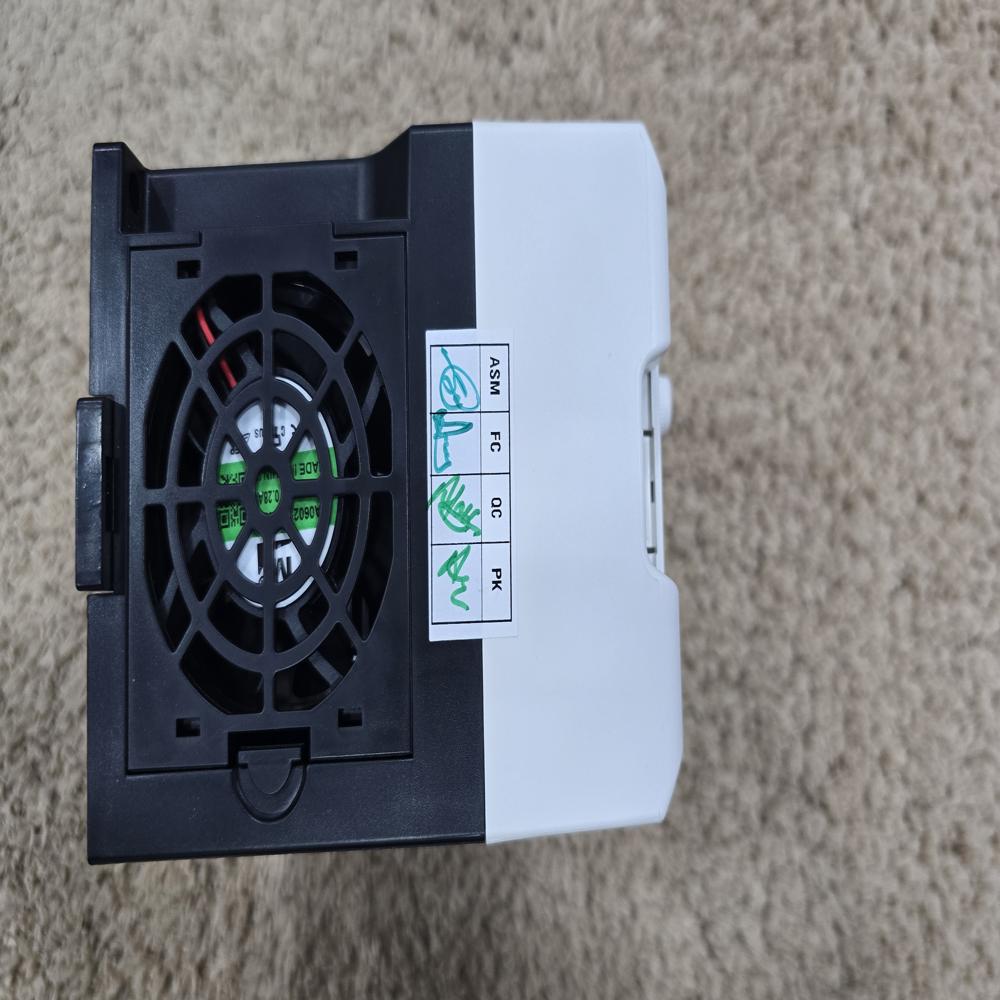

VFX48- 142-20 - Crompton VFD - 75kW / 100 HP 3-Phase 380-480

Name: VFX48- 142-20 - Crompton VFD - 75kW / 100 HP 3-Phase 380-480
Brand: Corbital Enterprise
Price: 121000.0 INR
Availability: InStock

Price 121000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VFX48- 142-20 - Crompton VFD - 75kW / 100 HP 3-Phase 380-480 Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
53 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VFX48- 142-20 - Crompton VFD - 75kW / 100 HP 3-Phase 380-480 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VFX48- 142-20 - Crompton VFD - 75kW / 100 HP 3-Phase 380-480

The CG Emotron VFX48-142-20 (marketed through partnerships like Crompton Greaves) scales up into the high-power E2 Frame Size. Handling a hefty 142 Amps, this industrial VFD transitions to a much larger, heavy-duty chassis to effectively dissipate heat from its substantial 100 HP payload. [1, 2, 3, 4]

Core Technical Specifications

Parameter [, 3, 4, 5, 6, 7]	Specification Details
Model Number	VFX48-142-20
Input Voltage	3-Phase, 380V to 480V AC (10%), 50/60 Hz
Normal-Duty Power Rating	75 kW / 100 HP (Continuous \(I_{nom}\): 142A / 120% overload for 60s)
Heavy-Duty Power Rating	55 kW / 75 HP (Continuous \(I_{nom}\): 114A / 150% overload for 60s)
Rated Output Current	142 A (Nominal continuous)
Peak Max Current (60s)	170 A
Enclosure Rating	IP20 / IP21 (Panel Mount with top protection option)
Frame Size	E2

Physical Dimensions and Weight (Inches & Pounds)

Weight: 116.84 lbs (53 kg)
Length (Height): 37.40 in (950 mm) (Note: Enclosure depth limits can measure up to 956 mm depending on top-cover IP21 kits).
Width: 10.83 in (275 mm)
Depth: 11.57 in (294 mm) [, 2]

Critical Installation & Cabling Guidelines

Due to the scaling power density of the E2 chassis, installation configurations require strict infrastructure planning:

Residual Current Devices: Standard Type A RCDs are prohibited. If an RCD is required upstream on the supply side, you must utilize a Type B RCD rated for a minimum of 300 mA to prevent nuisance tripping from high-frequency leakage.
PE Ground Conductor: Because the phase cable cross-section at 142 Amps will easily exceed 35 mm (2 AWG), safety standards dictate that your Protective Earth (PE) conductor cross-sectional area must equal at least 50% of the phase conductor size.
Enclosure Cooling Airflow: This 75 kW system cannot be jammed tightly against components. An independent air duct forces significant vertical airflow, making unrestricted clearance above and below the drive vital to preventing temperature-induced load-trips. [1, 2, 3, 4, 5]
