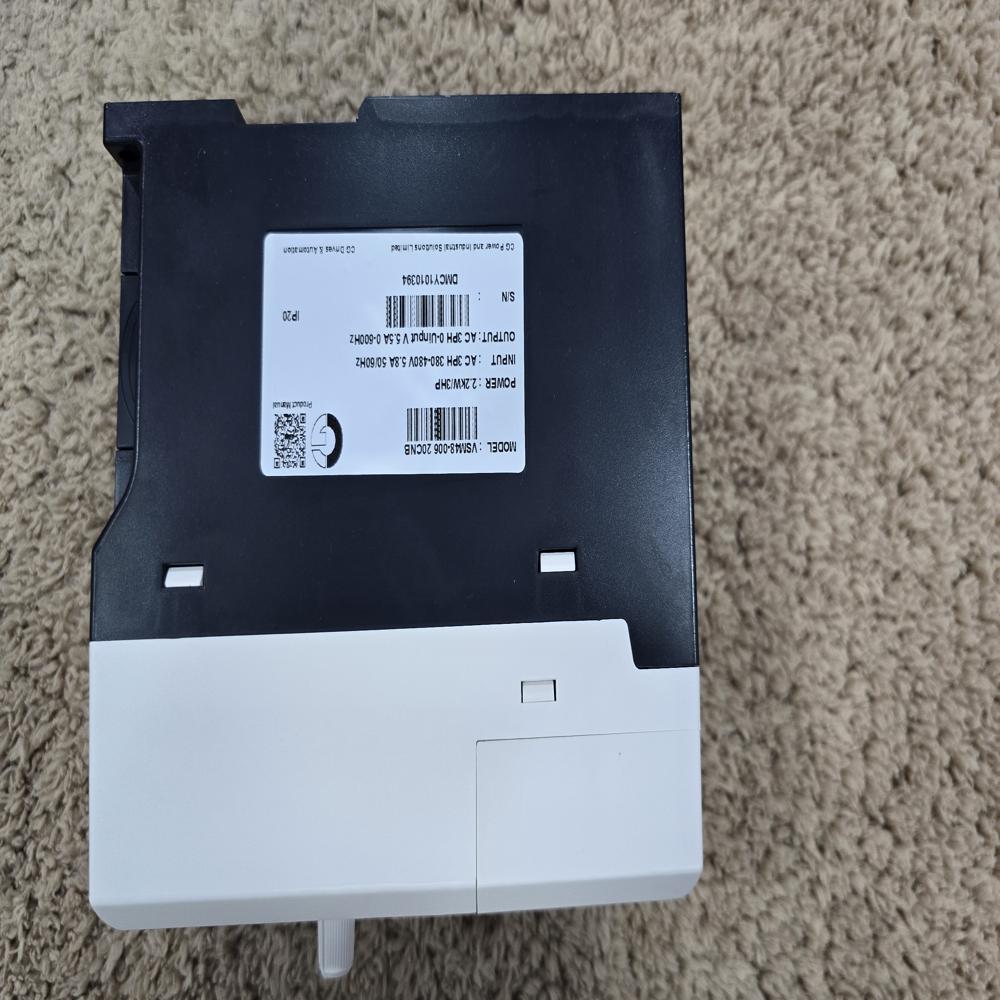

VSRE48-006 - Crompton VFD - 2.2 kW / 3HP 3-Phase 380V Solar

Name: VSRE48-006 - Crompton VFD - 2.2 kW / 3HP 3-Phase 380V Solar
Brand: Corbital Enterprise
Price: 12300.0 INR
Availability: InStock

Price 12300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSRE48-006 - Crompton VFD - 2.2 kW / 3HP 3-Phase 380V Solar Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Weight
1.5 Kilograms (kg)

Usage & Applications
Industrial Machinerry

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSRE48-006 - Crompton VFD - 2.2 kW / 3HP 3-Phase 380V Solar Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSRE48-006 - Crompton VFD - 2.2 kW / 3HP 3-Phase 380V Solar

The Crompton Greaves Emotron VSRE48-006 is a high-performance 2.2 kW (3 HP) Solar Variable Frequency Drive (VFD) engineered for 3-phase 380V480V solar pumping applications. Because the internal power transistors and cooling mechanics step up to support higher current delivery, this specific 3 HP variant transitions into a slightly wider and deeper frame blueprint compared to the 1 HP and 2 HP high-voltage variants. [1]

Physical Dimensions & Weight

The physical properties of the drive housing, converted from its standard industrial metric specifications, are structured as follows:

Dimension Attribute [1, 2, 3, 4]	Metric Specification	Imperial Specification (Inches)
Height (H)	171 mm	6.73 in
Width (W)	93 mm	3.66 in
Depth / Length (D)	130 mm	5.12 in
Total Weight	1.5 kg	3.31 lbs

Electrical Sizing Specifications

Power Capacity: 2.2 kW / 3 HP
Rated Output Current: 5.5 Amps (Handles the extra current load needed for heavy-duty 3 HP motors)
Maximum Solar DC Input Voltage: 800V DC
Optimal MPPT Tracking Range: 450V to 600V DC
Maximum Input DC Current: 10 Amps
Recommended Solar Array Power: 3.3 kWp (Kilowatt-peak) to offset environmental panel degradation and high-heat field losses. [1, 2, 3, 4, 5]

Operational Specialization

Advanced Motor Profiling: Built with specialized motor parameter tracking to run high-torque AC induction pumps or high-efficiency Permanent Magnet Synchronous Motors (PMSM). [1, 2]
Up to 99% Tracking Accuracy: Dynamically computes the maximum solar energy extraction using an advanced Maximum Power Point Tracking (MPPT) software block.
Sensor-Free Safeguards: Automatically commands the pump to enter sleep mode during deep cloud cover and awakens it once voltage thresholds stabilize.
