VSS23-4P2-20CNB - Crompton VFD - VSS23 - 0.75 kW / 1HP 1-Phase 220V

Name: VSS23-4P2-20CNB - Crompton VFD - VSS23 - 0.75 kW / 1HP 1-Phase 220V
Brand: Corbital Enterprise
Price: 6200.0 INR
Availability: InStock

Price 6200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

VSS23-4P2-20CNB - Crompton VFD - VSS23 - 0.75 kW / 1HP 1-Phase 220V Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
1.1 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

VSS23-4P2-20CNB - Crompton VFD - VSS23 - 0.75 kW / 1HP 1-Phase 220V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About VSS23-4P2-20CNB - Crompton VFD - VSS23 - 0.75 kW / 1HP 1-Phase 220V

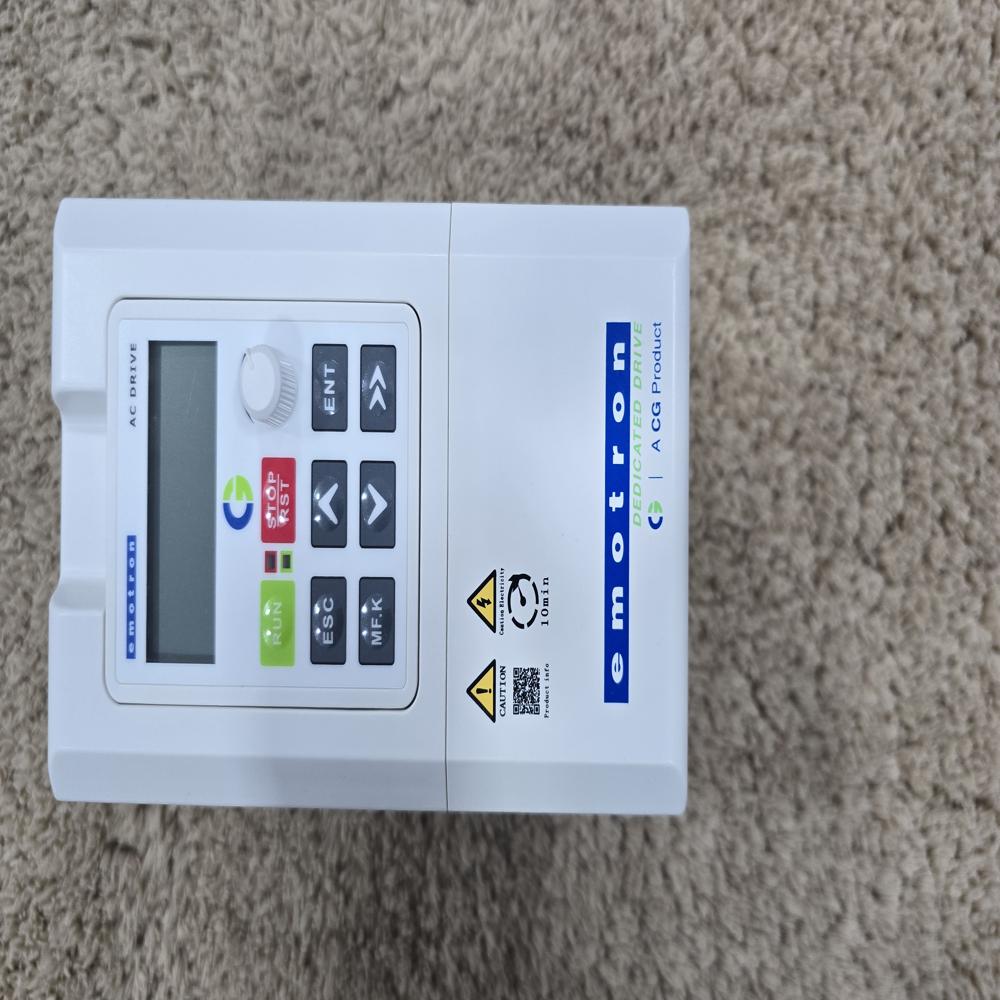

The Crompton Greaves Emotron VSS23-4P2-20CNB is a compact, line-powered 1 HP (0.75 kW) general-purpose Variable Frequency Drive (VFD). Operating on the VSS1 frame size, this single-phase industrial drive converts 220V standard utility or generator input into three-phase AC output to control small, high-efficiency induction and permanent magnet synchronous motors (PMSM). [1, 2, 3]

Physical Dimensions (Inches & Pounds) [1]

The physical structural dimensions and weight metrics converted to imperial units for enclosure mapping are: [1, 2]

Weight: 2.43 lbs (1.1 kg)
Height: 5.91 inches (150 mm)
Width: 2.95 inches (75 mm)
Depth (Thickness): 4.72 inches (120 mm) [1, 2, 3, 4]

Mounting Dimensions [1]

For structural integration or baseplate drilling patterns, use these specific spacing values: [1]

Mounting Height (H1): 5.51 inches (140 mm)
Mounting Width (W1): 2.56 inches (65 mm)
Installation Aperture (Screw Hole Diameter): 0.18 inches (4.5 mm) [1]

Technical Specifications

This 1 HP drive is calibrated for light-duty automation workflows requiring the following parameters: [1]

Feature [, 2, 3, 4, 5]	Specification
Model Number	VSS23-4P2-20CNB / 20CEB
Motor Power Rating	0.75 kW / 1 HP
Input Supply Power	1-Phase 200V to 240V AC (20%), 50/60 Hz
Rated Input Current	9.3 Amps
Rated Output Current	4.2 Amps continuous (6.3A max surge for 60s)
Overload Capacity	150% heavy-duty / 200% for 1 second
Protection Rating	IP20 (Requires clean, dust-free enclosure deployment)
Control Interface	5 Digital Inputs (DI), 2 Analog Inputs (AI), 1 Relay Output
Communication Terminal	Built-in RS-485 Modbus interface protocol

Core Applications

The drive enables precise speed and torque scaling in single-phase shop, farm, or workshop environments, making it ideal for: [, 2]

HVAC Systems: Small commercial exhaust fans, utility blowers, and air-handling damper controls.
Material Handling: Small assembly lines, packaging machines, and low-torque conveyor belts.
Light Manufacturing: CNC component feeders, small industrial mixers, and agitators. [, 2]
