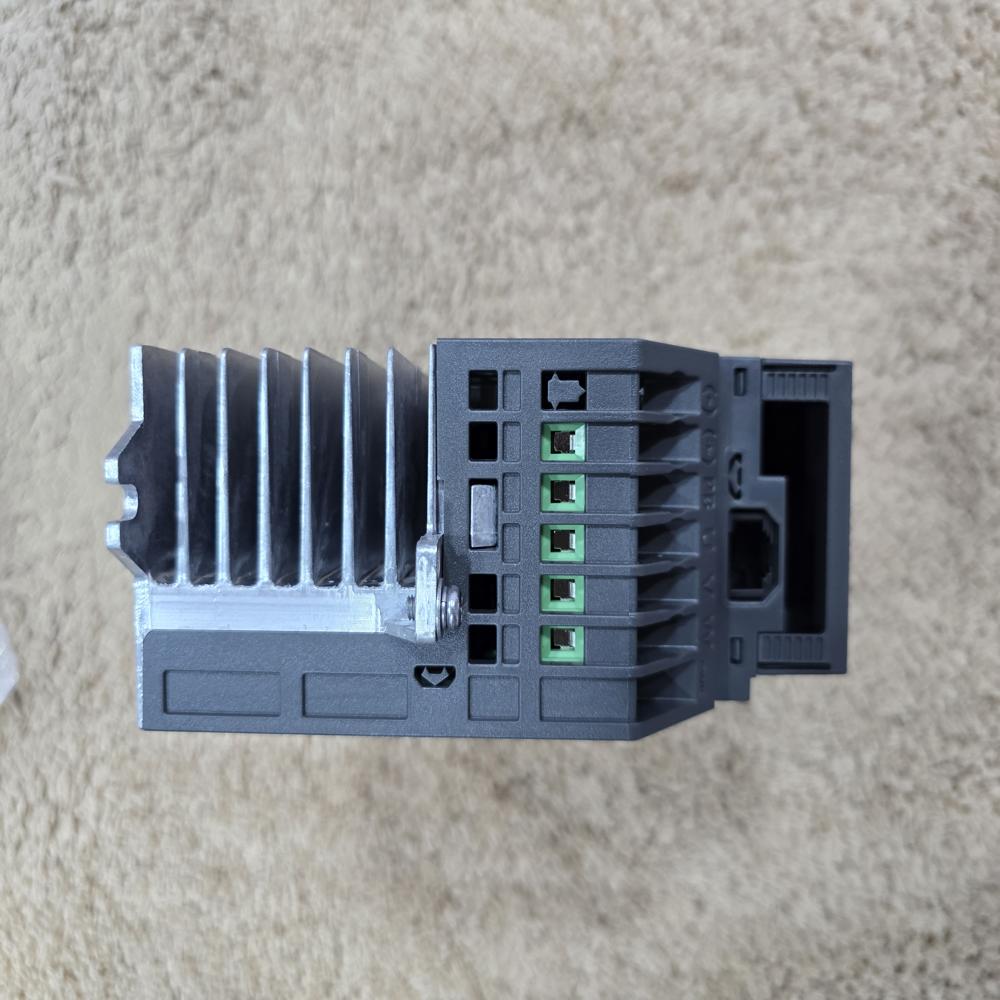

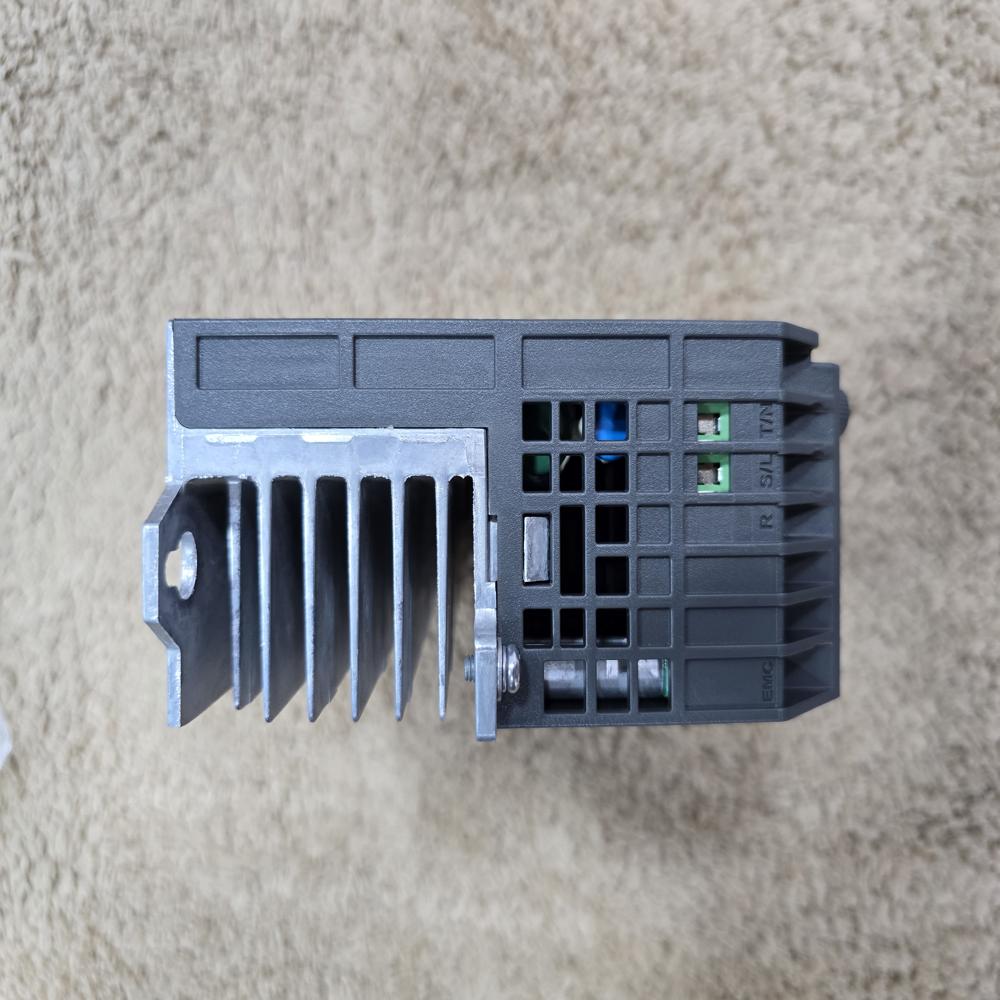

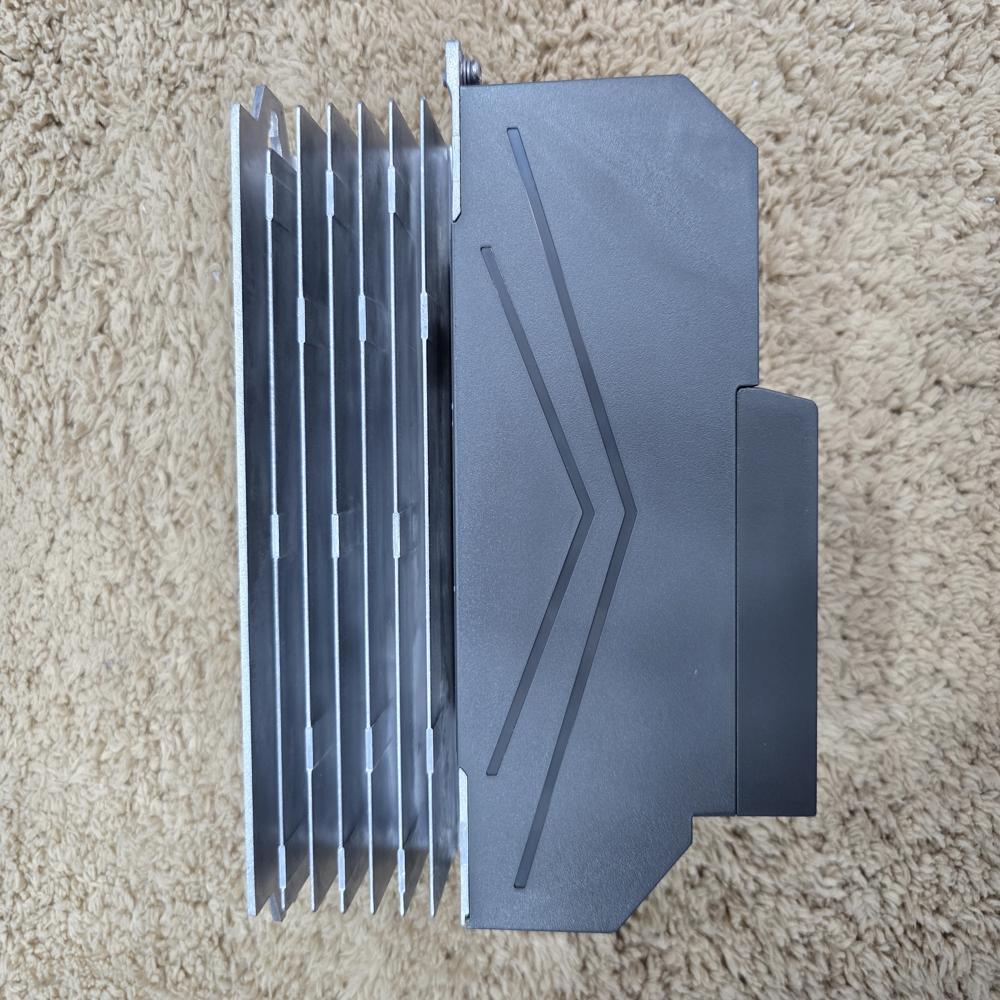

GD20-2R2G-S2 - INVT VFD 2.2 kW / 3HP 230V

Price 7700.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-2R2G-S2 - INVT VFD 2.2 kW / 3HP 230V Specification

Humidity %
5% to 95%

Feature
Advanced Braking

IP Rating
20

Mounting Type
DIN-rail mounting

Product Type
VFD

Power Rating
High Performance Vector Control

Application
Industrial Machinery

Color
Black

Usage & Applications
Industrial Machinery

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Weight
1.5 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Material
Plastic

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Features
220V (-15%) to 240V (+10%)

GD20-2R2G-S2 - INVT VFD 2.2 kW / 3HP 230V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-2R2G-S2 - INVT VFD 2.2 kW / 3HP 230V

The

INVT GD20-2R2G-S2

is a high-performance, 2.2 kW (3 HP) Variable Frequency Drive (VFD) from the Goodrive20 series. Designed for single-phase 220V240V input, it provides precise 3-phase output control for industrial motors.

Manufacturer:	INVT
Series:	GD 20
Model:	GD20-2R2G-S2-EU
Application:	general purpose
Capacity, kW:	2,2
Current, :	11
Main power supply, V:	230
Phase:	1
Output frequency, Hz:	0-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
EMC filter:	optional
Braking unit:	built in
Analog input:	1
Digital input:	5
Analog output:	2
Digital output:	1
Relay output:	2
RS485 (Modbus RTU):	RS485 communication
Starting torque:	150%
PID:	+
Operation temperature, :	-10.....+50
Dimensions (W x H x D), mm:	-
Weight, kg:	-
