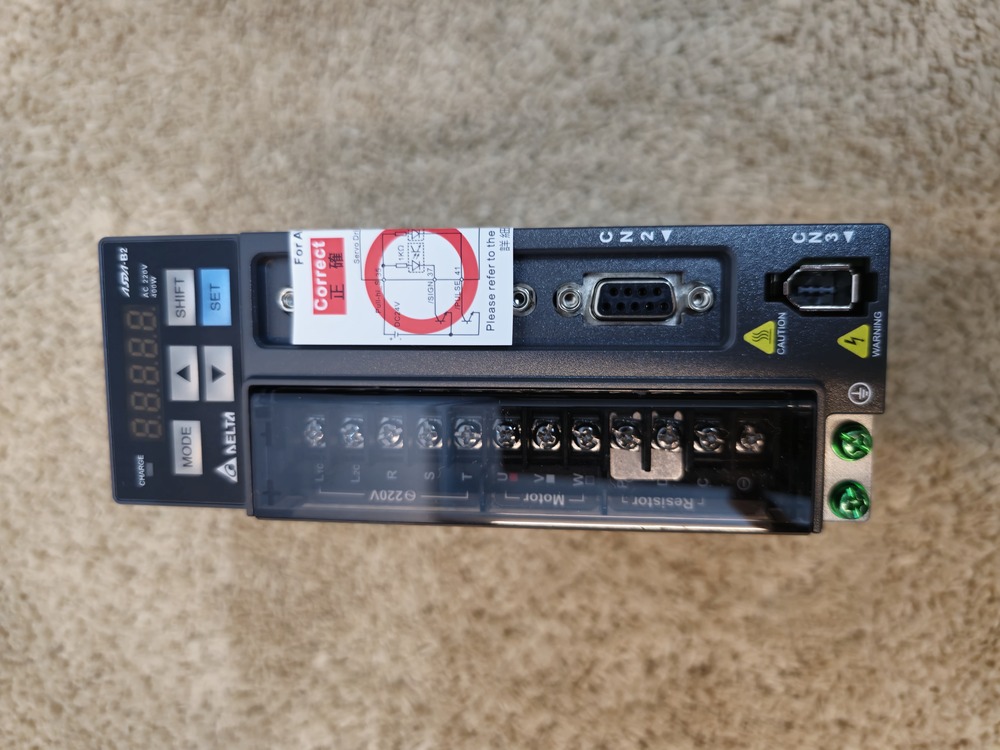

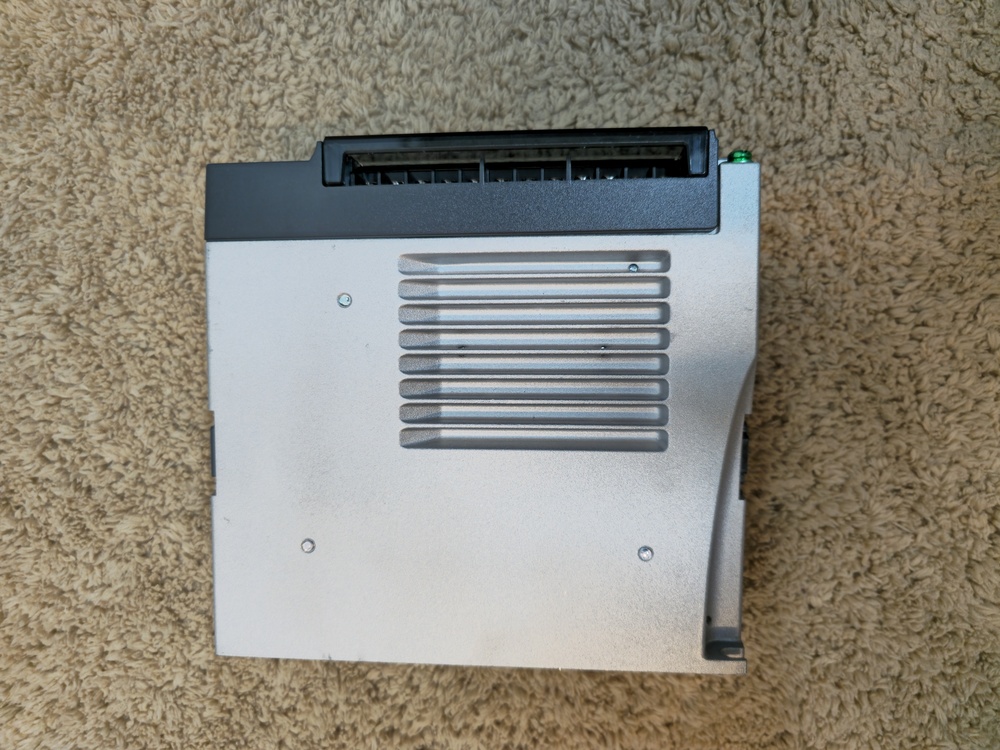

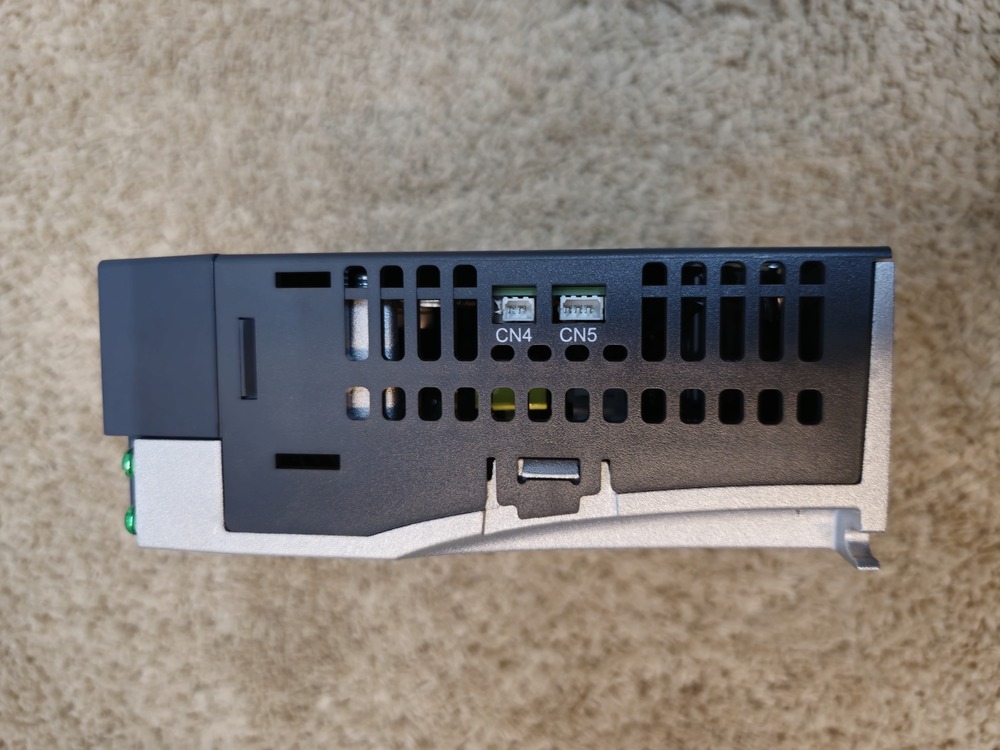

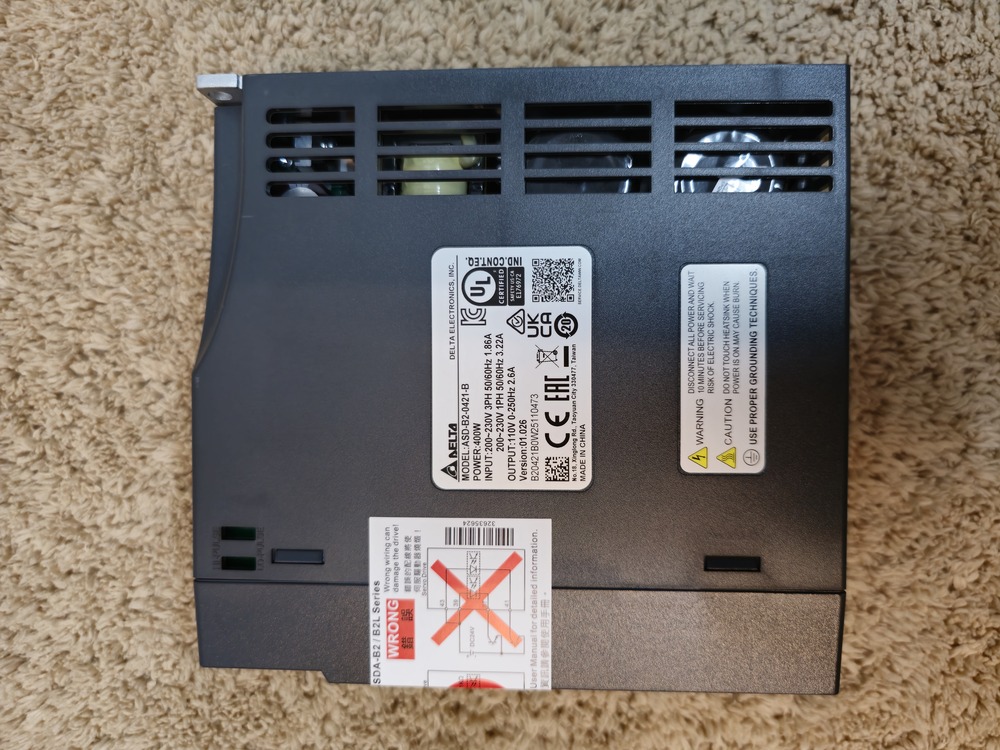

ASD-A2-0721-U* Delta A2 Series Driver - 750W

Price 30100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-0721-U* Delta A2 Series Driver - 750W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-0721-U* Delta A2 Series Driver - 750W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-0721-U* Delta A2 Series Driver - 750W

For the ASD-A2-0721-U Delta A2 Series Servo Drive (750W), here are the specific details in inches:

Specification

The ASD-A2-0721-U is the high-performance 750W servo drive in Delta's ASDA-A2 series. It is designed for precise motion control applications using 220V power and advanced communication protocols. [1]

Core Technical Specifications

Rated Power: 750 Watts (0.75 kW).
Input Phase & Voltage: Single-phase or 3-phase, 200V ~ 230V AC, 50/60 Hz.
Continuous Output Current: 5.10 Arms.
Instantaneous Max Current: 15.30 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz for high-speed calculation and precise loop control.
Operating Temperature: 0C to 55C (32F to 131F). [1, 2, 3, 4, 5, 6, 7, 8]

Control & Communication

Control Modes: Supports Position, Speed, and Torque control modes.
Feedback Resolution: Compatible with 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Interface: Features RS-232, RS-485, and Mini-USB for PC connection via ASDA-Soft.
Specialized "U" Features: Includes digital command support, high-speed pulse capture/compare, and advanced motion programming. [1, 3, 4, 5, 6]

Advanced Motion Functions

Electronic Cam (E-CAM): Built-in E-CAM with up to 720 points for synchronized motion.
Vibration Suppression: Dual low-frequency vibration filters and high-frequency auto notch filters to eliminate mechanical resonance.
Full-Closed Loop Control: Supports an external linear scale to eliminate mechanical backlash.
Regenerative Braking: Built-in regenerative resistor to handle energy during rapid deceleration

Dimensions & Weight

Despite the higher power output, this drive maintains the same slim width as the 200W/400W models for consistent panel density.

Dimension [1]	Inches	Millimeters
Width	1.77"	45 mm
Height	6.81"	173 mm
Depth	6.69"	170 mm
Net Weight	~3.31 lbs	1.5 kg

Note: Shipping weight is typically around 8.8 lbs (4.0 kg) with packaging.

Function

The ASD-A2-0721-U is the high-performance controller for the 750W motor, specializing in: [1]

High-Power Regulation: Converts 220V AC (Single or 3-Phase) into precise current for the larger 750W motor coil requirements.
Smart Motion (E-CAM): Built-in Electronic Cam functionality allowing for complex path following without the need for an external motion controller.
Network Integration: The "U" suffix indicates advanced digital communication capabilities, supporting high-speed command execution and integration into industrial fieldbus networks.
Stability Control: Features Vibration Suppression and Full-Closed Loop support (via an external linear scale) to eliminate mechanical backlash. [1, 2, 3, 4, 5]
