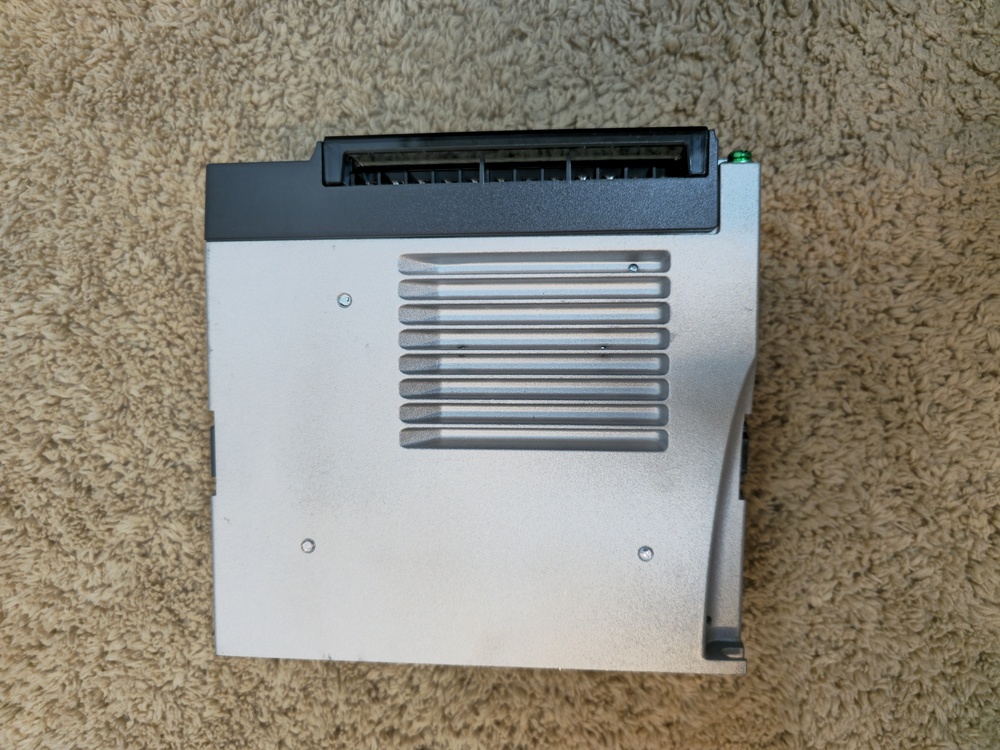

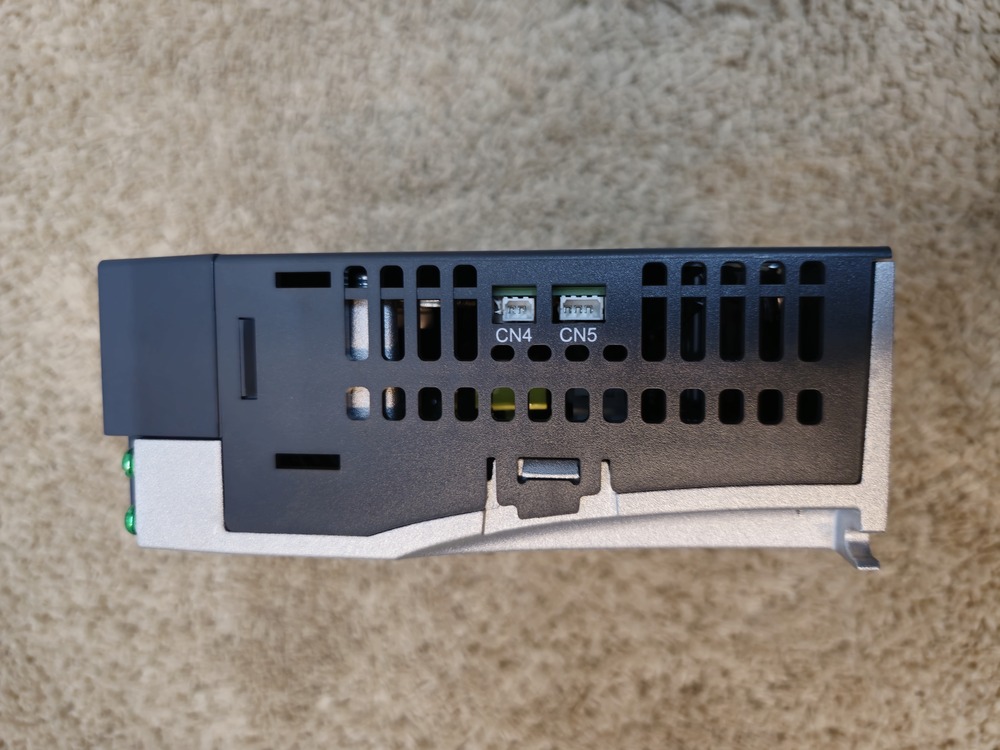

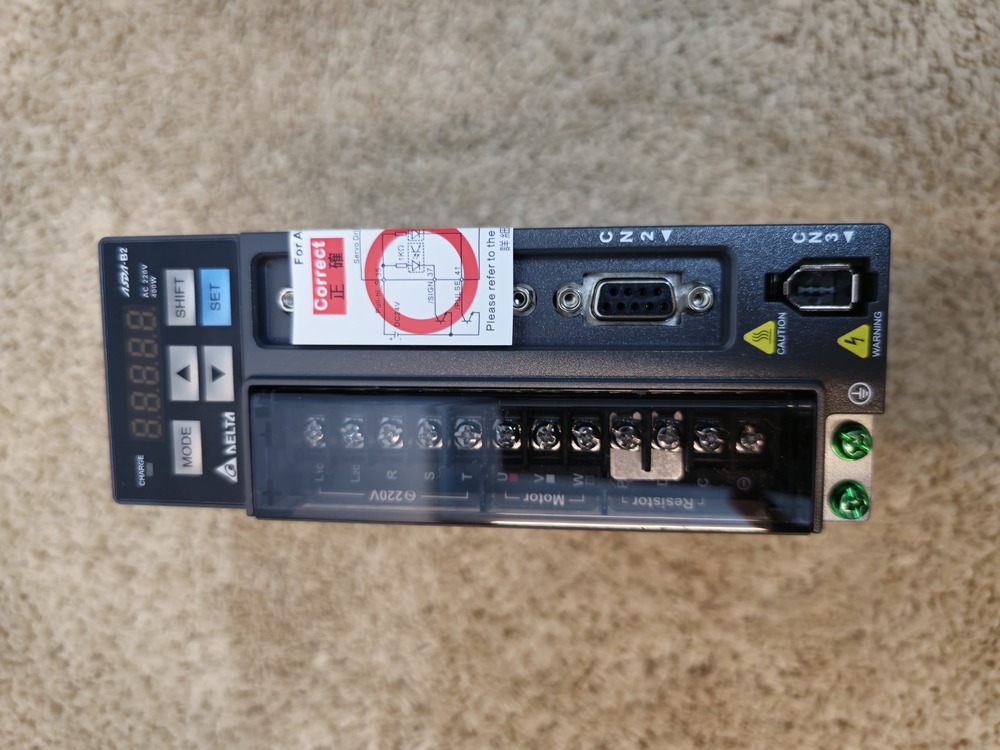

ASD-A2-1021-U* Delta A2 Series Driver - 1000W

Price 34300.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-1021-U* Delta A2 Series Driver - 1000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-1021-U* Delta A2 Series Driver - 1000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-1021-U* Delta A2 Series Driver - 1000W

The ASD-A2-1021-U is the high-performance 1000W (1.0 kW) AC servo drive from Deltas ASDA-A2 series, specifically engineered for high-resolution motion control in industrial applications. [1, 2]

Core Power & Electrical

Rated Power: 1000 Watts (1.0 kW).
Input Phase/Voltage: Single-phase or 3-phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Output Current: Continuous 7.3 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz. [1, 2, 3, 4, 5]

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque.
Feedback Resolution: Supports 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
E-CAM: Built-in Electronic Cam functionality with up to 720 points for complex synchronized motion.
Suppression Functions: Built-in automatic low-frequency vibration suppression and high-frequency resonance suppression via notch filters. [1, 3, 4, 5]

Connectivity & I/O

Digital I/O: 8 programmable digital inputs and 5 digital outputs.
Communication: RS-232 and RS-485 interfaces; features a Mini-USB port for high-speed PC communication via ASDA-Soft.
Full-Closed Loop: Supports external linear scale feedback to eliminate mechanical backlash. [1, 3, 4]

Safety & Environmental

Operating Temp: 0C to 55C (Forced cooling required if above 45C).
Safety Features: Includes Safe Torque Off (STO), plus protection against overcurrent, overvoltage, and overheating.
IP Rating: IP20 (Indoor use, protected against solid objects up to 12mm). [1, 4, 6]

For the ASD-A2-1021-U Delta A2 Series Servo Drive (1000W), here are the details in inches:

Dimensions & Weight

The 1kW drive uses a larger frame size than the 750W model to handle increased power and heat dissipation.

Dimension [1, 2]	Inches	Millimeters
Width	2.28"	58 mm
Height	6.81"	173 mm
Depth	7.40"	188 mm
Net Weight	~4.41 lbs	2.0 kg

Function

The ASD-A2-1021-U is the command center for the 1.0 kW system, featuring:

High-Power Conversion: Specifically tuned to drive the 1000W motor using 220V AC (Single or 3-Phase) input.
Advanced Motion (E-CAM): Built-in Electronic Cam logic for complex, synchronized movements without requiring an expensive external motion controller.
"U" Series Connectivity: Supports high-speed digital communication and extended I/O, allowing it to integrate seamlessly into modern industrial networks (RS-485/Modbus).
Safety & Precision: Includes Safe Torque Off (STO) for emergency stopping and vibration suppression algorithms to keep high-torque movements smooth and silent. [1, 2, 3, 4, 5]
