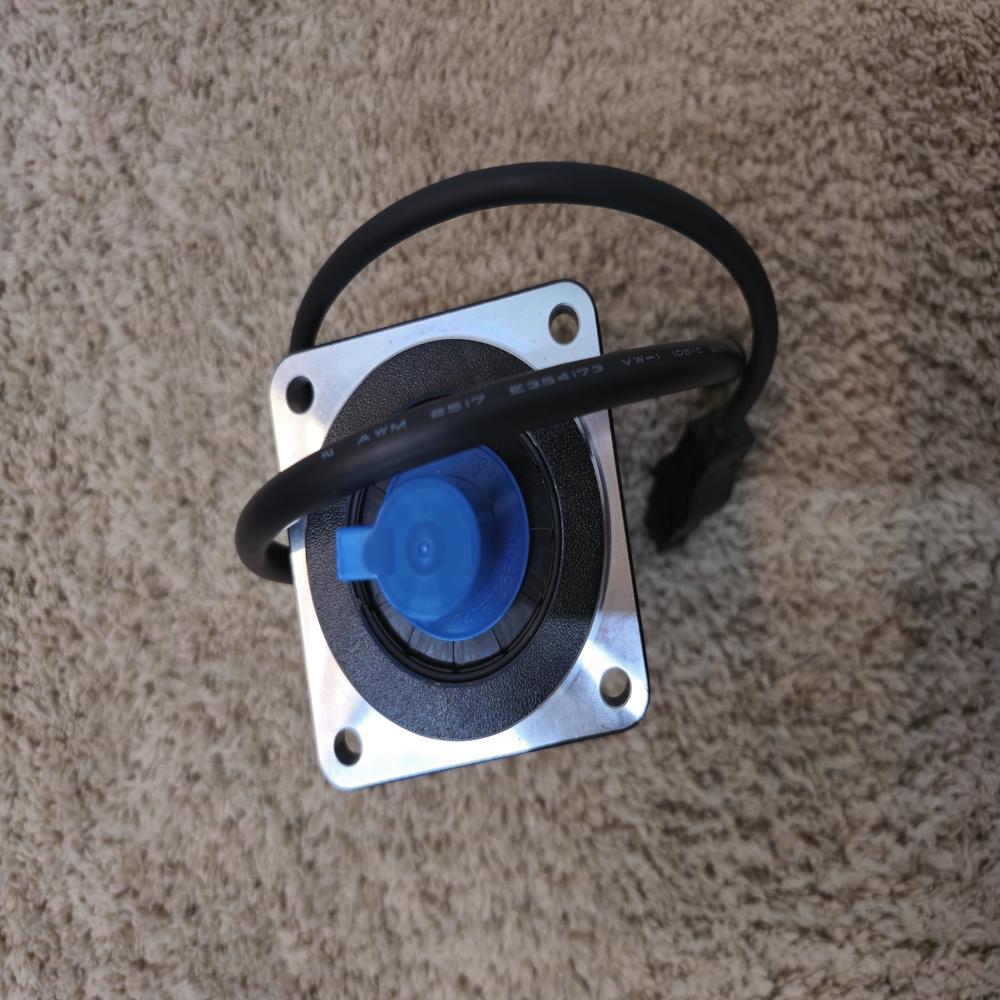

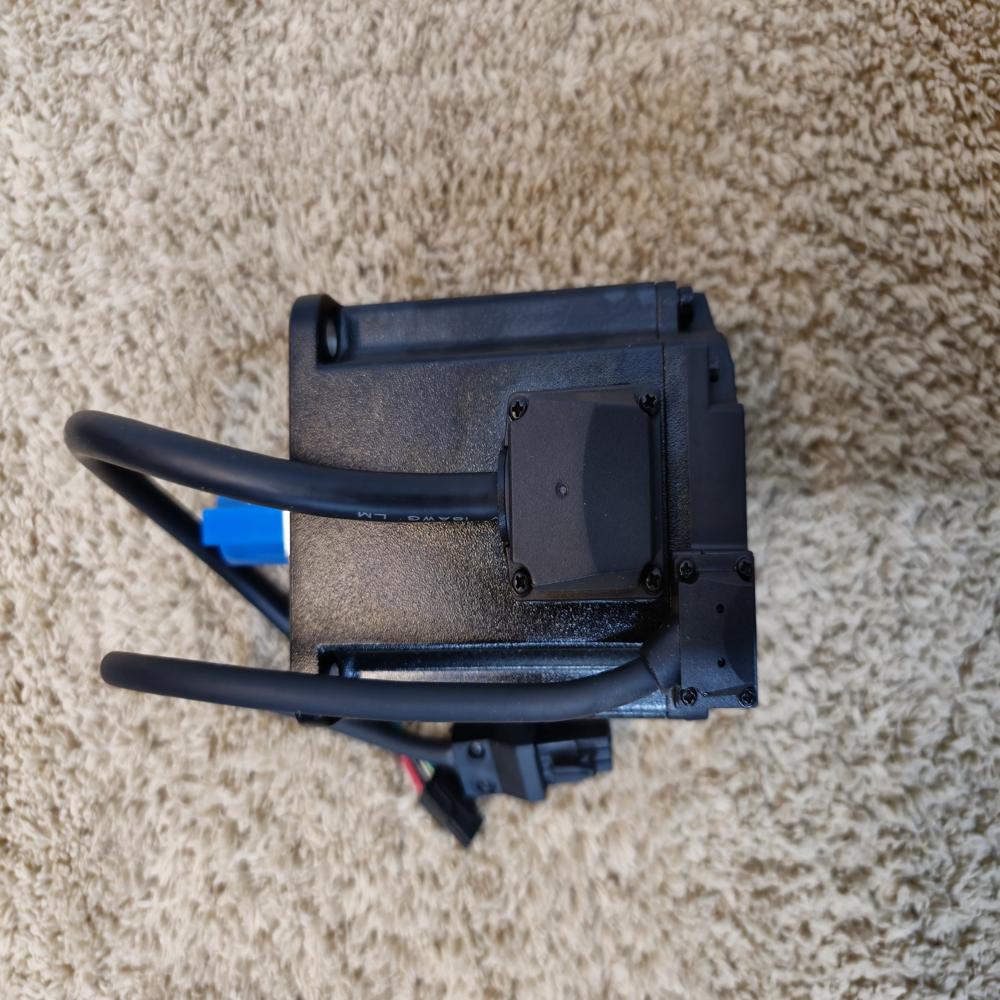

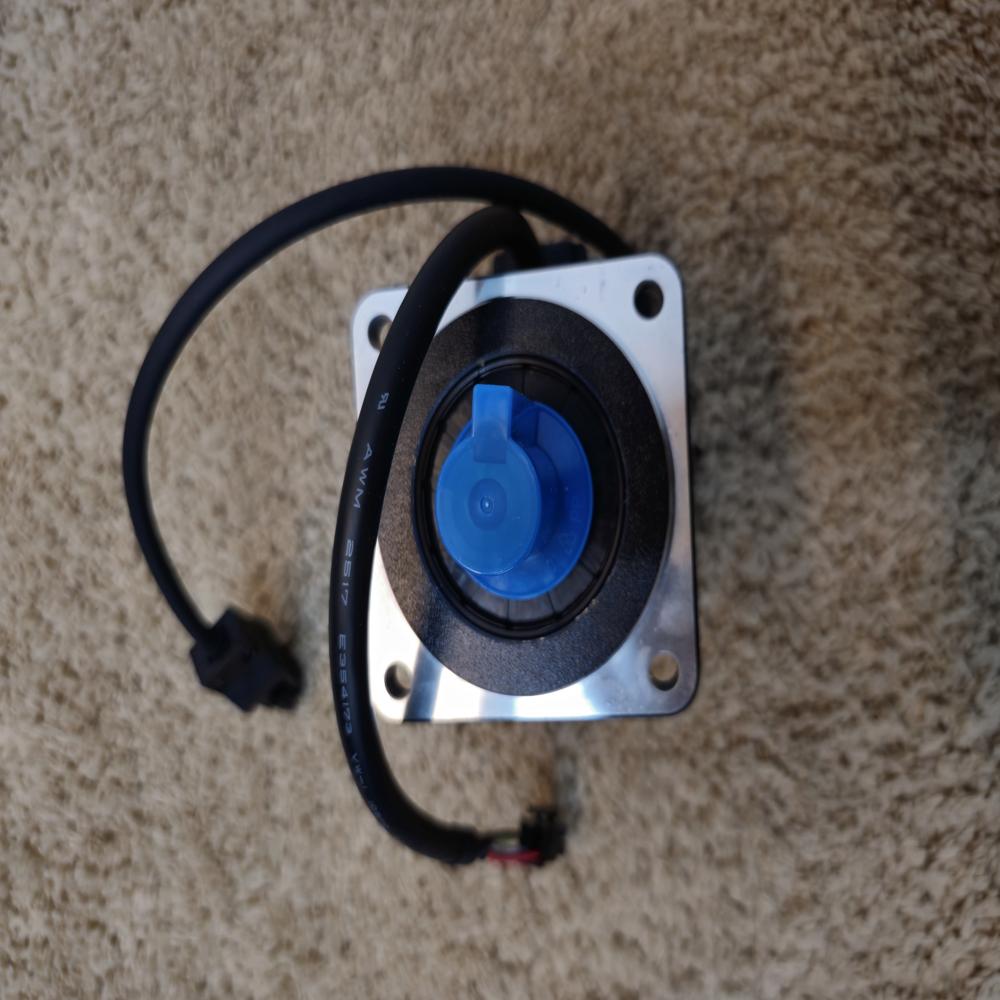

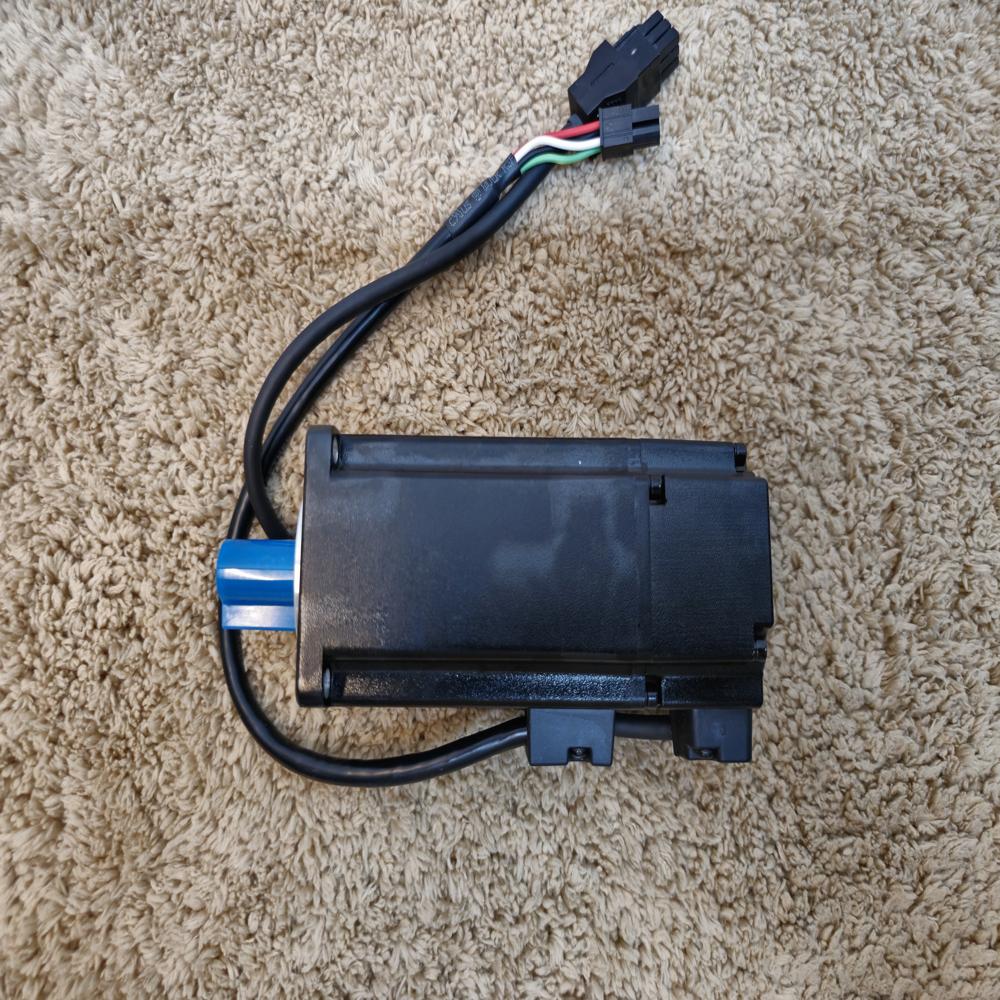

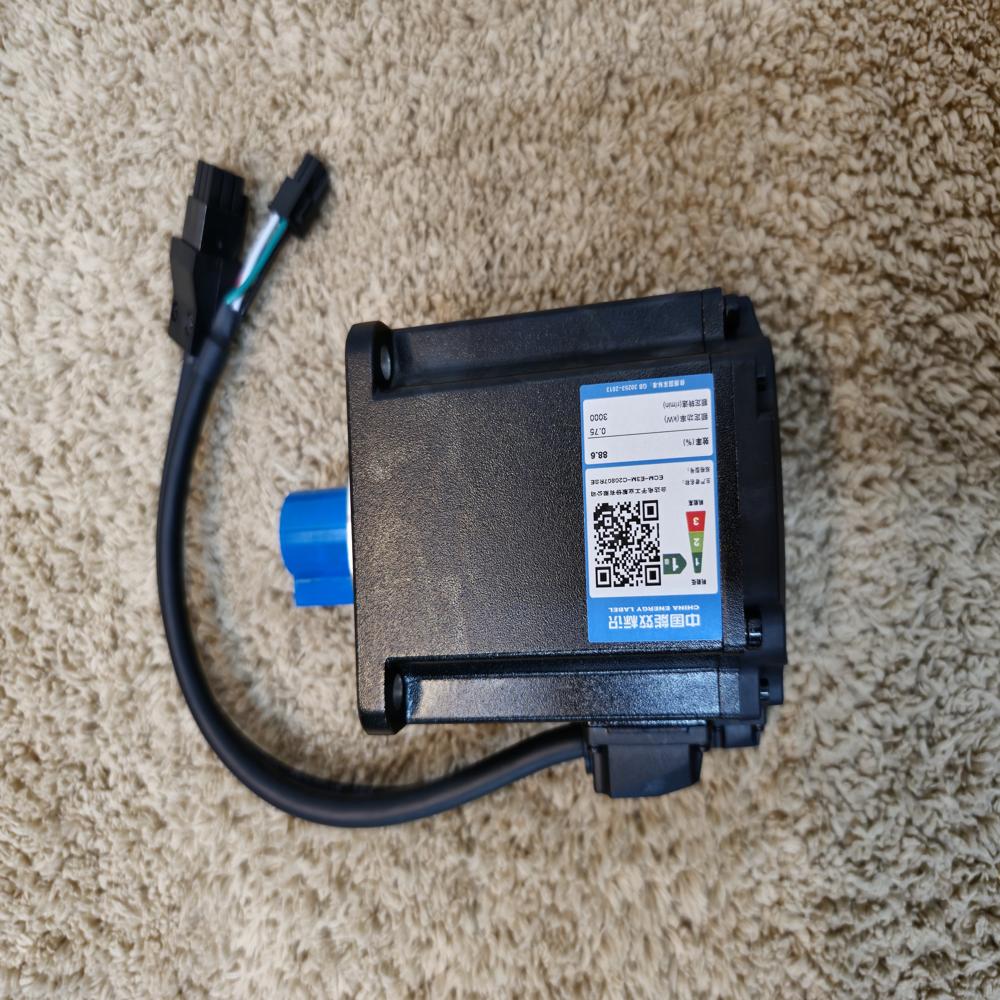

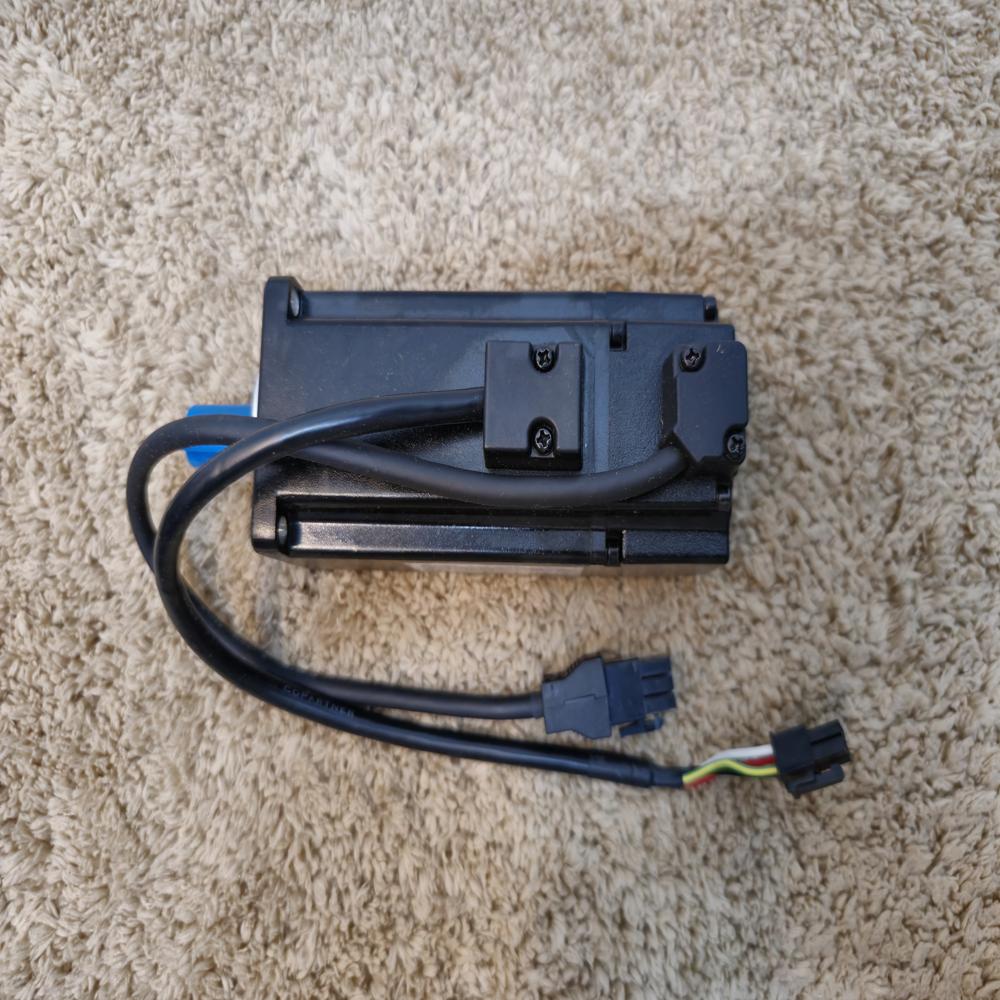

ECMA-E11830RS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000

Price 57800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-E11830RS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
5.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-E11830RS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-E11830RS Delta Servo Motor 3000W M , Torque Nm - 14.3 , RPM - 2000

The ASD-A2-3023-U is the high-performance 3000W (3.0 kW) AC servo drive from Deltas premium ASDA-A2 series, specifically engineered to provide high current and advanced motion logic for industrial machinery. [1, 2]

Core Power & Electrical

Rated Power: 3000 Watts (3.0 kW).
Input Phase/Voltage: 3-Phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 13.4 Arms.
Frequency Response: 1 kHz (for rapid system calculation and response).
Speed Control Range: 1:5000. [1, 2, 3, 4, 5, 6, 7, 8, 9]

Control & Motion Intelligence

Control Modes: Supports Position, Speed, and Torque control modes (switchable via I/O or communication).
Feedback Resolution: Compatible with 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in logic with up to 720 points for master-slave synchronization, ideal for rotary cutting and flying shear applications.
Advanced Features: Includes high-speed position capture/compare, full-closed loop control support, and an extension port for additional digital inputs. [, 3, 4, 5]

Suppression & Safety

Vibration Suppression: Dual low-frequency vibration filters to eliminate mechanical shaking during high-torque moves.
Resonance Suppression: Features high-frequency auto-notch filters to suppress mechanical resonance.
Safety Features: Includes protections for overcurrent, overvoltage, overtemperature, encoder errors, and short circuits. [1, 3, 5]

Connectivity & I/O

Communication: RS-232, RS-485 (Modbus), and CANopen interfaces.
Interface Port: Features a Mini-USB port for direct PC configuration via ASDA-Soft.
Digital I/O: 8 programmable inputs and 5 programmable outputs. [1, 3, 4]

Dimensions & Weight (Inches)

This motor features a large 180 mm frame size to handle its significant torque and thermal requirements.

Dimension [1, 2, 3]	Inches	Millimeters
Width	7.09"	180 mm
Height	7.09"	180 mm
Length (Body Only)	~7.95"	202 mm
Total Length (with Shaft)	~11.06"	281 mm
Shaft Diameter	1.378"	35 mm
Net Weight	~40.78 lbs	18.5 kg

Function & Performance

Torque Powerhouse: Provides a massive rated torque of 14.32 Nm and a peak instantaneous torque of 42.96 Nm, making it suitable for heavy-duty CNC axes and large-scale industrial machinery.
Medium Inertia Stability: The high rotor inertia is specifically functional for controlling heavy mechanical systems, reducing vibration and ensuring smooth operation during rapid changes in direction.
Precision: Features a 20-bit incremental encoder (1,280,000 pulses/rev) for high-resolution positioning accuracy.
Industrial Protection: Rated IP65 with a built-in oil seal, ensuring protection against dust and liquid ingress in demanding factory environments.
