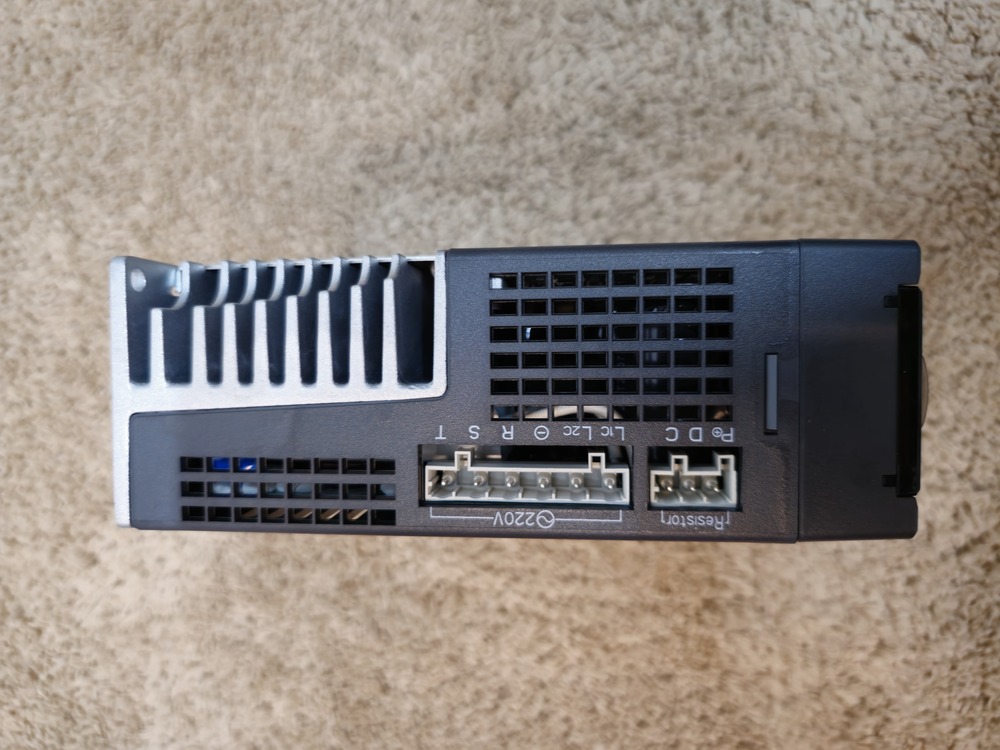

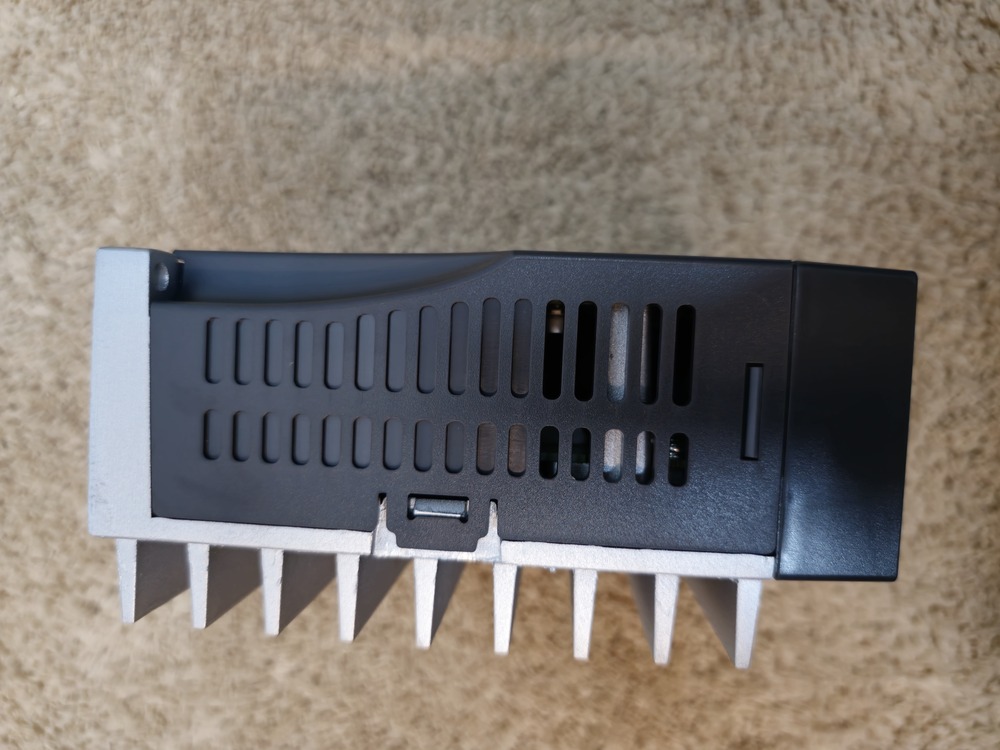

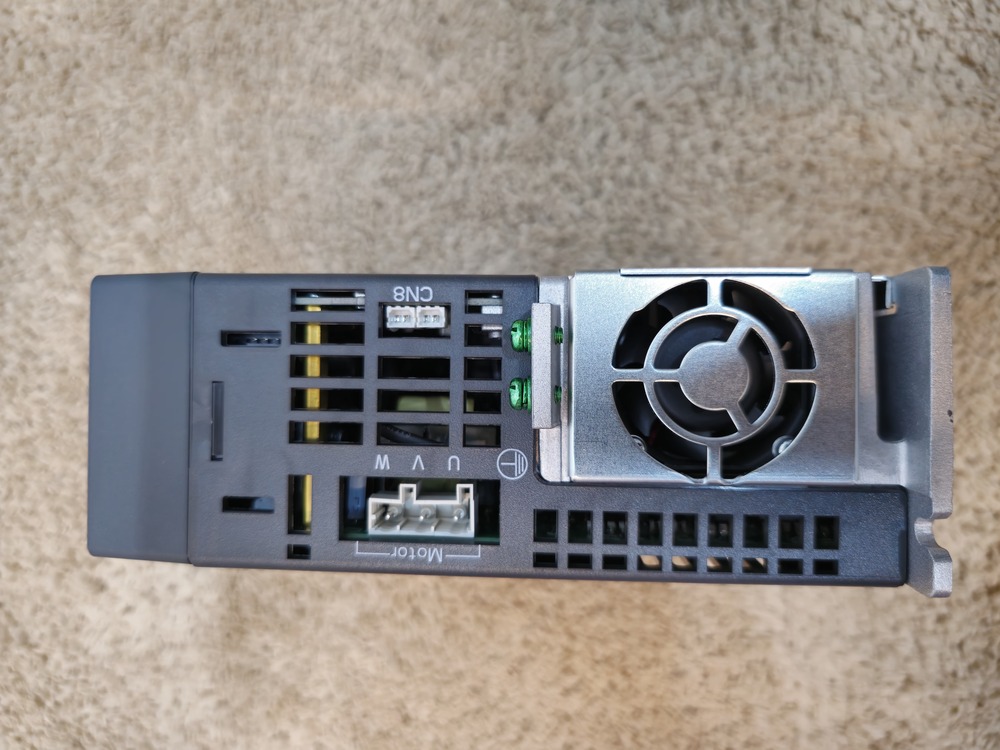

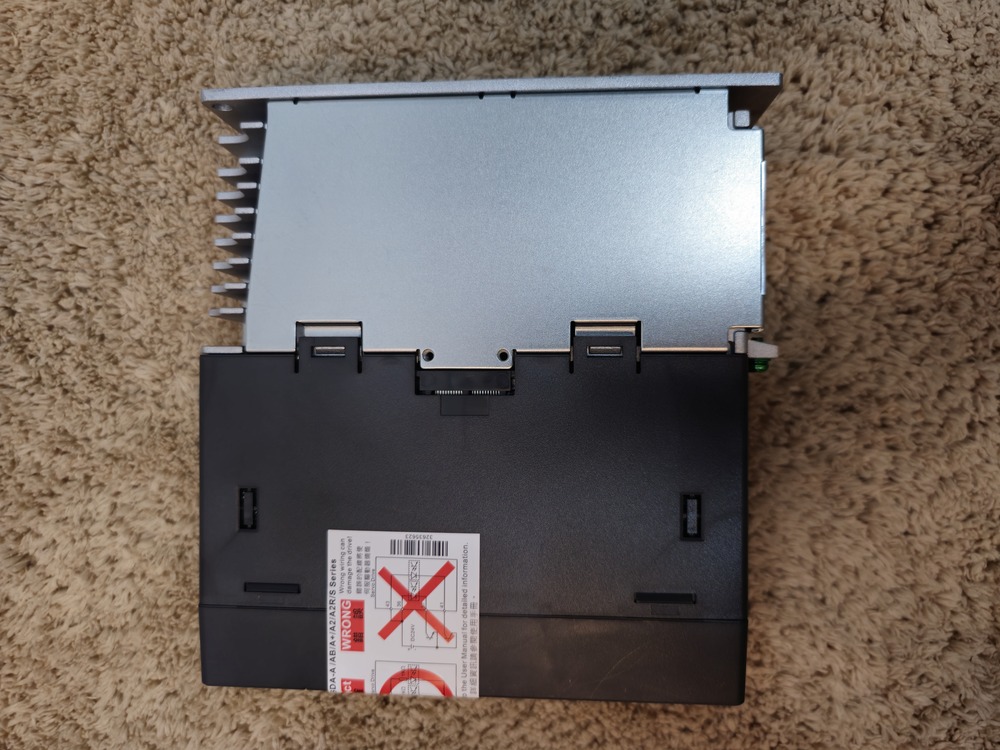

ASD-A2-1521-U* Delta A2 Series Driver - 1500W

Price 37800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-1521-U* Delta A2 Series Driver - 1500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-1521-U* Delta A2 Series Driver - 1500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-1521-U* Delta A2 Series Driver - 1500W

The ASD-A2-1521-U is the high-performance 1500W (1.5 kW) AC servo drive from Deltas premium ASDA-A2 series, designed for high-resolution control of medium-inertia motors.

Core Power & Electrical

Rated Power: 1500 Watts (1.5 kW).
Input Voltage/Phase: Single-phase or 3-phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 8.3 Arms.
Frequency Response: 1 kHz (for rapid system calculation and response).
Speed Control Range: 1:5000.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable via I/O or communication).
Feedback Resolution: Supports 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in logic with up to 720 points for master-slave synchronization.
Specialized "U" Features: Includes digital command support, high-speed position capture/compare, and an extension port for additional digital inputs.

Suppression & Safety

Vibration Suppression: Dual low-frequency vibration filters to eliminate mechanical shaking during high-torque moves.
Resonance Suppression: Features high-frequency auto-notch filters to eliminate mechanical "humming."
Safety Function: Built-in Safe Torque Off (STO), ensuring hardware-level power cut-off for operator safety (SIL2/PL d).

For the ASD-A2-1521-U Delta A2 Series Servo Drive (1500W/1.5kW), here are the specific details in inches:

Dimensions & Weight

This drive maintains a compact "book-style" design, allowing for side-by-side mounting in electrical panels.

Dimension	Inches	Millimeters
Width	2.28"	58 mm
Height	6.81"	173 mm
Depth	7.40"	188 mm
Net Weight	~4.41 lbs	2.0 kg

Note: Shipping weight is typically around 8.8 lbs (4.0 kg) with packaging.

Function

The ASD-A2-1521-U is the high-speed controller for 1.5 kW motors, specializing in:

High-Inertia Control: Specifically tuned to provide the current required for medium-inertia motors (like the ECMA-E11315RS) to reach their 7.16 Nm rated torque.
Smart Motion (E-CAM): Built-in Electronic Cam functionality for complex, synchronized movements (e.g., flying saws or rotary cutters) without a separate motion card.
Advanced Connectivity: The "U" type supports high-speed digital communication (RS-485/Modbus) and features an extension port for additional digital inputs.
Precision & Stability: Features a 1 kHz frequency response and Vibration Suppression algorithms to ensure heavy-duty movements remain smooth and accurate.
