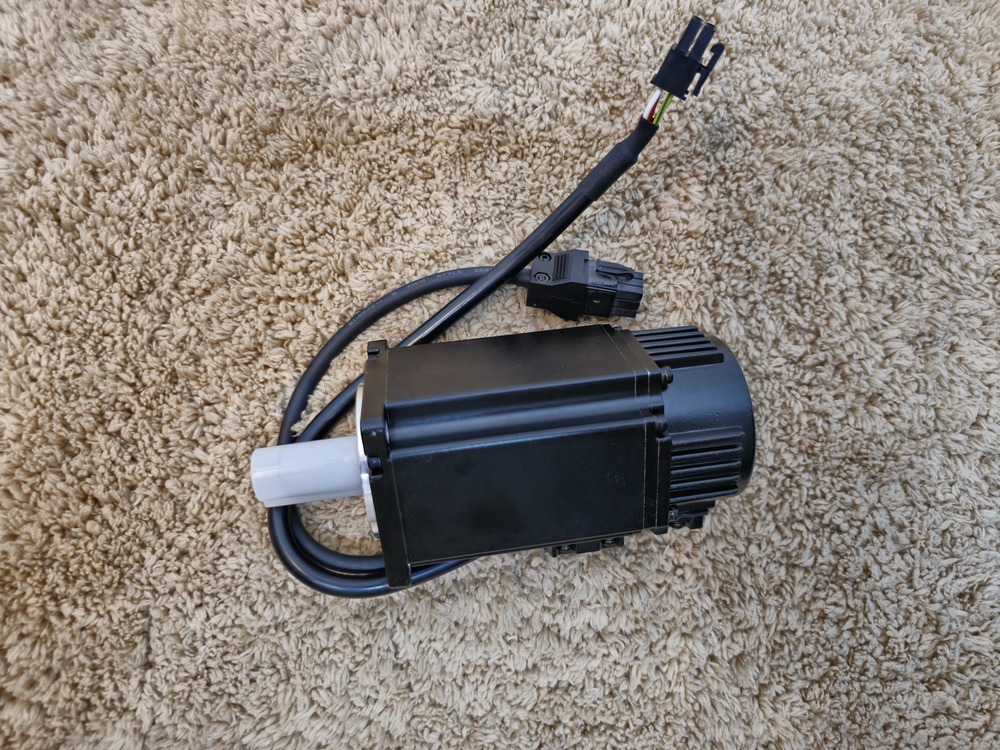

ECMA-LA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500

Name: ECMA-LA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500
Brand: Corbital Enterprise
Price: 189000.0 INR
Availability: InStock

Price 189000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-LA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500 Specification

Torque
35.01 N-cm

Sealed Type
Packing seal

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
38.5 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

IP Rating
ip55

ECMA-LA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-LA1855S3 Delta Servo Motor 5500W H , Torque Nm - 35.01 , RPM - 1500

The Delta ECMA-LA1855S3 is a powerful 5500W (5.5 kW) AC servo motor designed for high-torque, high-inertia applications. The "L" signifies High Inertia, making it the go-to choice for massive mechanical systems that require steady, vibration-free motion.

Dimensions & Weight

Weight: 84.88 lbs (38.5 kg).
Length: 15.16 inches (385 mm).
Width (Frame Size): 7.09 inches (180 mm).
Height (Frame Size): 7.09 inches (180 mm).

Core Specifications

Rated Output Power: 5.5 kW (5500W).
Rated Torque: 35.01 Nm (Peak torque up to 87.53 Nm).
Rated Speed: 1500 RPM (Maximum speed up to 3000 RPM).
Input Voltage: 400V AC.
Encoder Type: 17-bit Absolute encoder.
Brake: Included (The "S3" suffix indicates a model with a brake and a specific shaft/keyway configuration).
Protection: IP65 (Dust-tight and protected against water spray).

Shaft Specifications

Shaft Diameter: 1.38 inches (35 mm).
Shaft Type: Includes a keyway and oil seal for heavy-duty industrial use.

Functionality

This motor is built for "heavy lifting" in industrial automation. Its high rotor inertia allows it to handle large reflected loadslike massive CNC machine tables or industrial mixing bladeswithout the "jitter" often seen in smaller motors. The integrated brake ensures the load is held securely during power loss, a critical requirement for heavy vertical axes.
