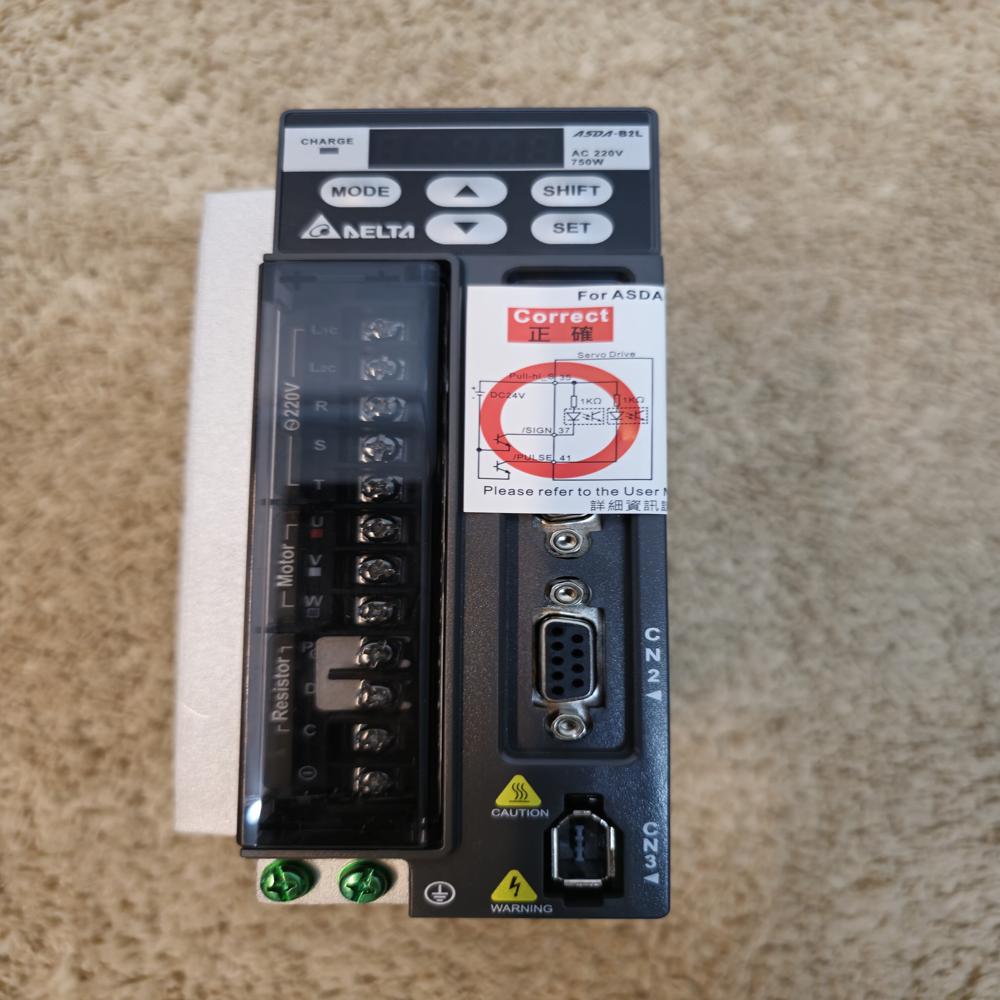

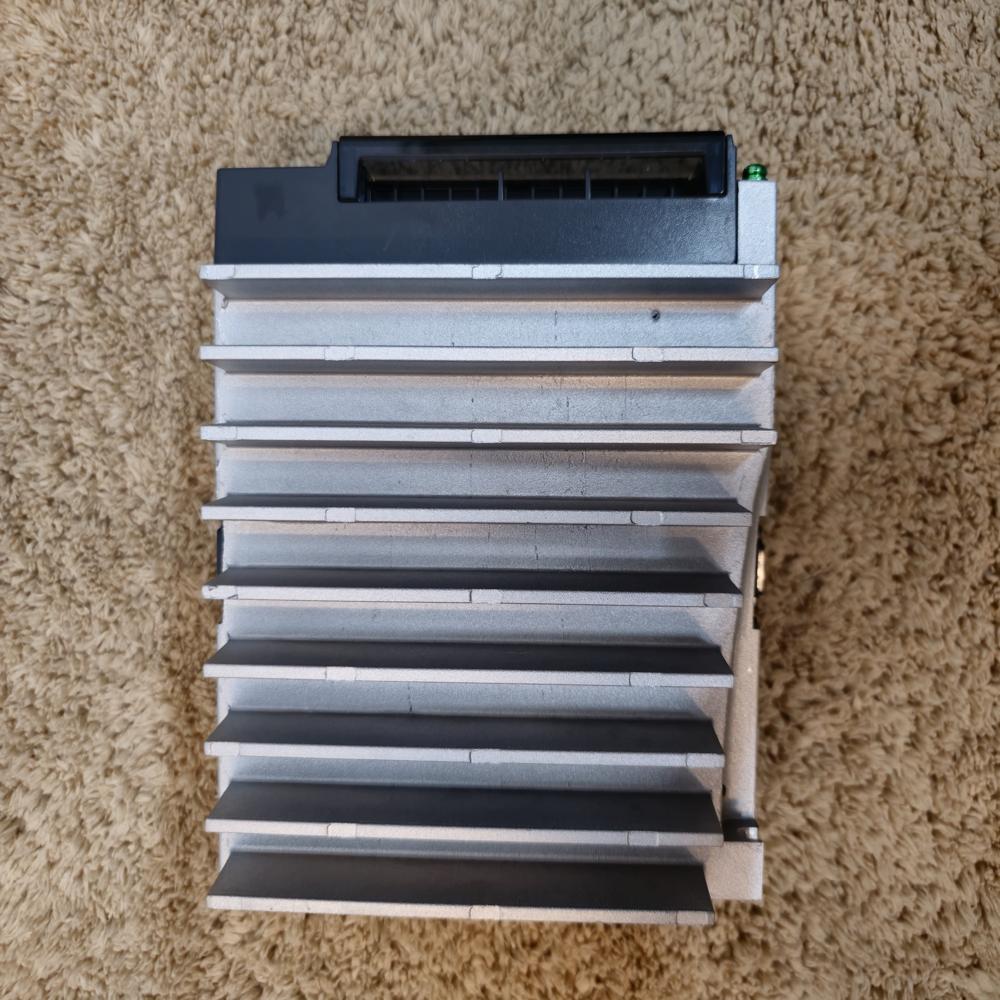

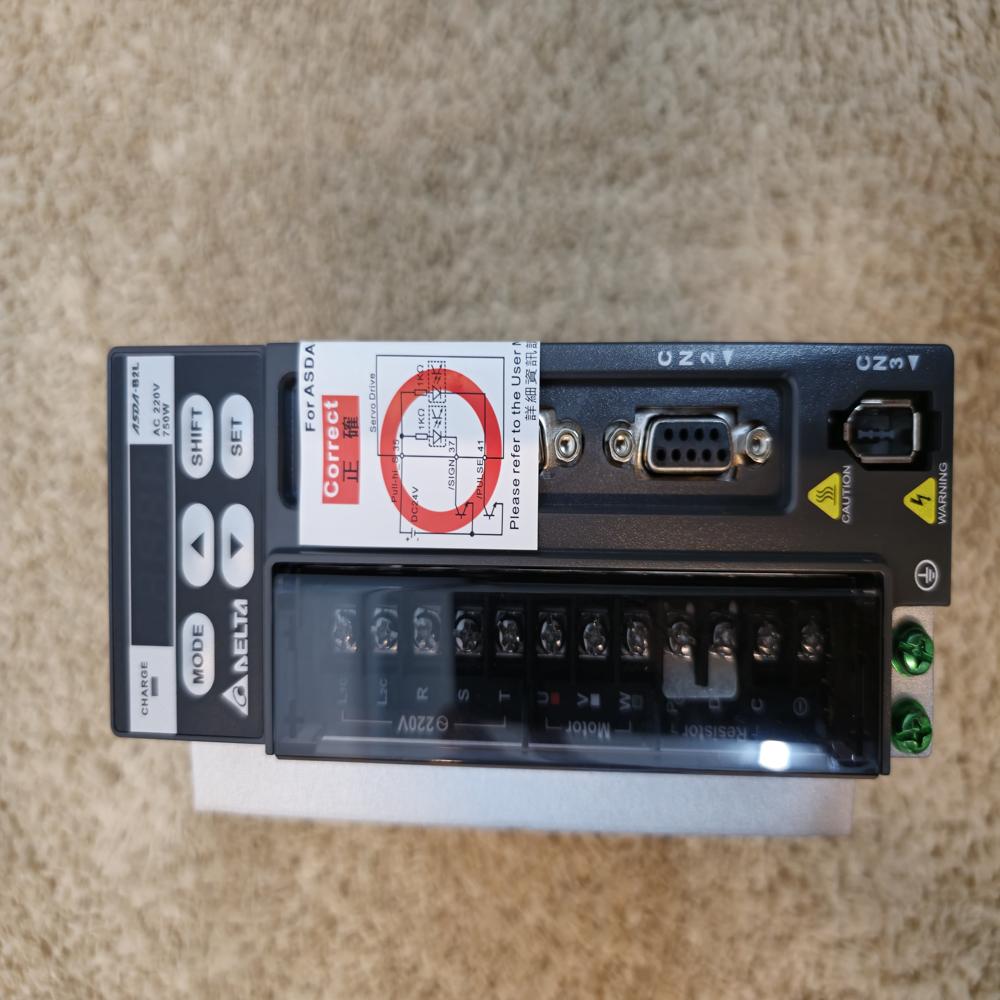

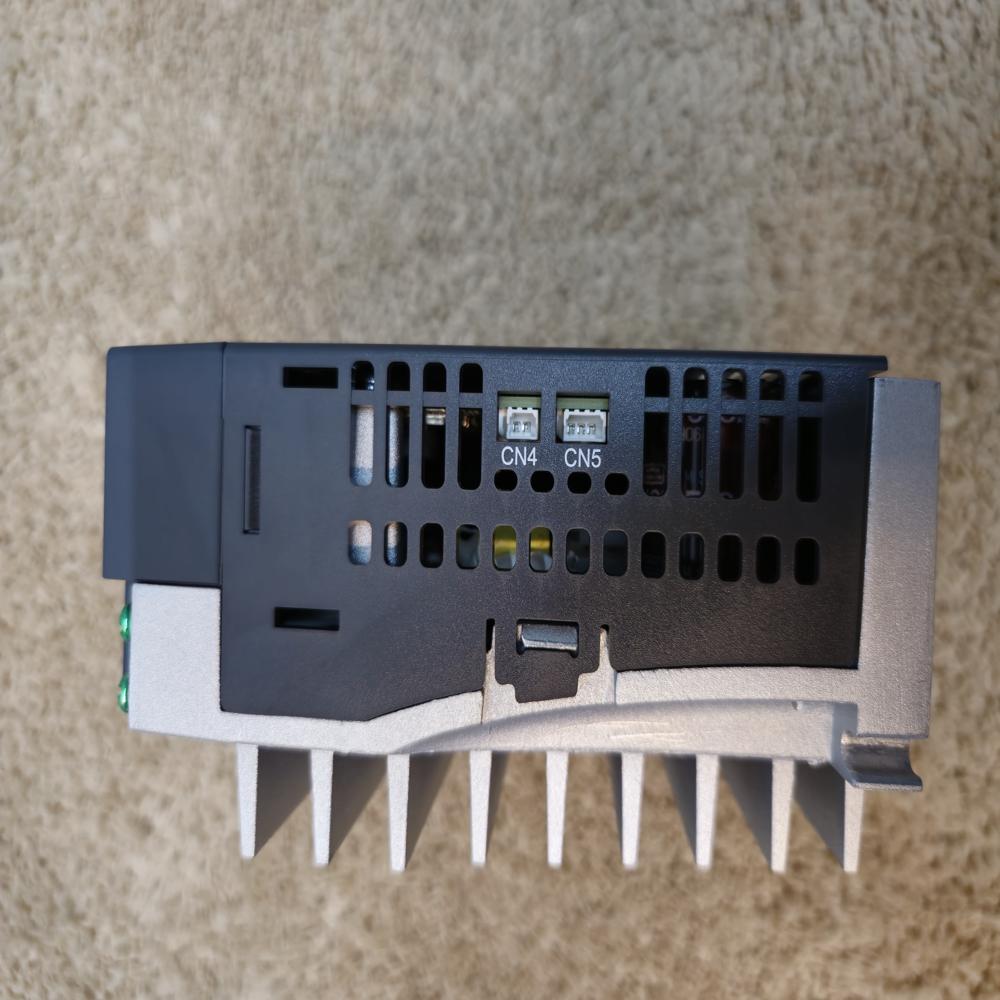

ASD-A2-2023-U* Delta A2 Series Driver - 2000W

Price 55200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-2023-U* Delta A2 Series Driver - 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-A2-2023-U* Delta A2 Series Driver - 2000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-2023-U* Delta A2 Series Driver - 2000W

The ASD-A2-2023-U is the high-power 2000W (2.0 kW) AC servo drive from Deltas premium ASDA-A2 series. It is designed to handle high-torque industrial loads with advanced motion intelligence.

Core Power & Electrical

Rated Power: 2000 Watts (2.0 kW).
Input Phase/Voltage: 3-Phase, 200V ~ 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 13.4 Arms.
Instantaneous Max Current: 40.2 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable via I/O or communication).
Feedback Support: 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in with up to 720 points for master-slave synchronization.
Suppression Functions: Features dual low-frequency vibration filters and advanced auto-notch filters for high-frequency mechanical resonance.

Connectivity & Safety

Communication: RS-232, RS-485, and Mini-USB for direct PC configuration via ASDA-Soft.
Safe Torque Off (STO): Built-in hardware safety circuit (SIL2/PL d compliant).
Digital I/O: 8 programmable inputs and 5 programmable outputs.
Regenerative Braking: Built-in regenerative resistor; supports external resistors for heavy-inertia loads.

For the ASD-A2-2023-U Delta A2 Series Servo Drive (2000W/2kW), here are the specific details in inches:

Dimensions & Weight

This 2kW drive features a wider chassis than the 1.5kW models to accommodate the power electronics and cooling required for higher current.

Dimension	Inches	Millimeters
Width	3.23"	82 mm
Height	7.40"	188 mm
Depth	7.48"	190 mm
Net Weight	~6.17 lbs	2.8 kg

Note: The shipping weight is typically around 10.5 lbs (4.8 kg) including packaging.

Function

The ASD-A2-2023-U is the high-power control unit for 2.0 kW motors, specializing in:

Heavy-Duty Driving: Designed to handle a continuous output of 13.4 Arms, providing the high current needed to maintain the 9.55 Nm rated torque of medium-inertia motors.
3-Phase Stability: While it can technically run on single-phase with reduced performance, it is functionally designed for 3-Phase 220V AC input to ensure peak torque and prevent undervoltage errors.
Built-in Motion Intelligence: Includes Electronic Cam (E-CAM) and Vibration Suppression logic, allowing for smooth, synchronized motion in heavy machinery without an external motion controller.
Advanced Networking: The "U" type supports high-speed digital commands and communication (RS-485/Modbus), making it ideal for distributed control systems.
