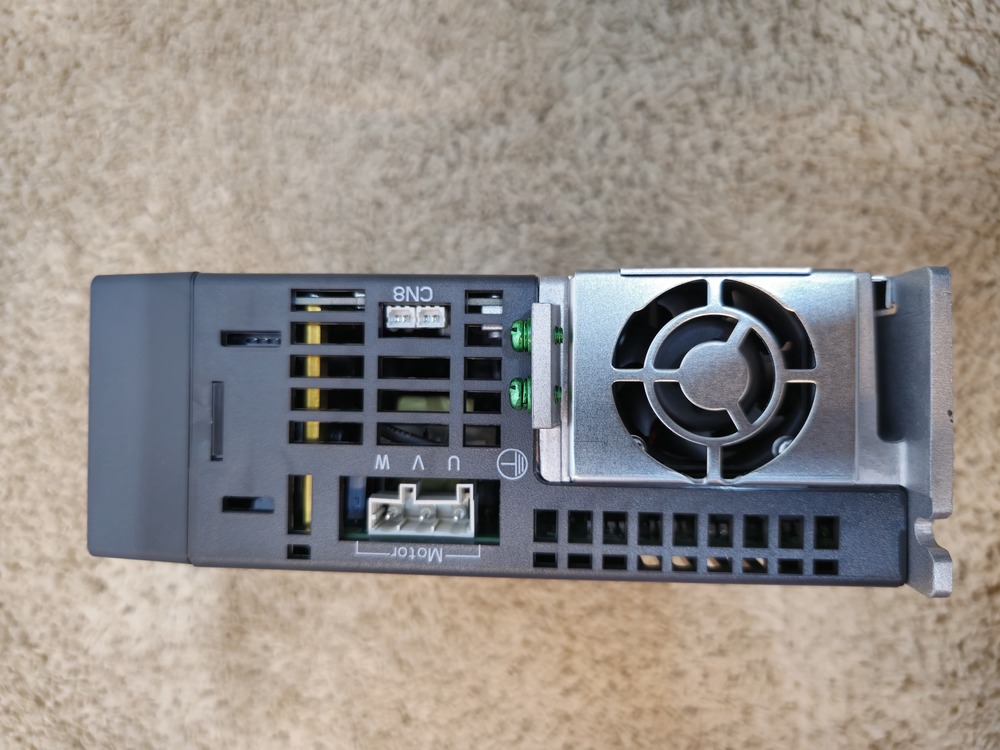

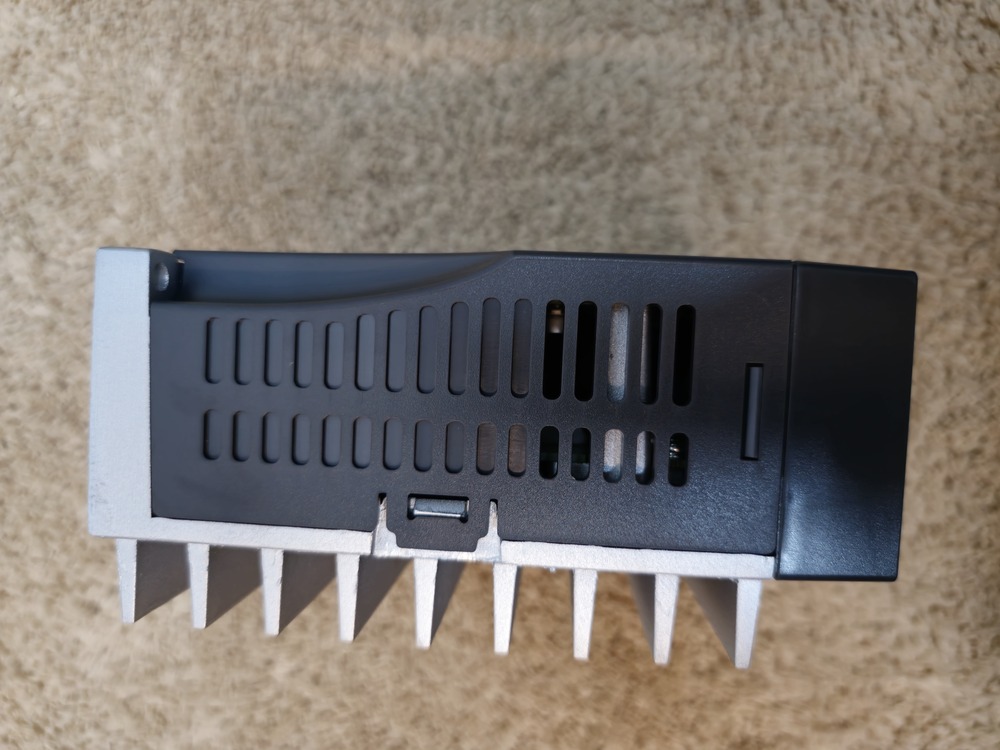

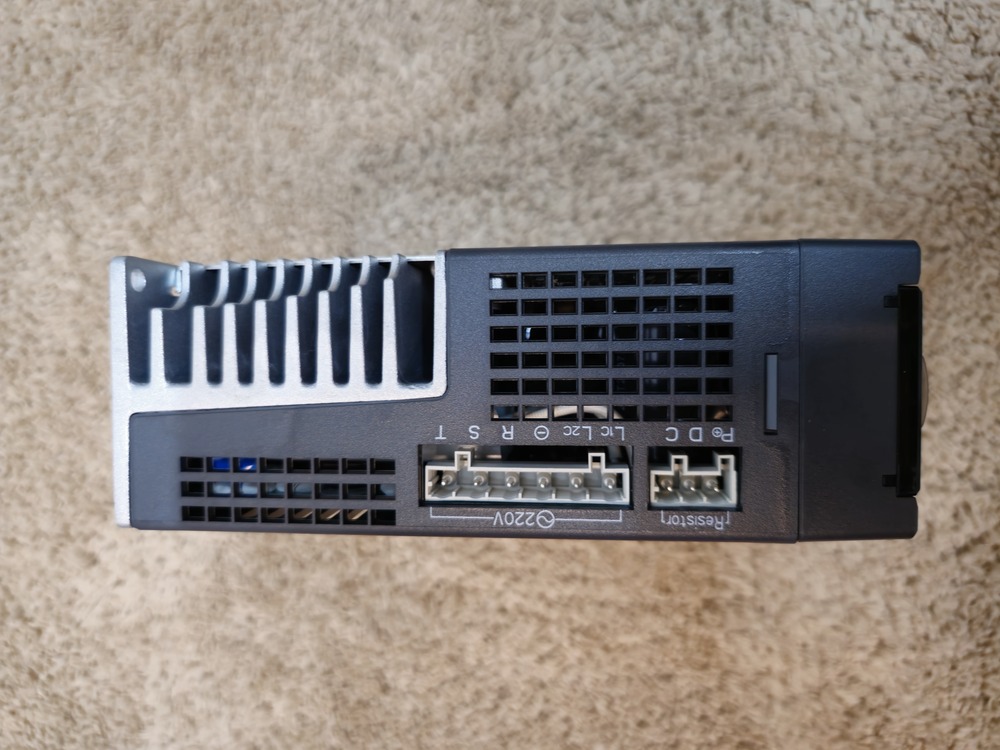

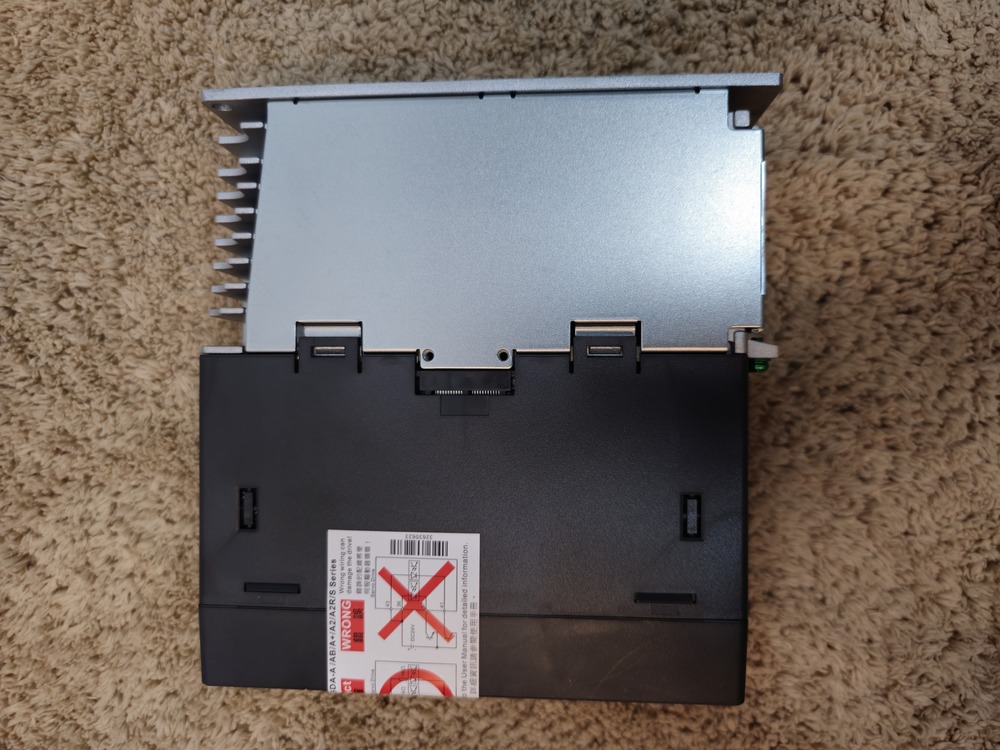

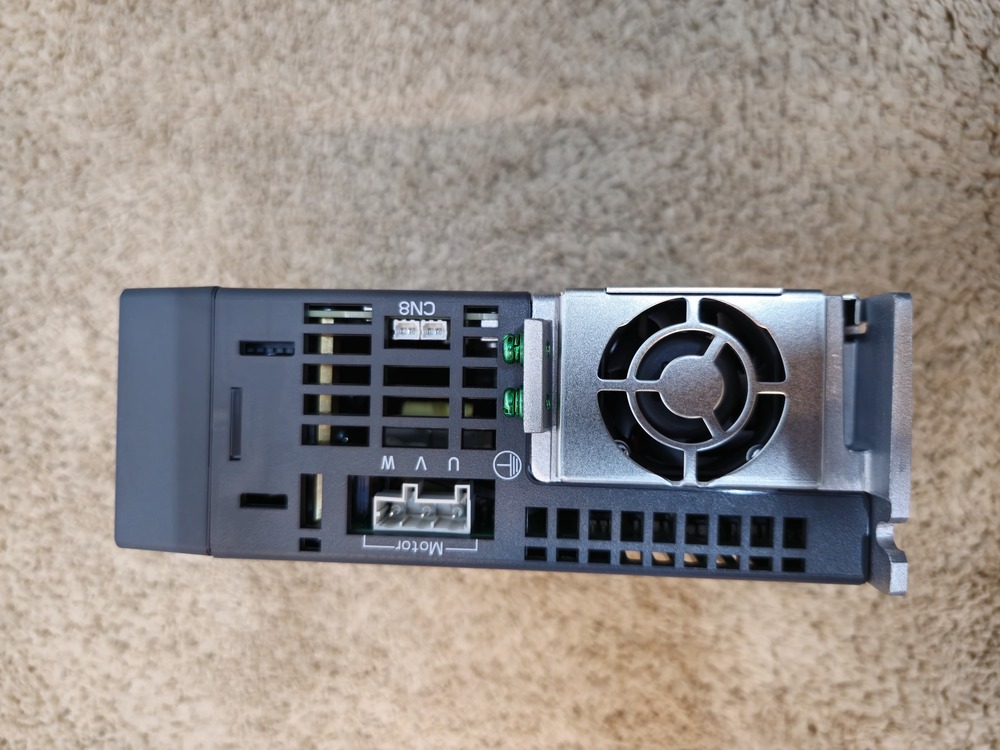

ASD-A2-2043-M Delta A2 Series Driver - 2000W

Name: ASD-A2-2043-M Delta A2 Series Driver - 2000W
Brand: Corbital Enterprise
Price: 51000.0 INR
Availability: InStock

Price 51000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-2043-M Delta A2 Series Driver - 2000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
2.89 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-2043-M Delta A2 Series Driver - 2000W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-2043-M Delta A2 Series Driver - 2000W

The Delta ASD-A2-2043-M serves as the intelligent control unit (driver) for 2kW AC servo motors. Its primary function is to translate low-power commands from a PLC or controller into precise high-power electrical signals that drive the motor with exact speed, position, and torque

Core Functions

Precision Motion Control: Manages the motor's movement with a high-speed response frequency (up to 1 kHz), allowing for settling times below 1 ms.
Advanced Positioning (Pr Mode): Features a flexible Internal Position Mode that allows users to define up to 64 paths for each axis, enabling complex motion sequences without a high-end external controller.
Built-in Electronic Cam (E-CAM): Provides a unique internal E-CAM with up to 720 points, making it an ideal solution for flying shear, rotary cut, and synchronized motion applications.
Superlative Vibration Suppression: Includes two automatic filters to minimize low-frequency vibration at machine edges (useful for crane control) and two auto-notch filters to suppress mechanical high-frequency resonance.
Full Closed-Loop Control: Capable of reading a second feedback signal (like a linear scale) to eliminate errors caused by mechanical backlash or thermal expansion. [1, 2, 3, 4, 5]

Control & Communication

The drive functions as a communication hub, supporting multiple protocols for seamless integration: [1]

CANopen: Supports DS301 and DS402 profiles for real-time network control.
Standard I/O: Includes a 50-pin CN1 connector for traditional pulse/direction and analog commands.
Safety Features: Provides built-in protection against overvoltage, overcurrent, and short circuits. [1, 2]

The Delta ASD-A2-2043-M is a high-performance 2000W (2kW) AC servo drive designed for 400V 3-phase industrial systems. It serves as the matching driver for motors like the ECMA-J11020RS. [1, 2, 3, 5]

Dimensions & Weight

Attribute [1, 3]	Measurement (Metric)	Measurement (Inches)
Height	188 mm	7.40 in
Width	95 mm	3.74 in
Depth	184 mm	7.24 in
Net Weight	2.89 kg	6.37 lbs
Note: Some industrial listings estimate weight at approx. 3.5 kg.

Core Specifications

Voltage: 400V AC (3-Phase 380V 480V).
Continuous Output Current: 6.66 Arms.
Instantaneous Max Current: 18.65 Arms.
Feedback Support: 20-bit incremental (1,280,000 pulses/rev) and 17-bit absolute encoders.
Interfaces: Dual CANopen ports, RS-485, RS-232, and USB for debugging.
Operating Temp: 0C to 55C (32F to 131F). [1, 2, 4, 5]

Functionality

This drive provides high-precision control of position, speed, and torque. Key features include: [, 2, 3]

Built-in Electronic Cam (E-CAM): Up to 720 points for smooth synchronized motions like flying shears.
Vibration Suppression: Automatic filters to minimize edge vibration and mechanical resonance.
Full Closed-Loop Control: Capable of reading external linear scales to compensate for mechanical backlash
