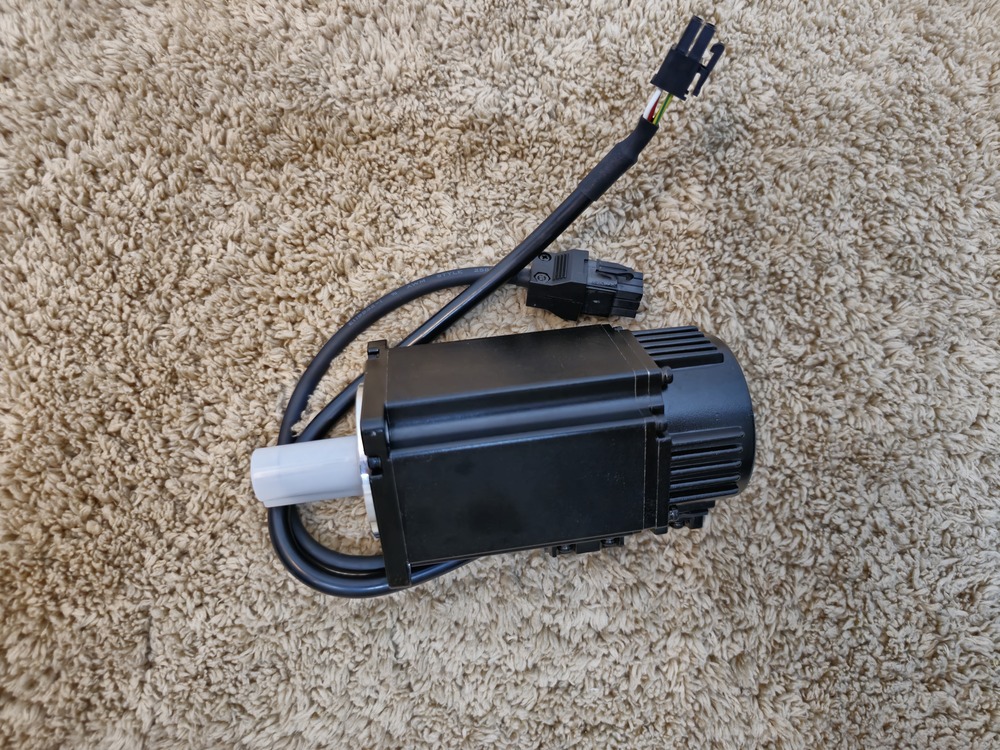

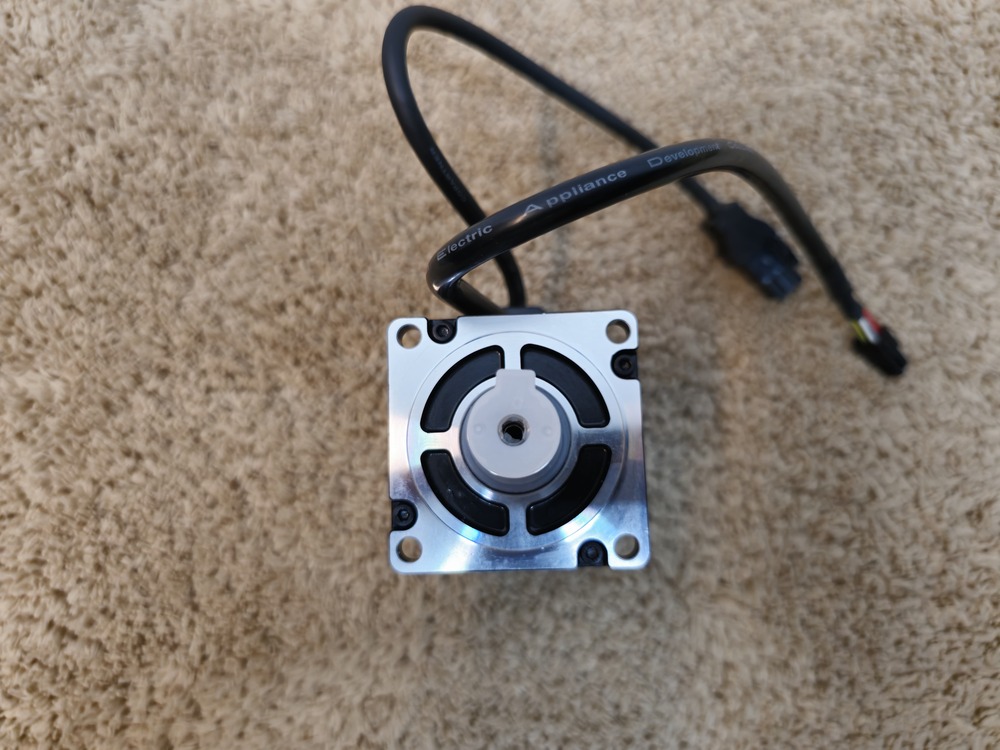

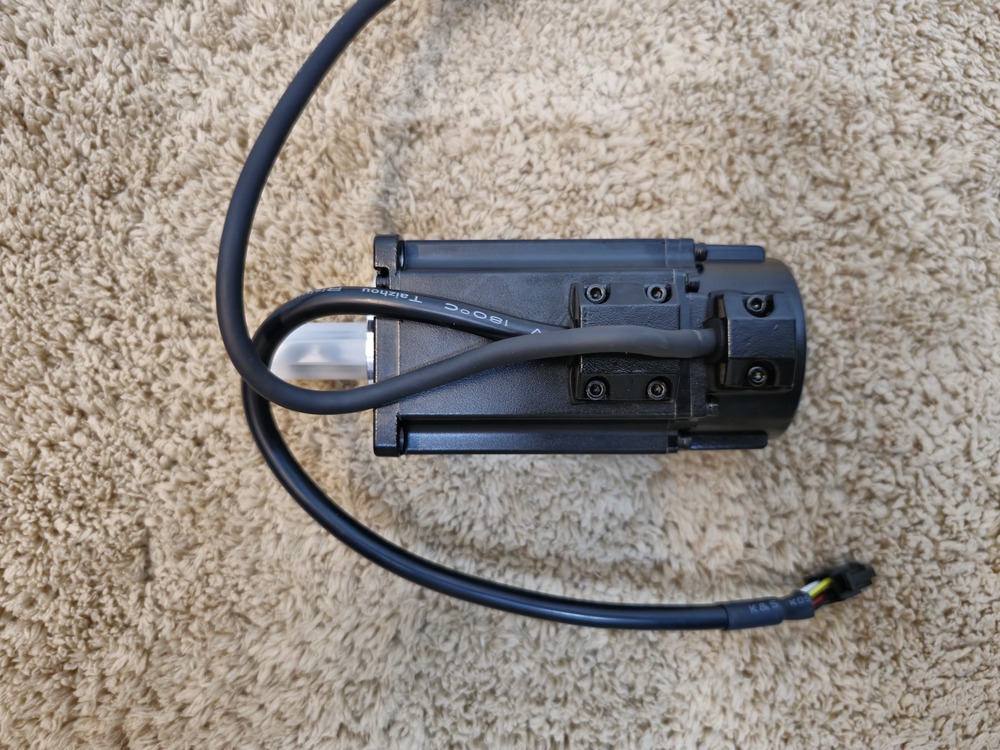

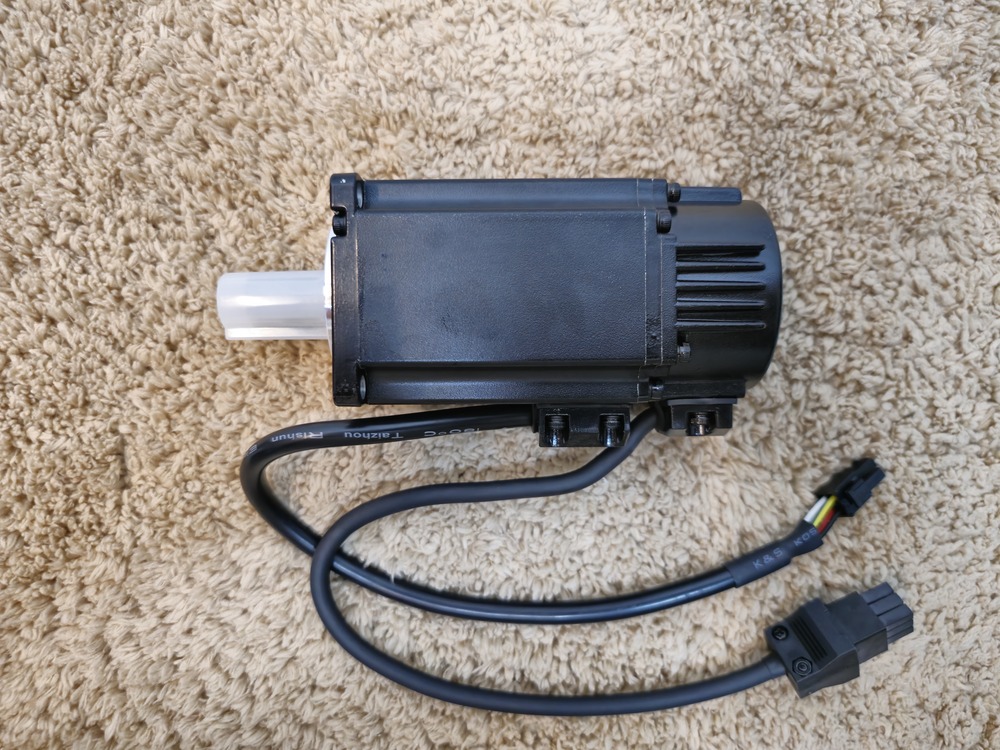

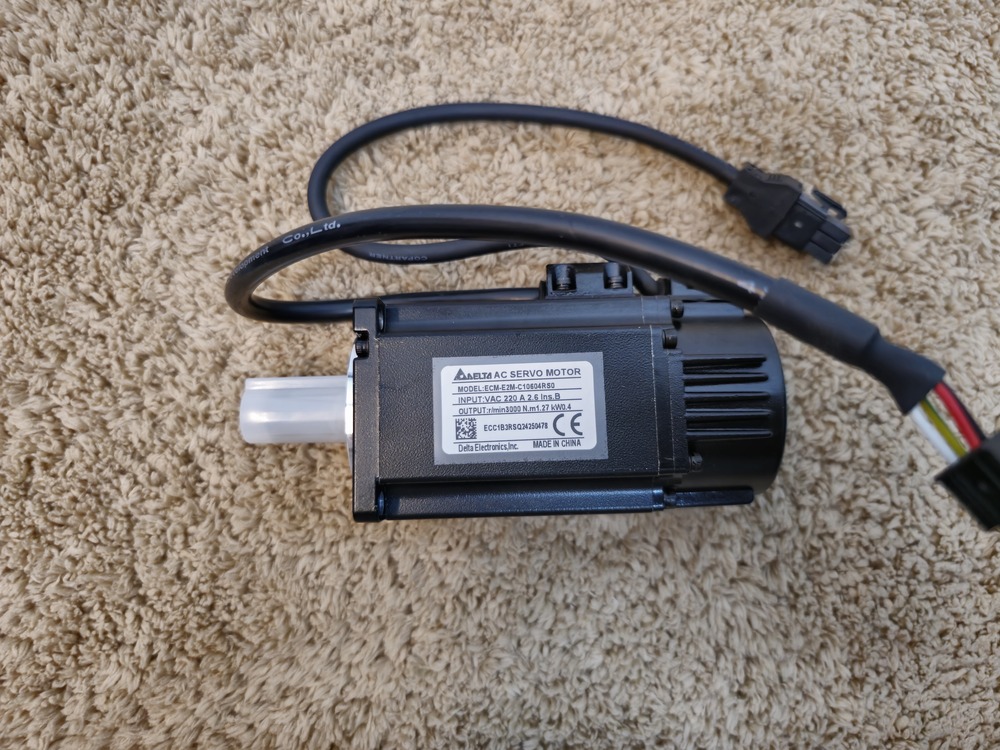

ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000

Send Inquiry

Request To Call Back

ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000

Name: ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000
Brand: Corbital Enterprise
Price: 28000.0 INR
Availability: InStock

Price 28000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
900 Grams (g)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000 Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24

About ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000

The ECM-B3H-C20602RS1 is a 200W high-performance AC servo motor from Delta's ASDA-B3 series, known for its high-resolution feedback and compact design. [1]

Technical Specifications

Feature [1, 2, 3, 4]	Details
Rated Output Power	200 W
Rated Torque	0.64 Nm
Rated Speed	3000 RPM
Maximum Speed	6000 RPM
Frame Size	60 mm
Encoder	24-bit resolution

Key Features

Inertia Type: This model is part of the high-speed/low-inertia series, though very similar to the medium-inertia ECM-B3M variant used in similar frame sizes.
Efficiency: Features a reduced motor length compared to previous generations, making it easier to integrate into tight equipment structures.

The ECM-B3H-C20602RS1 is a 200W high-performance AC servo motor from Delta's ASDA-B3 series, known for its high-resolution feedback and compact design. [1]

Technical Specifications

Feature [1, 2, 3, 4]	Details
Rated Output Power	200 W
Rated Torque	0.64 Nm
Rated Speed	3000 RPM
Maximum Speed	6000 RPM
Frame Size	60 mm
Encoder	24-bit resolution

Key Features

Inertia Type: This model is part of the high-speed/low-inertia series, though very similar to the medium-inertia ECM-B3M variant used in similar frame sizes.
Efficiency: Features a reduced motor length compared to previous generations, making it easier to integrate into tight equipment structures.

Key Functional Roles

Precise Positioning: Utilises its 24-bit high-resolution encoder to provide real-time feedback, ensuring the motor reaches and maintains an exact target angle within fractions of a degree.
Dynamic Motion: Designed for rapid acceleration and deceleration, making it ideal for tasks requiring quick starts and stops, such as in pick-and-place robotics.
Torque & Speed Regulation: Maintains a constant rated torque of 0.64 Nm even at high speeds (up to 3000 RPM rated, 6000 RPM max), which is critical for consistent industrial output.
Vibration Suppression: Works with the ASDA-B3 series drive to automatically adjust for mechanical resonance, ensuring smooth operation even under varying loads. [1, 2, 3, 4, 5, 6, 7, 8]

Common Applications

Robotics: Powering small robotic arms for assembly and material handling.
CNC Machining: Controlling the movement of cutting tools with high precision.
Packaging & Labelling: Synchronising high-speed conveyor belts and labelling heads.
Electronic Assembly: Fine-tuned part insertion where compact size and accuracy are essential.

The ECM-B3H-C20602RS1 motor weighs approximately 0.9 kg (1.98 lbs). [1]

This weight applies to the standard version without a brake. If you are shipping the unit, the typical shipping weight is approximately 2 kg due to protective packaging. [, 2, 3]

Weight Comparison

For context, within the Delta ASDA-B3 series:

Standard (No Brake): 0.9 kg.
With Electromagnetic Brake: Models with a brake (typically ending in "S" instead of "R" in some configurations) will weigh slightly more, often adding around 0.4 kg to 0.7 kg to the base unit.

The ECM-B3H-C20602RS1 servo motor has a standard 60 mm square frame. Below are its approximate dimensions converted to inches for your reference:

Width & Height (Frame Size): 2.36 inches (60 mm)
Total Length (L): Approximately 4.21 inches (107 mm)
- Note: This is the body length including the encoder. The shaft adds roughly an additional 1.18 inches (30 mm) to the total mechanical length.
Shaft Diameter: 0.55 inches (14 mm)

Dimensional Summary (Approximate)

Dimension	Metric (mm)	Imperial (Inches)
Frame Width	60 mm	2.36"
Frame Height	60 mm	2.36"
Body Length	107 mm	4.21"
Shaft Length	30 mm	1.18"

These dimensions are based on the standard Delta ASDA-B3 Series 200W motor specifications. If your unit includes an electromagnetic brake, the body length will increase by approximately 1.38 inches (35 mm).

High-Efficiency Servo Motor for Industrial Machinery

The ECM-B3H-C20602RS1 Delta Servo Motor excels in delivering reliable power and torque tailored for modern industrial machinery needs. Its three-phase operation ensures smooth performance, while the robust build and packing seal extend operational life even in challenging settings. The compact and lightweight design allows for flexible installation without sacrificing strength or efficiency.

Versatile and Reliable Performance

With its 200W output, 0.64 Nm torque, and up to 3000 RPM, this servo motor is engineered to support precise motion control. Its aluminum body not only provides durability but also aids in maintaining optimal operating temperatures. Suitable for various industrial automation applications, this servo motor is a versatile solution for machine manufacturers and facility operators alike.

FAQ's of ECM-B3H-C20602RS1 Delta Servo Motor 200W H , Torque Nm - 0.64, RPM - 3000:

Q: How should the ECM-B3H-C20602RS1 Delta Servo Motor be installed in industrial machinery?

A: The servo motor should be securely mounted on a suitable framework, ensuring proper alignment with related mechanical parts. Electrical connections should follow standard three-phase wiring procedures and safety protocols. Always verify that the power supply matches the motor's specifications before operation.

Q: What are the main uses and applications of this servo motor?

A: This servo motor is primarily designed for use in industrial machinery, including automation equipment, robotics, and CNC machines, where precise motion control and high reliability are critical.

Q: When does the warranty period for the ECM-B3H-C20602RS1 start, and what does it cover?

A: The one-year warranty period begins from the date of purchase and covers manufacturing defects and functional failures under normal use, as specified by the manufacturer's guidelines.

Q: Where can the ECM-B3H-C20602RS1 Delta Servo Motor be sourced?

A: The motor is available through authorized suppliers, traders, and wholesalers specializing in industrial automation components. Check with Delta's official distributor network for reliable sourcing.

Q: What processes benefit most from using this servo motor?

A: Processes that require precise speed and torque control, such as automated assembly lines, robotic arms, and material positioning systems, will benefit significantly from the consistent output and responsiveness of this servo motor.

Q: How does the sealed packing type contribute to the motor's performance?

A: The packing seal design provides additional protection against dust and contaminants, ensuring smooth operation and preventing premature wear, which enhances reliability in industrial environments.

Q: What are the advantages of the aluminum material used in this servo motor?

A: Aluminum construction offers an optimal balance of lightweight design and durable protection. It also improves heat dissipation, contributing to the motor's longevity and consistent operation during extended industrial use.
