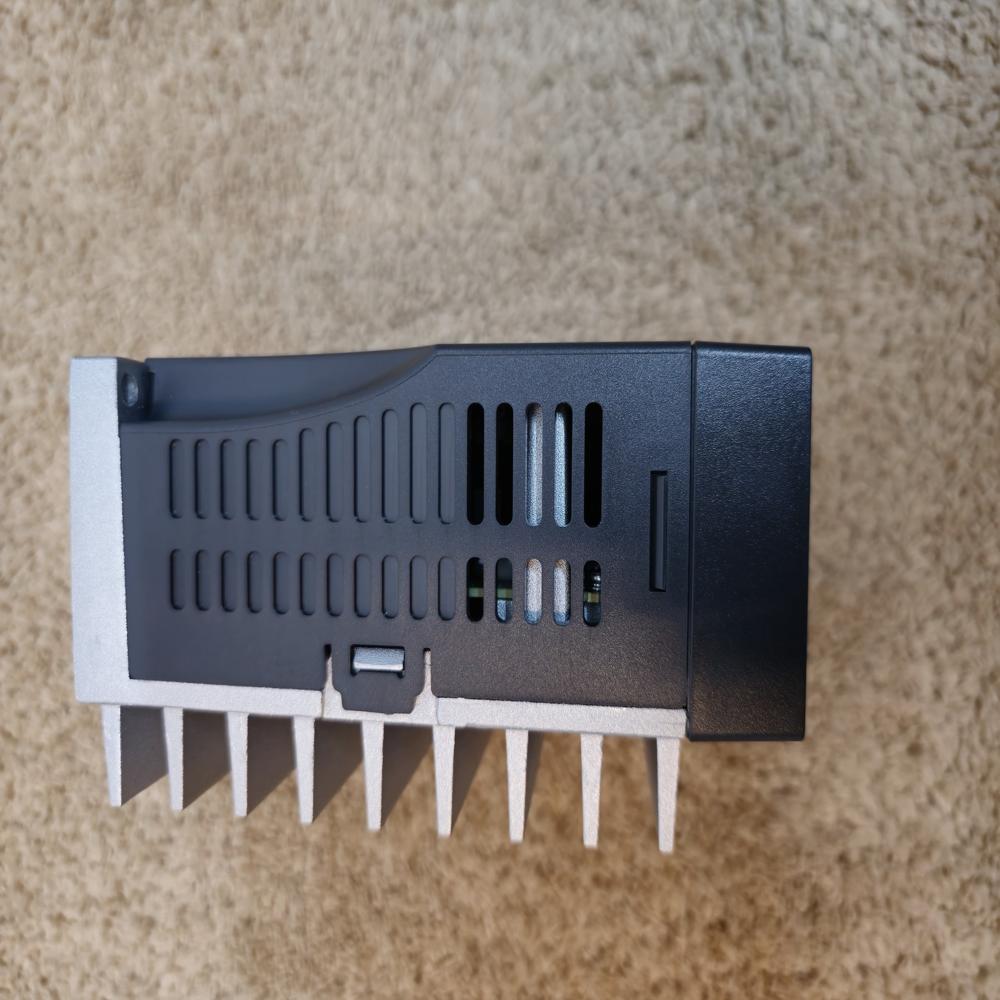

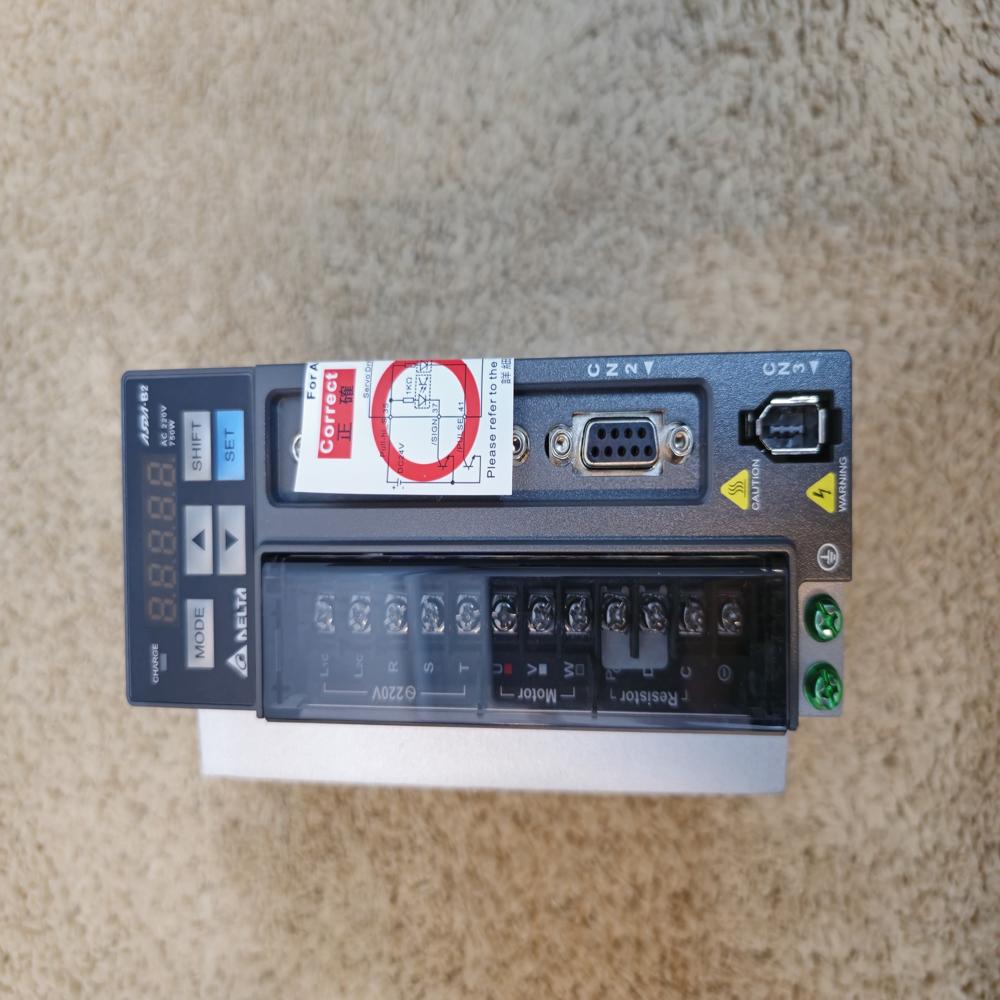

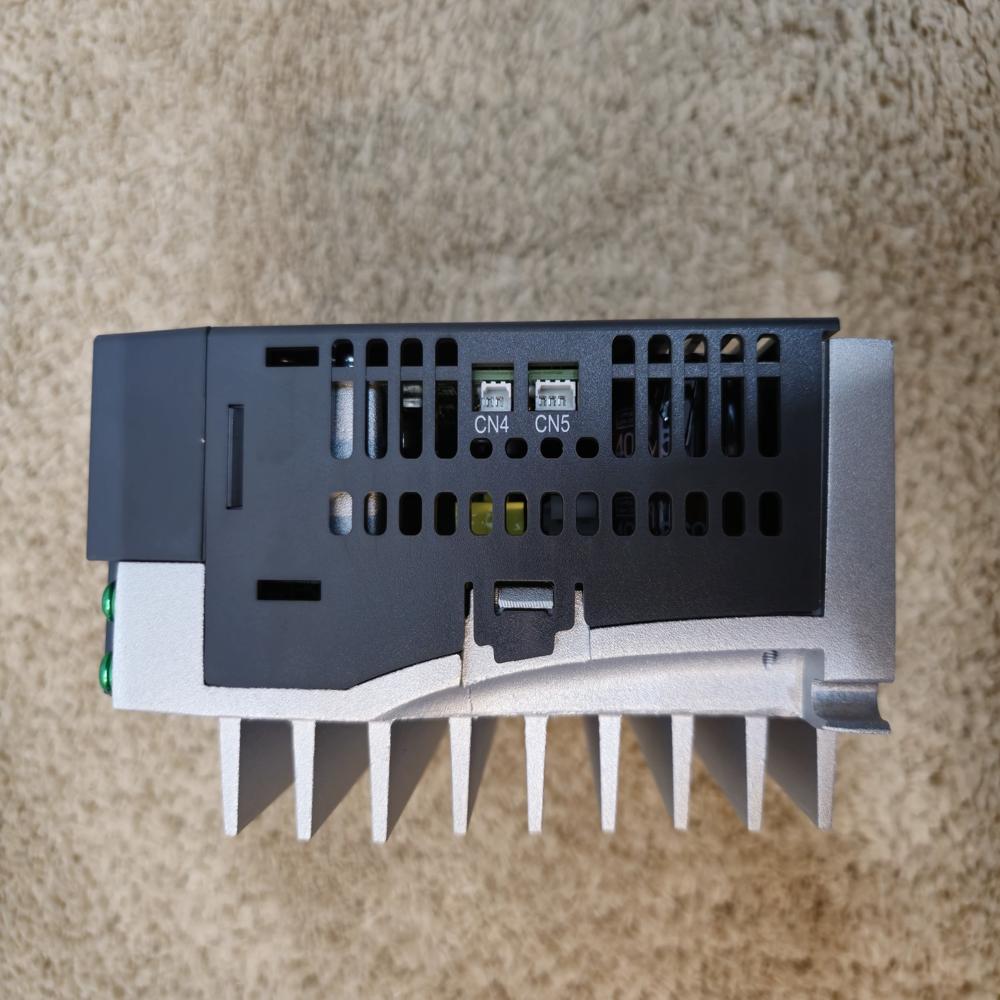

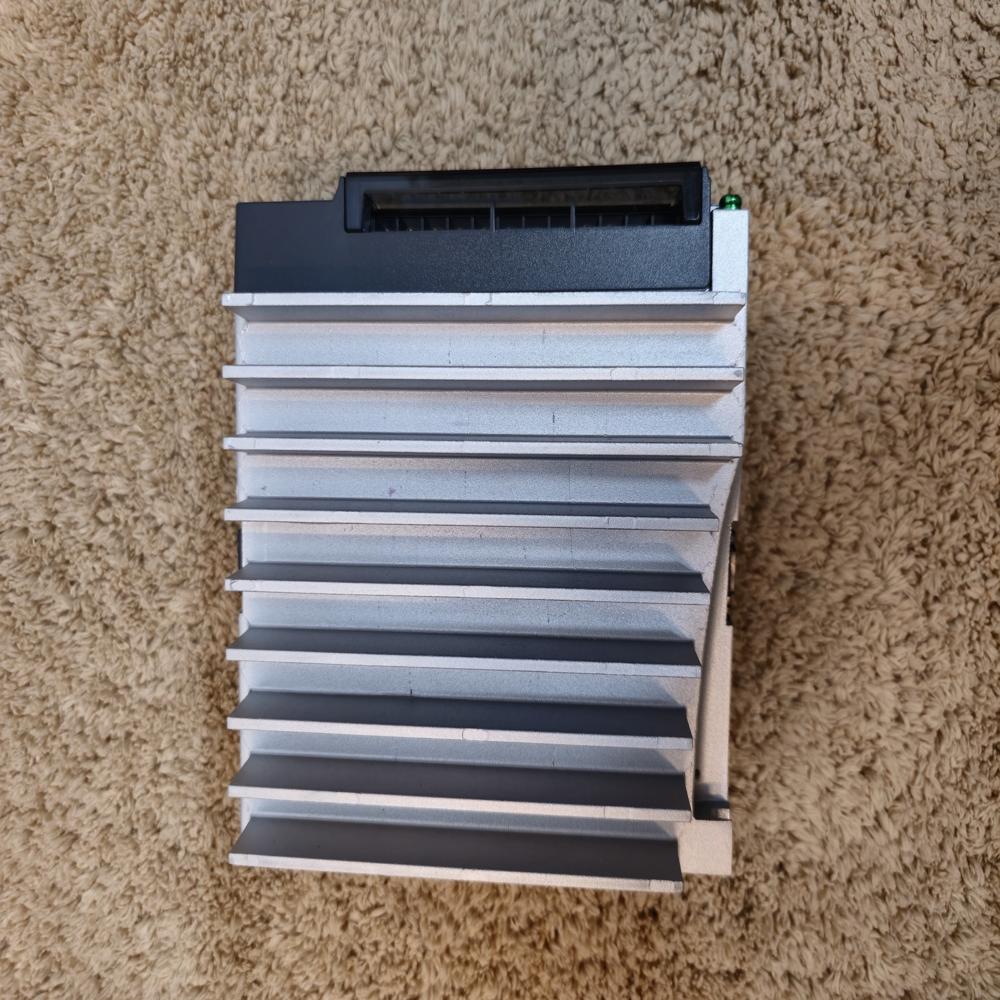

ASD-A2-4543-M Delta A2 Series Driver - 4500W

Name: ASD-A2-4543-M Delta A2 Series Driver - 4500W
Brand: Corbital Enterprise
Price: 62100.0 INR
Availability: InStock

Price 62100.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ASD-A2-4543-M Delta A2 Series Driver - 4500W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
5.5 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-A2-4543-M Delta A2 Series Driver - 4500W Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ASD-A2-4543-M Delta A2 Series Driver - 4500W

The Delta ASD-A2-4543-M is a high-capacity 4.5kW (4500W) servo drive from the ASDA-A2 series, designed for heavy-duty 400V 3-phase industrial applications.

Dimensions & Weight

Attribute	Measurement (Inches)	Measurement (Metric)
Height	10.24 in	260 mm
Width	4.61 in	117 mm
Depth	9.06 in	230 mm
Net Weight	12.13 lbs	5.5 kg

Core Specifications

Power Output: 4.5 kW (4500 W).
Input Voltage: 3-Phase 380V 480V AC.
Continuous Current: 14.8 Arms.
Max Current: 41.5 Arms.
Interfaces: Dual CANopen ports (DS301/DS402), RS-485, RS-232, and USB.
Cooling: Forced fan cooling (required for this power class).

Functionality

This drive is the "brain" for 4.5kW motors like the ECMA-FA1845SS. It provides:

High-Torque Management: Specifically tuned to handle the high current requirements of 4.5kW high-inertia motors.
E-CAM & PR Mode: Built-in electronic cam (720 points) and 64 internal position points, allowing it to handle complex motions without a separate motion controller.
Safety & Protection: IP20 rated for cabinet mounting with built-in protection against over-voltage, over-current, and regenerative errors.
