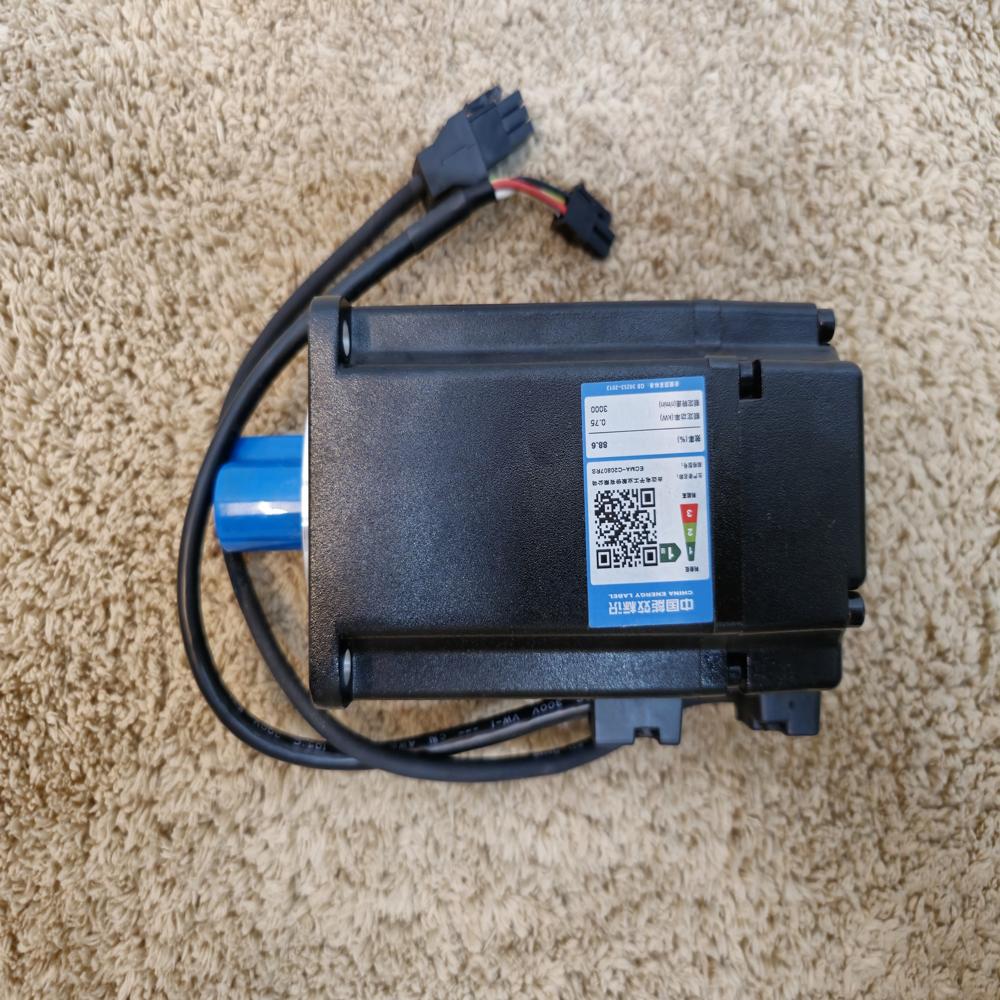

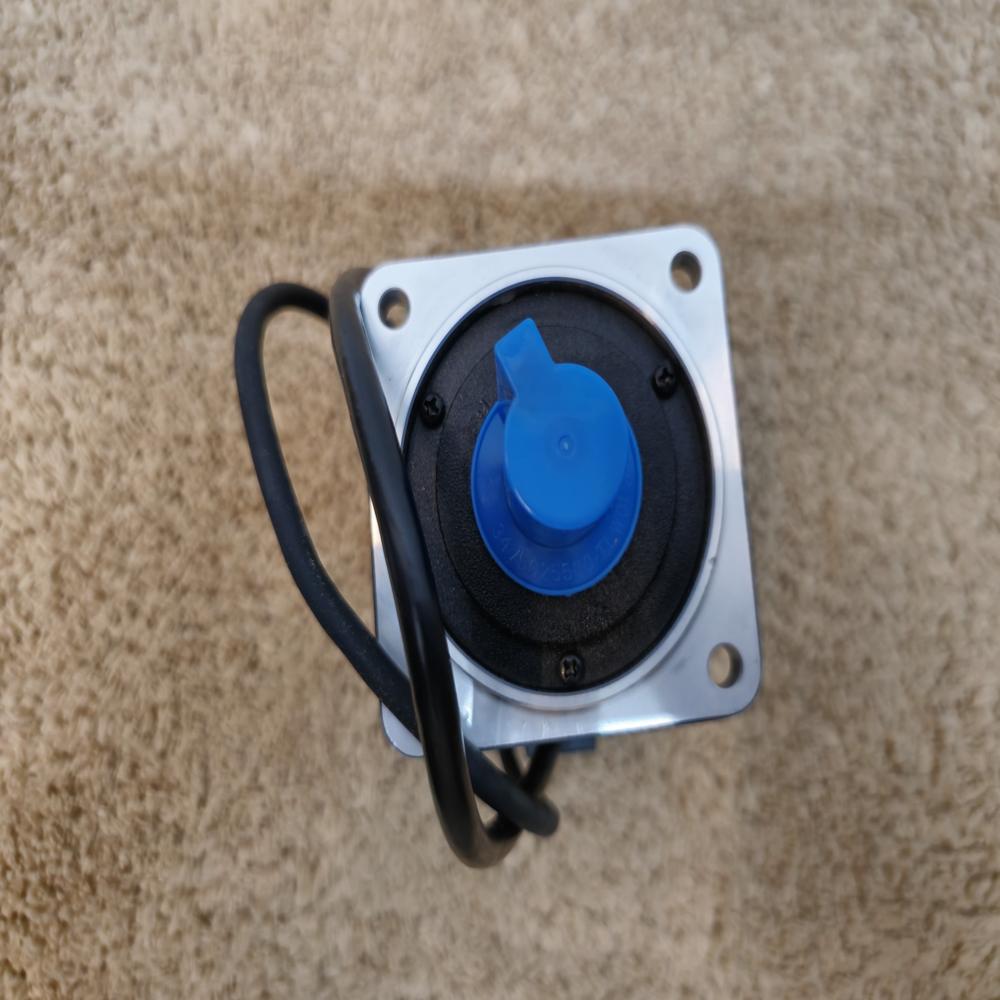

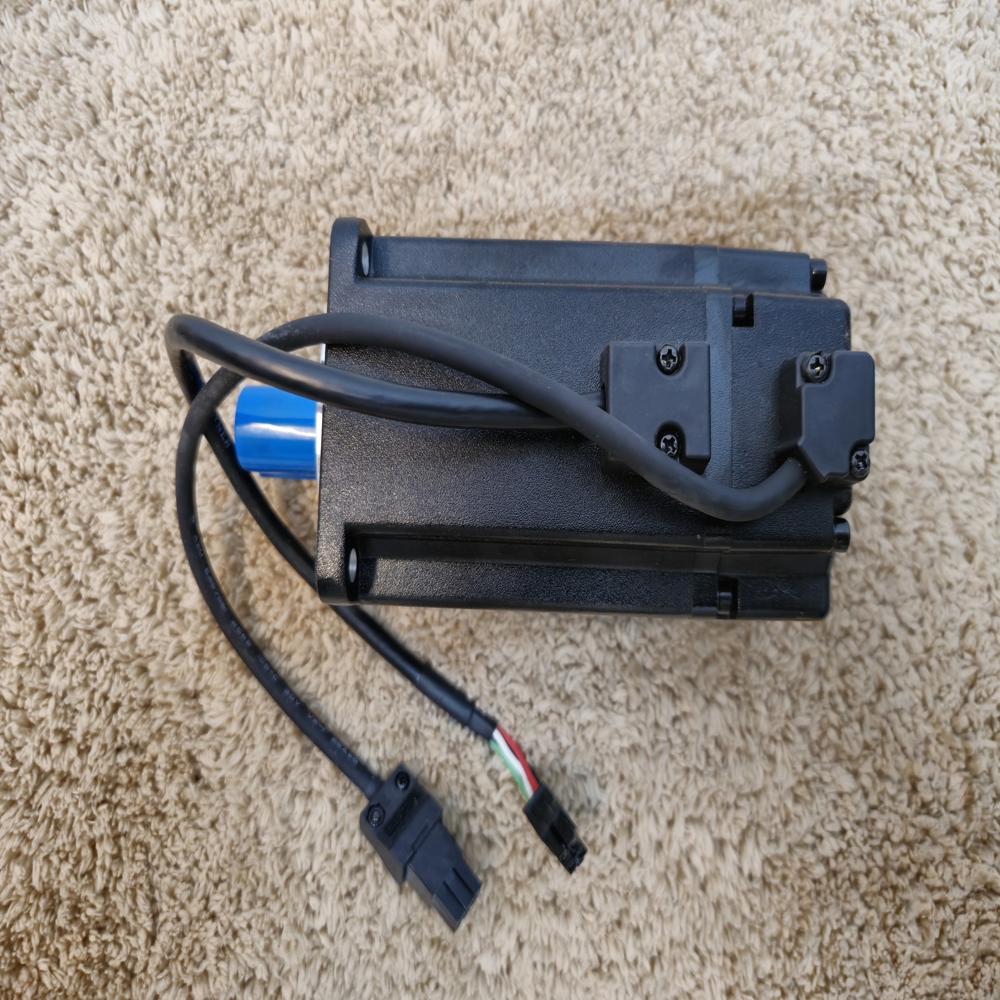

ECMA-E11320RS Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000

Name: ECMA-E11320RS Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000
Brand: Corbital Enterprise
Price: 39000.0 INR
Availability: InStock

Price 39000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-E11320RS Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.8 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-E11320RS Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-E11320RS Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000

The ASD-A2-2023-U is the high-capacity 2000W (2.0 kW) AC servo drive from Deltas ASDA-A2 series. It is specifically engineered to handle the high current requirements of medium-inertia motors like the ECMA-E11320RS.

Core Power & Electrical

Rated Power: 2000 Watts (2.0 kW).
Input Phase/Voltage: 3-Phase, 200V 230V AC (+10% / -15%), 50/60 Hz.
Continuous Output Current: 13.4 Arms.
Speed Control Range: 1:5000.
Frequency Response: 1 kHz.

Control & Motion Intelligence

Control Modes: Position, Speed, and Torque (switchable).
Feedback Resolution: Supports 20-bit incremental encoders (1,280,000 pulses/rev) and 17-bit absolute encoders.
Electronic Cam (E-CAM): Built-in logic with up to 720 points for master-slave synchronization.
Specialized "U" Features: Includes digital command support, high-speed position capture/compare, and an extension port for additional digital inputs.

Suppression & Safety

Vibration Suppression: Dual low-frequency vibration filters to eliminate mechanical shaking during heavy moves.
Resonance Suppression: Features high-frequency auto-notch filters to eliminate mechanical noise.
Safety Function: Built-in Safe Torque Off (STO), ensuring hardware-level power cut-off for operator safety (SIL2/PL d).

The ECMA-E11320RS is a 2.0 kW (2000W) Medium Inertia AC Servo Motor from Delta's ASDA-A2 series. It is designed for high-torque applications where load stability and precision at 2,000 RPM are critical. [1, 2]

Dimensions & Weight (Inches)

This motor uses a 130 mm frame size, making it robust for heavy industrial use. [1]

Dimension [1, 2, 3, 4]	Inches	Millimeters
Width	5.12"	130 mm
Height	5.12"	130 mm
Length (Body Only)	7.24"	184 mm
Total Length (with Shaft)	9.11"	231.5 mm
Shaft Diameter	0.866"	22 mm
Net Weight	22.05 lbs	10.0 kg

Function & Performance

Torque Powerhouse: Provides a high rated torque of 9.55 Nm and a massive peak torque of 28.65 Nm, ideal for driving heavy lead screws or large rotary tables.
Stability: As a medium-inertia motor, it handles large mechanical loads with minimal vibration compared to low-inertia models.
High Precision: Equipped with a 20-bit incremental encoder (1,280,000 pulses/rev) for ultra-accurate positioning.
Industrial Protection: Rated IP65 with a built-in oil seal, ensuring reliability in environments with dust, oil, or liquid splashes. [1, 2, 3, 4]
