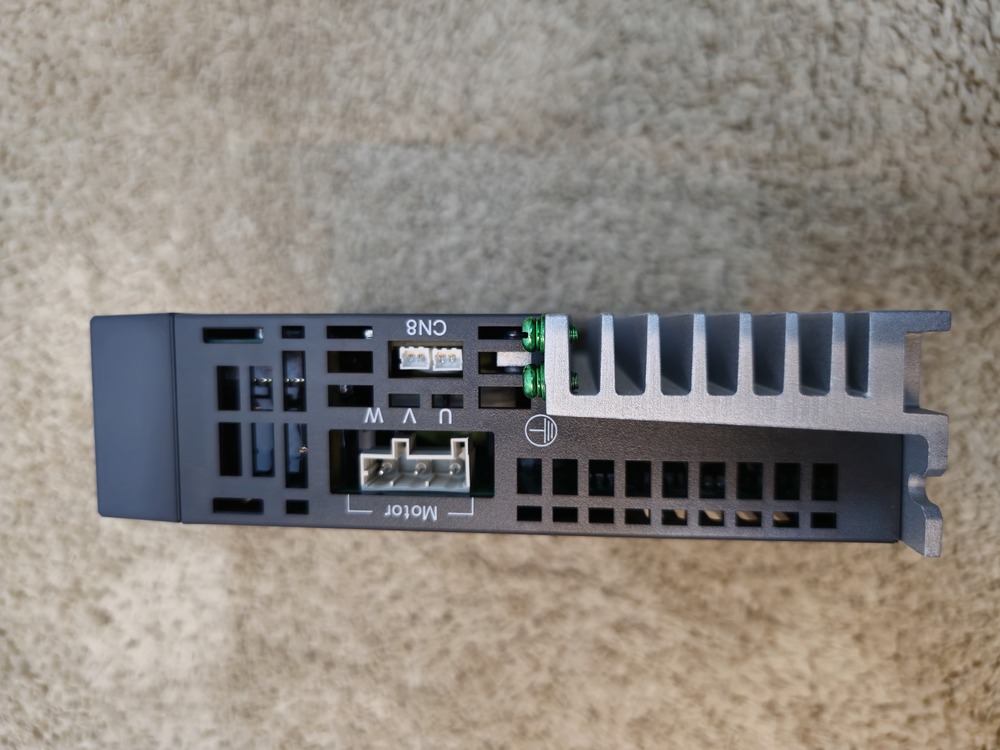

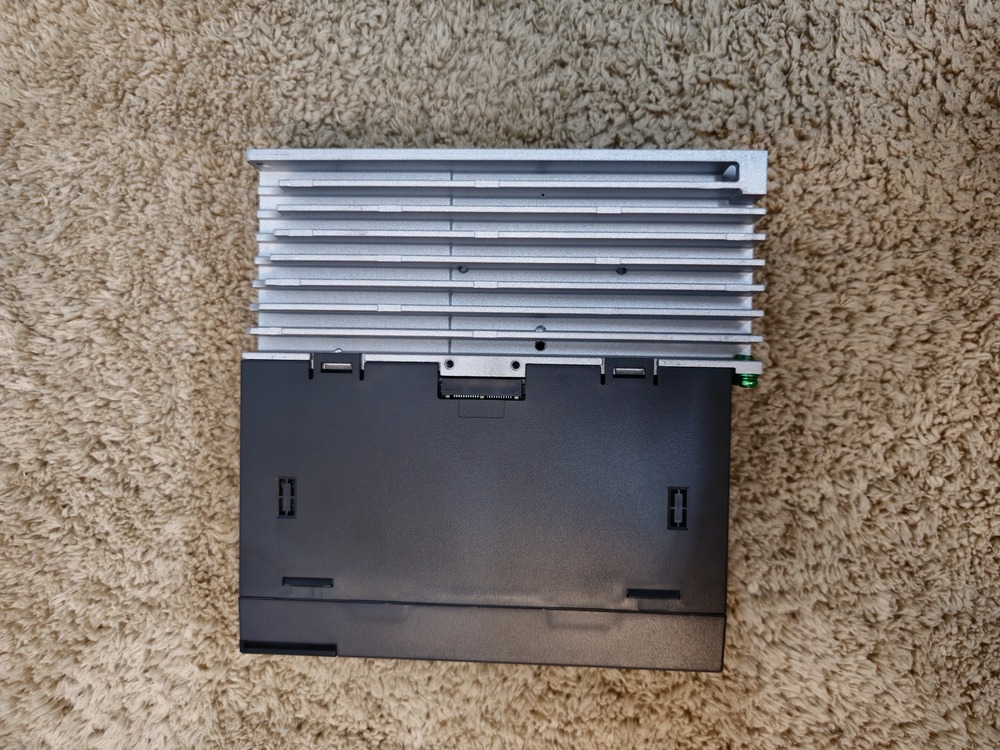

ASD-B2-0421-B Delta B2 Series Driver - 400W

Name: ASD-B2-0421-B Delta B2 Series Driver - 400W
Brand: Corbital Enterprise
Price: 24100.0 INR
Availability: InStock

Price 24100.0 INR/ Number

Get a Price/Quote

ASD-B2-0421-B Delta B2 Series Driver - 400W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.1 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-B2-0421-B Delta B2 Series Driver - 400W Trade Information

Delivery Time
24 Hours

About ASD-B2-0421-B Delta B2 Series Driver - 400W

The ASD-B2-0421-B is the dedicated 400W AC servo drive for the Delta ASDA-B2 system. It functions as the power and control bridge between your controller (like a PLC) and the 400W motor. [1, 2]

Technical Specifications

Power Rating: 400 Watts (0.4 kW).
Input Voltage: 1-phase / 3-phase 200V230V AC.
Output Current: 2.6 Amps continuous (7.8 Amps peak).
Response Speed: 550 Hz bandwidth for high-speed dynamic response.
Encoder Resolution: Supports 17-bit (160,000 p/rev) for high-precision positioning.
Regenerative Resistor: Built-in as standard to handle energy during deceleration. [1, 2, 3, 4, 5]

Core Functions

Control Modes: Supports Position (Pulse/Dir), Speed (10V), and Torque (10V) control.
Vibration Suppression: Automatically detects and filters out mechanical resonance using "Notch Filters."
Communication: RS-232 and RS-485 ports using MODBUS for digital parameter setting and monitoring.
Electronic Gearing: Allows you to scale the input pulses to match your mechanical gear ratio. [1, 2, 3, 4, 5]
