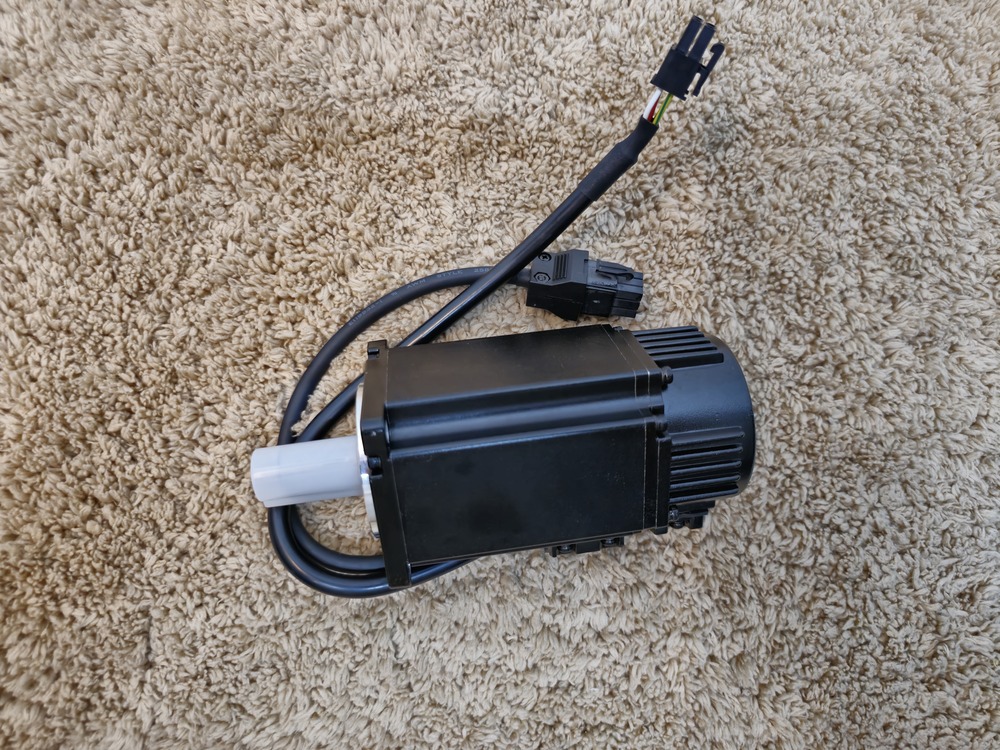

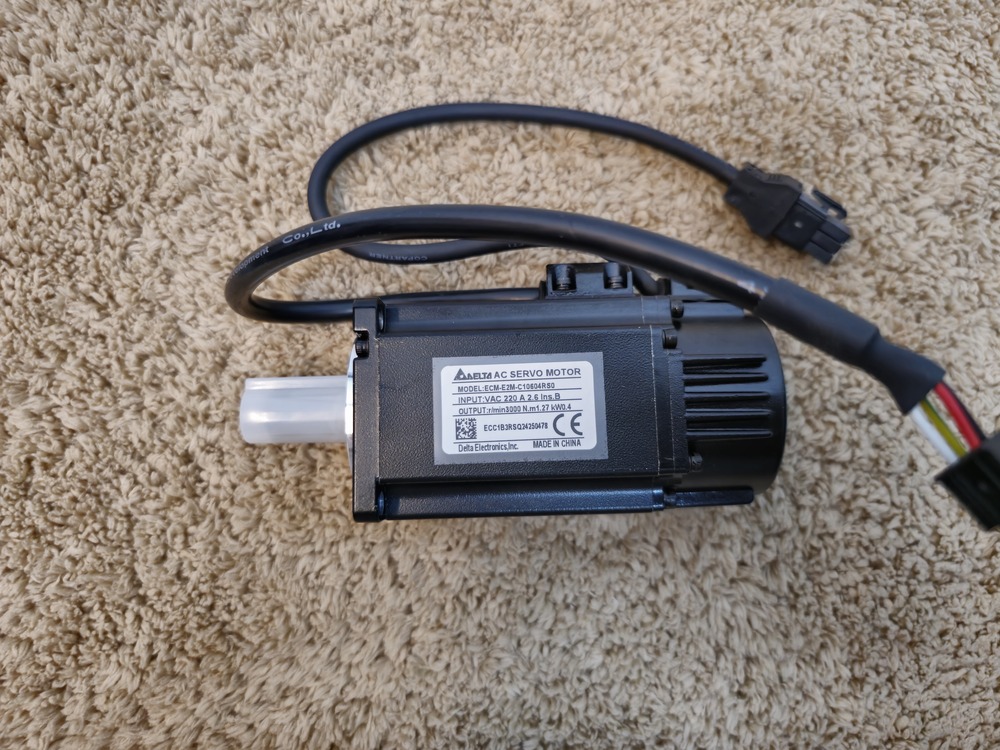

ECM-E3M-C20807RSE Delta Servo Motor 750W M , Torque Nm - 2.39 , RPM - 3000

About ECM-E3M-C20807RSE Delta Servo Motor 750W M , Torque Nm - 2.39 , RPM - 3000

• Rated Power: 750 W
• Rated Torque: 2.39 N-m (21.15 lb-in)
• Max (Peak) Torque: 7.16 N-m (63.37 lb-in)
• Rated Speed: 3000 RPM
• Maximum Speed: 6000 RPM
• Inertia Type: Medium Inertia (3.11 10 kgm)

• Rated Current: 5.1 A
• Max Current: 15.3 A
• Encoder Resolution: 24-bit (16,777,216 pulses/rev)
• Insulation Class: Class A (UL), Class B (CE)
• Protection Rating: IP67 (Dust-tight and waterproof for short immersion)

• Frame Size: 3.15" x 3.15" (80mm x 80mm)
• Body Length (LL): 4.54" (115.3 mm)
• Shaft Diameter: 0.75" (19 mm)
• Shaft Length: 1.38" (35 mm)
• Net Weight: 4.63 lbs (2.1 kg)

• Mounting Pitch (PCD): 3.54" (90 mm)
• Mounting Hole Diameter: 0.26" (6.6 mm)
• Operating Temp: 32F to 104F (0C to 40C)

• Rated Power: 750W
• Rated Torque: 2.39 N-m (Peak torque up to 7.16 N-m)
• Rated Speed: 3000 RPM (Max speed 6000 RPM)
• Inertia Type: Medium Inertia (provides superior stability for heavy mechanical loads)
• Encoder: 24-bit high-resolution optical encoder (16,777,216 pulses/rev)
• Weight: Approximately 2.1 kg (4.63 lbs)

• High Torque Density: Delivers nearly 2.4 N-m of continuous torque, making it ideal for driving large ball screws, heavy conveyor sections, or industrial indexing tables.
• Load Stability: The medium-inertia design allows this motor to handle much larger mechanical loads (higher inertia ratios) without the vibration or "hunting" issues common in smaller motors.
• Precision Control: Even at high power, the 24-bit encoder ensures extreme positioning accuracy and exceptionally smooth rotation at low speeds.
