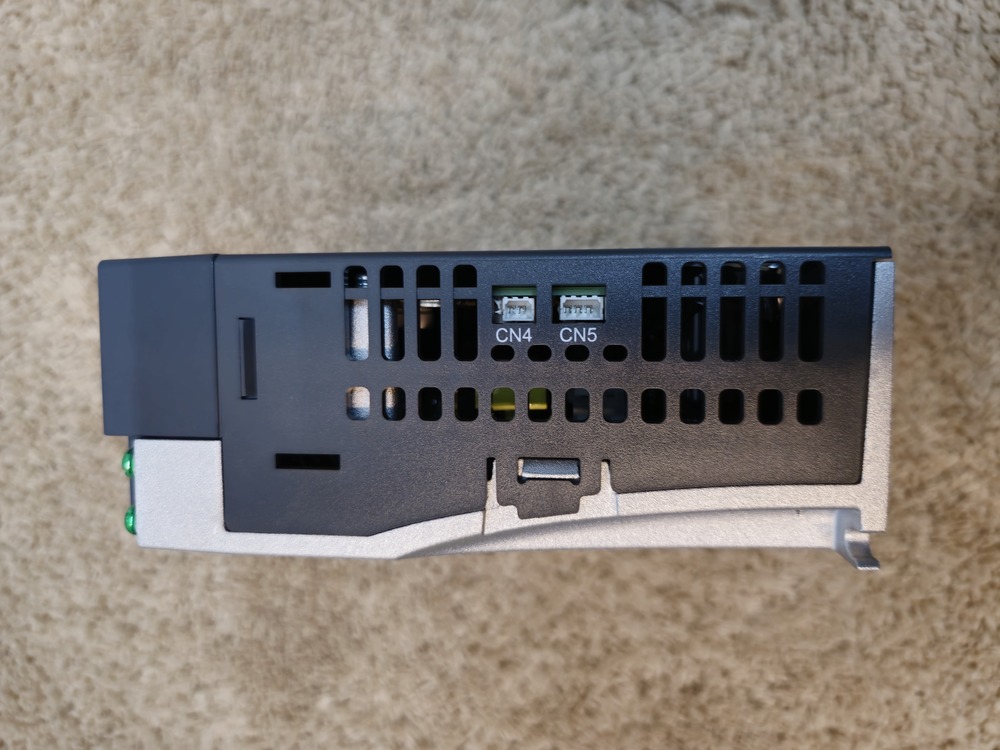

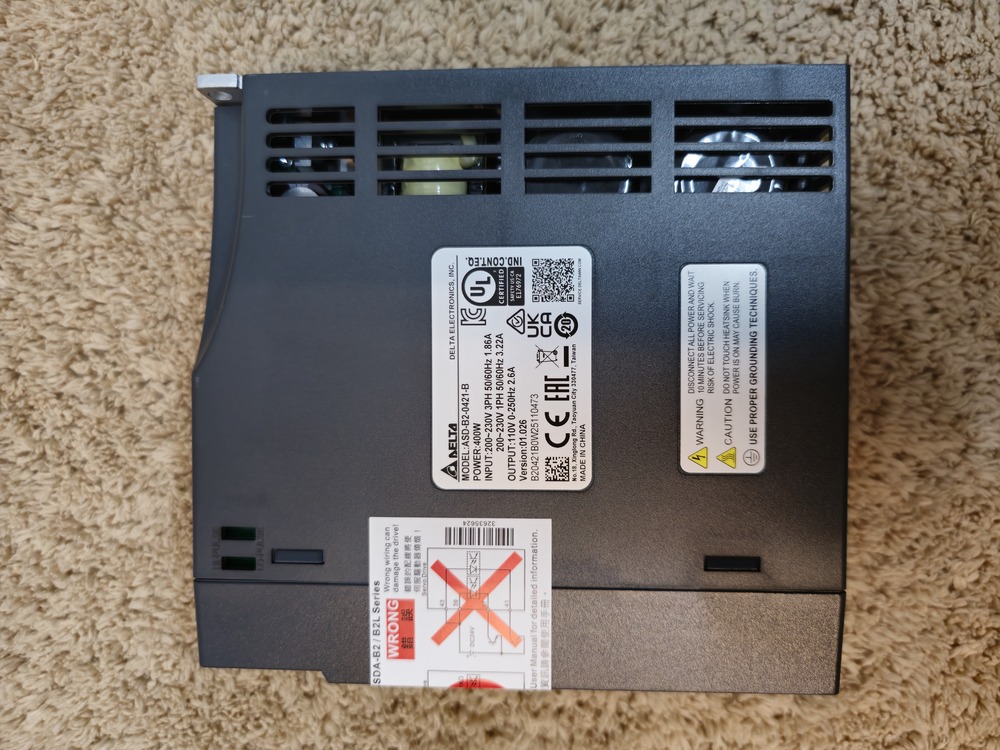

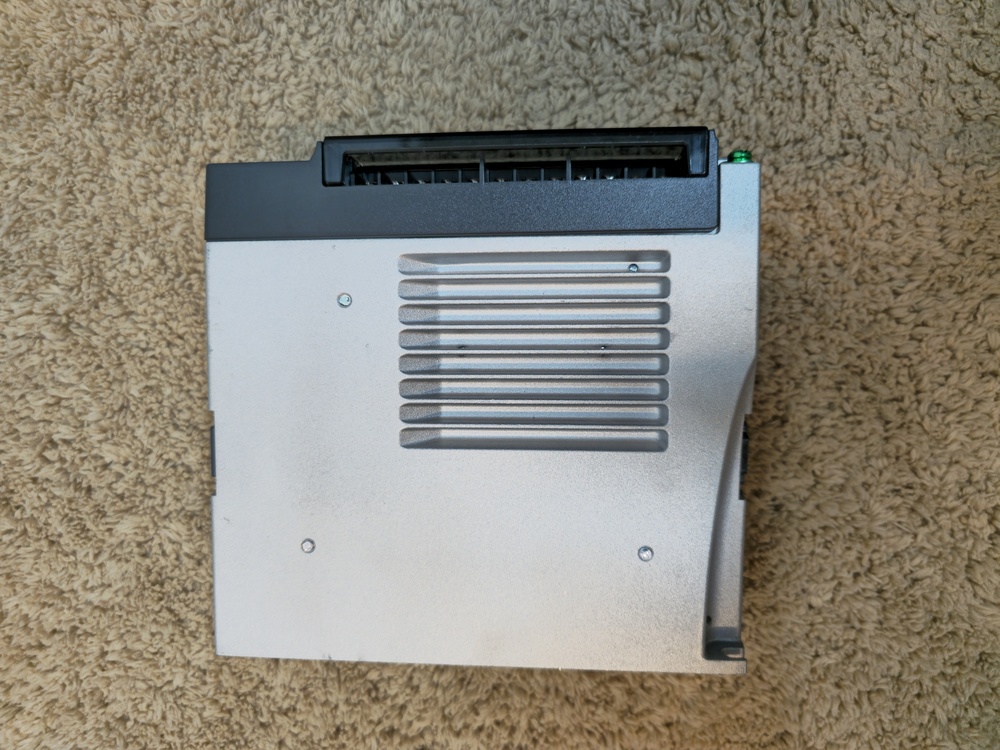

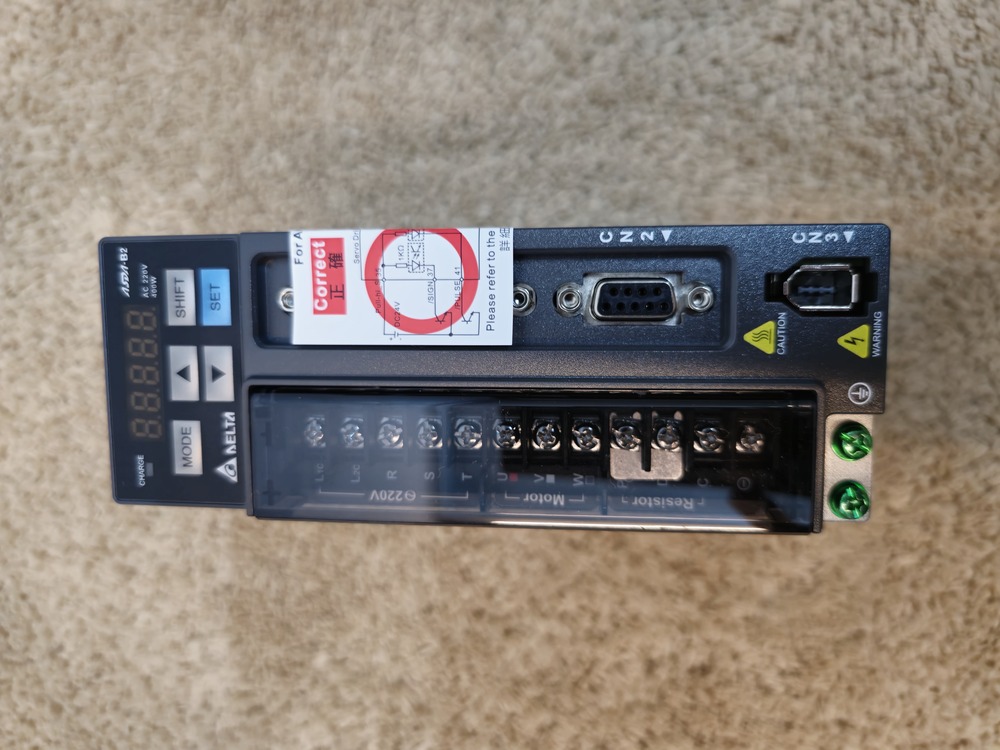

ASD-E3-0421-L Delta Servo Driver 400W

Name: ASD-E3-0421-L Delta Servo Driver 400W
Brand: Corbital Enterprise
Price: 20000.0 INR
Availability: InStock

Price 20000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-E3-0421-L Delta Servo Driver 400W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
900 Grams (g)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ASD-E3-0421-L Delta Servo Driver 400W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-E3-0421-L Delta Servo Driver 400W

The ASD-E3-0421-L is a 400W AC servo drive from Deltas ASDA-E3 series, designed specifically to pair with the 400W motors you've been looking at. It is a cost-effective, high-performance alternative to the B3 series, offering a more user-friendly interface for standard industrial tasks like transport and conveying. [1, 2, 3]

Technical Specifications

Rated Power Output: 400W.
Input Voltage: 220V Single-phase or Three-phase.
Continuous Output Current: 2.65 Arms.
Max Instantaneous Current: 10.6 Arms.
Resolution: Supports the same 24-bit high-resolution feedback as the B3 motors for smooth, low-speed operation. [1, 2, 3, 4, 5]

Dimensions & Weight (Approximate)

Dimension [1, 2, 3]	Metric (mm)	Imperial (Inches)
Width	60 mm	2.36"
Height	162 mm	6.38"
Depth	155.85 mm	6.14"
Weight	0.9 kg	1.98 lbs

Source for dimensions: Delta ASDA-E3 Catalog.

Key Functions

Simplified Implementation: Inherits B3-series features but with simplified wiring and a more intuitive interface.
Control Modes: Supports PT Mode (Pulse Input), Speed, and Torque control.
Vibration Suppression: Built-in algorithms automatically handle mechanical resonance to protect your machinery.
Communication: Includes RS-485 for standard industrial communication.

Function'

The primary function of the ASD-E3-0421-L is to act as a high-speed intelligence hub for a 400W servo motor. It processes control signals (like pulses or analog voltages) and translates them into precise electrical current to drive the motor with extreme accuracy

Key Functional Modes

As a member of the ASDA-E3 series, this drive supports three standard control modes: [1, 2, 3]

Position Mode (PT Mode): Controls the exact location and angle of the motor shaft using pulse-train commands. This is the "L" type's specialty.
Speed (Velocity) Mode: Regulates the rotation speed (RPM) precisely, often using analog voltage signals or internal register settings.
Torque Mode: Controls the amount of force the motor applies, which is essential for applications like tension control in winding machines. [1, 2, 3, 4]

Advanced System Functions

24-bit Feedback Processing: It decodes over 16 million pulses per revolution from the motor's encoder, enabling incredibly smooth motion even at very low speeds.
Auto-Tuning: Features a user-friendly auto-tuning algorithm that automatically calculates the optimal "gain" settings for your machine's specific load, reducing setup time.
Vibration Suppression: Automatically detects and cancels out mechanical resonance, preventing the machine from shaking or humming during operation.
Diagnostic Protection: Continuously monitors for faults such as over-current, over-voltage, and encoder errors to prevent hardware damage. [1, 2, 3, 4, 5, 6]

Comparison: E3 vs. B3

While it inherits the core performance of the ASDA-B3 series, the E3 series is functionally designed for faster implementation with simplified wiring and a more intuitive interface for standard transport and transmitting tasks. [1, 2]

Efficient Industrial Performance

Engineered for robust operations, the ASD-E3-0421-L Delta Servo Driver delivers efficient and precise control for industrial machinery. Its three-phase configuration and 400W power output ensure it is capable of handling demanding applications with consistent reliability.

Durable Design with Comprehensive Warranty

This servo driver boasts a sealed aluminum construction-ensuring durability while protecting internal components from dust, moisture, and other industrial contaminants. The one-year warranty underlines confidence in its quality, making it a dependable investment for manufacturing environments.

FAQ's of ASD-E3-0421-L Delta Servo Driver 400W:

Q: How is the ASD-E3-0421-L Delta Servo Driver typically used in industrial settings?

A: This servo driver is commonly integrated into industrial machinery where precise movement and automation control are required. It provides smooth, reliable servo control for equipment such as robotics, CNC machines, and conveyor systems.

Q: What are the main benefits of choosing a three-phase servo driver like the ASD-E3-0421-L?

A: A three-phase servo driver offers improved efficiency, higher torque delivery, and greater stability compared to single-phase models. This makes it especially suitable for high-demand industrial applications requiring consistent and accurate performance.

Q: When should you consider replacing or upgrading your Delta Servo Driver?

A: Replacement or upgrading is recommended if you notice reduced performance, frequent faults, or if your machinery requirements exceed the capabilities of your current servo driver. Regular maintenance checks can help determine the right time for an upgrade.

Q: Where can you purchase or source the ASD-E3-0421-L Delta Servo Driver?

A: The ASD-E3-0421-L is available through industrial equipment suppliers, authorized traders, and wholesalers. Contact local distributors or search online for reputable vendors of Delta products.

Q: What is the installation process for the ASD-E3-0421-L Servo Driver?

A: Installation involves securely mounting the unit, making proper electrical connections to the three-phase supply, and configuring settings according to your application needs. It is advisable to have installation performed by qualified professionals for safety and optimal performance.

Q: How does the sealed packing design benefit the ASD-E3-0421-L Servo Driver?

A: The sealed packing design protects the internal electronics from dust, moisture, and contaminants, extending the device's lifespan and enhancing reliability in harsh industrial environments.

Q: What warranty support is provided with this servo driver?

A: The ASD-E3-0421-L comes with a one-year warranty, covering manufacturing defects and ensuring you receive reliable support and service during the warranty period.
