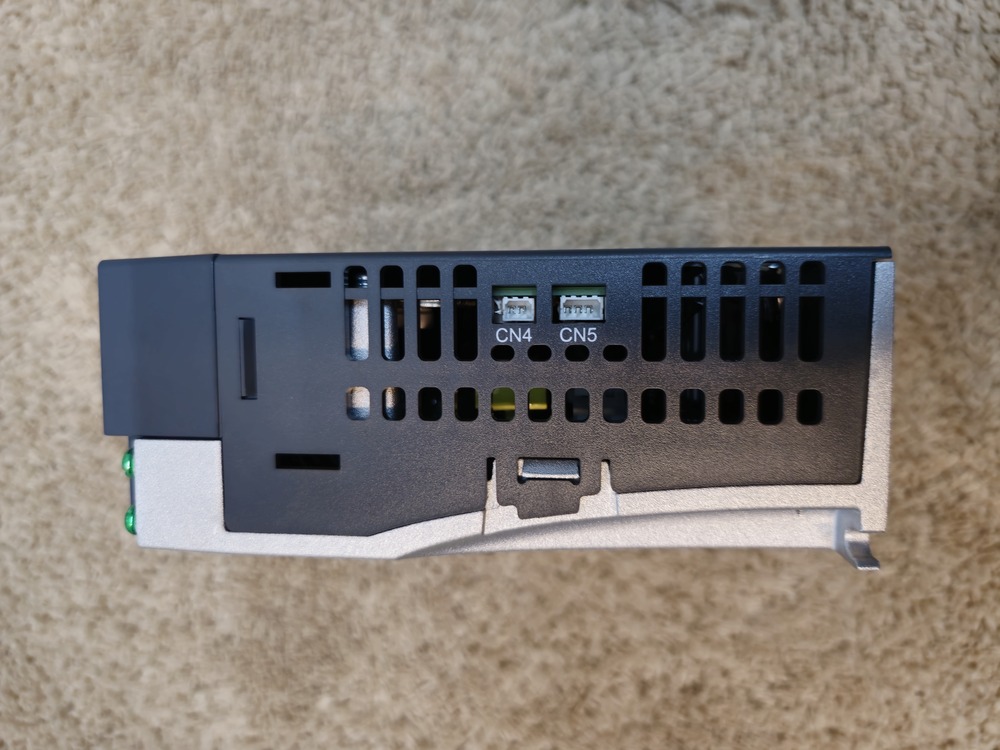

ASD-E3-3023-E Delta Servo Driver 3000W

Name: ASD-E3-3023-E Delta Servo Driver 3000W
Brand: Corbital Enterprise
Price: 58000.0 INR
Availability: InStock

Price 58000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ASD-E3-3023-E Delta Servo Driver 3000W Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
2.6 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ASD-E3-3023-E Delta Servo Driver 3000W Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About ASD-E3-3023-E Delta Servo Driver 3000W

The ASD-E3-3023-E is the 3.0kW (3000W) high-performance EtherCAT servo drive from Deltas ASDA-E3 series, designed to power large, high-torque motors using three-phase 400V input power.

Technical Specifications

Feature	Specification
Rated Power Output	3.0 kW (3000W)
Input Power Supply	Three-phase 380480 VAC
Control Interface	EtherCAT (CoE: CANopen over EtherCAT)
Continuous Current	9.5 Arms
Max Peak Current	28.5 Arms
Encoder Feedback	24-bit high-resolution
Regenerative Resistor	Built-in (30 Ohm, 80W)

Physical Dimensions & Weight

This drive has a robust form factor to handle the higher power requirements and heat dissipation for 3kW operations.

Width: 80 mm (3.15")
Height: 190 mm (7.48")
Depth: 188 mm (7.40")
Weight: 2.6 kg (5.73 lbs)

Key Performance Functions

400V Class Power: Designed for industrial 3-phase 400V grids, delivering high power for demanding applications like large CNC machines and large-scale industrial robots.
Synchronous Motion: Supports a 125s cycle time, allowing multiple axes to move in perfect synchronization for complex contouring or high-speed packaging.
Built-in Safety (STO): Includes Safe Torque Off (SIL2), providing an immediate safe stop without needing to disconnect main power.
Advanced Suppression: Automatically identifies and suppresses mechanical resonance frequencies up to 5,000 Hz, maintaining stability for large mechanical structures.

High-Performance Motor Control for Industrial Needs

The ASD-E3-3023-E Delta Servo Driver delivers exceptional power and responsiveness for various industrial machinery. Its three-phase operation and 3000W capacity enable it to handle intensive motion control tasks, making it a reliable partner for automated processes demanding accuracy and consistency.

Built to Last and Easy to Install

Constructed with durable aluminum, this servo driver is designed for longevity and resilience in industrial environments. The packing seal ensures optimal protection against contaminants during installation, while its manageable weight offers flexibility for equipment integration and maintenance.

FAQ's of ASD-E3-3023-E Delta Servo Driver 3000W:

Q: How is the ASD-E3-3023-E Delta Servo Driver installed in industrial machinery?

A: This servo driver utilizes a packing seal type, making installation straightforward and secure. It is compatible with three-phase electrical systems and should be mounted following standard servo driver installation guidelines to ensure safe and optimal performance.

Q: What applications is the ASD-E3-3023-E most suited for?

A: The ASD-E3-3023-E is ideal for use in various types of industrial machinery that require robust motion control, such as manufacturing robots, automated conveyors, and CNC machines seeking precise and efficient power delivery.

Q: When should I consider replacing my servo driver with the ASD-E3-3023-E model?

A: Consider upgrading to this model if your current servo driver lacks sufficient power, compatibility with three-phase systems, or if you require enhanced durability and a sealed design to withstand challenging industrial conditions.

Q: Where can the ASD-E3-3023-E Servo Driver be purchased?

A: This product is available through authorized suppliers, traders, and wholesalers who specialize in industrial automation components. Contacting a verified distributor ensures access to genuine products and warranty support.

Q: What is the benefit of the product's three-phase operation?

A: Three-phase operation supports higher efficiency in power distribution, resulting in smoother, more reliable performance, lower energy losses, and reduced heat for intensive machinery applications.

Q: How does the 1-year warranty enhance buyer confidence?

A: The one-year warranty provides assurance against manufacturing defects, offering support and potential replacement or repair, which reduces downtime and ensures continued productivity for industrial users.

Q: What materials are used in the construction of this servo driver, and why?

A: The driver is made of quality aluminum, selected for its durability, lightweight nature, and resistance to corrosion-qualities crucial for demanding industrial environments.
