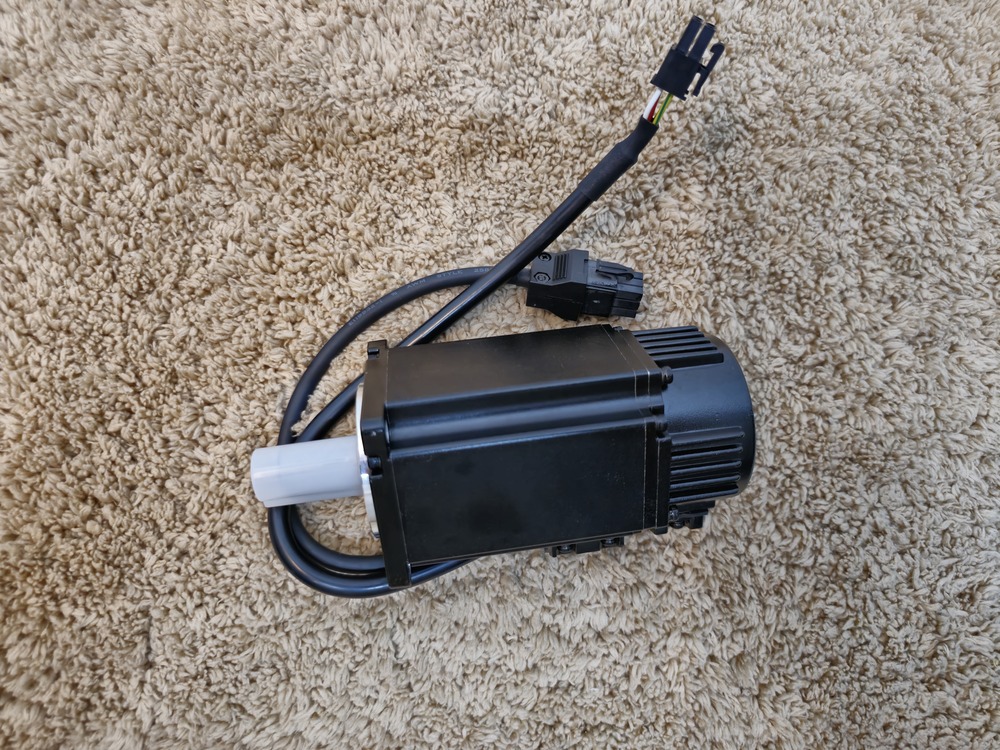

ECM-E3M-E21320RSE Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000

Name: ECM-E3M-E21320RSE Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000
Brand: Corbital Enterprise
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-E21320RSE Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
8.2 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECM-E3M-E21320RSE Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-E21320RSE Delta Servo Motor 2000W M , Torque Nm - 9.55 , RPM - 2000

The Delta ECM-E3M-E21320RSE is a high-torque 2.0kW (2000W) Medium Inertia servo motor. This is the top-tier motor in the 130mm frame class, offering maximum "pushing power" for heavy-duty industrial machinery. [1]

Core Specifications

Rated Power: 2000W (2.0 kW)
Rated Torque: 9.55 N-m (Continuous)
Max (Peak) Torque: 28.65 N-m (Massive short-term force)
Rated Speed: 2000 RPM
Maximum Speed: 3000 RPM
Inertia Type: Medium Inertia (15.53 10 kgm)
Encoder: 24-bit high-resolution (16.7M pulses/rev) [1, 2, 3, 4, 5]

Physical Dimensions (Inches)

Despite the jump in power, it maintains the 130mm frame standard but is the longest motor in this category. [1]

Dimension [1, 2]	Metric (mm)	Imperial (Inches)
Width (Frame)	130 mm	5.12 in
Height (Frame)	130 mm	5.12 in
Body Length (L)	187 mm	7.36 in
Shaft Length (LR)	55 mm	2.17 in
Shaft Diameter (S)	22 mm	0.87 in

Weight

Net Weight: Approximately 8.2 kg (18.08 lbs). [1]

Key Functions

Maximum Power Density: Delivers nearly 10 N-m of constant torque. It is designed for the most demanding mechanical loads, such as large CNC gantries, heavy-duty industrial mixers, and high-capacity winding machines.
Superior Load Handling: The medium inertia design functions as a critical buffer, allowing the motor to maintain perfectly smooth motion even when the mechanical load is significantly heavier than the motor itself.
High IP Rating: Usually rated IP67, ensuring it functions reliably in harsh industrial environments with dust, oil, or water spray.

The Delta ECM-E3M-E21320RSE functions as a high-torque, industrial-grade actuator designed to handle massive mechanical loads with absolute precision. As a 2000W (2.0kW) Medium Inertia motor, its primary role is to bridge the gap between high-speed movement and heavy-duty force. [1, 2, 3, 4]

Core Operations

Massive Torque Delivery: It provides a continuous rated torque of 9.55 N-m, with the ability to surge to a peak torque of 28.65 N-m. This allows it to initiate movement in heavy, static mechanical systems that would stall smaller motors.
Inertia Buffering: The "Medium Inertia" rotor acts as a mechanical flywheel. Its function is to stabilize the system when coupled to large, heavy loads (like massive ball screws or gantry arms), preventing the high-frequency vibrations or "jitter" that can occur with low-inertia motors.
Precision Control: Despite its high power, it functions with micron-level accuracy. Its 24-bit optical encoder feeds back over 16.7 million pulses per revolution to the drive, ensuring the motor stays exactly on its commanded path.
High-Bandwidth Response: When paired with an E3 Series Drive, it features a 2.5 kHz response bandwidth. This allows the motor to correct its position or speed 2,500 times per second, which is essential for maintaining accuracy during high-speed industrial cycles. [1, 2]

Primary Industrial Applications

This motor is the "heavy-lifter" for several specific industries: [1, 2]

Large CNC Machining: Driving the heavy X or Y axis of large-scale milling, stone cutting, or metal machining centers where high cutting forces are present.
Robotics & Material Handling: Powering the primary joints of large industrial robotic arms or high-capacity "pick-and-place" systems.
Textile & Printing: Managing high-tension winding and unwinding processes where maintaining constant torque is critical for product quality.
Packaging Machinery: Operating heavy-duty palletizers, conveyors, and wrapping systems. [1, 2]

Functional Summary

Feature [1, 2, 3, 4, 5]	Function / Advantage
2.0kW Power	High-capacity output for demanding mechanical tasks.
9.55 N-m Torque	Strong continuous force for moving heavy loads.
24-bit Encoder	Ultra-fine positioning with 16.7M pulses/rev.
IP67 Rating	Durable enough for environments with dust, oil, and moisture
