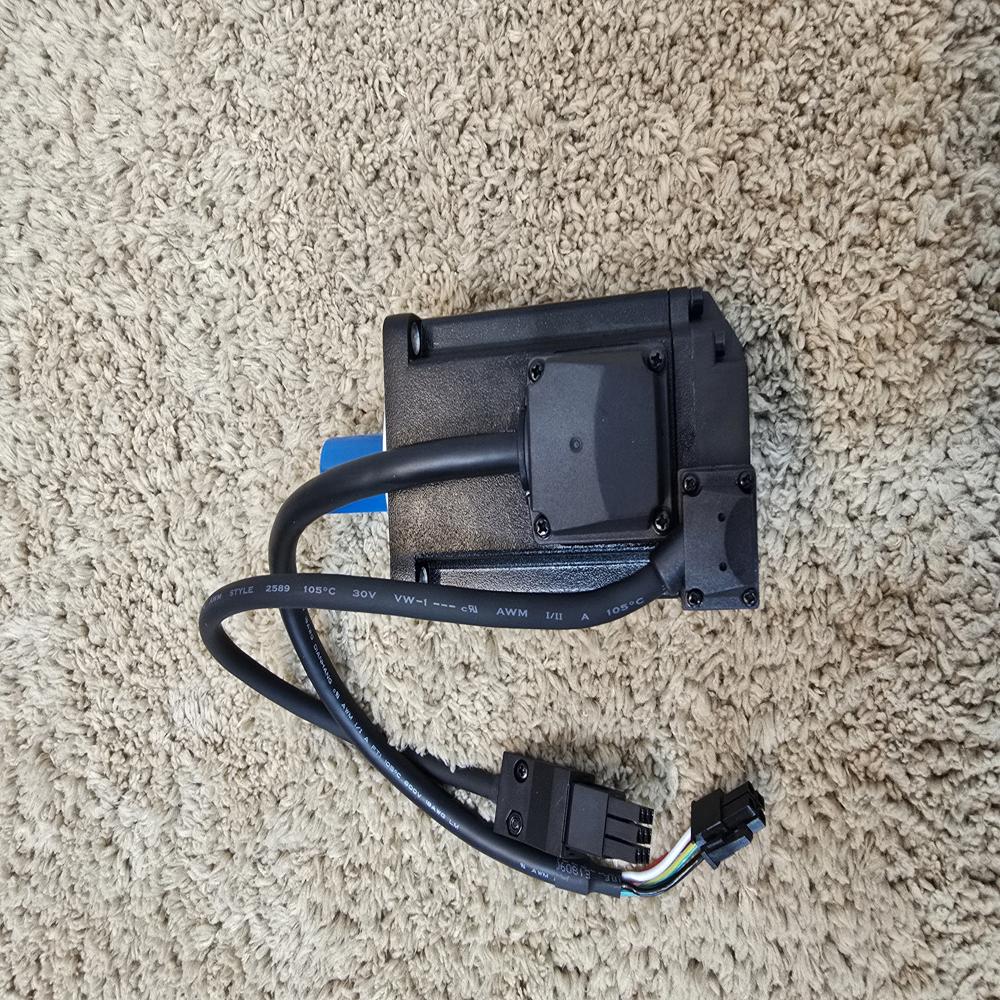

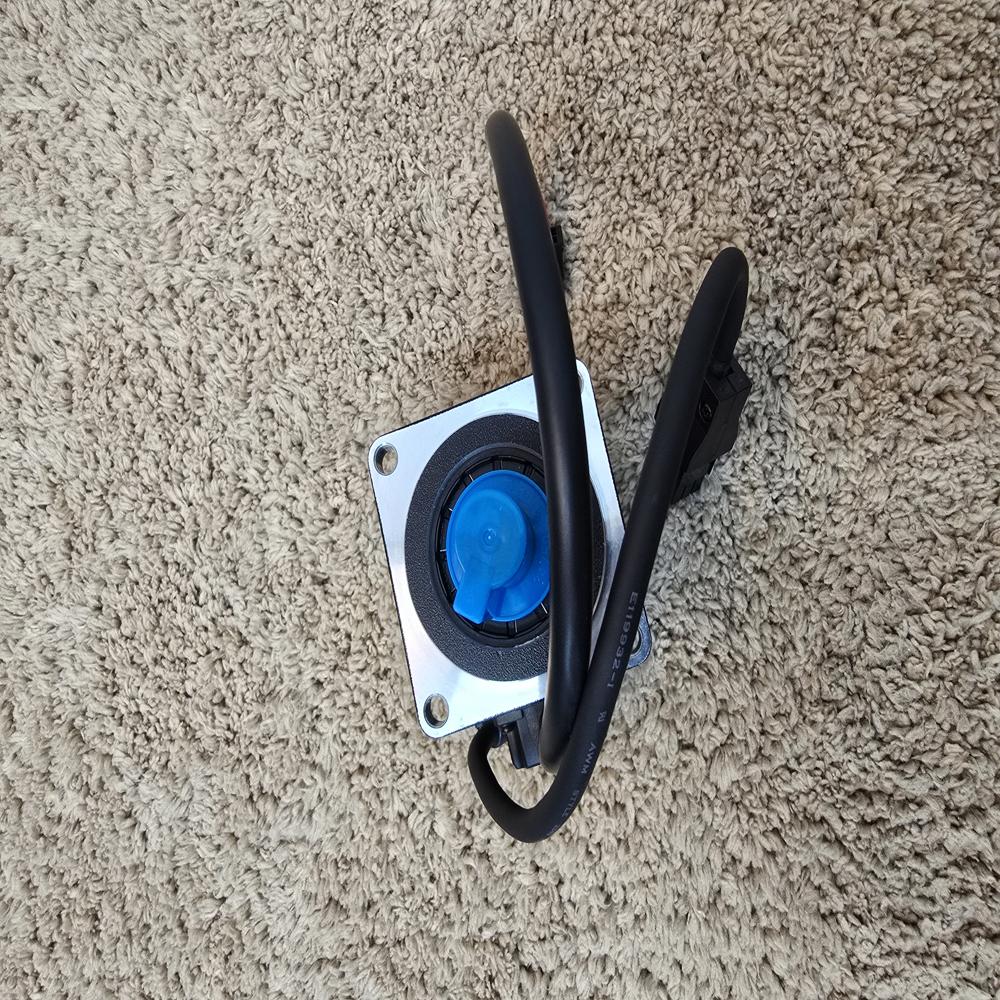

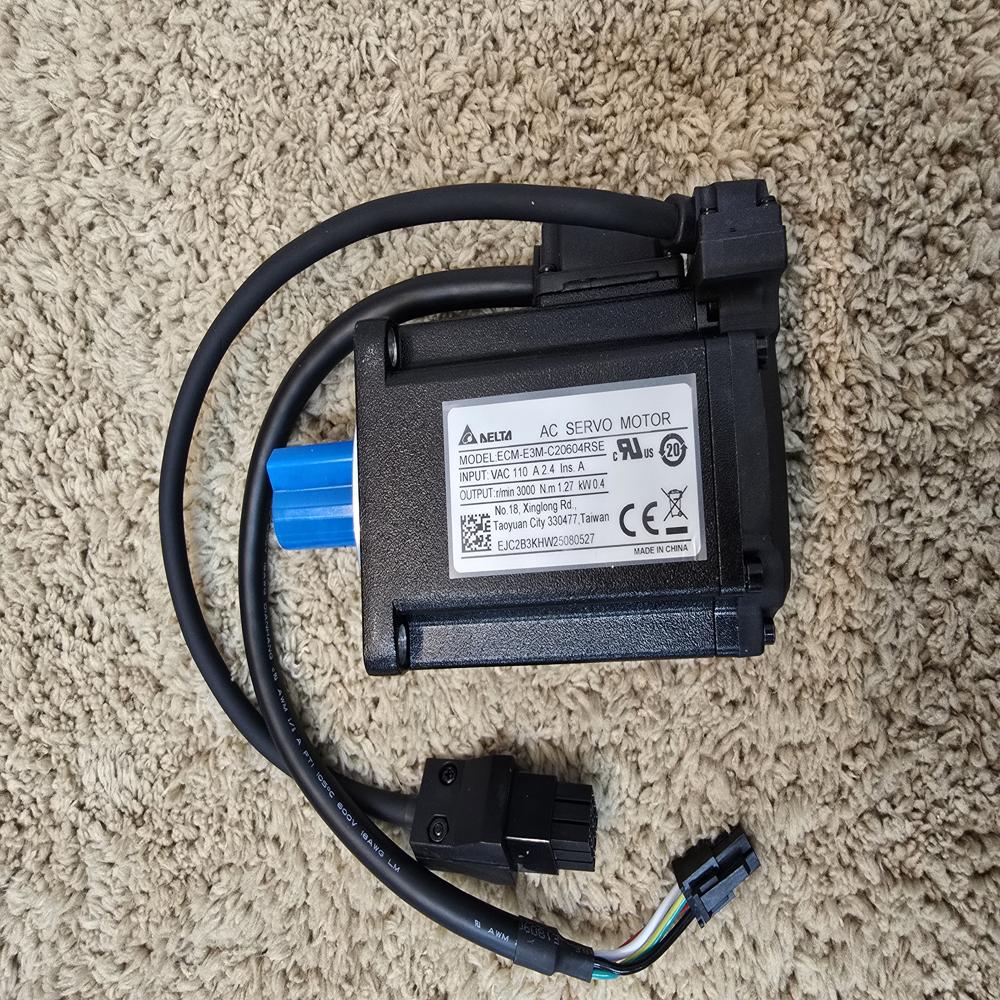

ECM-E3M-C20604RSE Delta Servo Motor 400M L , Torque Nm - 1.27 , RPM - 3000

Price 19800.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-C20604RSE Delta Servo Motor 400M L , Torque Nm - 1.27 , RPM - 3000 Specification

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
1.6 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECM-E3M-C20604RSE Delta Servo Motor 400M L , Torque Nm - 1.27 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-C20604RSE Delta Servo Motor 400M L , Torque Nm - 1.27 , RPM - 3000

The Delta ECM-E3M-C20604RSE is a 400W Medium Inertia AC Servo Motor from the ASDA-E3 series. It provides double the torque of the 200W model while maintaining the same 60mm frame size.

Core Specifications

Rated Power Output: 400W
Rated Torque: 1.27 N-m (Peak torque up to 3.81 N-m)
Rated Speed: 3000 RPM (Maximum speed 6000 RPM)
Inertia Type: Medium Inertia (ideal for stable control of larger mechanical loads)
Encoder: 24-bit high-resolution (16,777,216 pulses/rev)

Physical Dimensions (Inches)

The 400W model uses the same 60mm frame width as the 200W motor but is slightly longer to accommodate the larger internal stator.

Dimension	Millimeters (mm)	Inches (in)
Width (Frame)	60 mm	2.36 in
Height (Frame)	60 mm	2.36 in
Body Length (L)	124.5 mm	4.90 in
Shaft Length	30 mm	1.18 in
Shaft Diameter	14 mm	0.55 in

Weight

Net Weight: Approximately 1.6 kg (3.53 lbs).

Key Functions

Heavy Load Handling: With a rated torque of 1.27 N-m, this motor is designed for applications requiring significant "pushing" power, such as larger lead screws or heavier conveyor systems.
Enhanced Stability: The medium inertia rotor is specifically functional for machines where the load weight might change or where high-speed oscillations need to be dampened.
High IP Rating: Rated IP67, making it suitable for harsh industrial environments with dust or liquid exposure.

Compatibility

This motor must be paired with the ASD-E3-0421-L/M/E (400W) servo drive to function correctly.

Function

The primary function of the Delta ECM-E3M-C20604RSE is to serve as a high-precision, 400W AC servo motor for industrial automation, converting electrical drive signals into precise rotary motion. [1, 2]

Core Operations

As part of the ASDA-E3 series, it is designed for scenarios where stability and accuracy are critical: [1]

High-Resolution Feedback: It utilizes a 24-bit incremental encoder to provide ultra-precise position feedback (over 16.7 million pulses per revolution), ensuring micron-level accuracy and reducing vibration during operation.
Medium Inertia Stability: The "M" designation identifies it as a medium-inertia motor. This design functions as a mechanical buffer, making it more stable than low-inertia models when handling varying loads or mechanical systems with higher load-to-motor inertia ratios, such as belt-driven slides.
High-Bandwidth Response: When paired with an E3 series drive, it achieves a response bandwidth of 2.5 kHz, allowing the motor to react to command changes nearly 5 times faster than older generation motors, which significantly reduces machine settling times. [1, 2, 3, 4, 5]

Primary Industrial Uses

Transport and Transmission: Ideal for conveyor systems and material handling where constant speed and torque under changing loads are required.
Precision Positioning: Used in CNC machinery, automated feeders, and carved machines where exact stop points are vital for product quality.
Vibration Suppression: The motor and drive system can automatically search for and suppress mechanical resonances up to 5,000 Hz, ensuring smooth operation even in less rigid machine structures.
