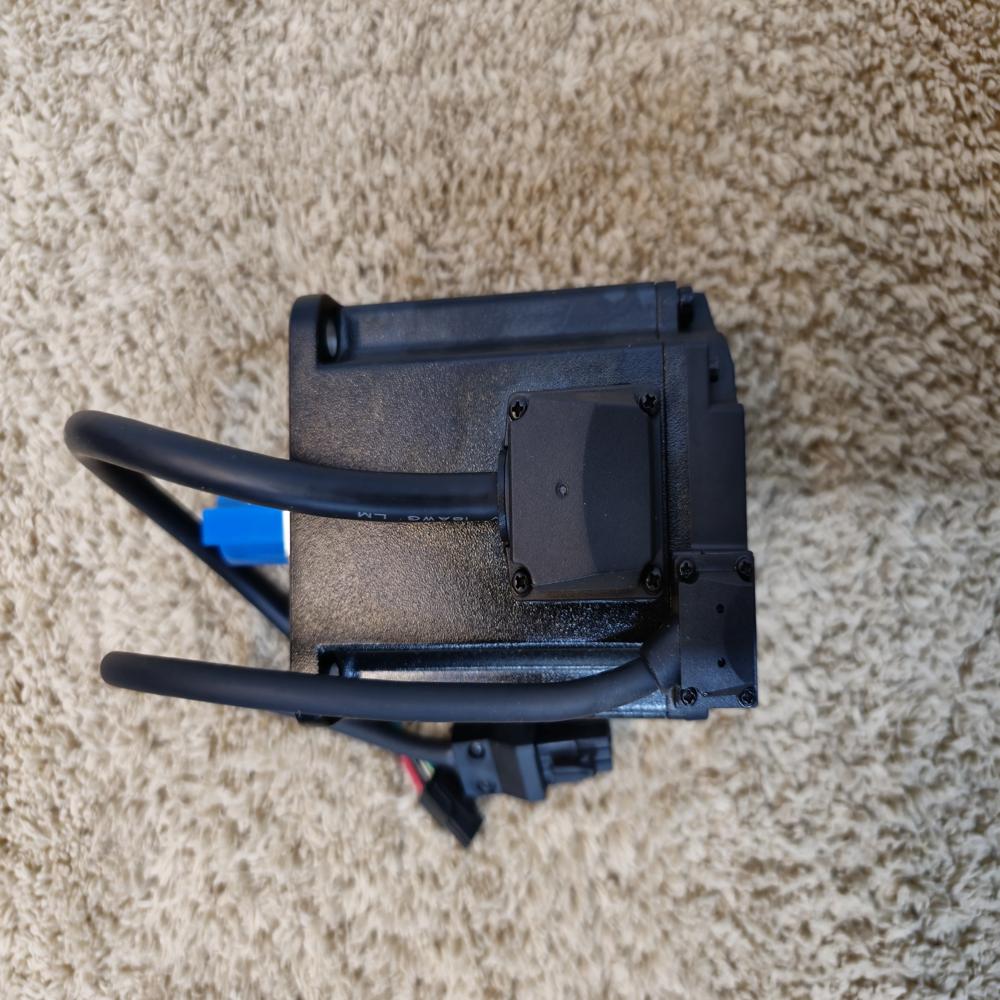

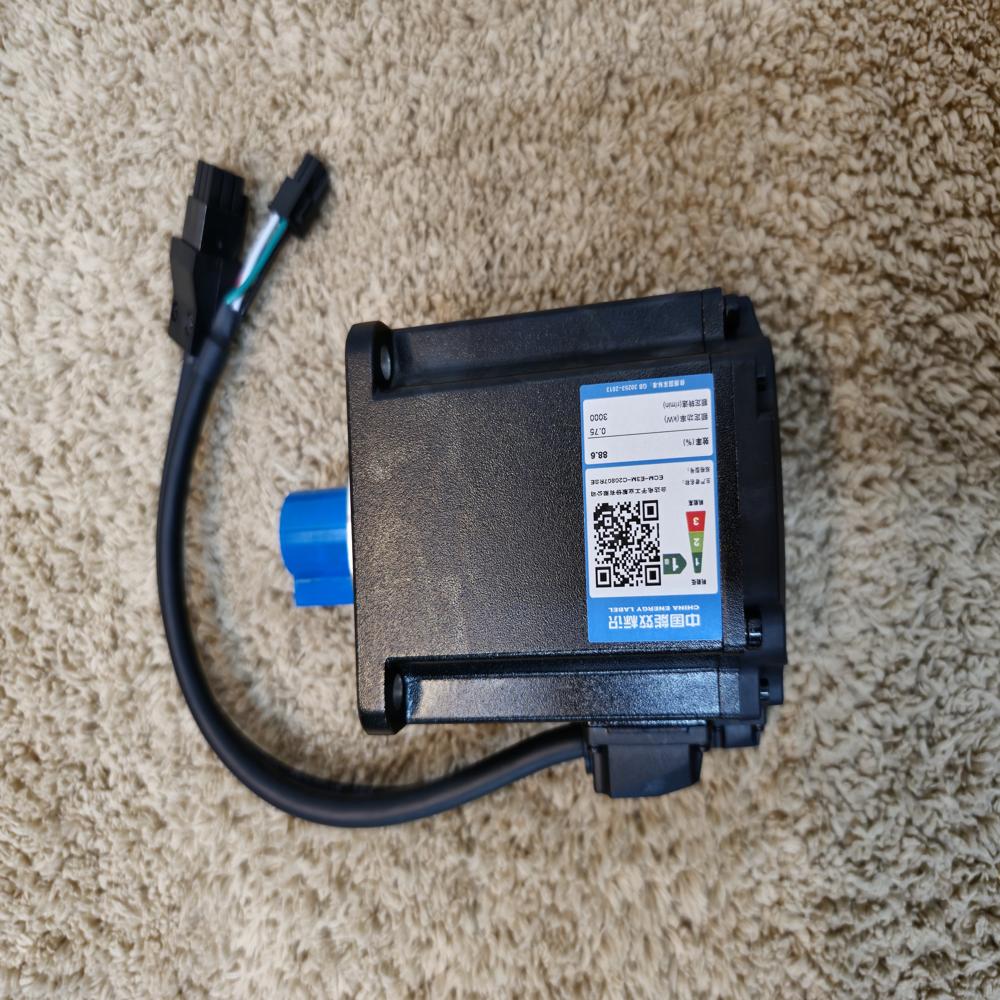

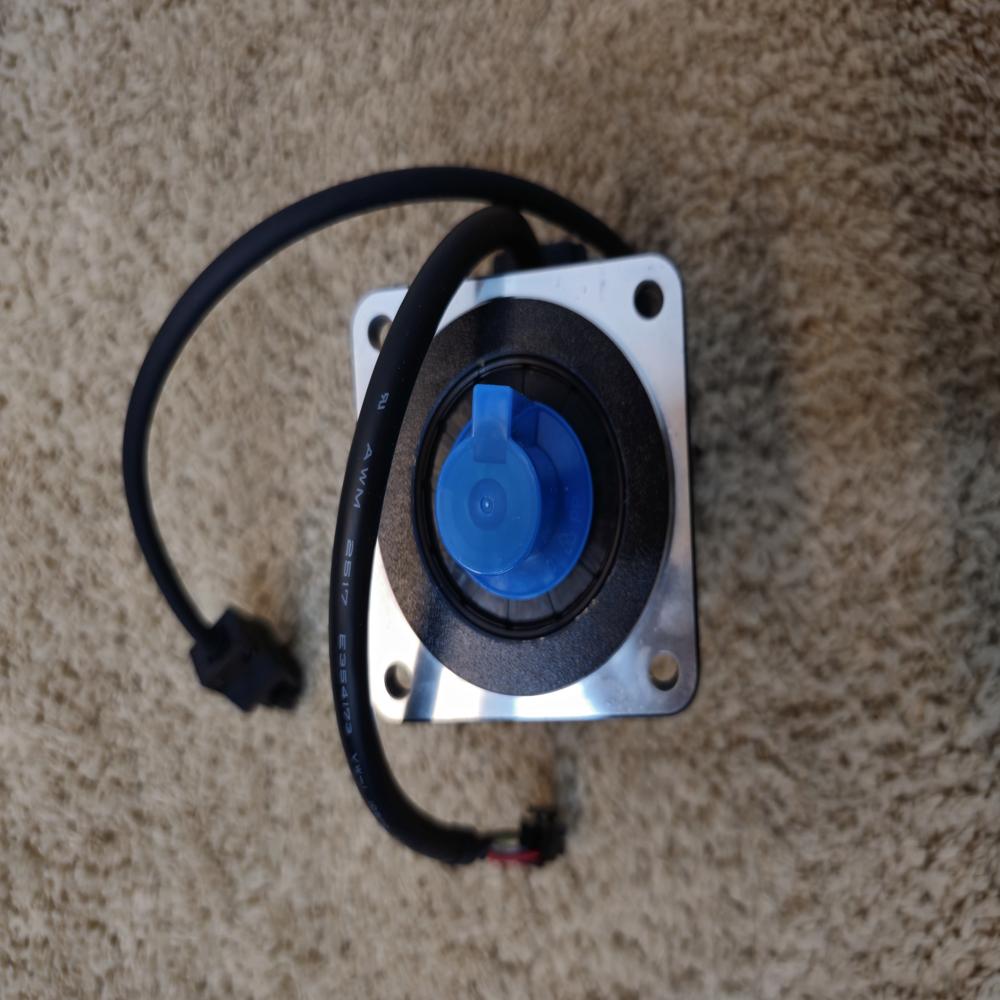

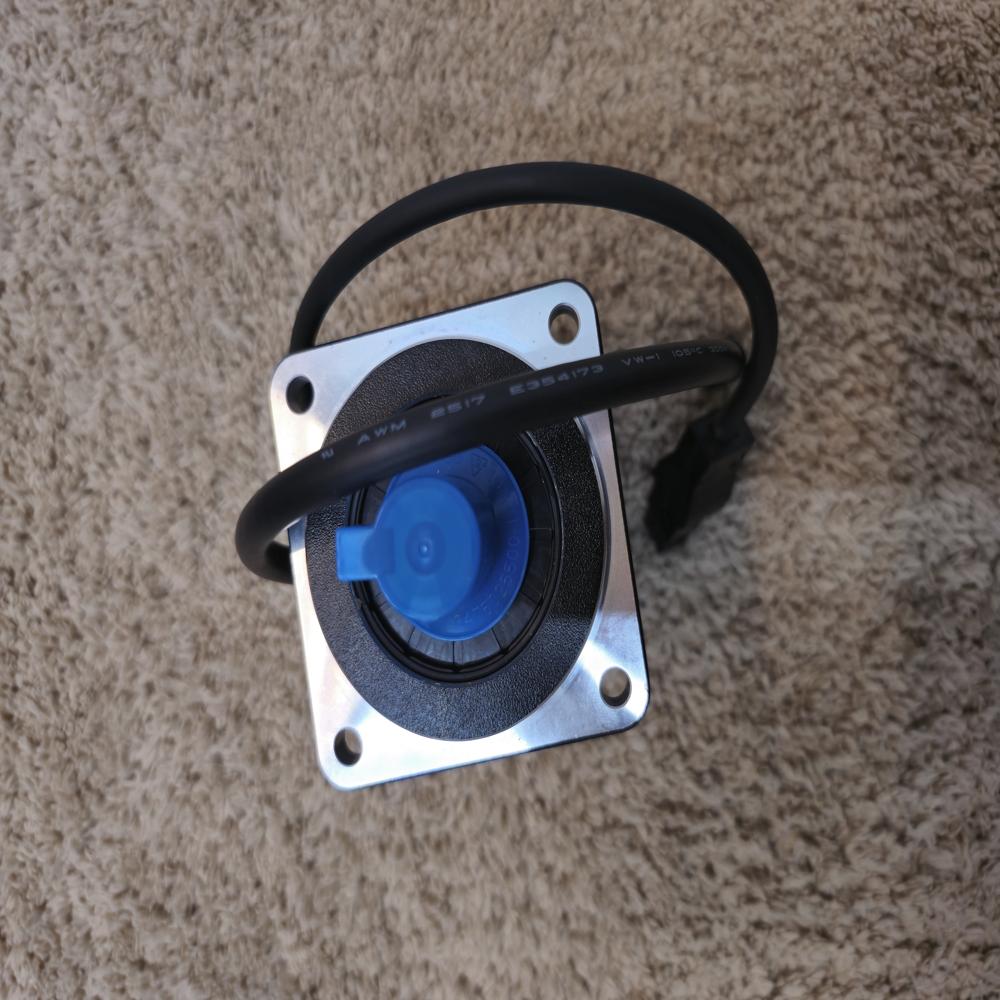

ECMA-JA1010RS Delta Servo Motor 1000W L , Torque Nm - 3.18 , RPM - 3000

Price 48000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Key Technical Notes

Frame Size: This motor features a standard 100 mm square frame.
Brake Status: The "RS" suffix confirms this unit is without an electromagnetic brake.
High Voltage: Part of the 400V VAC class, making it suitable for 3-phase industrial power systems.
Absolute Encoder: Equipped with a 17-bit absolute encoder (131,072 pulses/rev), allowing it to retain position data without a battery backup during power loss.
Protection: Rated IP65, providing high resistance to dust and water splashes. [1, 2, 3, 5]

Core Functions

Precision Absolute Positioning: Unlike standard motors, the "JA" series features a 17-bit absolute encoder. This allows the motor to "remember" its exact physical coordinates even if power is lost, eliminating the need for a "homing" sequence upon restart.
Stable Low-Speed Rotation: Specifically engineered for delicate processes, it maintains smooth and consistent rotation at very low speeds without the "jitter" common in less advanced motors.
Dynamic Response: Designed for high-speed operation, it offers a 1.0 kHz velocity response frequency and can accelerate from -3000 to 3000 RPM in as little as 7ms under no-load conditions.
Vibration & Resonance Suppression: Features built-in automatic filters to minimize mechanical resonance and low-frequency vibration at machine edges, which is especially useful for long-arm or crane-style movements. [1, 2, 3, 4, 5, 6]

Advanced Motion Features

When paired with an ASDA-A2 drive, it supports:

Electronic Cam (E-CAM): Built-in functionality with up to 720 points for smooth, synchronized motion in applications like rotary cutters and flying shears.
Full Closed-Loop Control: Can interface with external linear scales to compensate for mechanical backlash and ensure absolute accuracy at the machine's work edge. [1, 2, 3, 4]

Typical Applications

Robotic Arms: High-precision joint movement with absolute position feedback.
CNC Machinery: Accurate axis control for milling, boring, and high-speed drilling.
Packaging & Textiles: Synchronized motion for high-speed labeling, cutting, and tension control.

The physical specifications for the Delta ECMA-JA1010RS (1000W model without brake) in inches and pounds are as follows:

Dimensions & Weight
