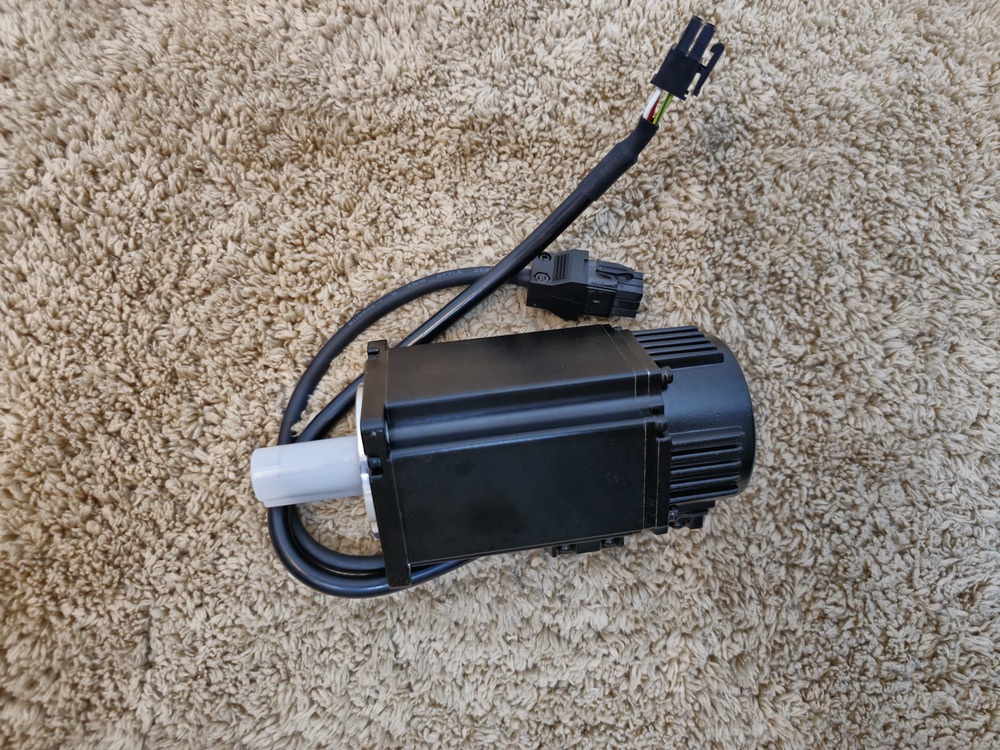

ECM-E3M-E21315SSE Delta Servo Motor + B 1500W M , Torque Nm - 7.16 , RPM - 2000

Name: ECM-E3M-E21315SSE Delta Servo Motor + B 1500W M , Torque Nm - 7.16 , RPM - 2000
Brand: Corbital Enterprise
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECM-E3M-E21315SSE Delta Servo Motor + B 1500W M , Torque Nm - 7.16 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
9.7 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECM-E3M-E21315SSE Delta Servo Motor + B 1500W M , Torque Nm - 7.16 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECM-E3M-E21315SSE Delta Servo Motor + B 1500W M , Torque Nm - 7.16 , RPM - 2000

The ECM-E3M-E21315SSE is the 1500W (1.5kW) Medium Inertia version of the Delta E3 series, featuring a built-in electromagnetic holding brake ("S" suffix). It is designed for heavy-duty lifting and high-torque automation.

1. Physical Dimensions (Inches)

This motor uses the heavy-duty 130mm frame. The brake mechanism adds significant length compared to the standard model.

Dimension	Metric (mm)	Imperial (Inches)
Width (Frame)	130 mm	5.12 in
Height (Frame)	130 mm	5.12 in
Body Length (L)	202 mm	7.95 in
Shaft Length (LR)	55 mm	2.17 in
Shaft Diameter (S)	22 mm	0.87 in

2. Weight

Net Weight: Approximately 9.7 kg (21.38 lbs).
Note: This is nearly 5 lbs heavier than the non-brake version due to the large heavy-duty brake assembly.

3. Key Functions

Heavy Holding Power: The internal brake provides 12.0 N-m of holding torque. This is intentionally higher than the motors rated torque (7.16 N-m) to ensure a heavy vertical axis stays locked in place even during a complete power failure.
High-Torque Performance: It delivers a constant 7.16 N-m of force, specifically optimized for a rated speed of 2000 RPM, making it a "muscle" motor for heavy machinery.
Vibration Dampening: The medium-inertia rotor acts as a stabilizer, making it much easier to tune when the motor is moving heavy mechanical loads like large ball screws or industrial conveyors.

4. Technical Specifications
