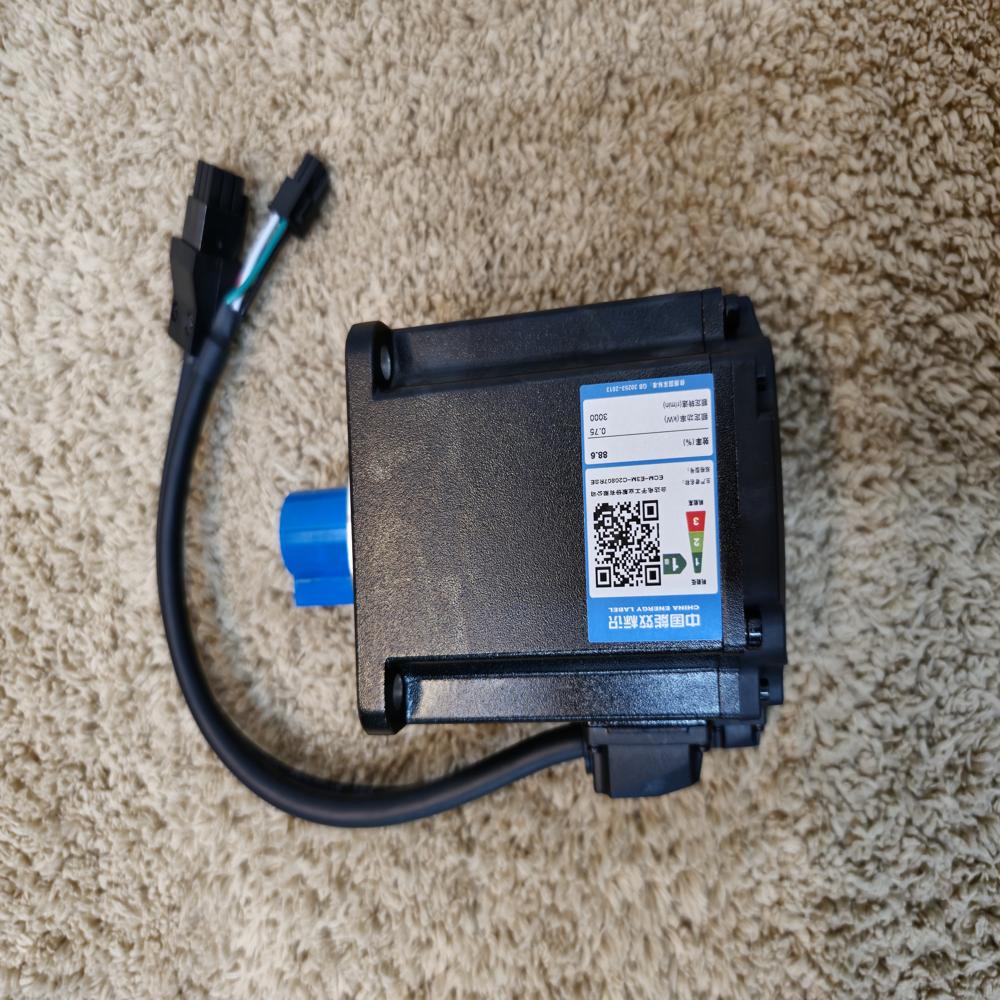

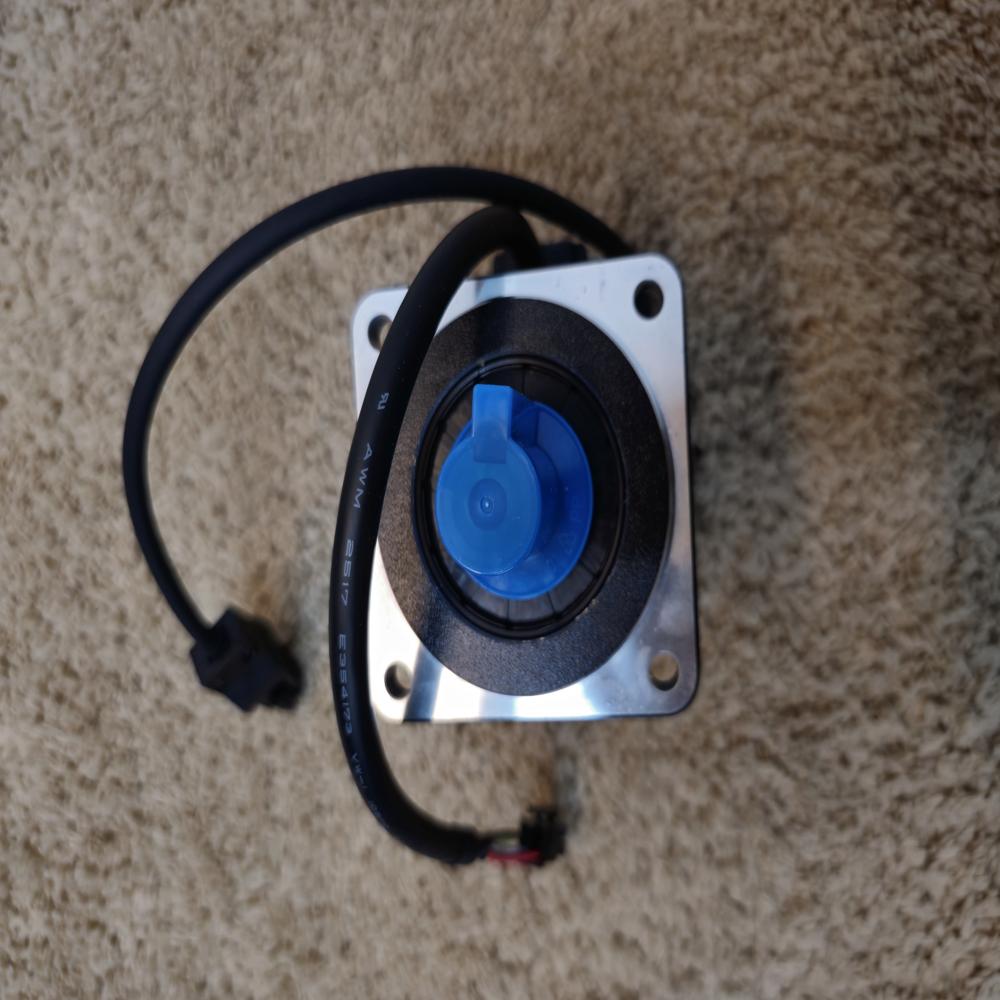

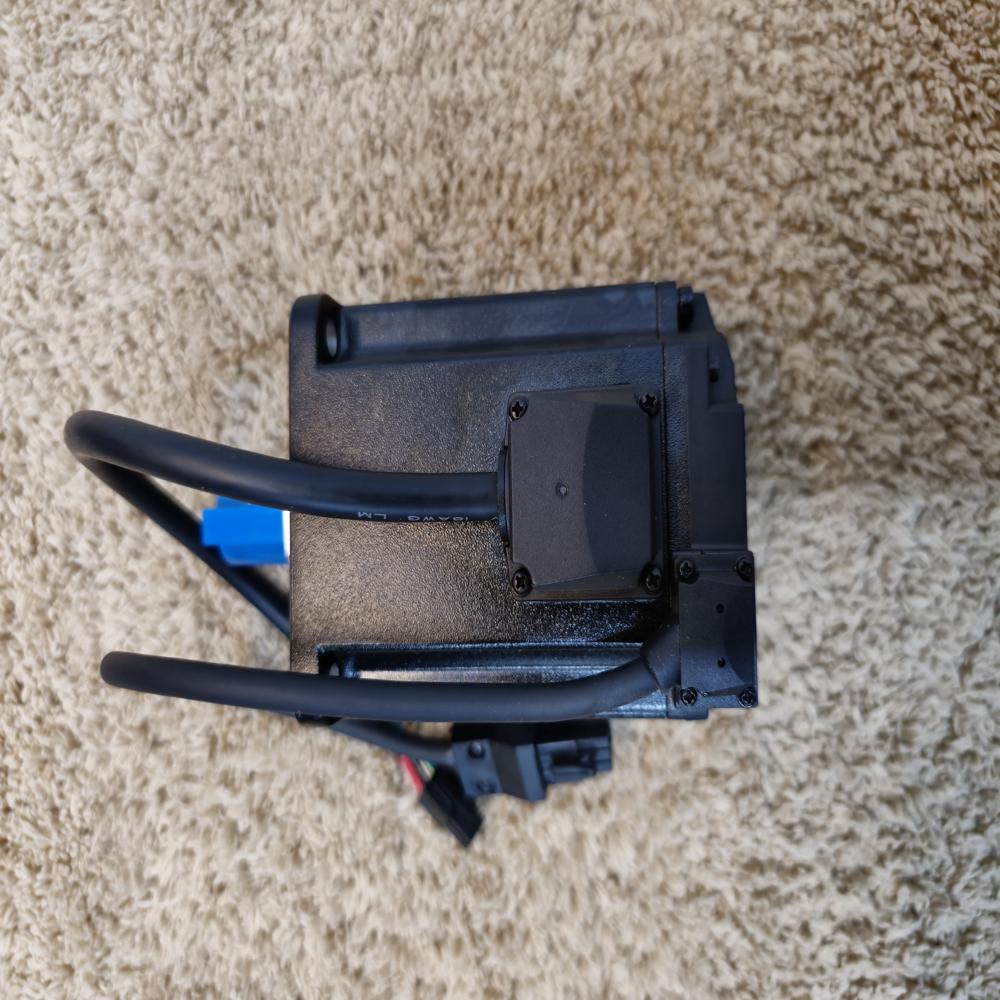

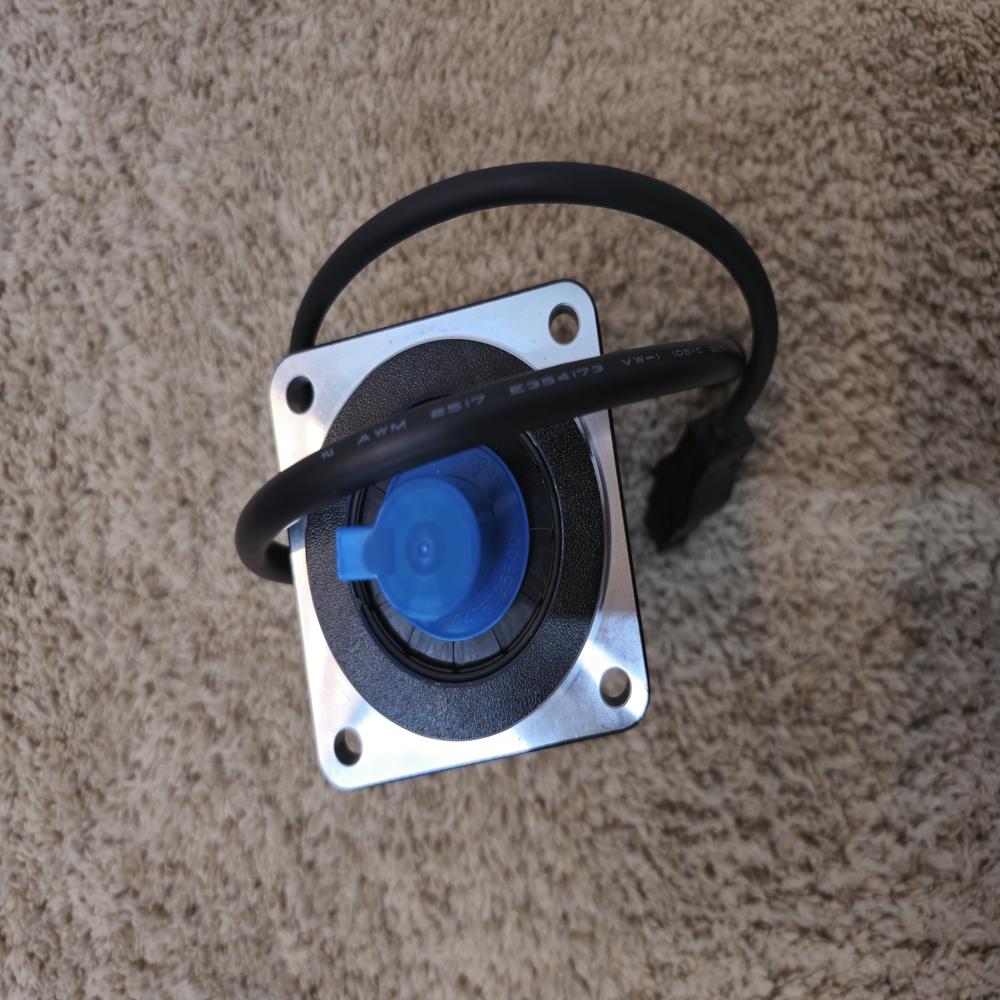

ECMA-C10604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

Name: ECMA-C10604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000
Brand: Corbital Enterprise
Price: 22600.0 INR
Availability: InStock

Price 22600.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-C10604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Color
Black and Silver

Usage & Applications
Industrial Machinerry

Weight
1.6 Kilograms (kg)

Warranty
1 Year

Phase
Three Phase

Material
Aluminum

ECMA-C10604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About ECMA-C10604RS Delta Servo Motor 400W L , Torque Nm - 1.27 , RPM - 3000

The ECMA-C10604RS is a 400W AC Servo Motor from Deltas high-performance ASDA-A2 series. It is a low-inertia motor designed for high-speed industrial applications requiring rapid acceleration and high precision. [1, 2, 3, 4, 5]

Dimensions & Weight

This motor has a square frame, making its height and width identical. [1]

Dimension [1, 2, 3]	Inches	Millimeters
Width	2.36"	60 mm
Height	2.36"	60 mm
Length (Body only)	4.24"	107.7 mm
Total Length (with Shaft)	5.42"	137.7 mm
Shaft Diameter	0.55"	14 mm
Net Weight	3.53 lbs	1.6 kg

Note: Total length and weight can vary slightly by vendor, but 1.6 kg is the standard net weight for this non-brake model. [1, 2]

Function & Key Features

The ECMA-C10604RS serves as a precision actuator in closed-loop systems. [1, 2]

High-Resolution Feedback: Equipped with a 20-bit incremental encoder (1,280,000 pulses per revolution) for superior positioning accuracy and low-speed stability.
Dynamic Response: Optimized for a rated speed of 3,000 RPM (max 5,000 RPM), delivering a rated torque of 1.27 Nm with a peak torque of up to 3.82 Nm for high-load bursts.
Protection & Build: Rated IP65 (when using matching connectors) and features a built-in oil seal to protect against dust and liquid ingress in machine environments.
