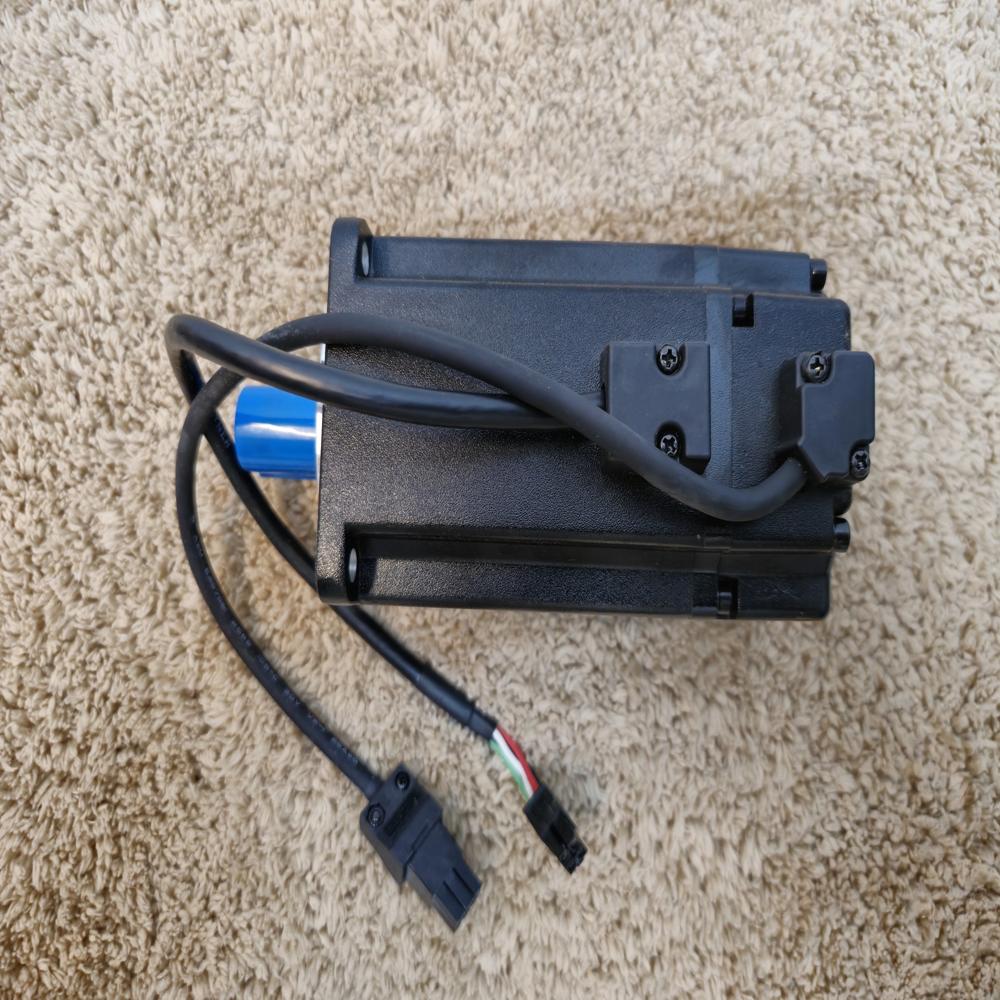

ECMA-K11310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

Name: ECMA-K11310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000
Brand: Corbital Enterprise
Price: 45200.0 INR
Availability: InStock

Price 45200.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

ECMA-K11310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Specification

Sealed Type
Packing seal

Product Type
Servo Motor

Usage & Applications
Industrial Machinerry

Color
Black and Silver

Weight
7 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Aluminum

ECMA-K11310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24

About ECMA-K11310RS Delta Servo Motor 1000W M , Torque Nm - 4.77 , RPM - 2000

The Delta ECMA-K11310RS is a high-performance 1000W AC servo motor from the ASDA-A2 series, specifically designed for 400V 3-phase industrial environments requiring medium inertia for load stability. [1, 2, 3, 4]

The Delta ECMA-K11310RS is a 1000W medium-inertia motor designed for high-stability applications. It functions as a precision actuator that balances torque and control, making it ideal for systems where the load might fluctuate or cause mechanical vibration.

Core Functions

High-Stability Motion (Medium Inertia): Unlike low-inertia motors that can "jitter" under heavy loads, this motors Medium Inertia design provides a built-in mechanical dampening effect. This ensures smooth movement even when the load is heavy or unbalanced.
Ultra-Precise Positioning: Equipped with a 20-bit incremental encoder, it provides 1,280,000 pulses per revolution. This allows for extreme accuracy in positioning and stable rotation even at speeds as low as 1 RPM.
Constant Torque Delivery: It delivers a steady 4.77 Nm of torque (peaking at 14.32 Nm). This is significantly higher torque than a standard 1kW low-inertia motor, making it better for "pushing" or "lifting" tasks at 2000 RPM.
Advanced Suppression: When paired with its drive, it utilizes Automatic Vibration Suppression to cancel out low-frequency mechanical shaking and Auto-Notch Filters to eliminate high-frequency resonance.

Typical Applications

CNC Lathes & Milling: Used for axis control where cutting forces require high torque and stability.
Printing & Textile Machinery: Ideal for maintaining constant tension in winding/unwinding processes.
Automated Assembly: Perfect for pick-and-place robots that handle varying weights.

Dimensions & Weight

Attribute [, 2, 4, 5]	Measurement (Inches)	Measurement (Metric)
Total Length	6.57 in	167 mm
Height (Frame)	5.12 in	130 mm
Width (Frame)	5.12 in	130 mm
Shaft Diameter	0.866 in	22 mm
Net Weight	15.43 lbs	7 kg

Key Specifications

Power & Torque: 1000W output with a rated torque of 4.77 Nm and peak torque of 14.32 Nm.
Inertia Class: Medium Inertia, offering better control for loads with mechanical resonance compared to low-inertia models.
Encoder: 20-bit incremental encoder providing 1,280,000 pulses/rev for extremely precise positioning.
Shaft Features: Includes an oil seal and keyway with a screw hole for secure mechanical integration.
Brake: This specific "RS" model does not include an electromagnetic brake. [1, 2, 3, 4]

Function

The ECMA-K11310RS functions as a precise actuator for complex motions in CNC machines, robotic arms, and packaging equipment. It supports advanced motion profiles such as Electronic Cam (E-CAM) and features built-in vibration suppression to ensure smooth operation at both high and low speeds.
