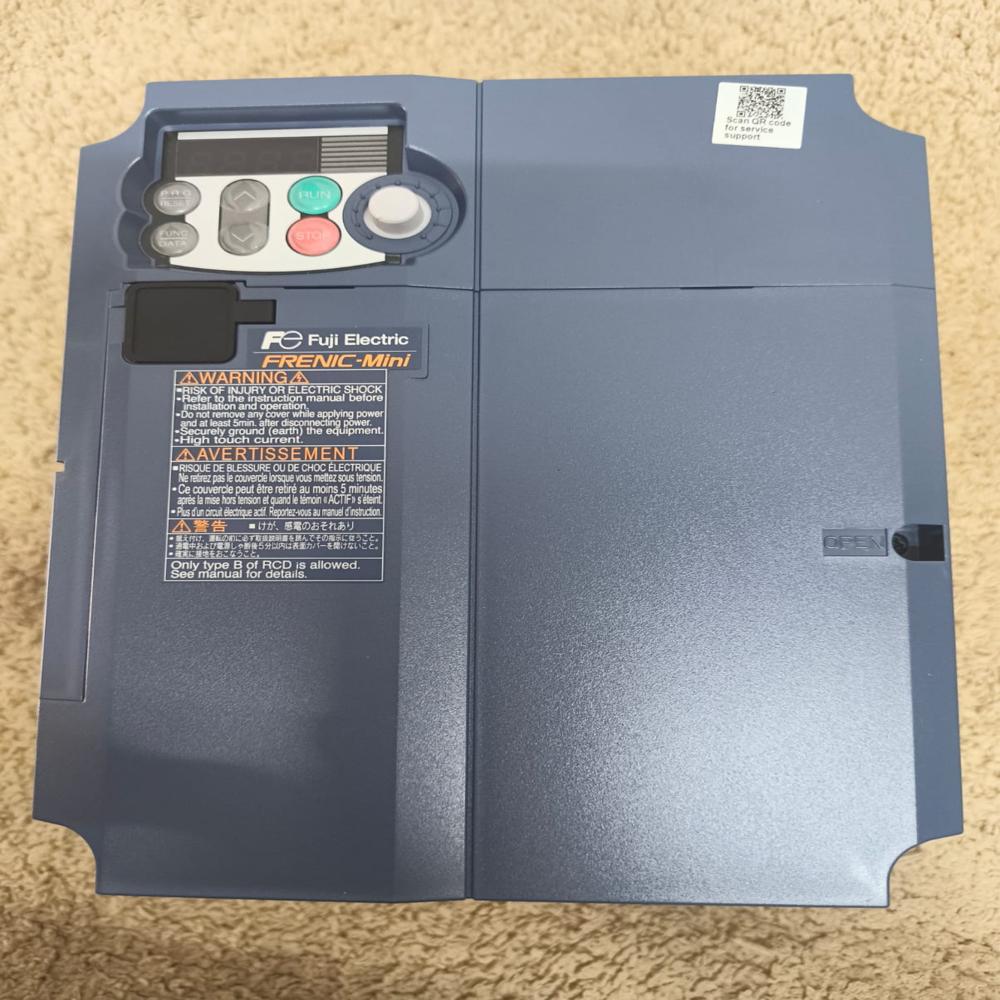

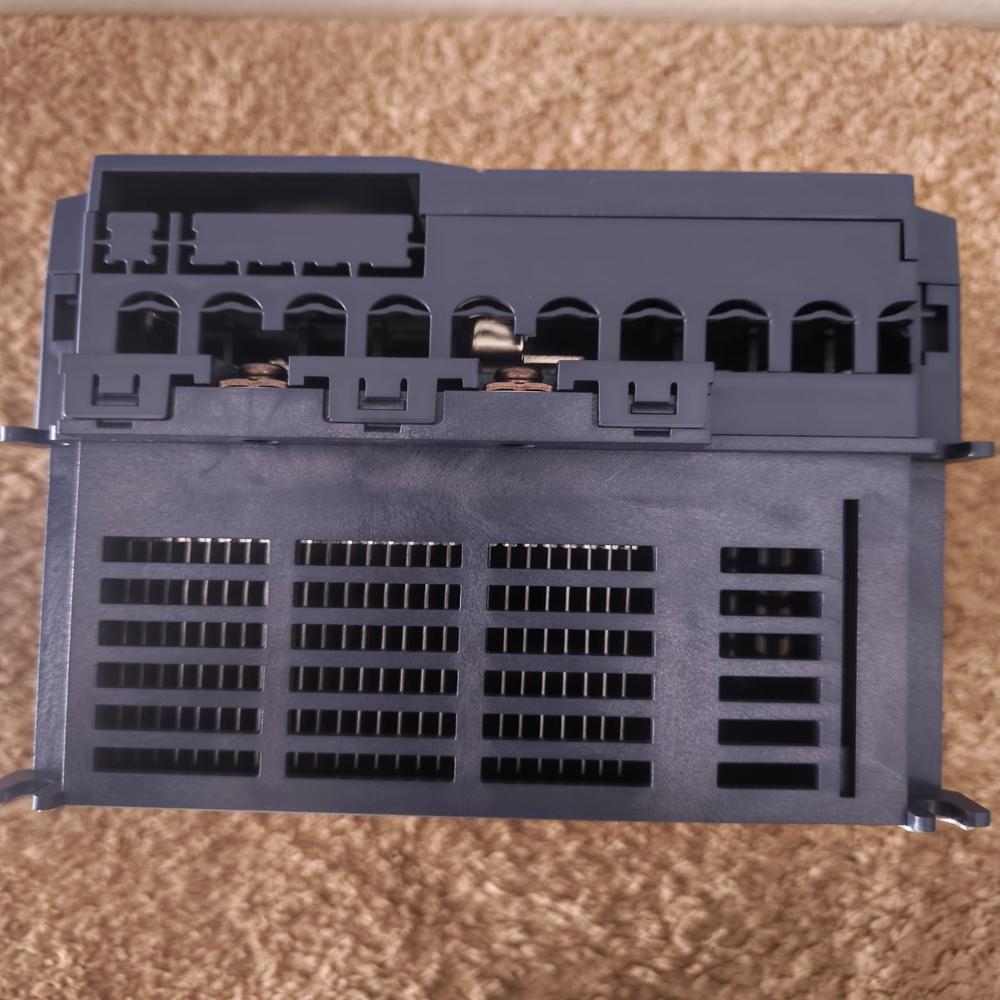

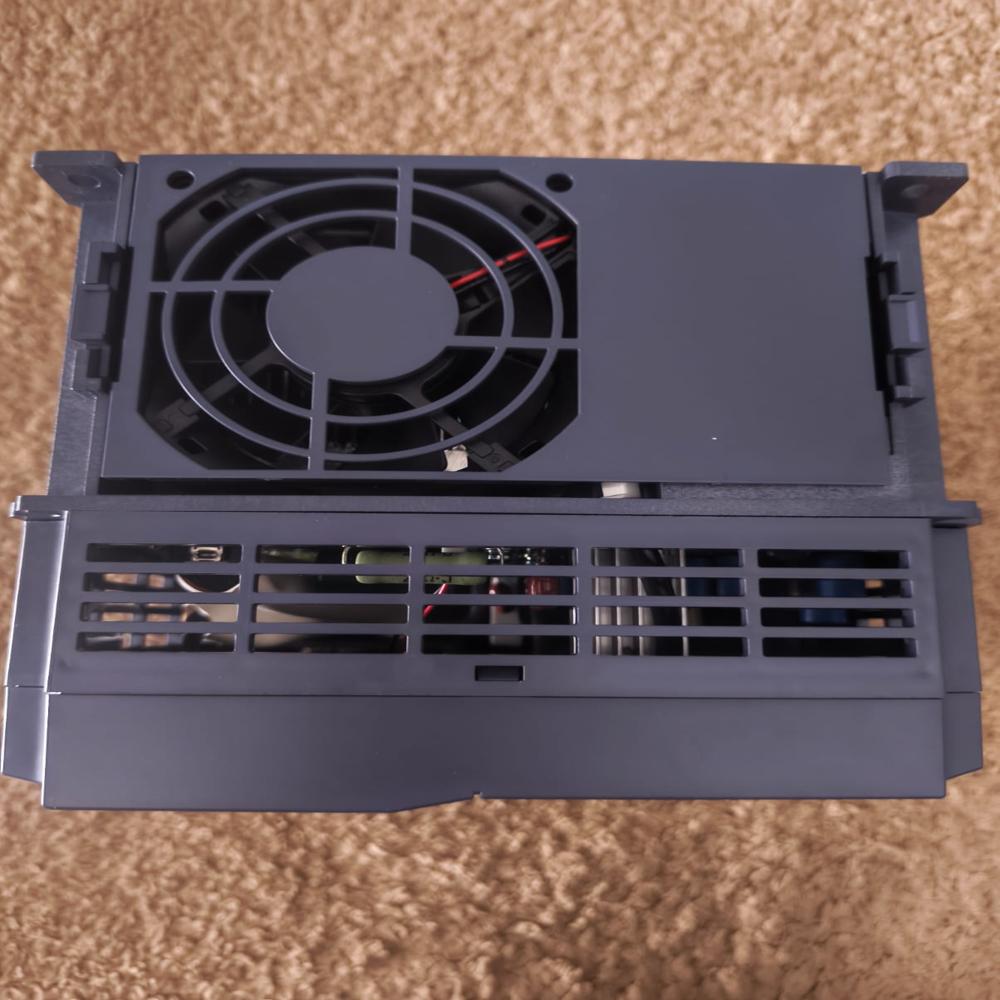

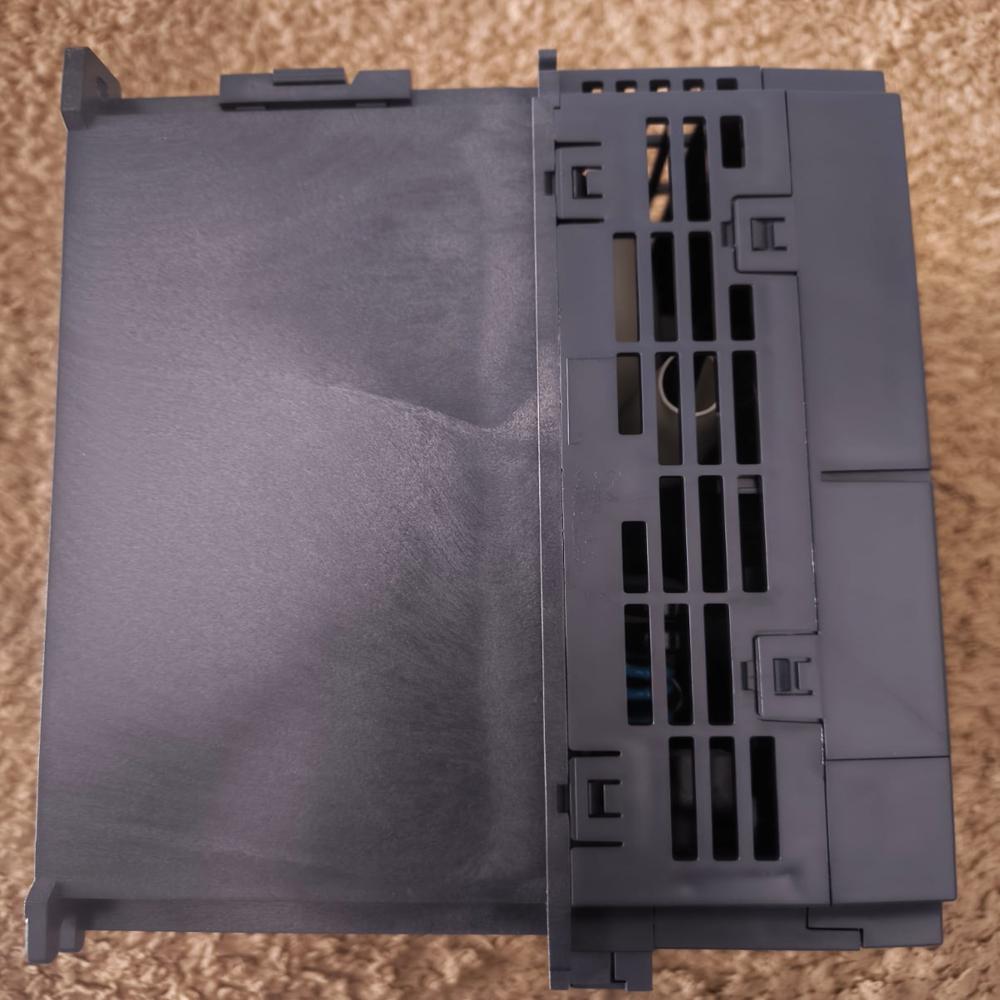

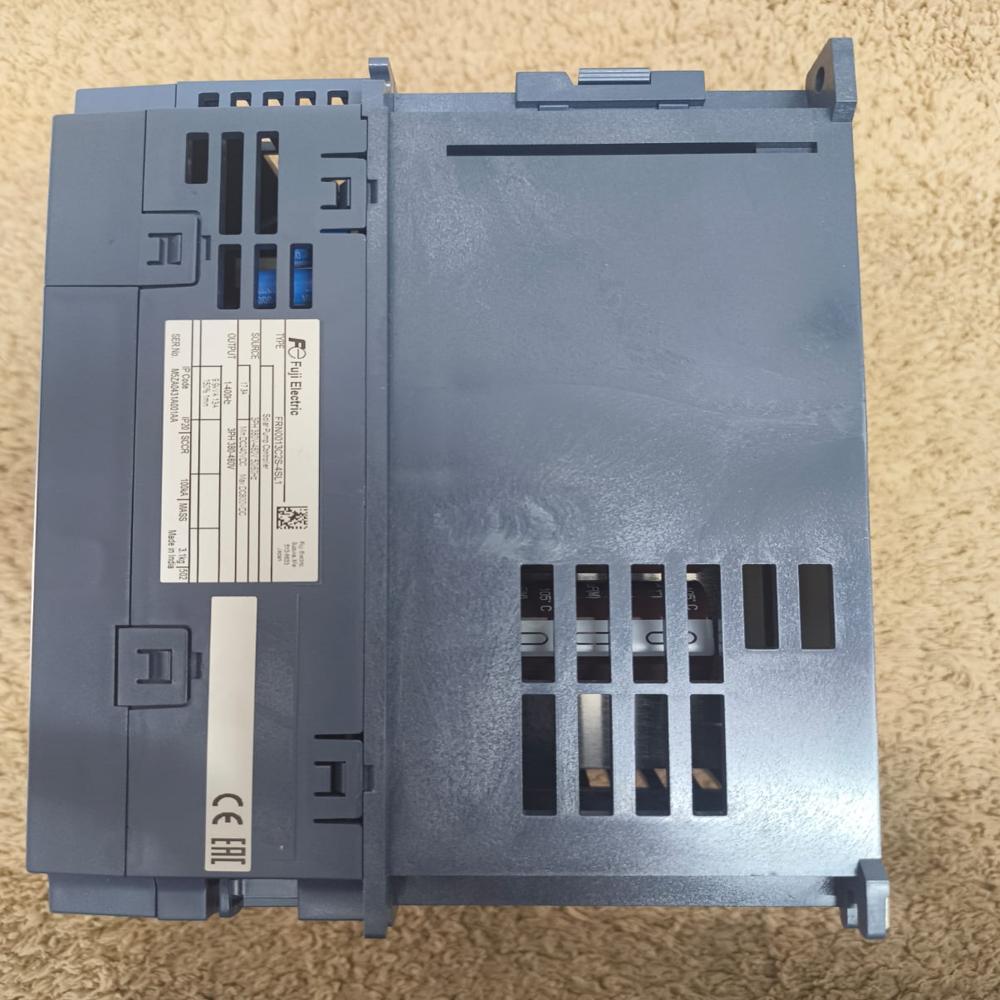

FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V

Name: FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V
Brand: Corbital Enterprise
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V Specification

Humidity %
5% to 95%

Mounting Type
Panel mounting

IP Rating
20

Product Type
VFD

Power Rating
380 480

Application
Industrial Machinery

Color
Blue

Rated Voltage
380 480 Volt (V)

Weight
800 Grams (g)

Usage & Applications
Industrial Machinery

Warranty
1 Year

Phase
3 Phase

Input Voltage
380 480 Volt (V)

Rated Current
380 480 Volt (v)

Material
Plastic

FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V

FVR0.4AS1S-4E - Fuji Micro 0.4kw 0.5hp 440V

The

Fuji Electric FVR0.4AS1S-4E

is a 3-phase Variable Frequency Drive (VFD) from the FVR-Micro series, specifically designed for small-capacity, general-purpose industrial applications like pumps, fans, and conveyor systems.

anufacturer:	Fuji Electric
Series:	FVR-Micro
Model:	FVR0.4AS1S-4E
Application:	pumps / fans / general purpose
Capacity, kW:	0.4
Current, :	1.5
Main power supply, V:	400
Phase:	3
Output frequency, Hz:	0,1-400
Enclosure:	IP20
Overload capacity, % per 1 min.:	150
EMC filter:	-
Braking unit:	+
Analog input:	2
Digital input:	6
Sensorless vector control:	+
Operation temperature, :	-10.....+50
Dimensions (W x H x D), mm:	108x128x139
Weight, kg:	0,8

Core Features

Performance: High starting torque of 150% or more at low speeds (5Hz), making it suitable for starting heavy loads.
Control Methods: Includes V/F control and sensorless vector control for accurate motor performance.
Energy Efficiency: Designed with energy-saving algorithms that minimize motor losses.
I/O and Communication: Equipped with an RS-485 port (Modbus RTU) as standard, along with 2 analog and 6 digital inputs.
Built-in Protections: Features include overvoltage, overheating, and short-circuit protection.

The

Fuji Electric FVR0.4AS1S-4E

is a Variable Frequency Drive (VFD) designed to control the speed and torque of three-phase induction motors. It is commonly used in small-scale industrial applications like pumps, fans, and conveyor systems.

Primary Functions

Variable Speed Control: Regulates motor speed by adjusting the output frequency from 0.1 to 400 Hz.
High Starting Torque: Provides over 150% torque at low speeds (5Hz), ensuring stable operation even for heavy-start loads.
PID Control: Built-in PID functionality allows for automated control of temperature, pressure, and flow rates.
Energy Efficiency: Uses advanced control algorithms to minimize motor losses and optimize power consumption.

Operational Features

Multi-Step Speed: Supports up to 16 pre-set speed stages using digital inputs.
Flexible Frequency Setting: Can be adjusted via the built-in keypad potentiometer, analog inputs (0-10V or 4-20mA), or RS-485 communication.
Jog Operation: Allows for short, manual motor bursts to assist with machine positioning or testing.
Auto-Restart: Includes a function to restart the motor automatically after an instantaneous power failure.

Protection Functions

The drive monitors performance to prevent damage through several built-in safety features:

Overcurrent & Short-Circuit: Stops the inverter if it detects a spike in current or a short on the output side.
Overvoltage & Undervoltage: Protects the internal DC bus from voltage fluctuations.
Electronic Thermal Relay: Provides overload protection for the motor without needing external relays.
Stalling Prevention: Adjusts output to prevent the motor from stalling during sudden load changes.
