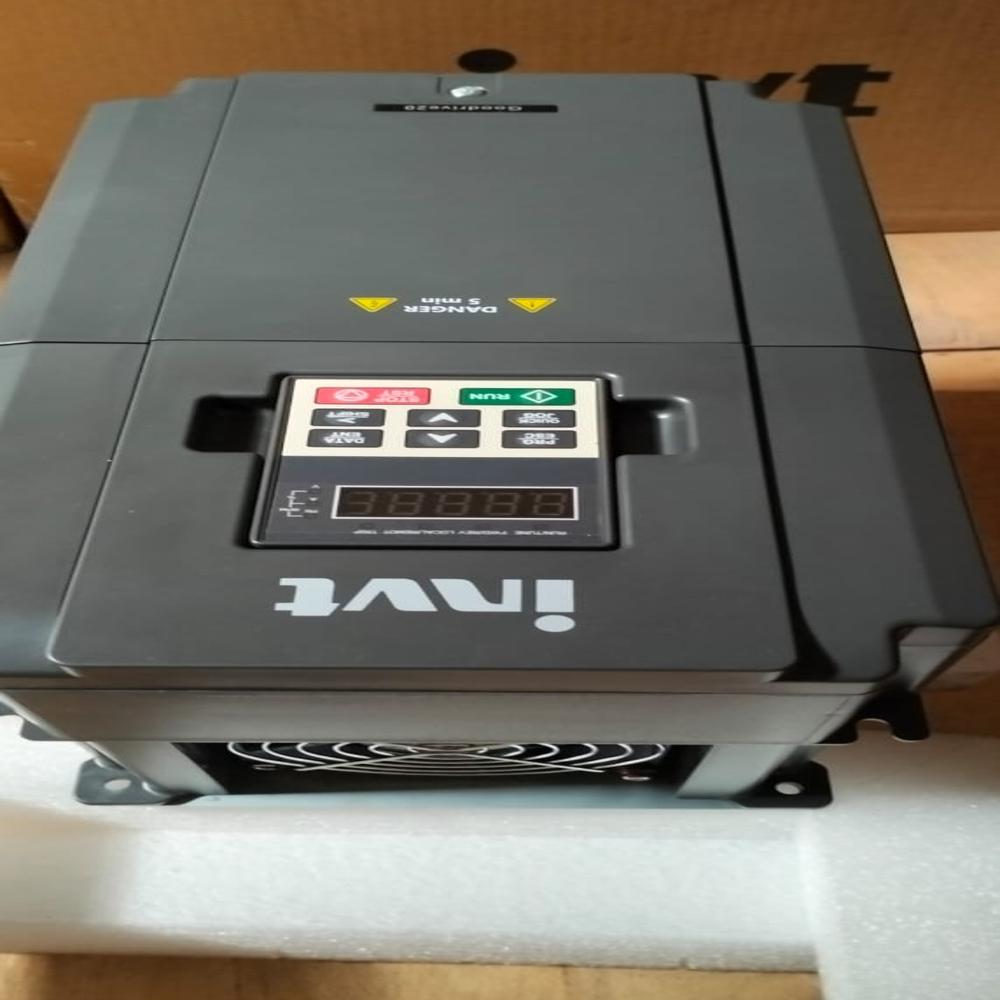

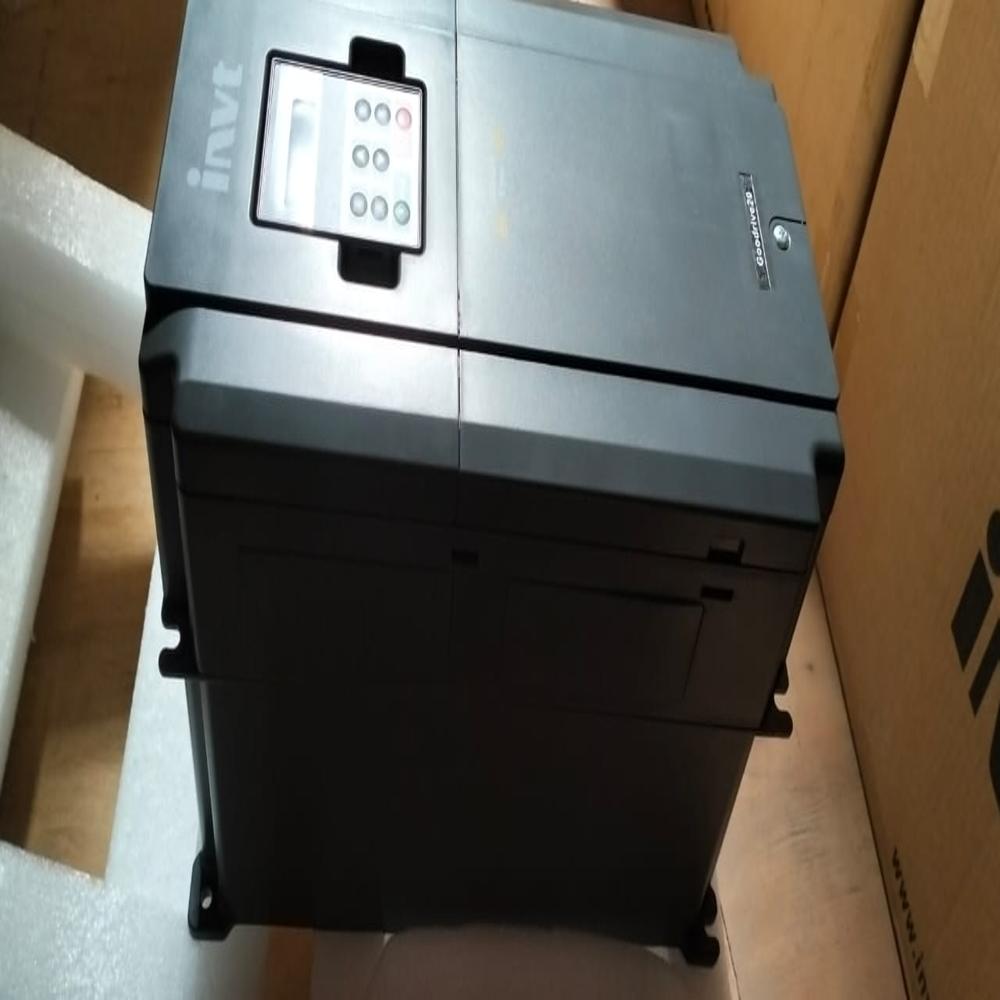

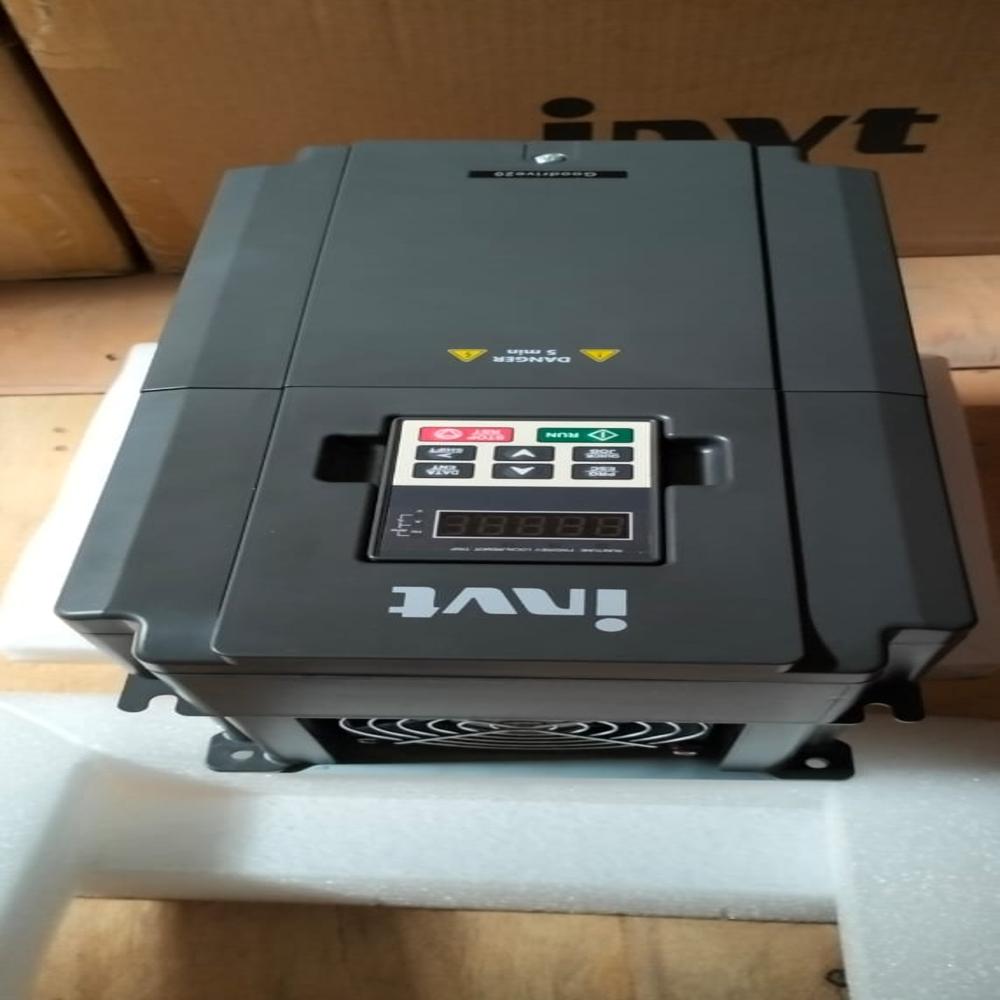

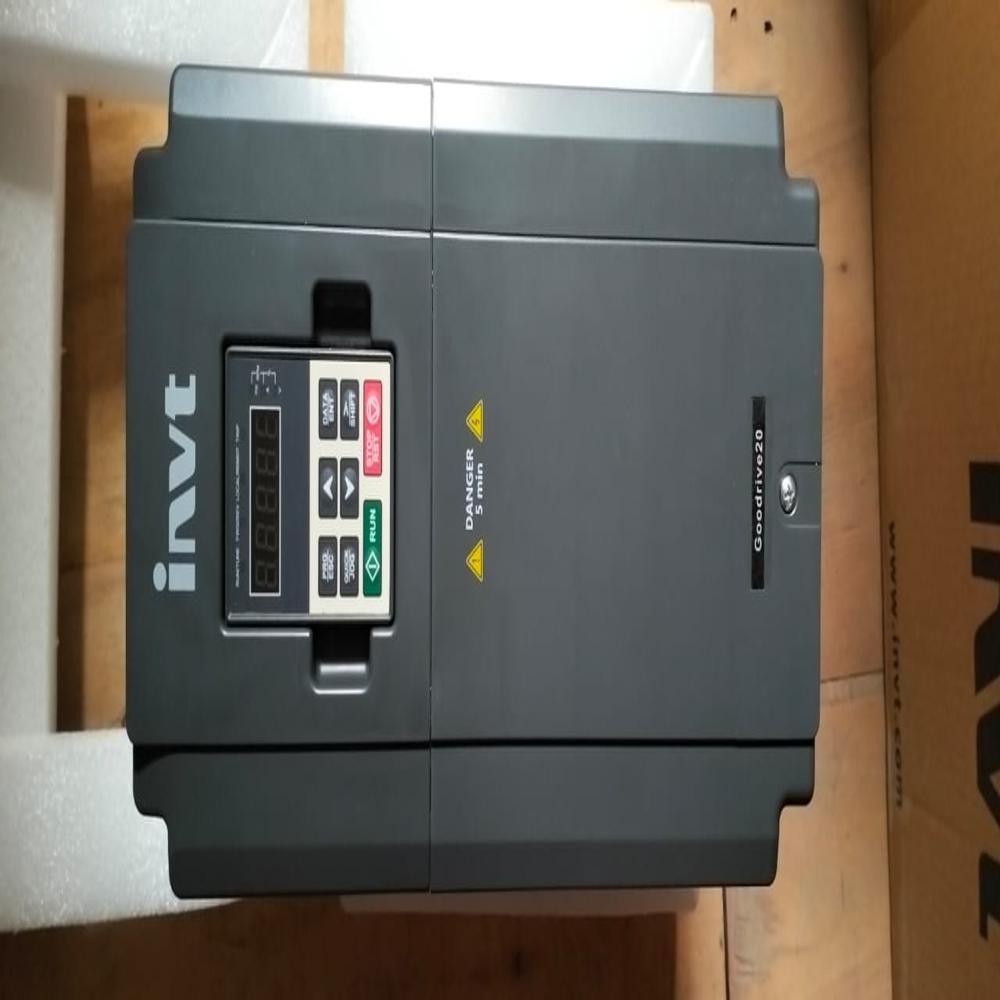

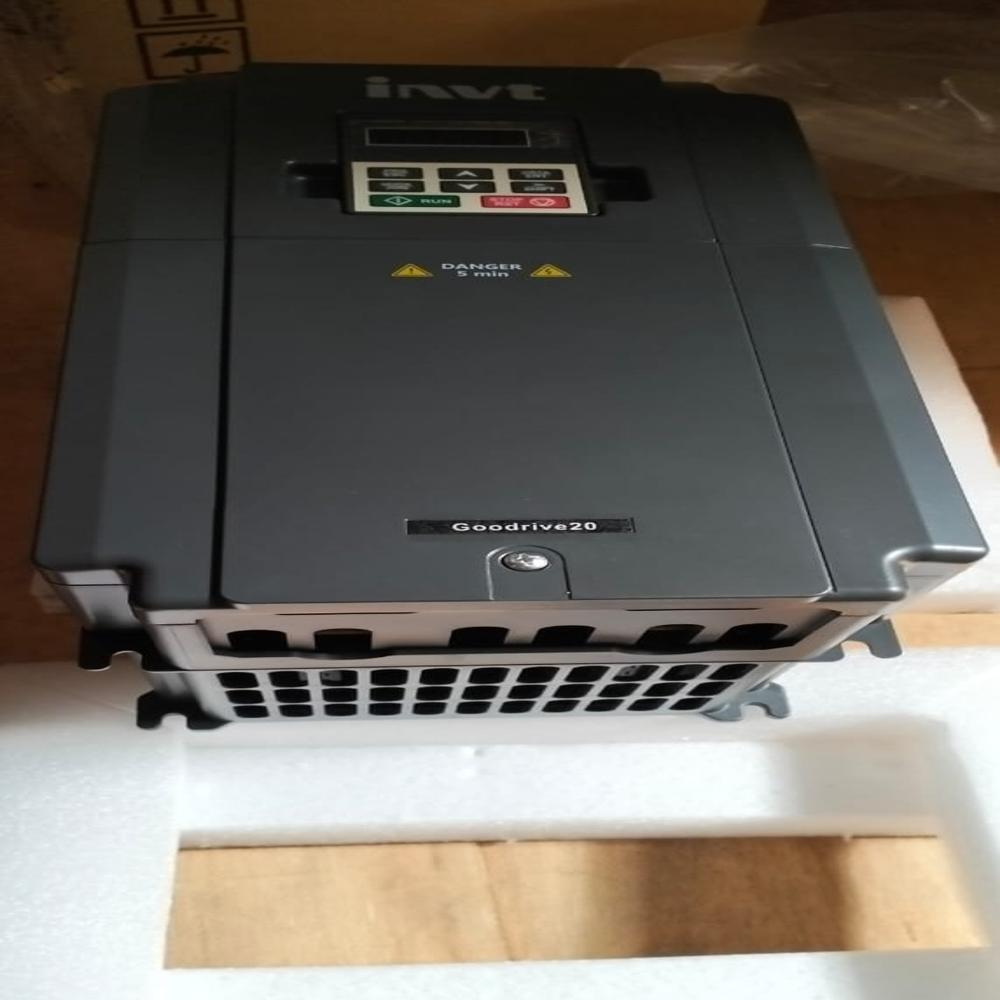

GD20-030G-4-F3 - INVT VFD 30 kW / 40HP 415V

Name: GD20-030G-4-F3 - INVT VFD 30 kW / 40HP 415V
Brand: Corbital Enterprise
Price: 43900.0 INR
Availability: InStock

Price 43900.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

GD20-030G-4-F3 - INVT VFD 30 kW / 40HP 415V Specification

Feature
Control Performance

IP Rating
20

Humidity %
5% to 95%

Mounting Type
DIN-rail mounting

Power Rating
220V (-15%) to 240V (+10%)

Product Type
VFD

Application
Industrial Machinery

Protection Level
Other

Color
Black

Rated Voltage
220V (-15%) to 240V (+10%) Volt (V)

Usage & Applications
Industrial Machinery

Weight
10.5 Kilograms (kg)

Warranty
1 Year

Input Voltage
220V (-15%) to 240V (+10%) Volt (V)

Phase
3 Phase

Rated Current
220V (-15%) to 240V (+10%) Volt (v)

Features
Integrated Hardware

Material
Plastic

GD20-030G-4-F3 - INVT VFD 30 kW / 40HP 415V Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About GD20-030G-4-F3 - INVT VFD 30 kW / 40HP 415V

The

INVT GD20-030G-4-F3

is a 30 kW (40 HP) Variable Frequency Drive from the Goodrive20 series. As an "-F3" model, it is specifically configured as a Solar Pump Controller, featuring Maximum Power Point Tracking (MPPT) logic to optimize water extraction directly from solar DC power.

Voltage	415V
Brand	INVT
Phase	3 Phase
Phases	Three phase
Running Environment Temperature	-1050 DegreeC Above 40 DegreeC, derate 1% for every additional 1 DegreeC

Physical Specifications

This model uses a larger chassis to accommodate the increased power handling required for 40 HP motors

Height: 15.75 inches (400.0 mm)
Width: 9.84 inches (250.0 mm)
Depth: 7.95 inches (202.0 mm)
Net Weight: Approximately 23.15 lbs (10.5 kg).

Key Performance Features

Power Rating: 30 kW / 40 HP.

Output Current: Rated at 60 Amps.

Solar Optimization: Built-in MPPT logic (99% efficiency), automatic start/stop based on sunlight, and dry-run protection to safeguard the pump if water runs low.

Hybrid Input: Supports both high-voltage DC input from solar panels and 3-phase AC input (380V440V) for grid or generator backup.

Integrated Hardware: Comes standard with a built-in DC reactor (standard for 18.5kW110kW) to improve power factor and an integrated braking unit (standard for models

37kW).
