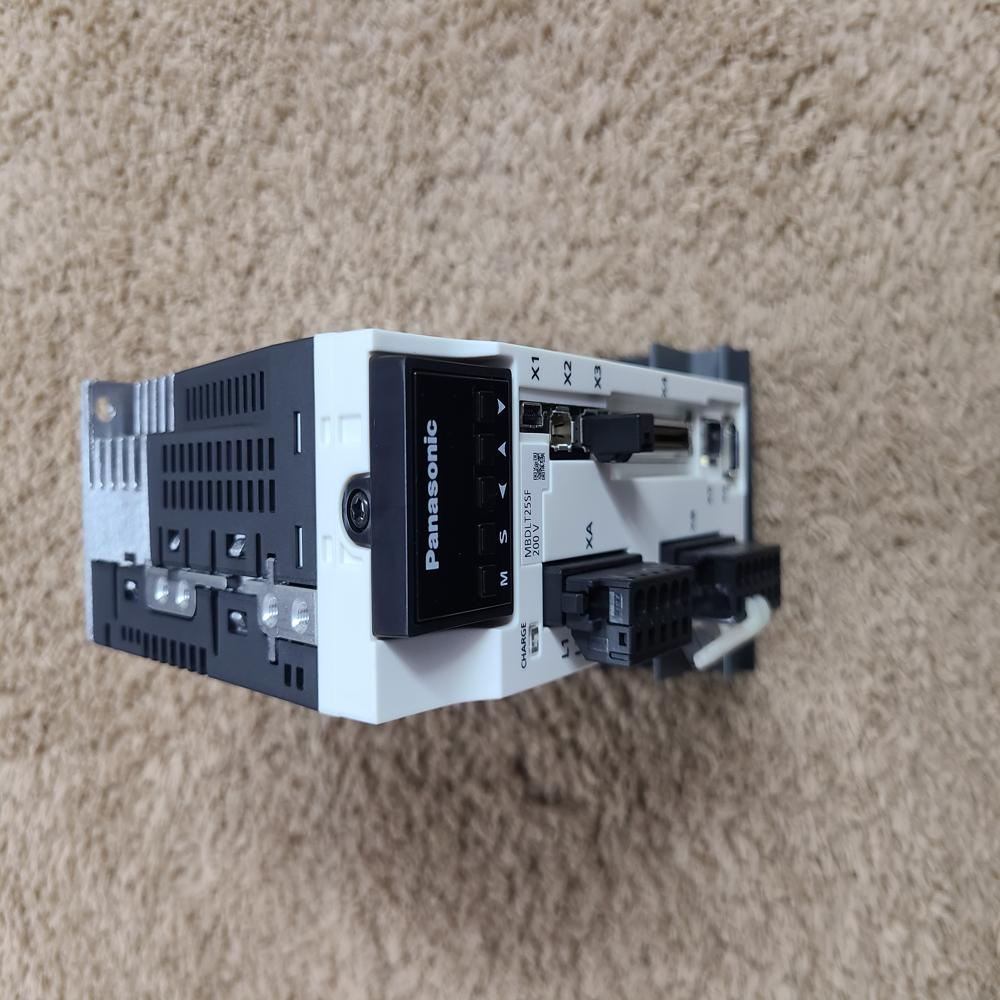

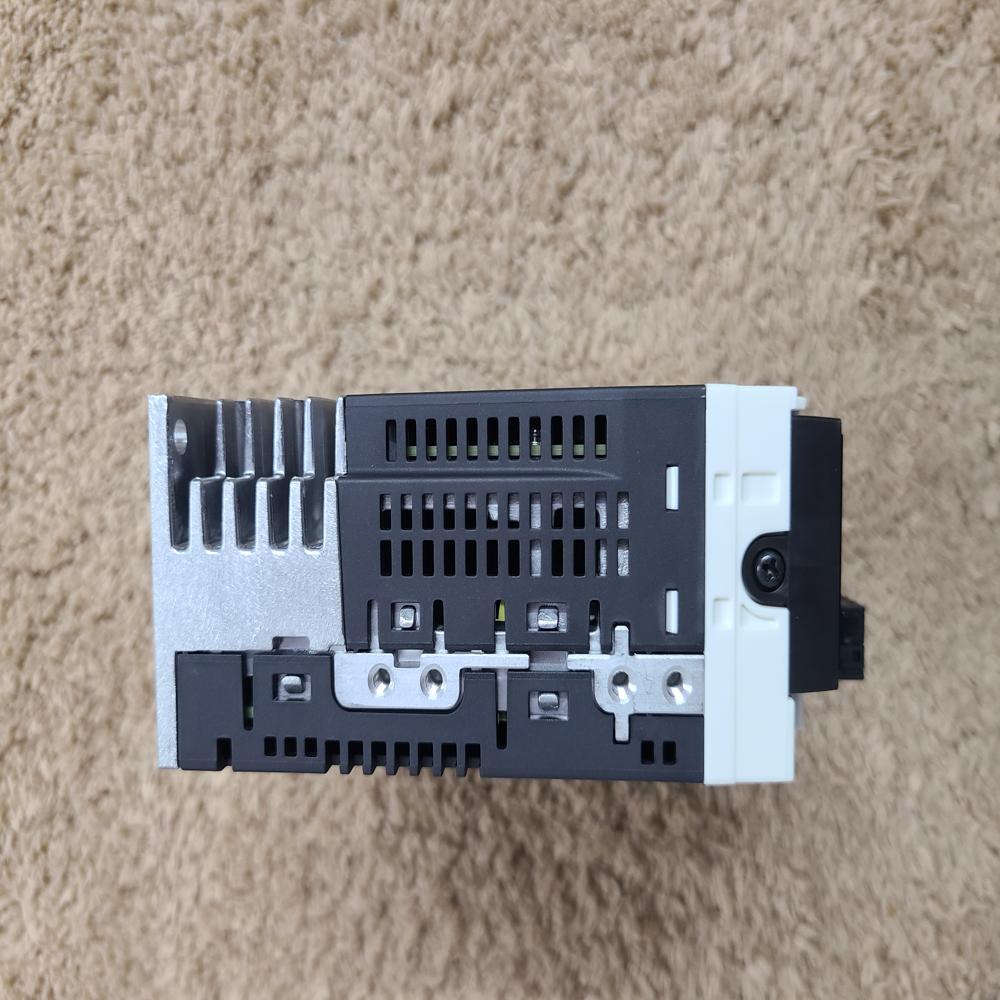

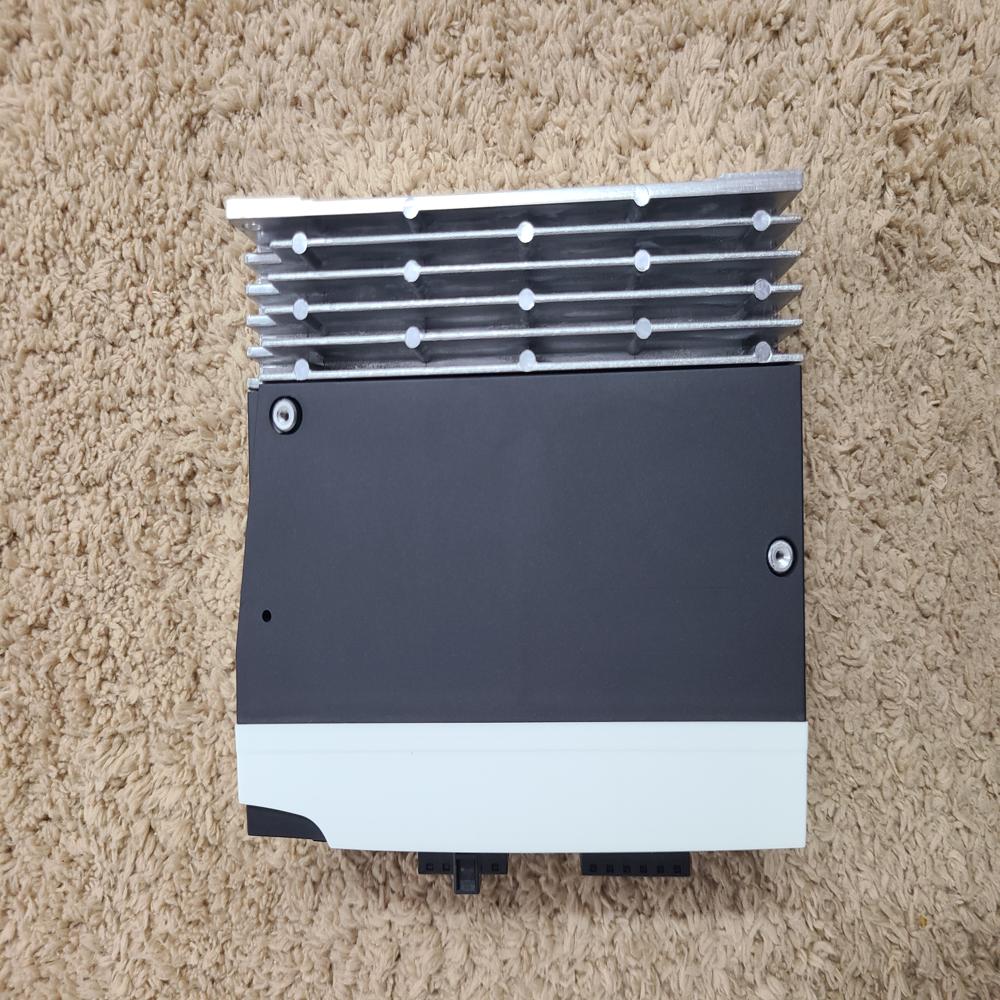

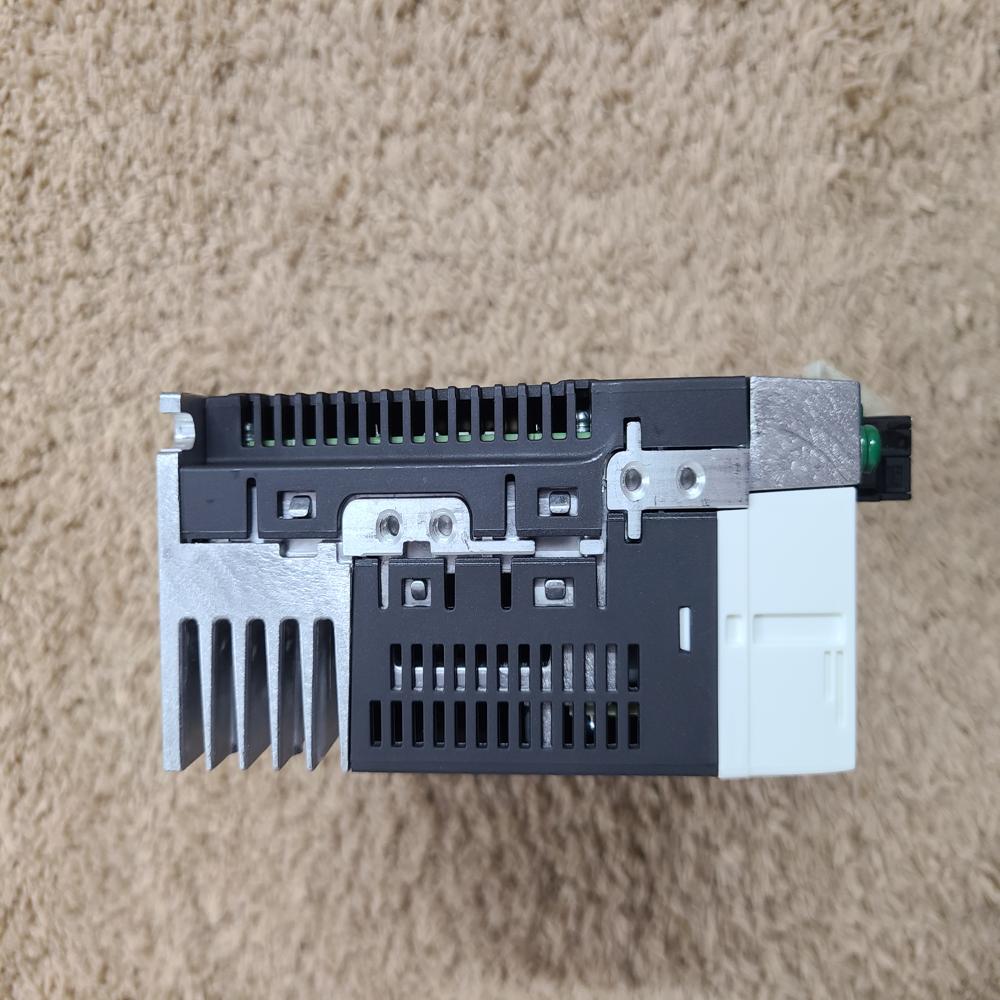

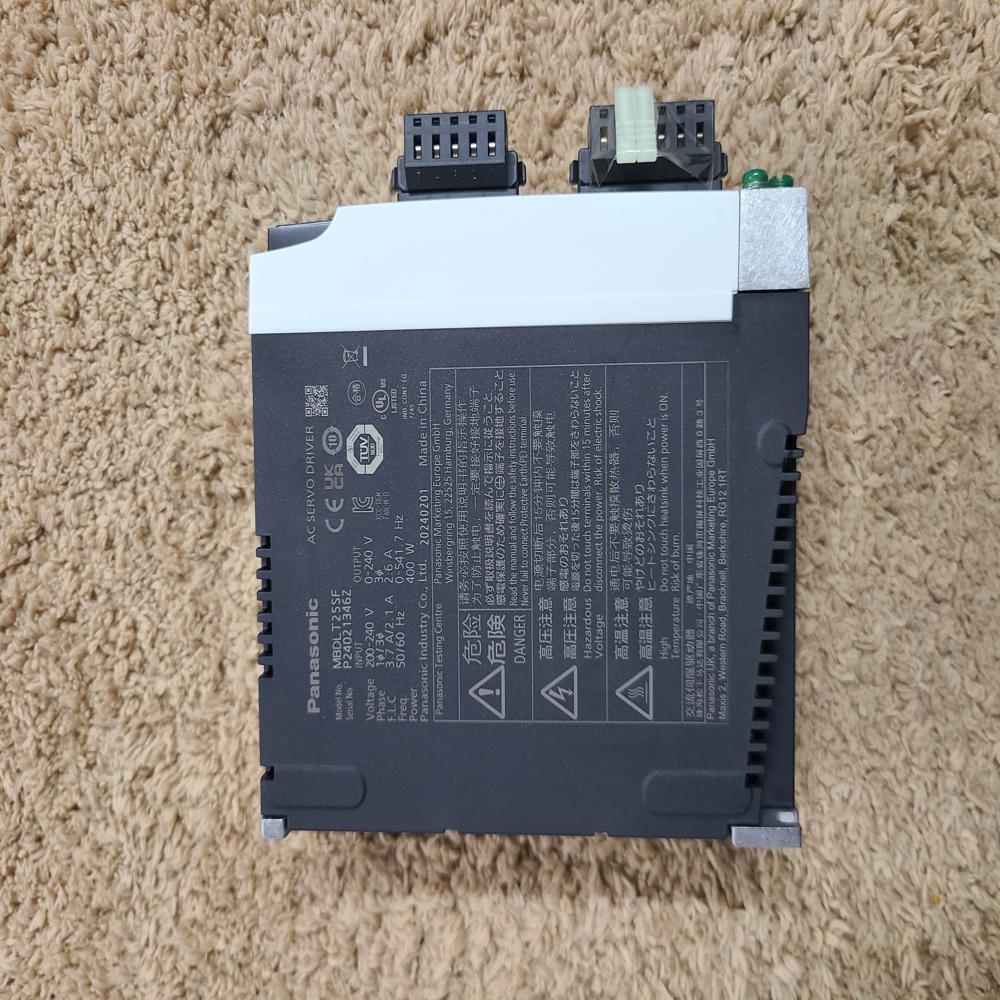

MADLT15SF - A6SF Panasonic A6 200W Driver

About MADLT15SF - A6SF Panasonic A6 200W Driver

Core Functions

1. Multi-Control Motion Control

Supports all main servo control types:

• Position control
• Speed control
• Torque control
• Full closed-loop control

One driver = multiple motion modes

2. Pulse + Analog + Communication Control

It can accept commands from:

• PLC pulse signals
• Analog signals (10V)
• RS485 / RS232 (Modbus communication)

Very flexible for different machine types

3. Full Closed-Loop Feedback

• Works with high-resolution encoder feedback (23-bit)
• Continuously corrects motor position
• Ensures high precision movement

4. High-Speed Motion Response

• 3.2 kHz control response
• Very fast acceleration and stopping
• Smooth and accurate motion

5. Internal Positioning Control

• Can store multiple internal positions (up to 256 points)
• Useful for machines without complex PLC programming

6. Safety Function Support

• Built-in safety functions (like STO depending on system)
• Improves machine safety

Simple Real-World Meaning

Think of it like:

• Driver = brain
• Motor = muscle
• Encoder = feedback sensor

It tells the motor exactly how to move, how fast, and how much force to apply.

Typical Applications

• CNC machines
• Packaging machines
• Robotics
• Textile machines
• General automation systems

  Dimensions (in inches)

  • Width: 1.57 in (40 mm)
  • Height: 5.91 in (150 mm)
  • Depth (Length): 5.12 in (130 mm)

  ---

  Weight

  • 0.8 kg
  • 1.76 lbs

  ---

  Simple Summary

  • Compact industrial servo driver
  • Same size as other A6 100W/200W A-frame drivers
  • Designed for easy panel mounting
  • Lightweight (~1.8 lb)
