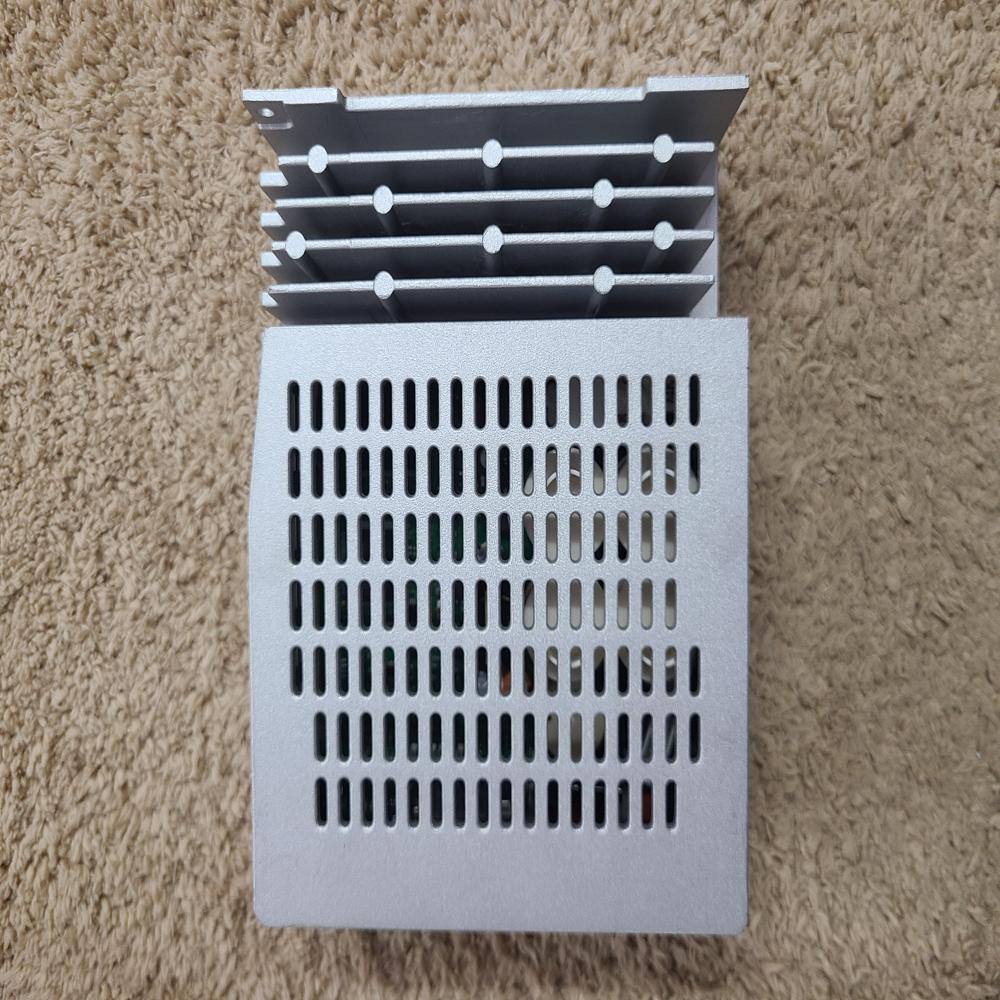

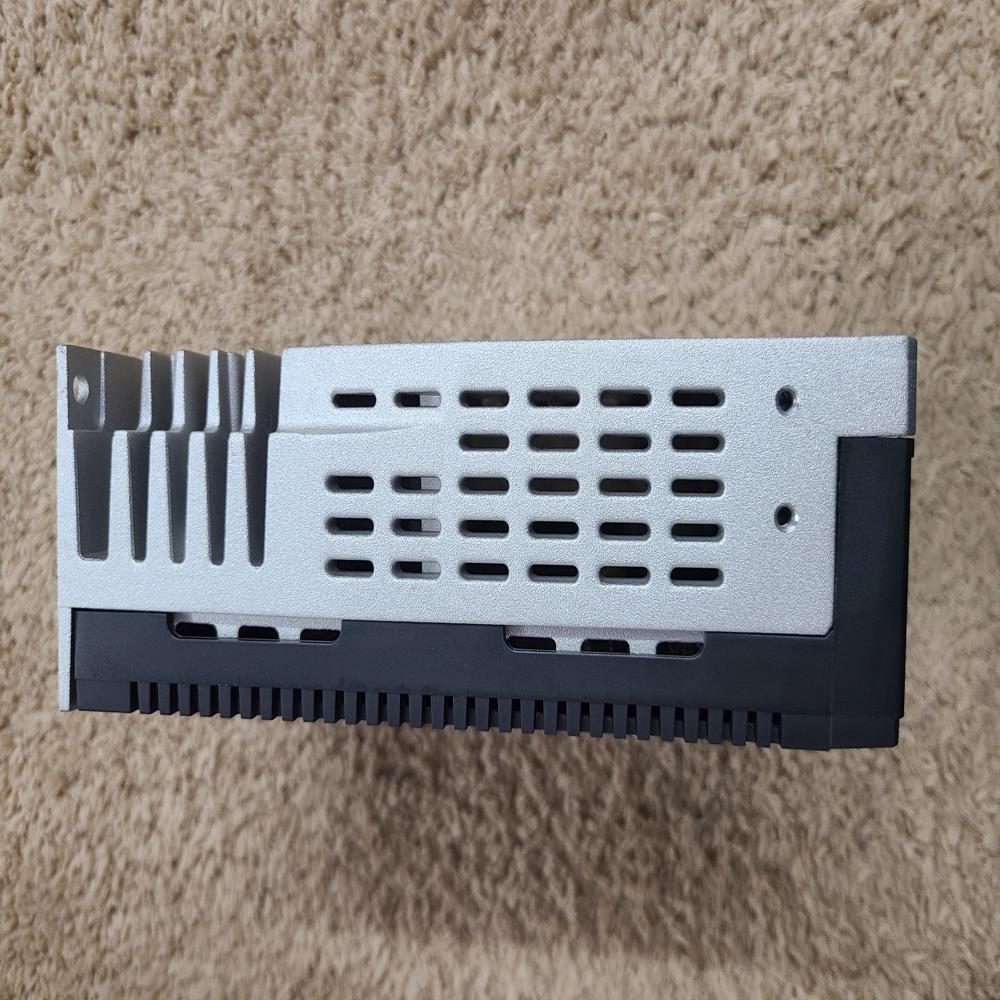

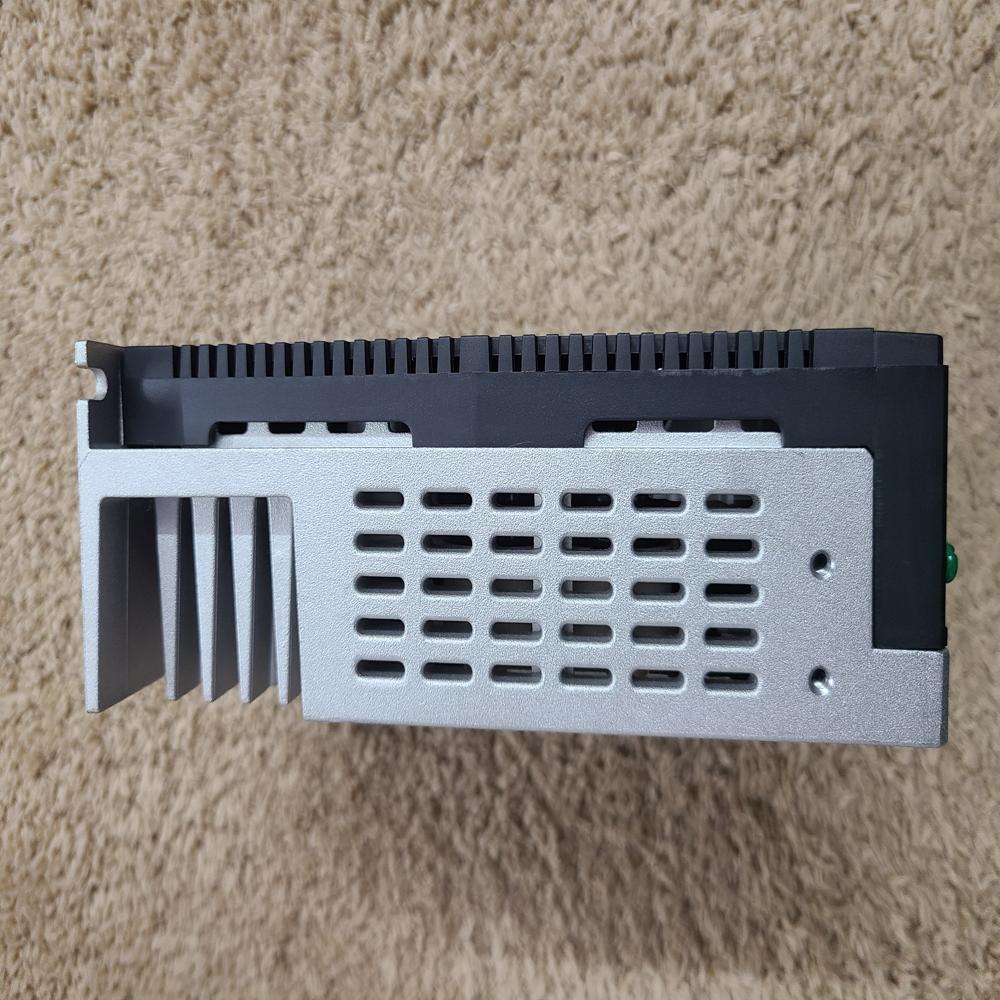

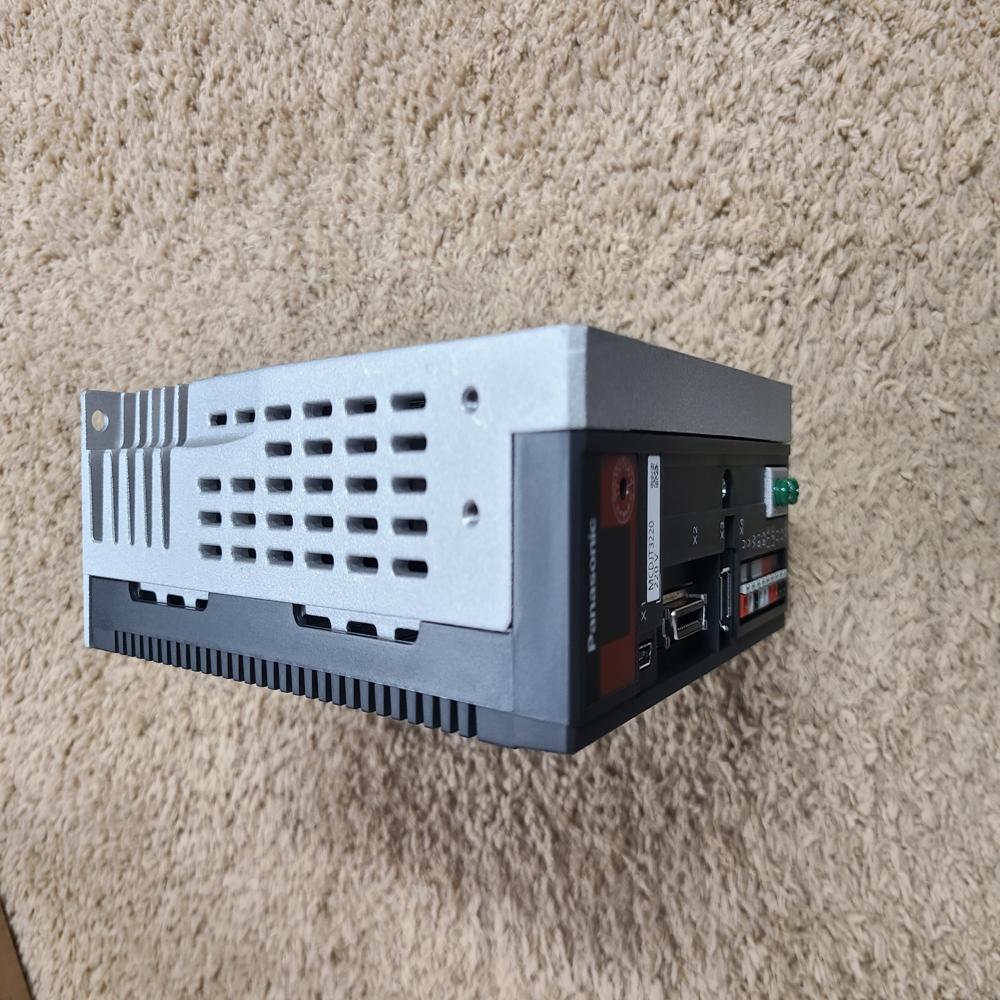

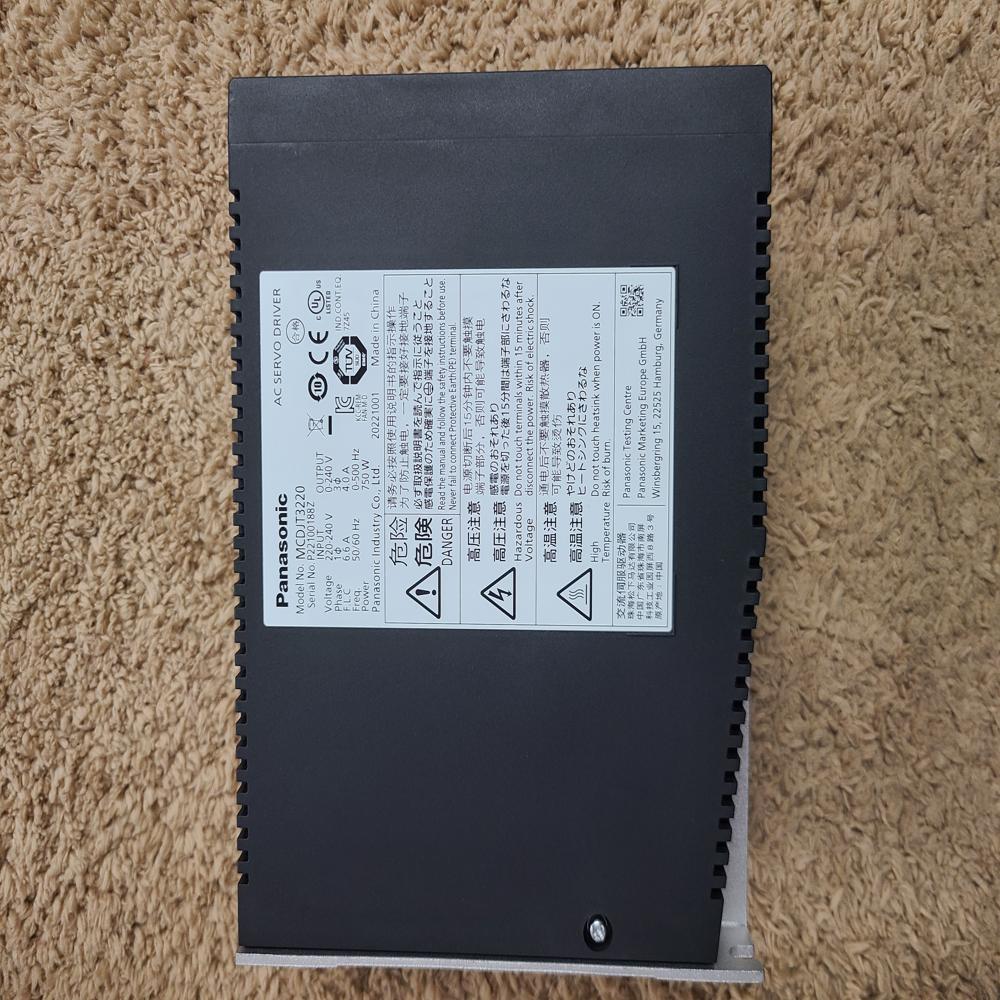

MCDJT3220 - Panasonic Liqi 750W Driver

Name: MCDJT3220 - Panasonic Liqi 750W Driver
Brand: Corbital Enterprise
Price: 24580.0 INR
Availability: InStock

Price 24580.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MCDJT3220 - Panasonic Liqi 750W Driver Specification

Usage & Applications
Industrial Machinery

Color
Black and Silver

Weight
1.6 Kilograms (kg)

Phase
Three Phase

Warranty
1 Year

Material
Industrial Material

MCDJT3220 - Panasonic Liqi 750W Driver Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
24 Hours

About MCDJT3220 - Panasonic Liqi 750W Driver

The

MCDJT3220

is a 750W (1 HP) AC Servo Driver from the Panasonic MINAS LIQI series. It is the specific "brain" paired with the MHMJ082P1U motor, serving as a cost-effective, high-performance controller for simple industrial positioning.

MCDJT3220

Simple and Cost-effective Servo Drive

Support Position Control Mode only

1.0 kHz Velocity response frequency

500 kHz Input pulse frequency

Product category
AC Servo Systems
Partner name
Panasonic
Series name
MINAS LIQI

Attributes

Product
Driver
Watts
750
Communication
W/O Communication

Core Function

The MCDJT3220 converts incoming power and control signals into precise motor movement.

Closed-Loop Positioning: It receives pulse train commands (up to 500kpps) from a PLC and uses feedback from the motor's encoder to ensure microscopic accuracy.
Real-Time Auto-Gain Tuning: This driver automatically calculates the necessary mechanical "stiffness" of your machine. It adjusts its internal parameters on the fly to prevent vibration or overshooting, even if the load weight changes.
Vibration Suppression: Built-in notch and damping filters (range: 50Hz to 5000Hz) eliminate the "humming" or resonance common in high-speed mechanical systems.
Integrated Safety: It features a dynamic brake function to stop the motor quickly and safely during emergency stops or power failures.

Weight & Dimensions in Inches

As a Frame C driver, it is larger than the 200W models to accommodate higher power outputs.

Metric	Inches (approx.)	Millimeters
Height	7.09"	180 mm
Width	2.58"	65.5 mm
Depth	7.09"	180 mm
Net Weight	3.6 lbs	1.6 kg

The primary function of the MCDJT3220 is to serve as the high-power control unit (the "brain") for a 750W servo system. It translates digital pulse signals from a controller into the specific electrical current needed to move the motor with extreme precision and stability.

Key Functional Roles

Precision Position Control: It receives a "Pulse Train" from a PLC. Each pulse represents a tiny movement (e.g., 1/10,000th of a rotation). The driver functions by ensuring the motor moves exactly that amount and holds its position perfectly once it arrives.
Intelligent Auto-Tuning: Its most critical "LIQI series" function is Real-Time Auto-Gain Tuning. It monitors the mechanical resistance of your machine and automatically adjusts the motor's power output. This prevents the machine from shaking or vibrating, even if the weight of the product it is moving changes.
Mechanical Resonance Suppression: It functions to protect your machine's hardware by using built-in filters to eliminate "humming" or high-frequency vibrations. This keeps the operation smooth and extends the life of your belts, gears, and bearings.
Power Management: It takes standard AC wall power (200V240V) and converts it into high-frequency DC pulses for the motor. It manages up to 10 Amps of continuous current to maintain a steady torque of 2.4 Nm.
Safety Supervisor: It constantly monitors the system for errors. If it detects a mechanical jam (Overload), a wiring short (Overcurrent), or an electrical spike (Overvoltage), it functions to instantly cut power to the motor to prevent a fire or mechanical breakage.

Common Use Cases

High-Speed Packaging: Coordinating the movement of heavy boxes on a conveyor belt.
Industrial Labeling: Applying labels to products moving at 3000 RPM with sub-millimetre accuracy.
Automated Filling: Controlling a screw or pump to dispense a exact volume of liquid or powder.

Functional Requirement

To perform these functions, the driver must be connected to a PC via its USB port for initial setup using PANATERM software, where you define the basic limits and direction of the motor.

Enhanced Industrial Performance

Designed for rigorous industrial environments, the Panasonic Liqi 750W Driver delivers exceptional efficiency and stability. With its three-phase compatibility, it supports high-demand machinery, promoting precise motor control and minimal downtime during operations.

Durable and Reliable Construction

Combining black and silver aesthetics with robust industrial-grade materials, this driver ensures longevity and consistent performance. Its 1.6 kg weight allows for convenient installation without compromising strength, making it suitable for continuous use.

Warranty and Trusted Supply

Purchasers enjoy a 1-year warranty, reinforcing Panasonic's commitment to product quality. The MCDJT3220 is available through verified suppliers, traders, and wholesalers, ensuring accessible support and prompt service response.

FAQ's of MCDJT3220 - Panasonic Liqi 750W Driver:

Q: How is the Panasonic Liqi 750W Driver used in industrial settings?

A: This driver is primarily implemented to power and control industrial machinery. Its three-phase design allows it to handle variable loads efficiently, ensuring smooth operation and precise control of motors within large-scale production environments.

Q: What materials are used to manufacture the MCDJT3220 driver?

A: The MCDJT3220 is constructed from high-quality industrial materials, offering robust durability and reliable performance, even under heavy operational stress typical in industrial applications.

Q: When should I consider installing this three-phase driver?

A: You should install the MCDJT3220 when you require a reliable and efficient solution for driving three-phase industrial equipment, particularly where constant operation and longevity are essential.

Q: Where can I purchase the Panasonic Liqi 750W Driver?

A: This product is available through authorized suppliers, traders, and wholesalers who specialize in industrial electrical components. Purchasing from authorized channels ensures warranty coverage and product authenticity.

Q: What is the installation process for the MCDJT3220?

A: Installation involves mounting the driver securely and connecting it to compatible three-phase machinery. It is recommended to have a qualified technician handle the setup to ensure proper operation and adherence to safety standards.

Q: What are the main benefits of using this Panasonic Liqi Driver?

A: Key benefits include enhanced efficiency, stable operation, long product lifespan, and reduced maintenance costs. The 1-year warranty further assures users of dependable support.
