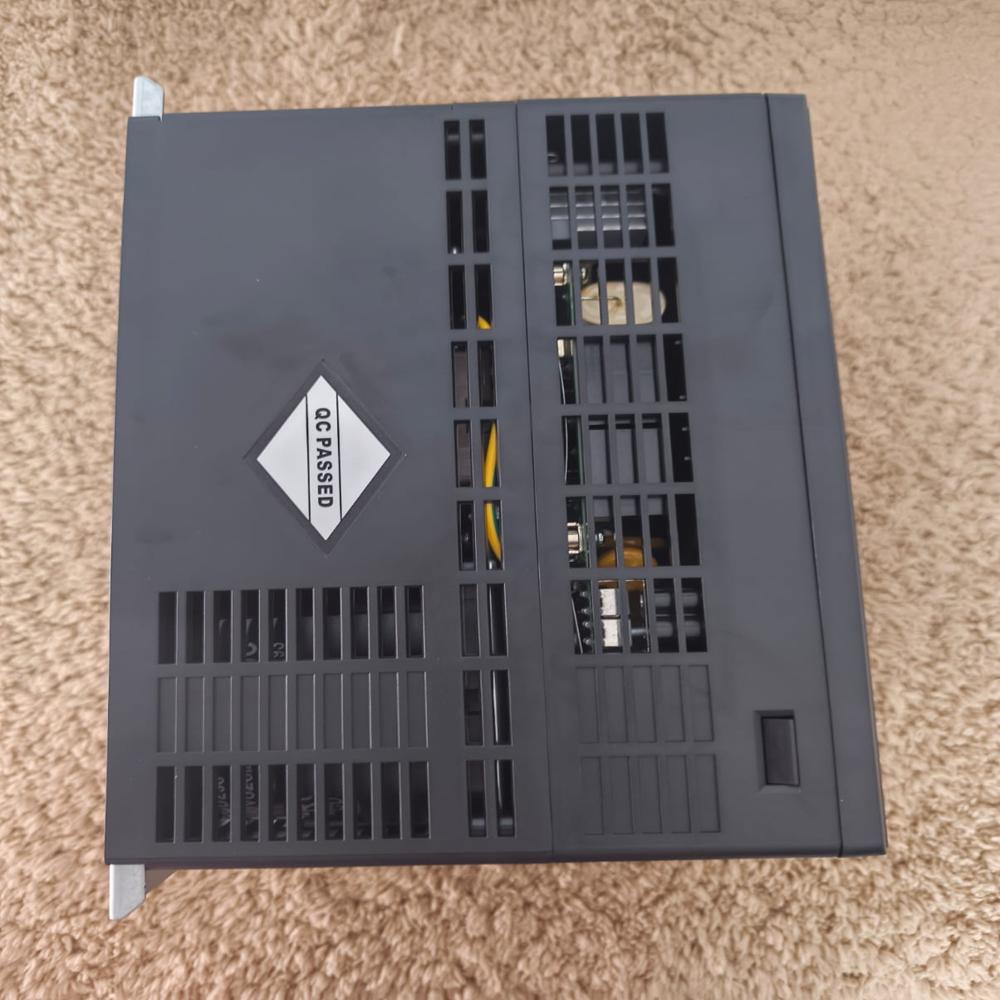

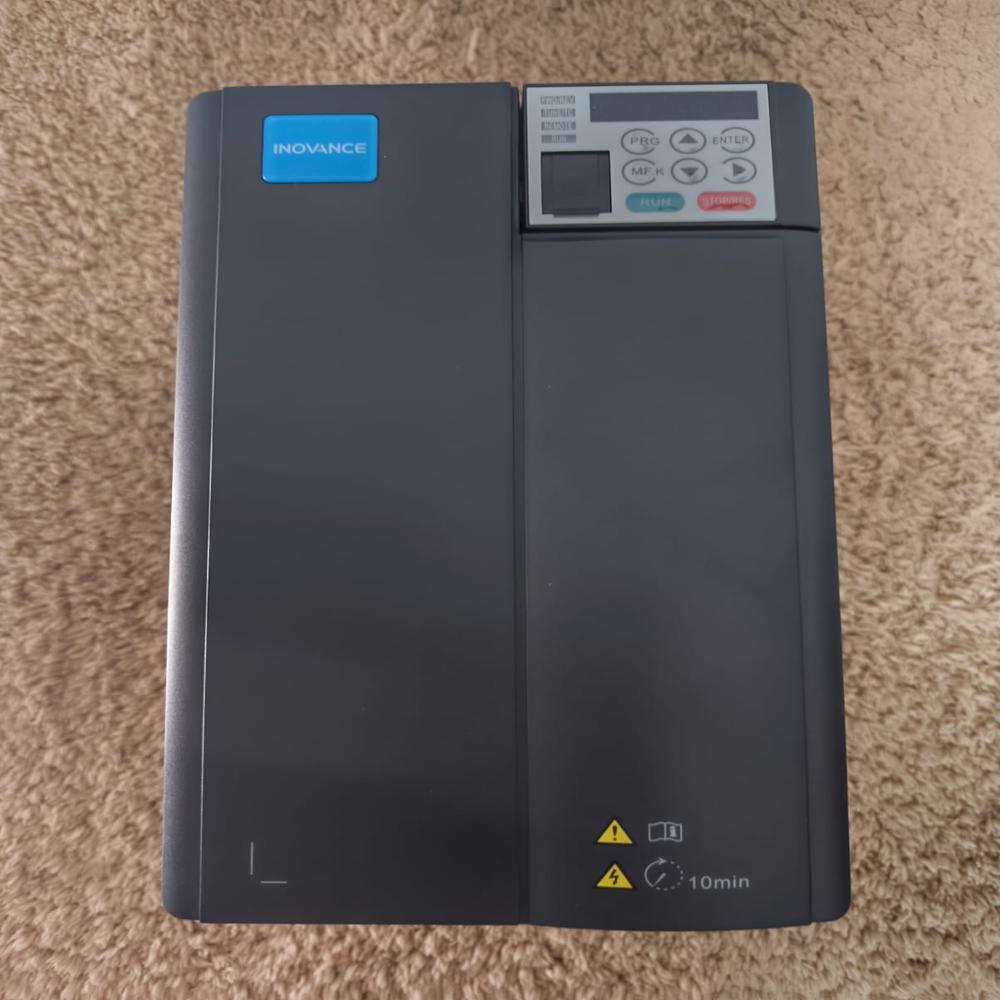

MD2902T7.5GB/11PB-INT AC Drive, Three Phase, 200V to 240kw, 7.5/11kw - Inovance Ac Drive

About MD2902T7.5GB/11PB-INT AC Drive, Three Phase, 200V to 240kw, 7.5/11kw - Inovance Ac Drive

• Voltage Variant Profile: Tailored to operate on Three-Phase 200V to 240V AC networks, utilizing high-efficiency internal power modules engineered for lower mains thresholds.
• Dual-Rating Capability: Adjusts its overload safety profile based on the attached mechanical machine load.
• Heavy Duty Rating (GB): Regulates constant-torque automation machinery up to 7.5 kW (10 HP) with a 150% overload threshold for 60 seconds.
• Normal Duty Rating (PB): Regulates variable-torque machinery (such as centrifugal plant pumps or large ventilation fans) up to 11 kW (15 HP) with a 110% overload threshold for 60 seconds.
• Integrated Braking Unit (B): The B suffix explicitly marks the inclusion of a factory-installed, built-in dynamic braking transistor unit. This enables the direct connection of external braking resistors without additional modules.
• Control Platform: Features general-purpose open-loop V/F control backed by automated torque boosting and automated slip compensation. [1, 2, 4, 5]

• Height: 11.02 inches (280 mm)
• Width: 7.09 inches (180 mm)
• Depth (Length): 6.69 inches (170 mm)
• Total Operational Weight: 9.48 lbs (4.3 kg)
