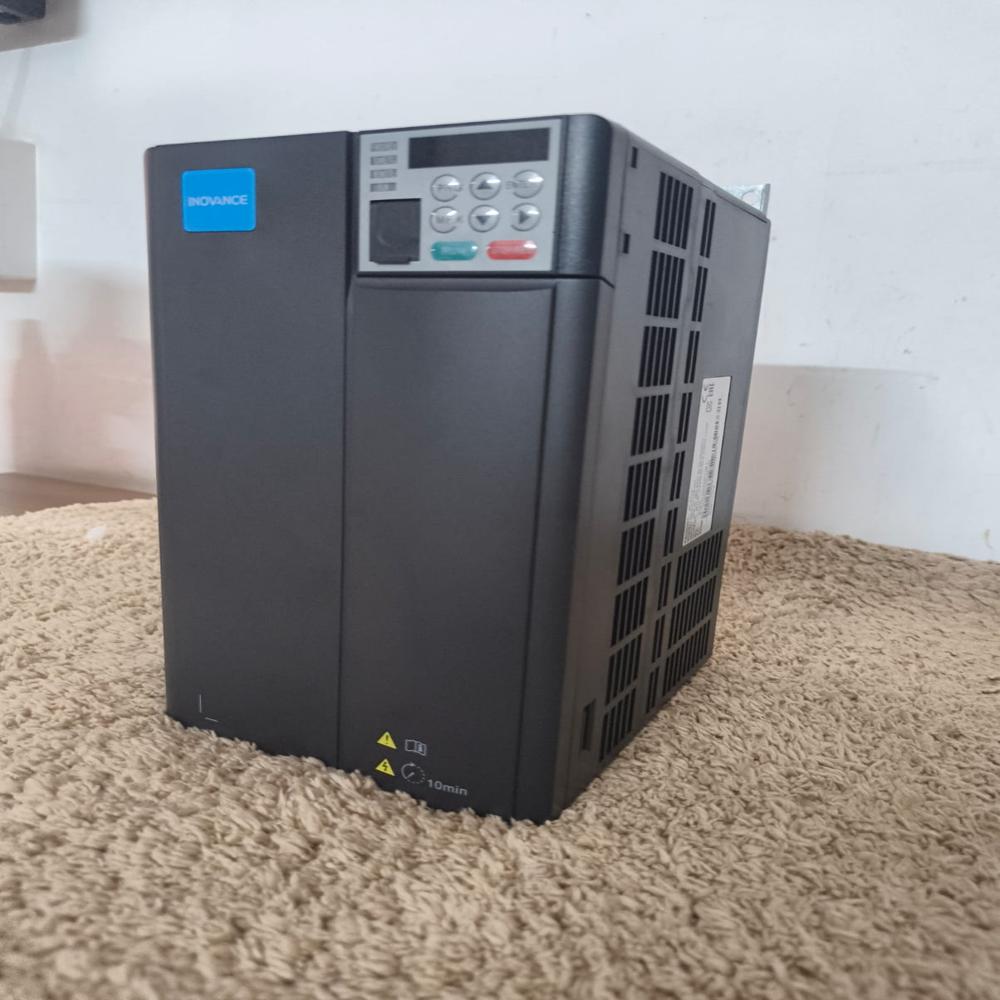

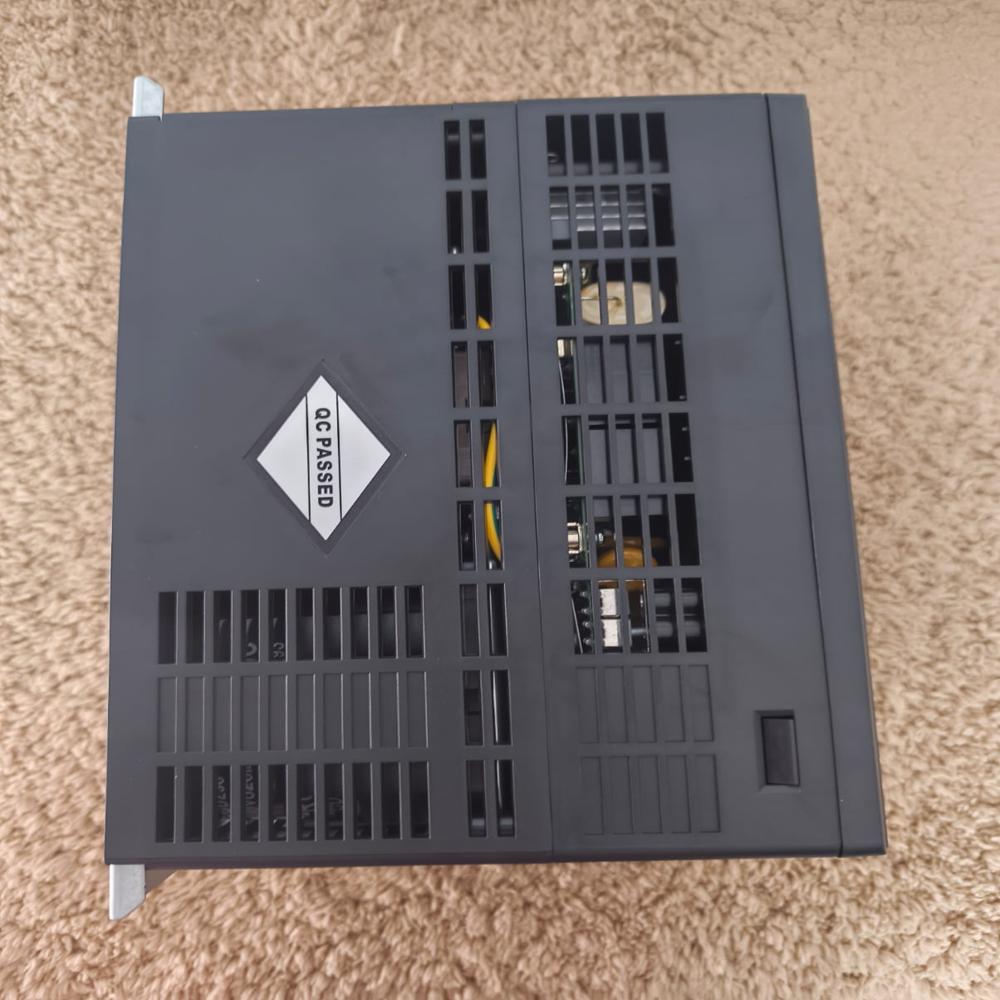

MD310T15B - 20HP - MD310 - 3 Phase - Inovance Ac Drive

Name: MD310T15B - 20HP - MD310 - 3 Phase - Inovance Ac Drive
Brand: Corbital Enterprise
Price: 32000.0 INR
Availability: InStock

Price 32000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

MD310T15B - 20HP - MD310 - 3 Phase - Inovance Ac Drive Specification

Product Type
VFD

Application
Industrial Machinerry

Color
Gray or Black

Usage & Applications
Industrial Machinerry

Weight
3.4 Kilograms (kg)

Warranty
1 Year

Phase
3 Phase

Material
Polycarbonate

MD310T15B - 20HP - MD310 - 3 Phase - Inovance Ac Drive Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About MD310T15B - 20HP - MD310 - 3 Phase - Inovance Ac Drive

The Inovance MD310T15B is the 20 HP (15 kW) high-performance model in the MD310 series. It is designed for heavy-duty 3-phase industrial applications and utilizes the Frame Size 4 chassis, which is the largest standard frame for this specific product line. [1, 2, 3, 4]

Dimensions & Weight

This model shares the same footprint as the 15 HP unit, making it easy to upgrade power within the same panel space.

Specification	Metric Value	Inch Value (Approx.)
Height	298 mm	11.73 in
Width	180 mm	7.09 in
Depth	176 mm	6.93 in
Weight	3.4 kg	7.50 lbs

Key Technical Specifications

Rated Power: 15 kW (20 HP).
Rated Output Current: 32.0 A.
Input Voltage: 3-Phase 380 V to 480 VAC.
Overload Capacity: 150% for 60 seconds; 180% for 2 seconds.
Braking: Includes a built-in dynamic braking unit (Chopper) as standard. [1, 2, 3, 4, 5]

Key Functions

Control Performance: Sensorless Vector Control (SVC) provides a high starting torque of 150% at 0.25 Hz, suitable for heavy-start machinery like crushers or large mixers.
Built-in Logic: Includes a Simple PLC function and PID control, allowing the drive to handle basic automation tasks independently.
Rugged Construction: Features the standard Class 3C3 conformal coating, ensuring reliability in humid or dusty industrial environments.
Communication: Standard Modbus-RTU and CANlink ports for network integration. [1, 2, 3, 4]
